Small U copper tube bender
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
I Description:

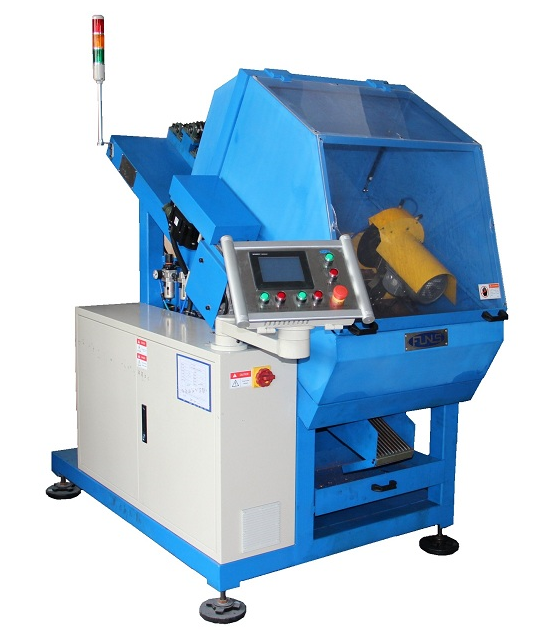

This machine is specially designed for decoiling, straightening, bending and cutting coil copper tubes into small U and C shapes, used in air conditioners and heat exchangers.
This machine is comprised of decoiler, straightening device, bending & cutting device, unloading device, hydraulic system, pneumatic system and PLC control system.
II Main technical data
Item
Data
Suitable copper tube material
TP2
Suitable copper tube reel size
Max. weight 180kg
Max. OD: Ф1100mm; ID: Ф130mm
Suitable copper tube diameter
Φ9.52mm / Φ12.7mm
Min. bending radius
ф9.52: R12.7mm / Φ12.7: 19.2mm
Copper tube numbers
Max. 5 pieces (for 9.52 tube only)*
Production speed
U height error
±0.5mm
Length error between two ends
Less than 0.5mm
Radius error
±0.5mm
Center distance error between two ends
±0.1mm
Straightness error
Curvature ≤3mm @L=1000mm
Flattening ratio at tube ends
Less than 5%
Thinning ratio at loop area
Less than 30%
Burr height at two ends
Less than 0.2mm
Finishing quality
No wrinkle, scratch, crack, dimple, bulge
Total electric power
5kW
* For 1/2” tube, max. three tubes will be bent simultaneously.
III Main configuration
-- PLC & HMI: Mitsubishi from Japan
-- Servo motor and driver: Mitsubishi from Japan
-- Circuit breaker: FUJI from Taiwan
-- Buttons: SCHNEIDER from China
-- Pneumatic components: AIRTAC from Taiwan
-- Hydraulic components: Famous brands from Taiwan
