About this product
- Materials: Shape steel, rubber roller,stainless steel
- Size: 18000x4000x3500
- Color: white, bule,silver or customized colour.
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Shape steel, rubber roller,stainless steel
- Size: 18000x4000x3500
- Color: white, bule,silver or customized colour.
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Shape steel, rubber roller,stainless steel |
|---|---|
| Size | 18000x4000x3500 |
| Color | white, bule,silver or customized colour. |
Product details
| Materials | Shape steel, rubber roller,stainless steel |
|---|---|
| Size | 18000x4000x3500 |
| Color | white, bule,silver or customized colour. |
From the supplier

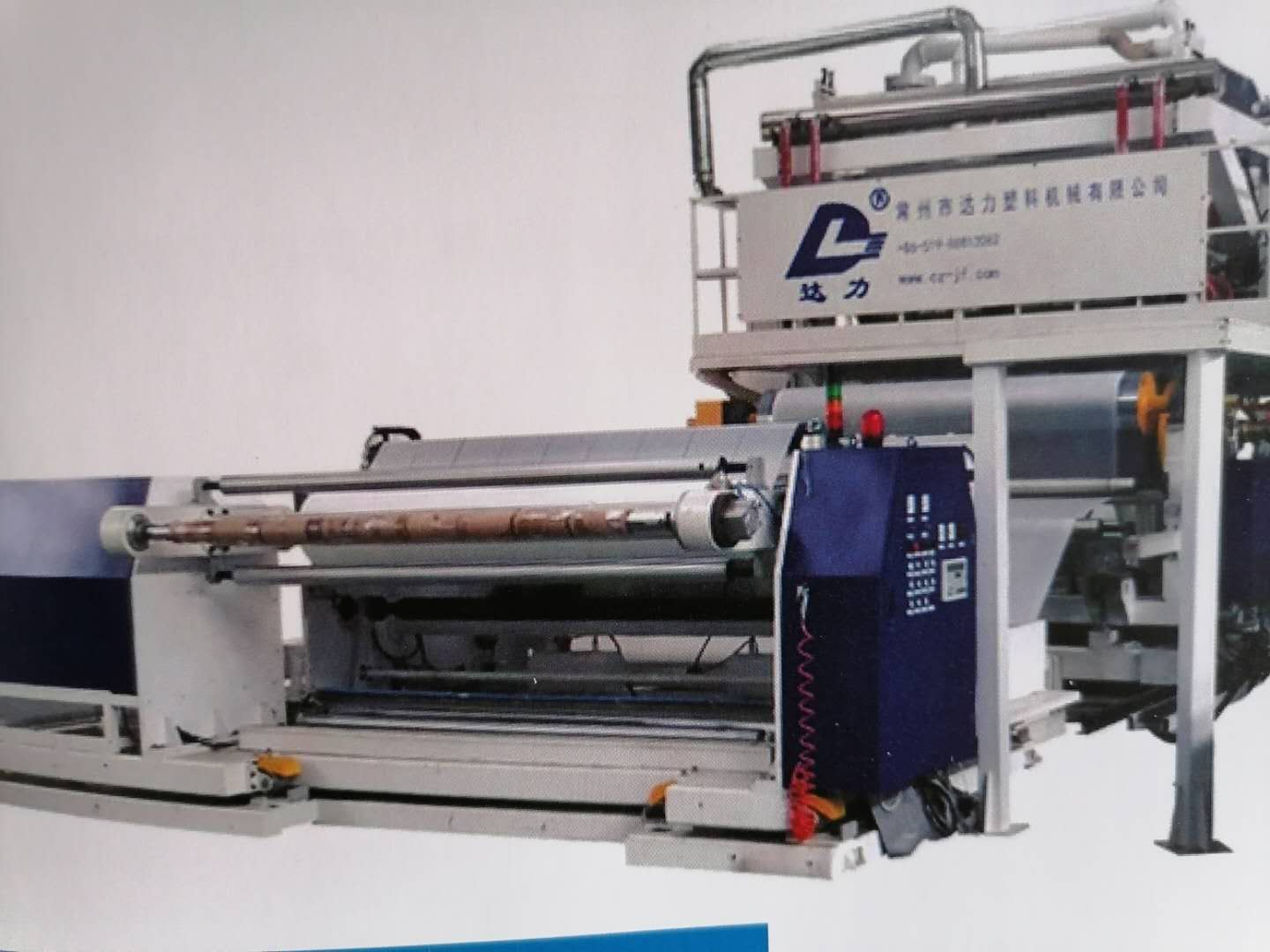

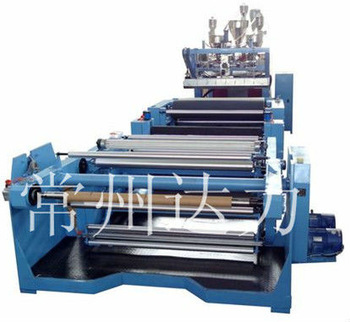

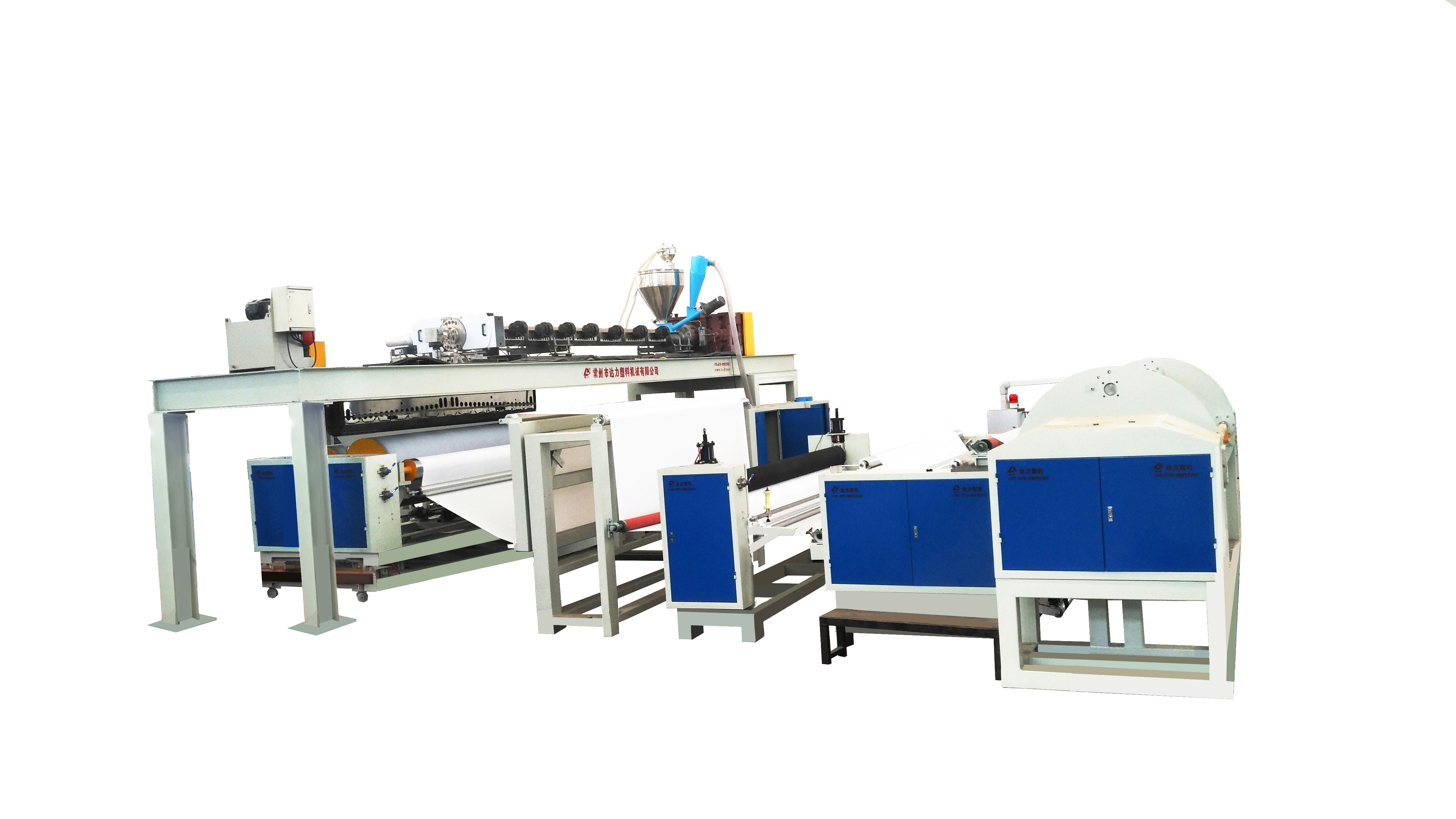

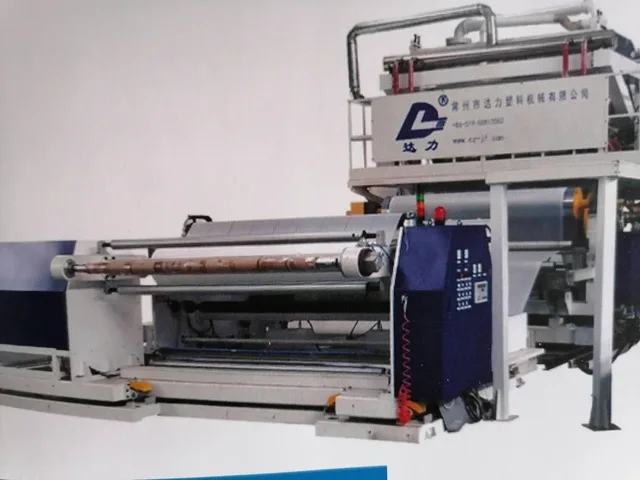

Single/ Multi-layer Casting Film Production line
The machine unit is a cast stretch film production line with high plasticizing,easy operation,long life,energy saving features and it is modified and designed based on the years’ experience of the cast equipment manufacturing and the production experience from the customer’s,combined with the advanced technology from oversea,the machine group is mainly for the production of LLDPE film,LDPE film,PE film,CPE film etc..
The installation of swing system on the subsidiary machine can enhance the evenness and appearance of the film rolls which make the products more competitive.

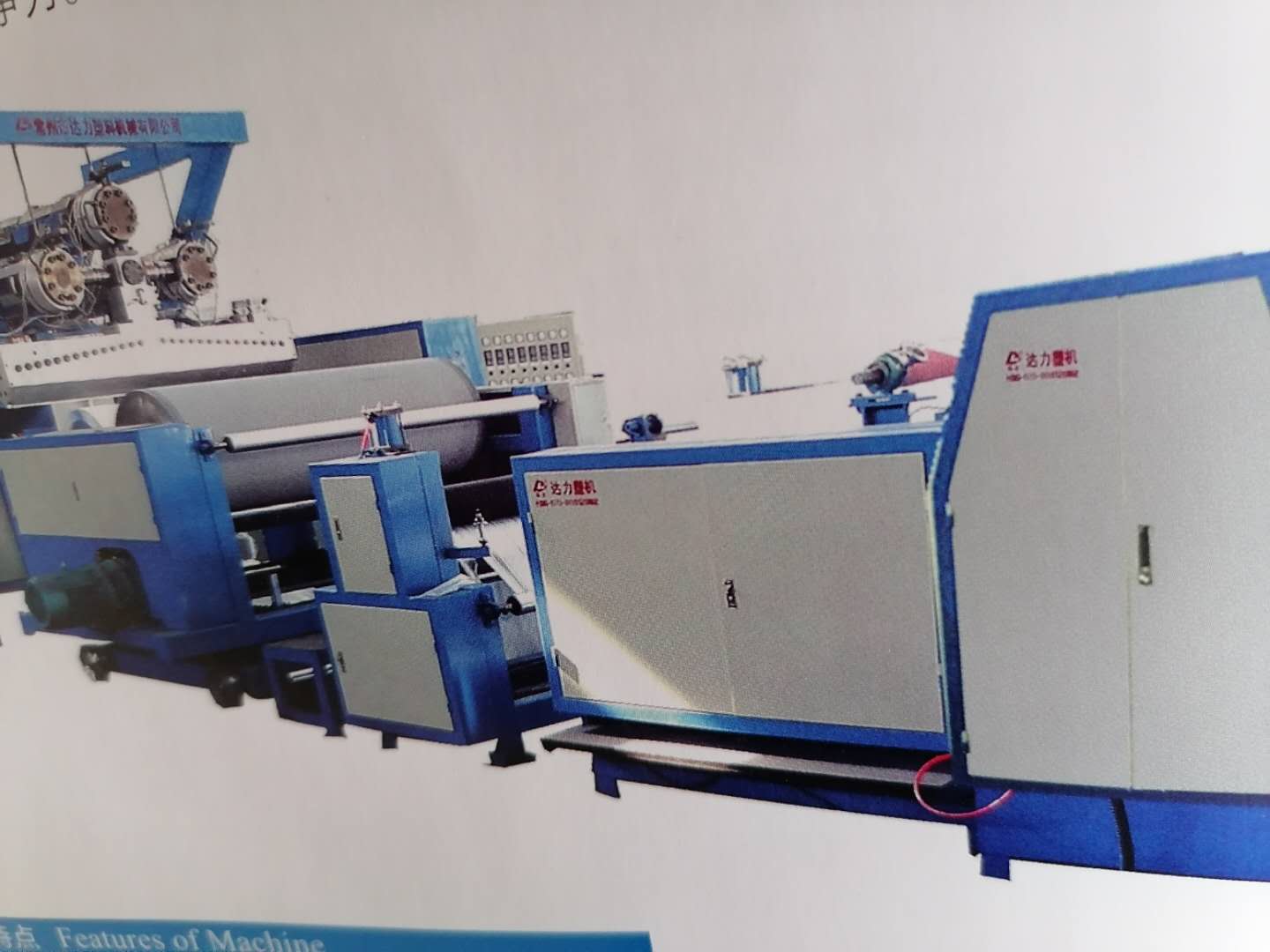

Features of Machine
1. The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc..
2. With double-station automatic winder and tension control system, winding process is stable, precise and automatic.
3. Automatic recycle system for collecting and recycle the off-cut from production on line.
4.Automatic knife, automatic cutting, automatic roll changing, safe and convenient operation.
Film Application
1.Different kinds of table cloth, gloves, shoe cover, apron, shower curtain, dust cover for clothes, rain coat, umbrella, dust cover for furniture and home textile etc..
2.Base film for sanitary napkin, baby diaper, and pet pad, disposable bed sheet and medical protective coat,plastic bags.
Detailed parameters:
Model
Model
DL-1400
DL-1600
DL-1800
DL-2100
DL-2400
DL-2800
DL-3000
Screw Diameter
Screw Diameter
Φ80--Φ135
Screw L/D ratio
Screw L/D
28:1--38:1
Product Width (mm)
Working width(mm)
1100
1300
1500
1800
2100
2500
2700
Product Thickness (mm)
Thickness(mm)
0.01-0.2
Layer Structure
Layer Structure
A/AB/ABC/ABA
Roller Cooling Method
Cooling method
Circulation water cooling
Circulating water cooling
Edge Scrap Recovery Method
Edge trimming recycling type
Automatic Recovery to Screw for Reuse
Automatic blowing to screw for recycling
Winding Method
Winding type
Three-Roll Friction Winding/Dual-Station Disc Flip Auto Winding
Three rollers friction winding/Double-station round style turret winding
The machine can be designed and manufactured according to the customer’s requirement
From the supplier
Single/ Multi-layer Casting Film Production line
The machine unit is a cast stretch film production line with high plasticizing,easy operation,long life,energy saving features and it is modified and designed based on the years’ experience of the cast equipment manufacturing and the production experience from the customer’s,combined with the advanced technology from oversea,the machine group is mainly for the production of LLDPE film,LDPE film,PE film,CPE film etc..
The installation of swing system on the subsidiary machine can enhance the evenness and appearance of the film rolls which make the products more competitive.
Features of Machine
1. The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc..
2. With double-station automatic winder and tension control system, winding process is stable, precise and automatic.
3. Automatic recycle system for collecting and recycle the off-cut from production on line.
4.Automatic knife, automatic cutting, automatic roll changing, safe and convenient operation.
Film Application
1.Different kinds of table cloth, gloves, shoe cover, apron, shower curtain, dust cover for clothes, rain coat, umbrella, dust cover for furniture and home textile etc..
2.Base film for sanitary napkin, baby diaper, and pet pad, disposable bed sheet and medical protective coat,plastic bags.
Detailed parameters:
Model
Model
DL-1400
DL-1600
DL-1800
DL-2100
DL-2400
DL-2800
DL-3000
Screw Diameter
Screw Diameter
Φ80--Φ135
Screw L/D ratio
Screw L/D
28:1--38:1
Product Width (mm)
Working width(mm)
1100
1300
1500
1800
2100
2500
2700
Product Thickness (mm)
Thickness(mm)
0.01-0.2
Layer Structure
Layer Structure
A/AB/ABC/ABA
Roller Cooling Method
Cooling method
Circulation water cooling
Circulating water cooling
Edge Scrap Recovery Method
Edge trimming recycling type
Automatic Recovery to Screw for Reuse
Automatic blowing to screw for recycling
Winding Method
Winding type
Three-Roll Friction Winding/Dual-Station Disc Flip Auto Winding
Three rollers friction winding/Double-station round style turret winding
The machine can be designed and manufactured according to the customer’s requirement
