Loading (unloading) skid

Skid mounted oil delivery platform:

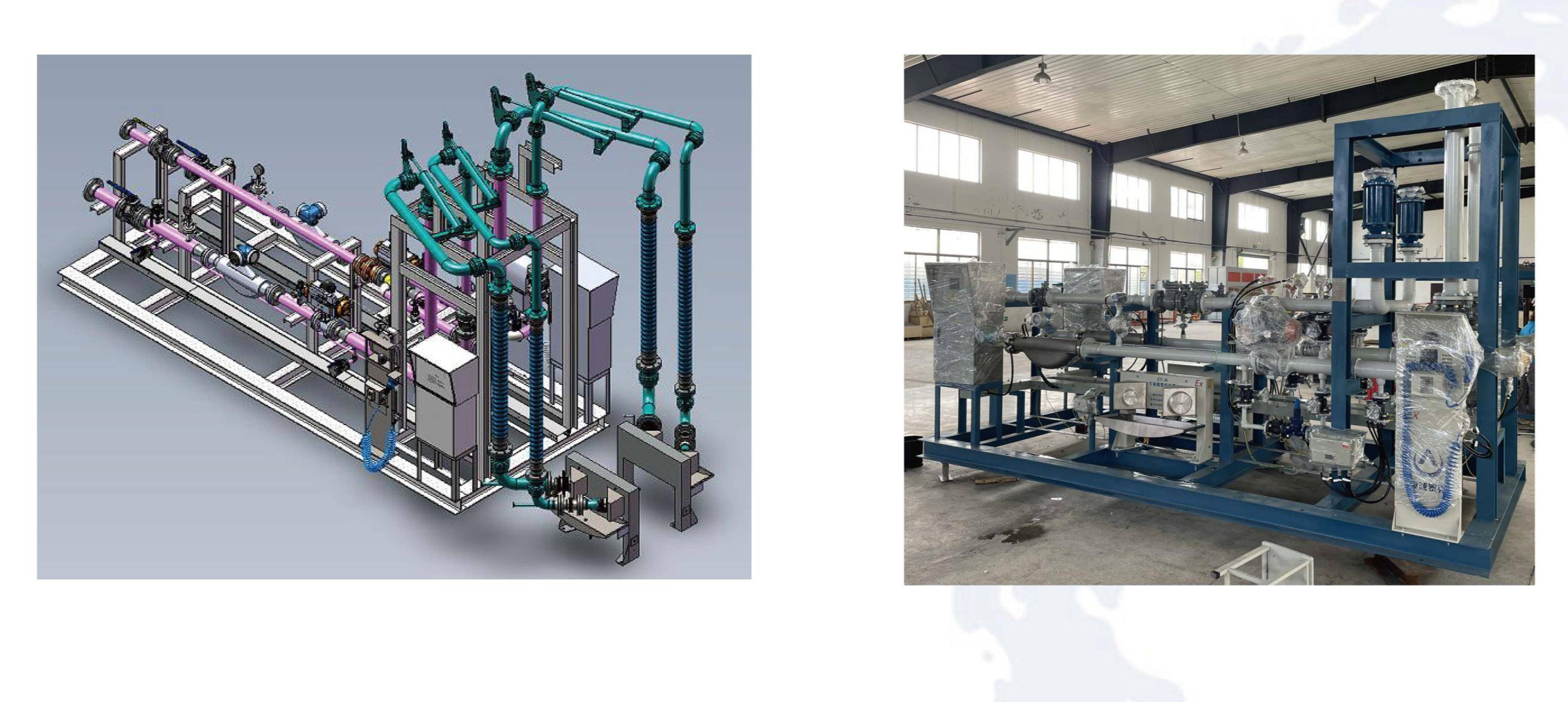

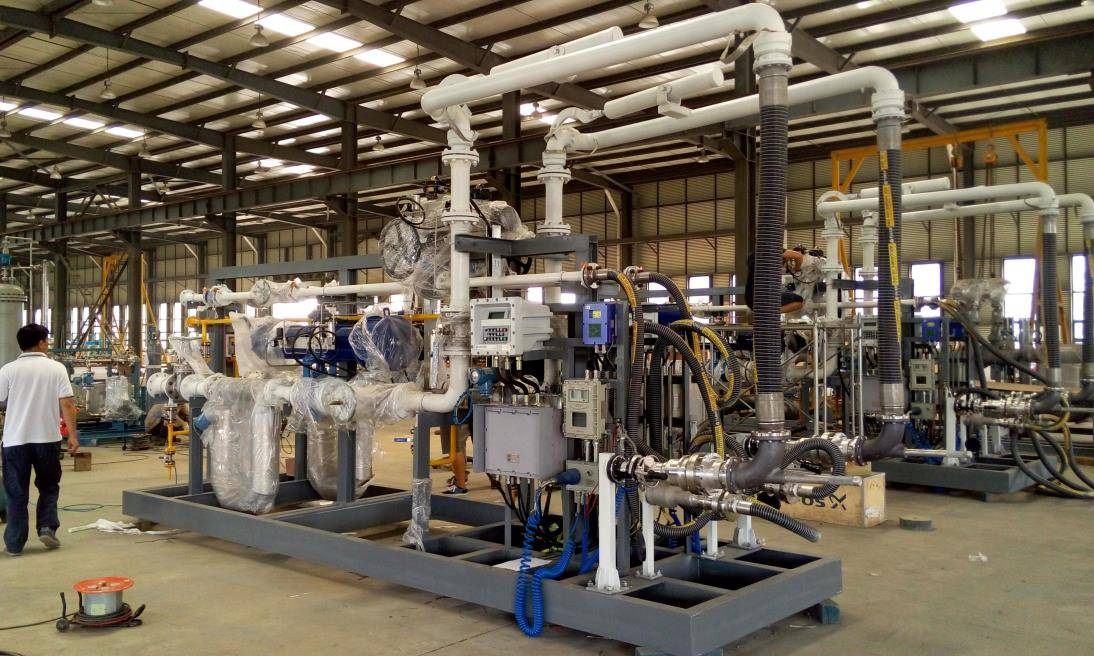

A loading skid-mounted oil dispensing device belongs to the field of fluid transportation. Making an automobile oil delivery platform in the open air on site has a long construction period and difficult to ensure the quality. The process valves, oil pump, getter filter, flowmeter, automatic valve, and loading crane pipes required for the oil delivery platform are fixed in a skid frame in the sequence connection well, and then the gas phase return pipe is fixed on the skid frame. At the corresponding position to the loading crane pipes, the loading crane pipes are assembled and manufactured into a loading skid oil delivery device, which changes open-air field construction into factory manufacturing, which can greatly shorten the construction period and ensure quality.

Characteristics and advantages of loading skid:

1. Mobile, flexible, small size skid equipment is generally optimized in the factory to minimize space occupation, so it is small in size, and the skid is integrated into a whole, making it relatively convenient to move, configure, etc., so it is easy to move and move.

2. High integration ratio, easy installation and maintenance. The loading skid integrates controllers, flow meters, valves, pipelines, auxiliary equipment, crane pipes, intermediate connections, cables, bridges, etc., and only reserves feeding or discharging materials (such as gas phase recovery port) interfaces, which are convenient to install after arriving at the site. Due to the modular design, overall maintenance in the future will be very convenient.

3. Eliminate on-site installation trouble, low cost, and shortened construction period

4. The key component of the skid-mounted bottom-mounted oil delivery platform-the quick self-sealing joint is a high-precision quick self-sealing joint designed and manufactured by introducing advanced foreign technology. It has a unique structure, easy to operate, reliable self-sealing, and the separation leakage is less than the API Rp1004 standard requirements of the American Petroleum Institute. The skid-mounted bottom-loading oil delivery platform can be transported to the project site at any time, installed and put into operation. It is convenient and fast. The products are pre-installed and debugged by the factory to ensure the minimum amount of on-site commissioning workload.

5. The multifunctional, high-precision and high-reliability oil delivery control system designed with intelligent programming can realize functions such as single-channel quantitative delivery, multi-channel quantitative delivery, proportional allocation, precision self-calibration and timely temperature compensation of oil delivery; Ensure the accuracy of oil delivery. Touch keyboard input function makes operation more convenient. Complete safety systems such as electrostatic oil spill alarm system and emergency shutdown system make the oil delivery platform work stably and reliably. Standard piping and wiring systems are fully suitable for use in Class I hazardous areas
