Product details
| Materials | Cast Iron |
|---|
From the supplier

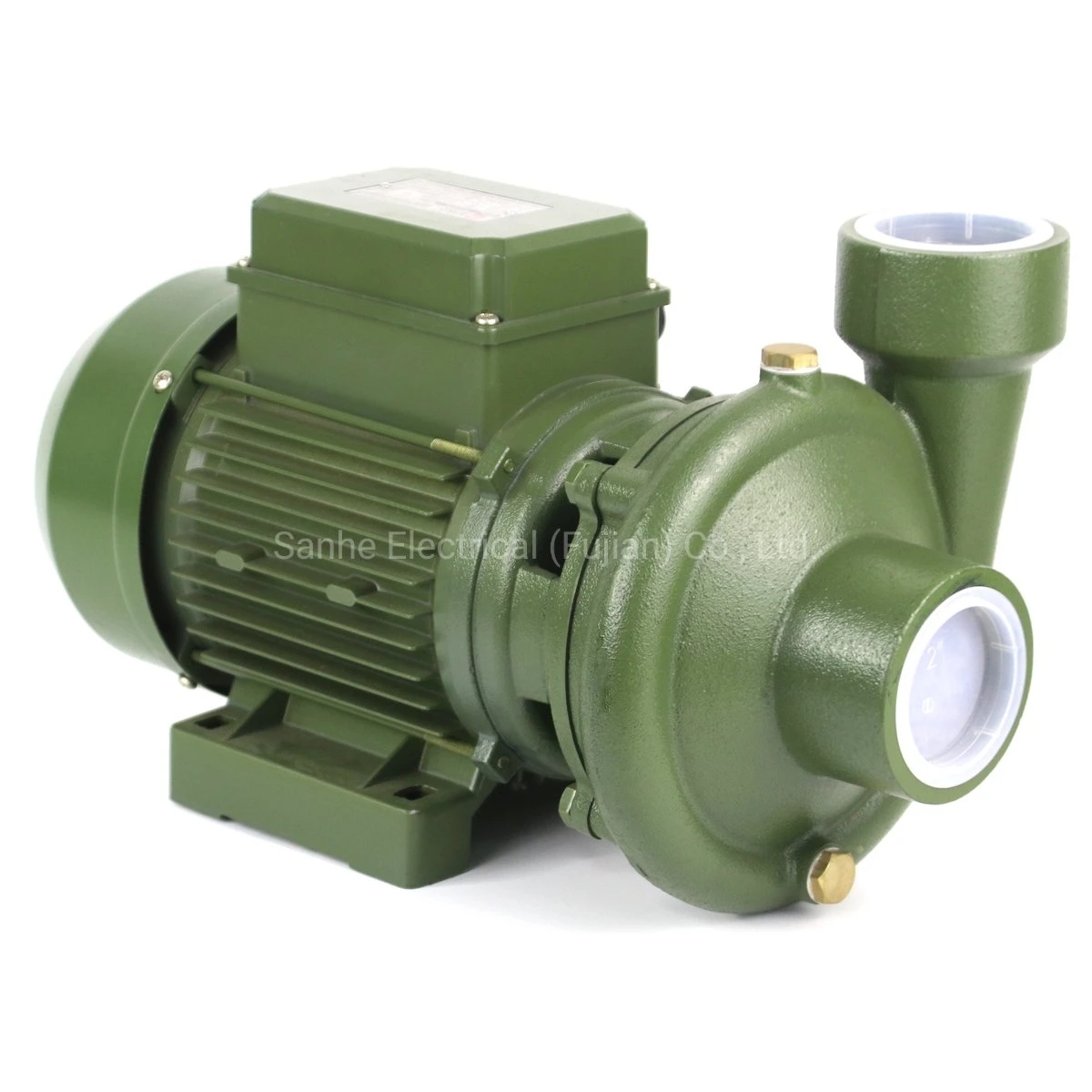

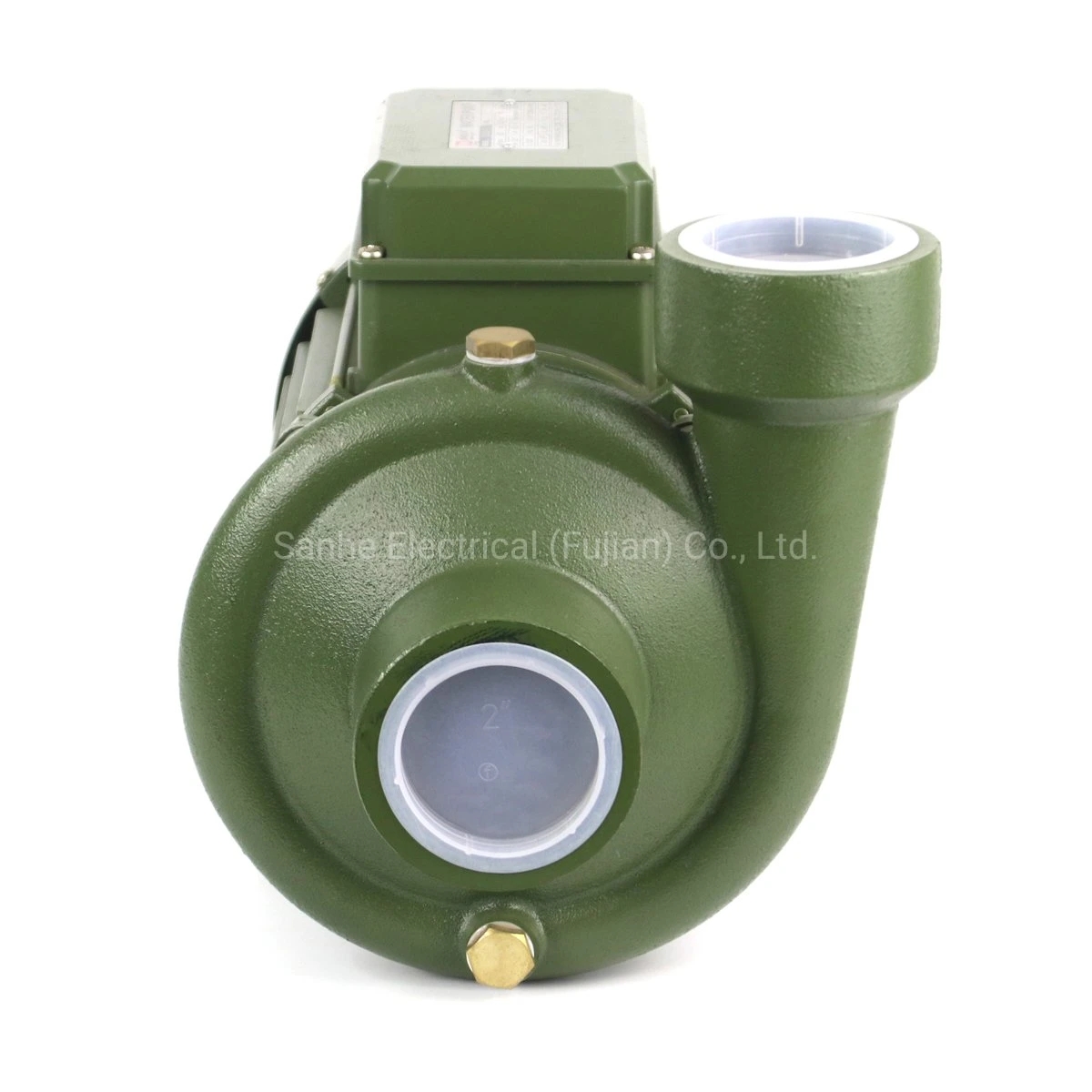

S200 SERIES CENTRIFUGAL PUMP
CONSTRUCTION FEATURES
PUMP
Pump Body: cast iron & support under special anti-rust treatment
Impeller: Brass
Mechnical Seal: Ceramic steatite/metalized carbon
MOTOR
Single Phase
Duty: Continously rated
Motor Housing: Aluminum
Shaft: 45# steel / stianless steel
Insulation Class: B/F
APPLICATIONS AND INSTALLATION
The S200 Series centrifugal pumps with single impeller are able to offer high flow rates, provide smooth, nonpulsating delivery, and regulate the flow rate over a wide range without damaging the pump. For the correct functioning of the pump, use clean water, or non-aggressive liquids charged with small solid impurities. To be used in flow irrigation system in gardening, agriculture and industrial fittings.
OPERATING LIMITATIONS
Max ambient temperature up to 40°C
Max fluid temperature up to 40°C
Max pressure up to 10 bar
TECHNICAL DATA
max Output power Current Q.max H.max Suct max L/min 0 50 100 200 250 300 380 400 480 520 kW kW HP A L/min m m S200-3 1.15 0.9 1.2 5.2 380 17 9 H meter 17 16 16 13.5 12 9 4 S200-4 1.7 1.1 1.5 8.0 480 18 18 17.5 17 16 13.5 13 10 10 4 S200-5 1.8 1.5 2 8.2 520 20 20 19.5 19 18 15 14 13 11 9 4
EXPLOSIVE VIEW
COMPANY INFORMATION
SANHE ELECTRICAL (FUJIAN) CO., LTD. is a professional designer and manufacturer of water pumps and electric motors in Fuan, Fujian, China. It is subsidiary of Mindong Group which was founded in 1958.
Our main products are water pumps, electric motors and alternators, which are 50 series over 1000 varieties export to more than 60 countries and areas.
Years of manufacturing development, we are willing to work with global customers and partners to create a brighter future together.
