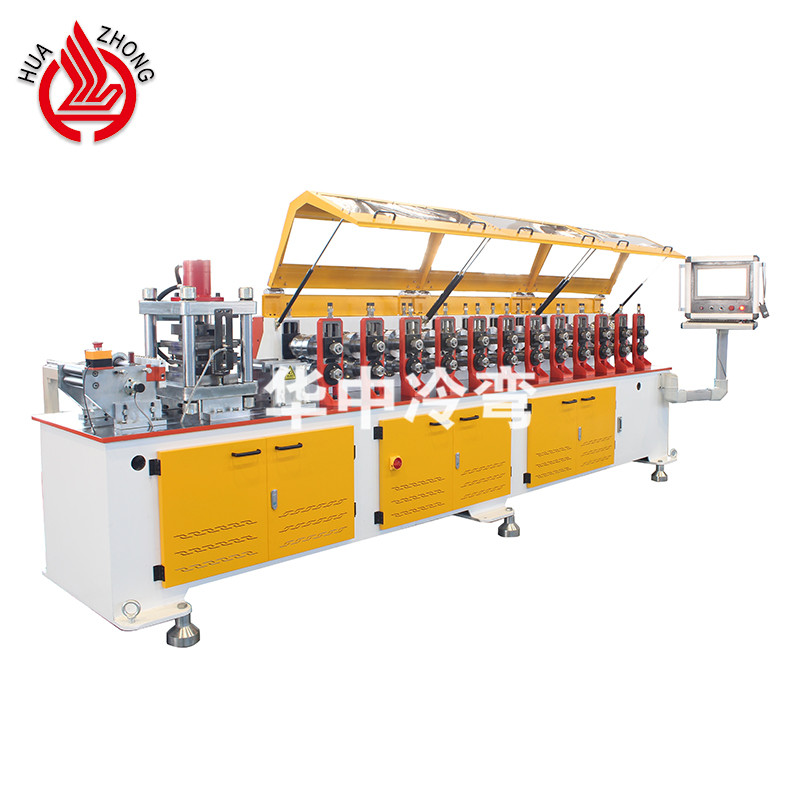

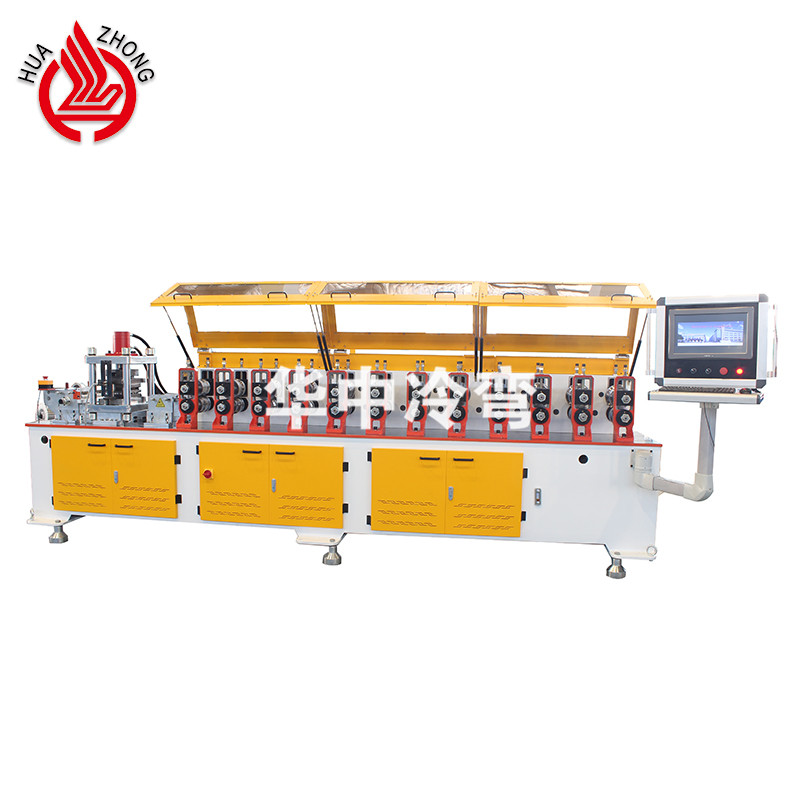

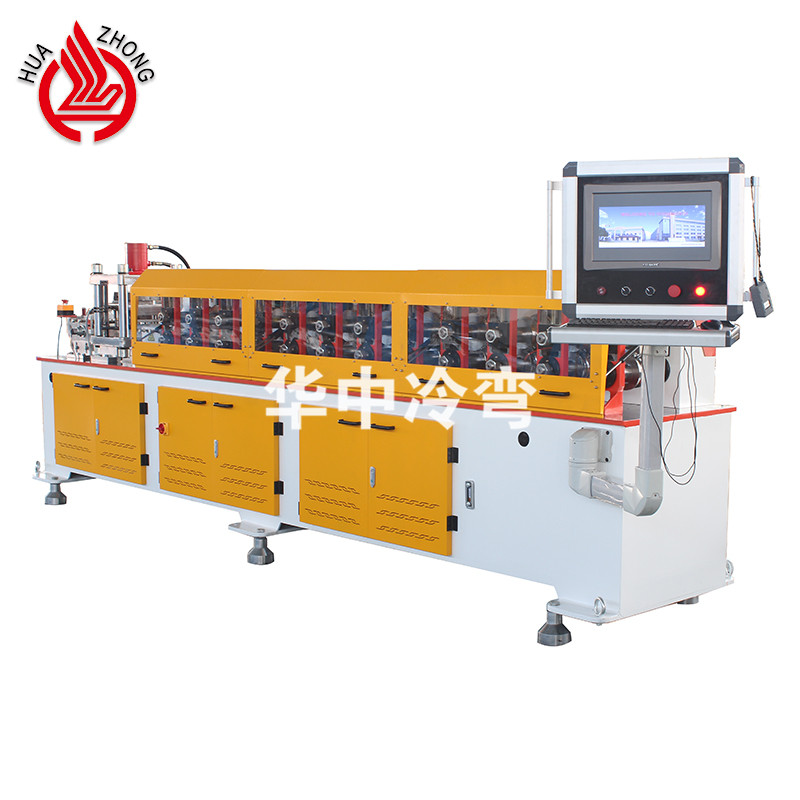

Roller shutter door forming machine
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $2,750,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,250
- Section 301 tariff (25.0%)
- $687,500
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,750,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,250
- Section 301 tariff (25.0%)
- $687,500
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Roller shutter door forming machine
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $2,750,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,250
- Section 301 tariff (25.0%)
- $687,500
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,750,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,250
- Section 301 tariff (25.0%)
- $687,500
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: steel
- Size: 800*3*3
- Color: red/white/yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel
- Size: 800*3*3
- Color: red/white/yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel |
|---|---|
| Size | 800*3*3 |
| Color | red/white/yellow |
Product details
| Materials | steel |
|---|---|
| Size | 800*3*3 |
| Color | red/white/yellow |
From the supplier
Product descriptions
One-piece frame
Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase
Embedded electric cabinet: Delta PLC control system, Delta inverter
Cantilever console: Delta touch screen
Uncoiler: 3 Tons
Thickness: 0.8-1.2mm
Coil width:137mm (According to the profile type)
Forming stations: 12
Main motor power: 5.5KW, 380V, 50/60 HZ, 3 Phase
Cutting type: hydraulic cutting with servo motor
Forming speed: 12-15m/min
Forming speed (including punching): 8-10m/min
Drive type: gear transmission system
Cooling system
Technical process
Uncoiler---Feeding guide---Roll forming---Cooling system---Hydraulic cutting with servo motor---Run out table
From the supplier
Product descriptions
One-piece frame
Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase
Embedded electric cabinet: Delta PLC control system, Delta inverter
Cantilever console: Delta touch screen
Uncoiler: 3 Tons
Thickness: 0.8-1.2mm
Coil width:137mm (According to the profile type)
Forming stations: 12
Main motor power: 5.5KW, 380V, 50/60 HZ, 3 Phase
Cutting type: hydraulic cutting with servo motor
Forming speed: 12-15m/min
Forming speed (including punching): 8-10m/min
Drive type: gear transmission system
Cooling system
Technical process
Uncoiler---Feeding guide---Roll forming---Cooling system---Hydraulic cutting with servo motor---Run out table
About the supplier
Main products: Other Building Materials Processing Equipment,Steel Plate Forming Machine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2003
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2003
