About this product
- Materials: Metal
- Size: 2500*680*1140
- Color: yellow,green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Metal
- Size: 2500*680*1140
- Color: yellow,green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Metal |
|---|---|
| Size | 2500*680*1140 |
| Color | yellow,green |
From the supplier
SVH80

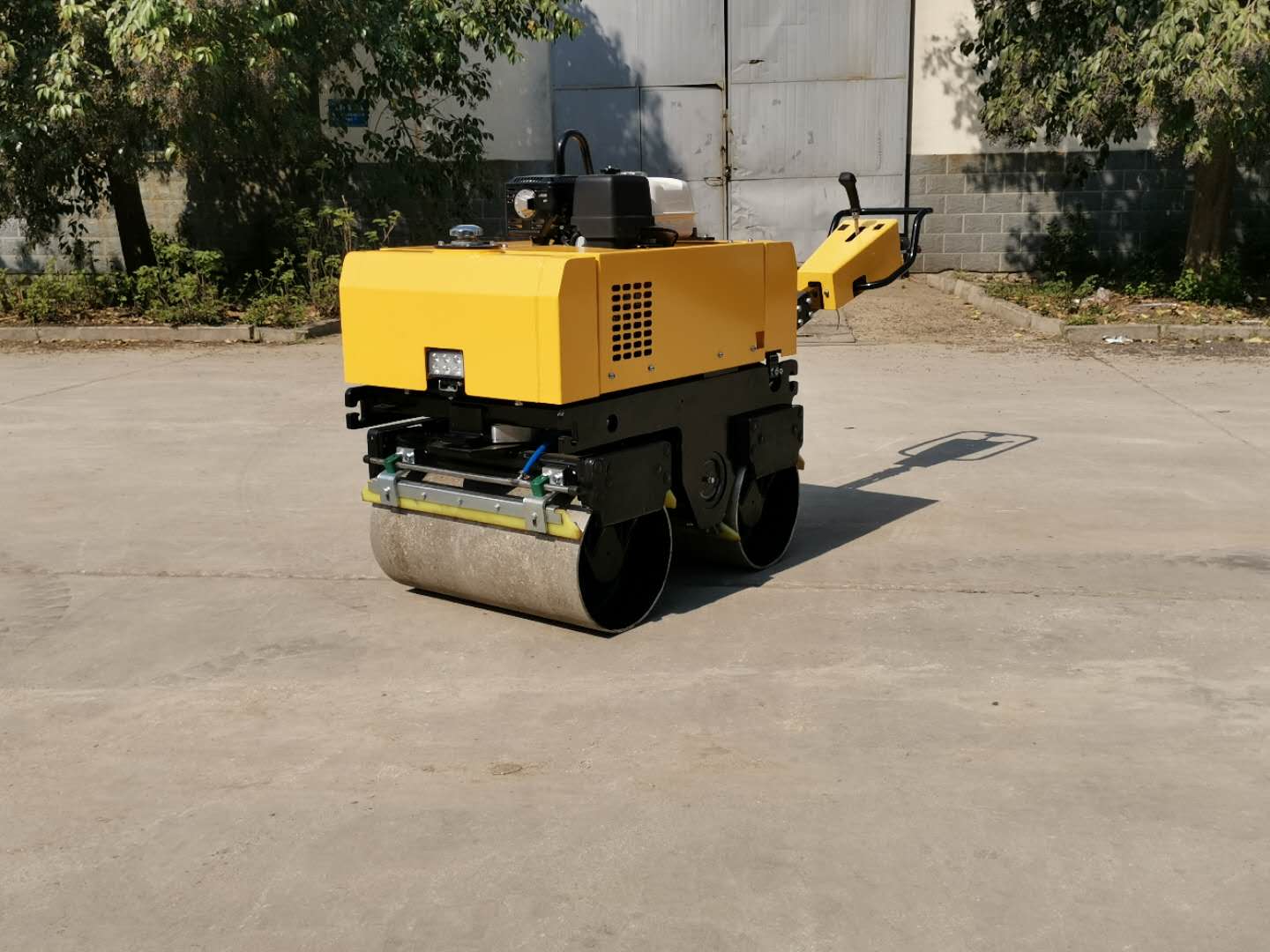

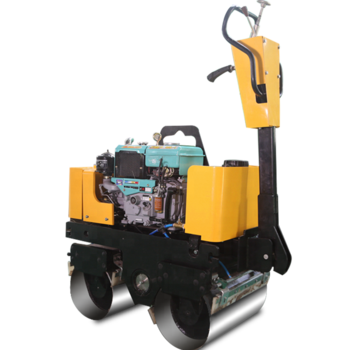

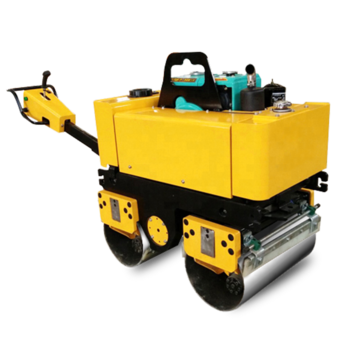

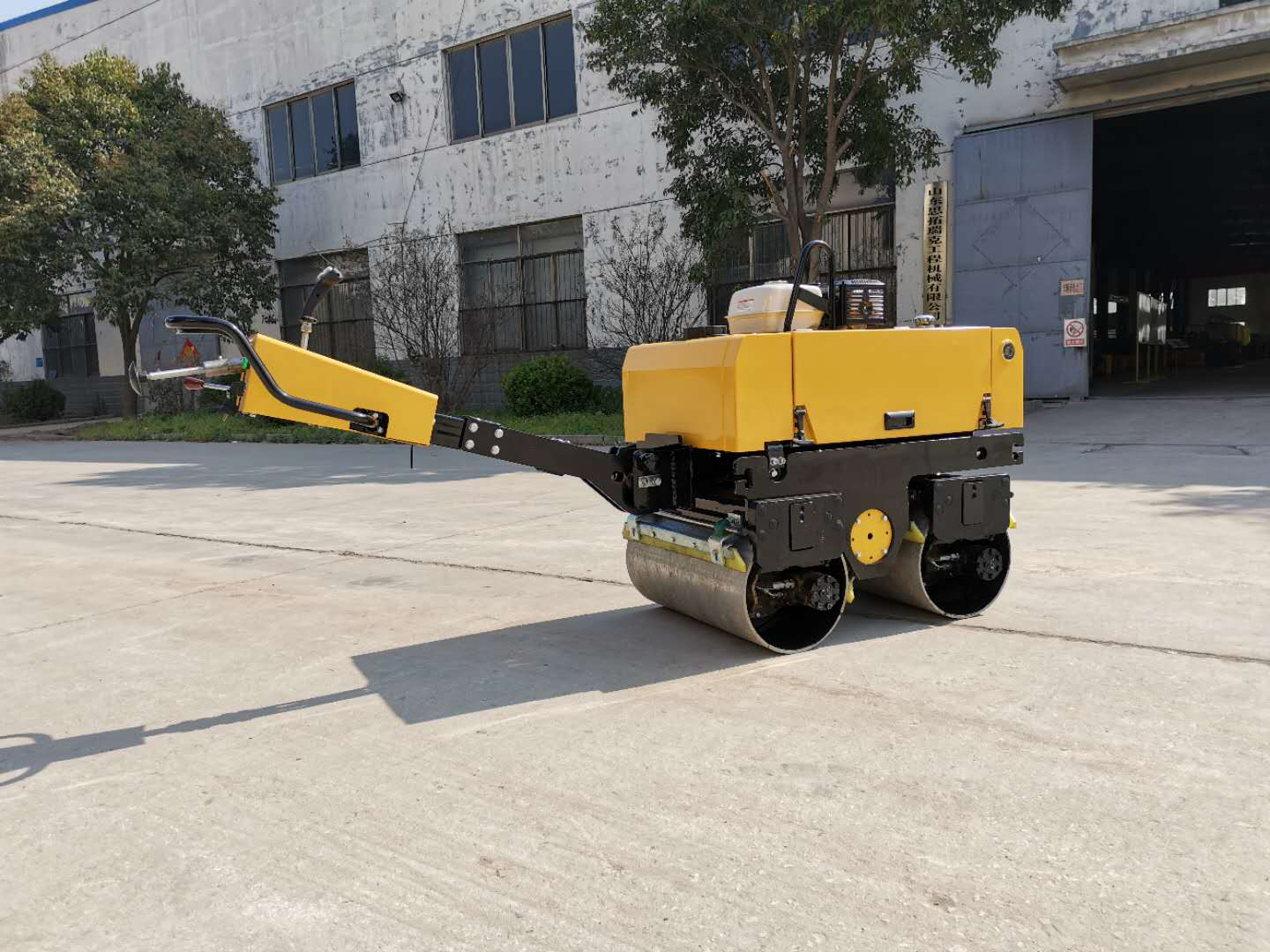

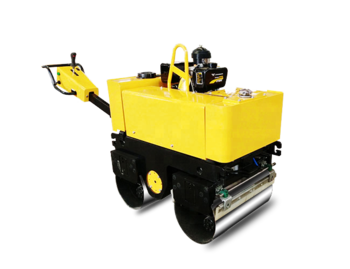

Fully hydraulic double drum vibratory road roller
FEATURES
1.Equipped with famous brand engine, could guarantee quality stability and excellent performance.
2.Hawkeye-shaped body design, wide field of vision, and beautiful appearance
3.Imported hydraulic variable pump and fixed displacement motor, Stepless speed change, walking forward and backward.
4.Transmission uses Japanese NSK precision bearings to ensure the performance of the machine.
5.Electromagnetic clutch controls vibration for faster operation.

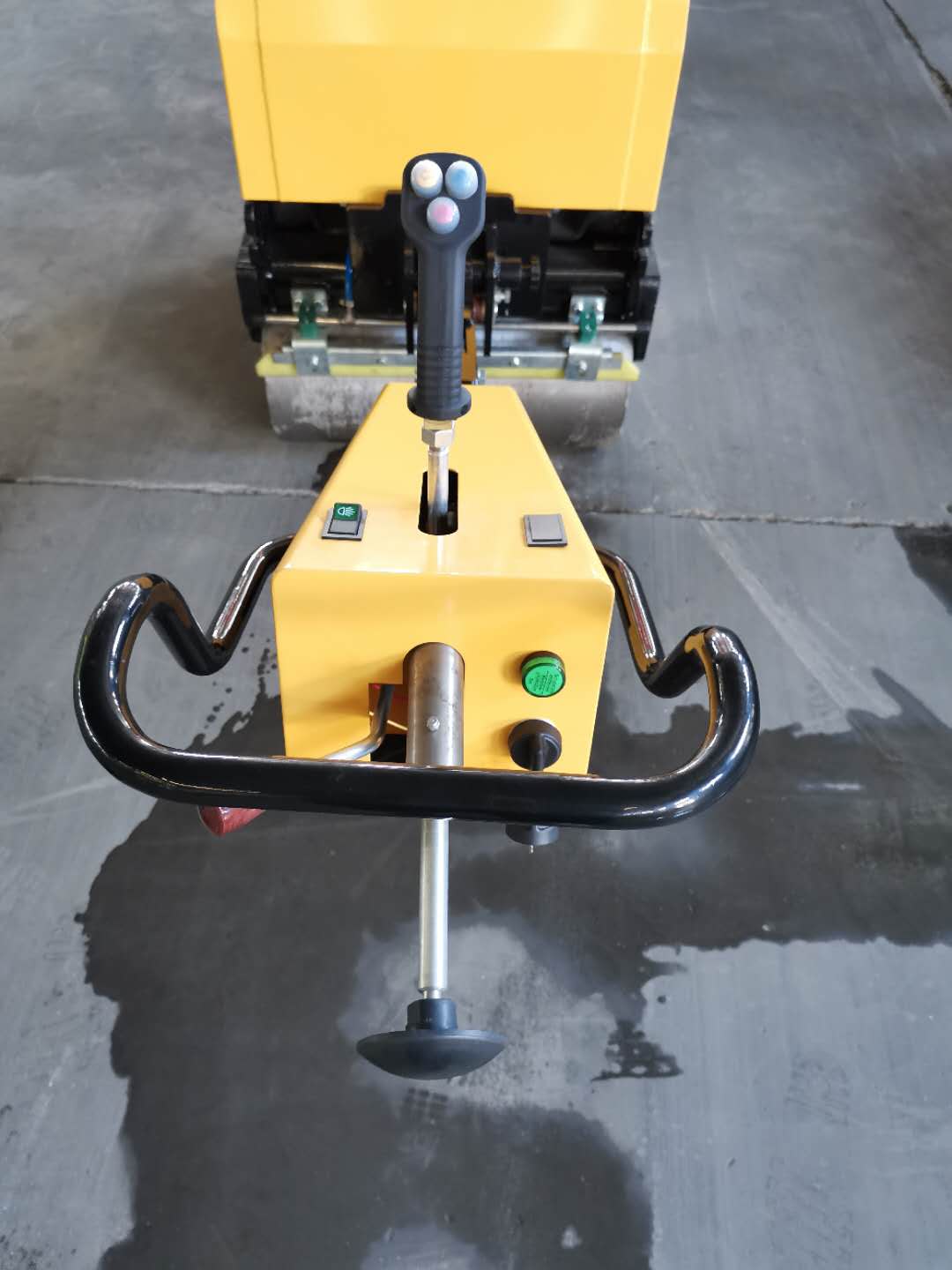

6.Hydraulic steering, labor-saving, flexible and convenient
7.Passed CE, SGS and ISO certification and won Red Star Award design.
Overall size
Total length (L)
mm
2500
Working width(W)
mm
680
Total height (H)
mm
1140
Height loading, min. (H1)
mm
355
Drum width (W1)
mm
620
Wheel base
mm
650
Technical Data unit SVH80
Model
SVH80
SVH80C
SVH80S
Weights
Operating weight
kg
788
790
800
Static linear load
N/cm
58/63
59/64
61.5/65.5
Dimensions
Working width
mm
680
Total length
mm
2500/1800
Total height with ROPS
mm
1140/1710
Turning radius (inner/outer)
mm
--------
Drum width
mm
620
Drum diameter
mm
355
Wheel base
mm
650
Drive
Engine manufacturer
HONDA
CHANGCAHI/CHANGFA
FUZHOU JINFEIYU
Type
GX390
186F
RD90N-1
Engine type
Gasolie, four-stroke
Diesel, four-stroke
Diesel, horizontal water-cooled
Number of cylinders
1
Power ISO 14396
KW
9.7
6
5.88
Rating speed
rpm
3600
3600
2400
Electrical equipment
V
12
Drive mode
Variable displacement pump, stepless speed change, two wheels drive motor parallel
Driving characteristics
Speed
Km/h
0-3.5
Climbing ability, vibration on/off
%
30
Brakes
Working brake
Variable displacement pump
Steering
Steering mode
Hydraulic steering
Steering system
Swing articulated
Exciter system
Vibrating drum
Front+rear
Drive form
Mechanical transmission
Frequency
Hz
65
60
Amplitude
mm
0.5
Centrifugal force
kN
20
Sprinkler system
Type of sprinkling
Gravity-type water
Capacities
Hydraulic oil
I
28
Fuel
I
6.5
5.5
10
Water
I
30
