Rebar Forward and Reverse Bending Machine
Zhejiang Chenxin Machine Equipments Co., Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Rebar Forward and Reverse Bending Machine
Zhejiang Chenxin Machine Equipments Co., LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: steel
- Size: 1000*750*1200mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 1000*750*1200mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 1000*750*1200mm |
| Color | dark gray |
Product details
| Materials | steel |
|---|---|
| Size | 1000*750*1200mm |
| Color | dark gray |
From the supplier

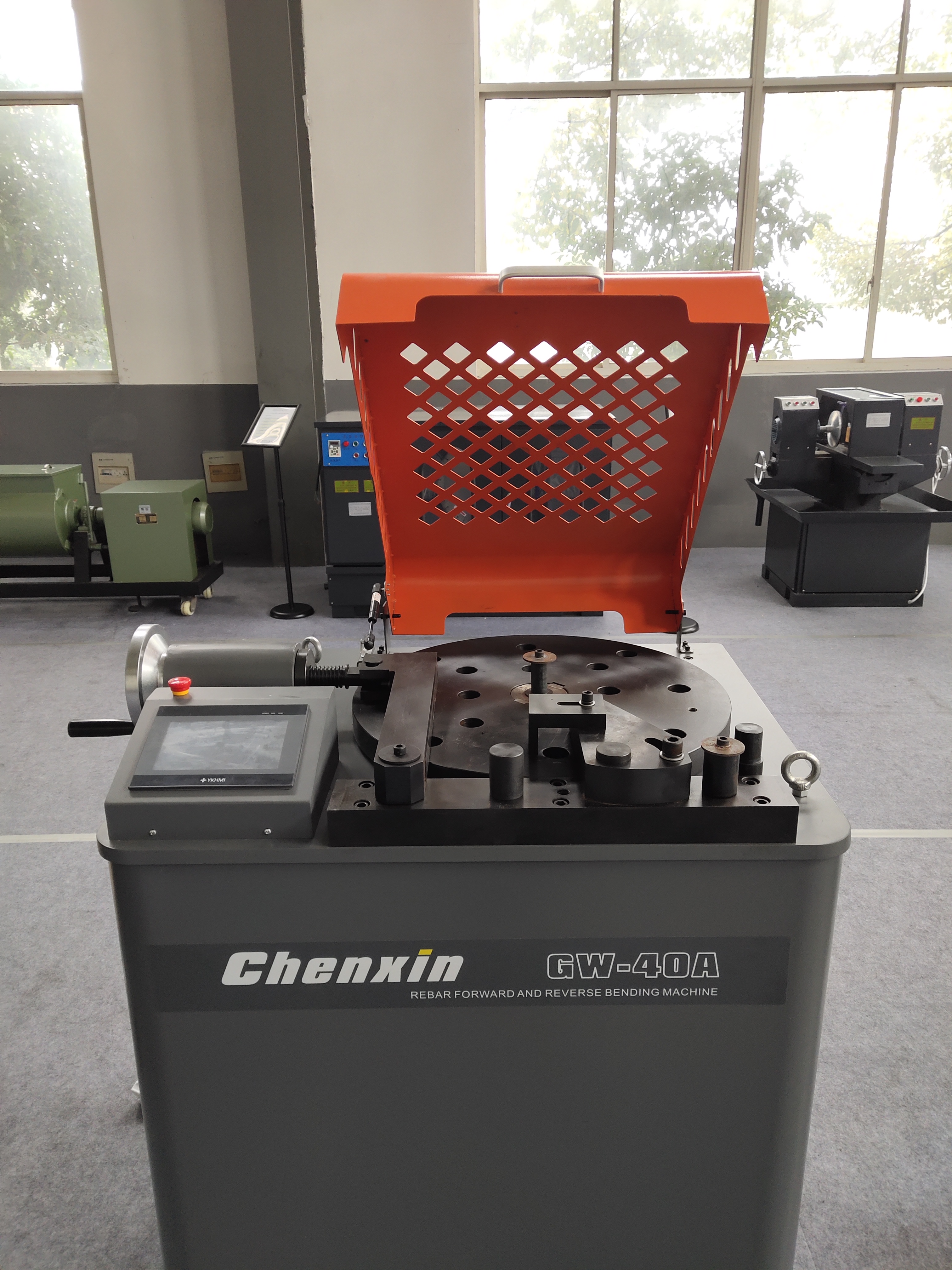

It is a professional equipment for cold bending test and plane bending test of reinforcement bar. It is an ideal test equipment for steel mills and construction units to test the bending properties of reinforcement bar.
Characteristics:

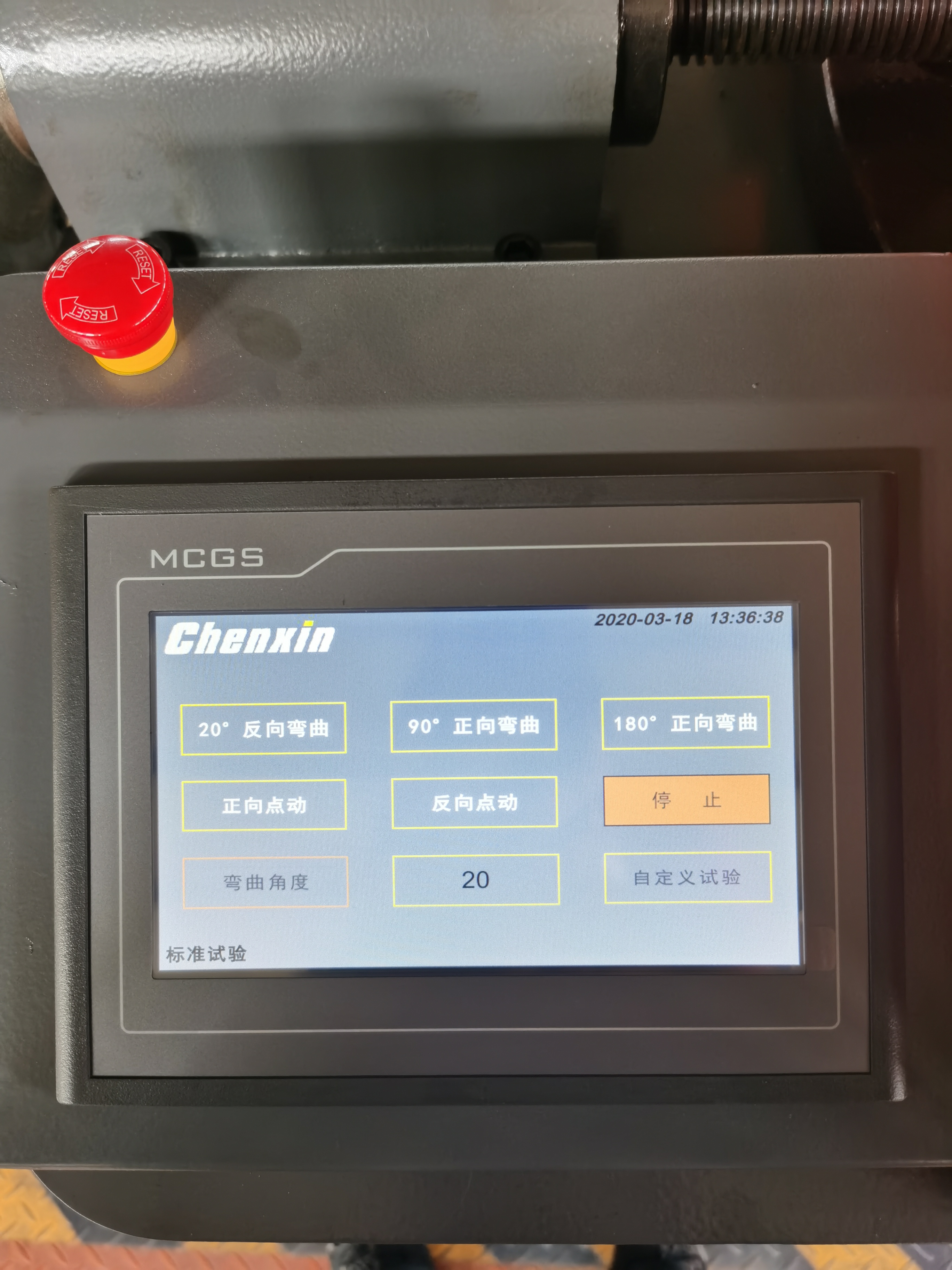

- With digital integrated circuit, the bending angle of the test machine is shaped and divided by photoelectric pulse obtained from the high speed axis of the motor, then the angle is counted and displayed continuously. When the working disc of the test machine rotates to the set angle, it is controlled by logic circuit to stop the brake motor from turning off.
- Has the characteristics of compact structure, simple operation, intuitive bending angle display, easy maintenance, smooth operation, safety and low noise, etc.
Model
GW-40A
Forward bending angle
0-180°
Reverse bending angle
0-180°
Max. bending diameter
Φ6-Φ40mm
Angle display resolution
1°
Work disc speed
≤20°/S
Bending angle control accuracy
0.2°
Total power
1.5KW

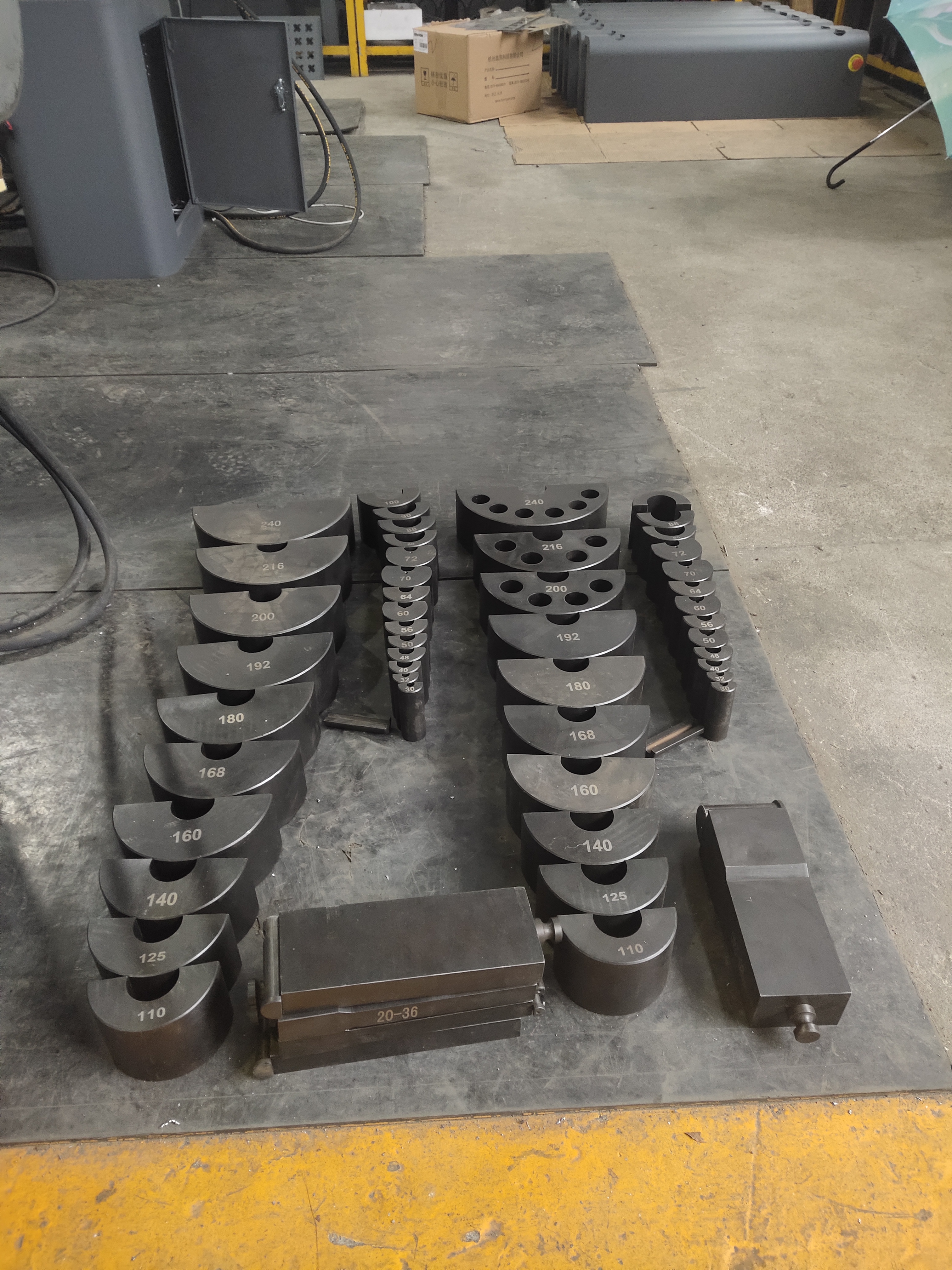

Bending core specification
24、32、40、48、56、64、72、80、88、100、140、160、180、200
Voltage
50Hz、380V
Main frame dimension
1000*750*1200mm
Weight
1000kg
From the supplier
It is a professional equipment for cold bending test and plane bending test of reinforcement bar. It is an ideal test equipment for steel mills and construction units to test the bending properties of reinforcement bar.
Characteristics:
- With digital integrated circuit, the bending angle of the test machine is shaped and divided by photoelectric pulse obtained from the high speed axis of the motor, then the angle is counted and displayed continuously. When the working disc of the test machine rotates to the set angle, it is controlled by logic circuit to stop the brake motor from turning off.
- Has the characteristics of compact structure, simple operation, intuitive bending angle display, easy maintenance, smooth operation, safety and low noise, etc.
Model
GW-40A
Forward bending angle
0-180°
Reverse bending angle
0-180°
Max. bending diameter
Φ6-Φ40mm
Angle display resolution
1°
Work disc speed
≤20°/S
Bending angle control accuracy
0.2°
Total power
1.5KW
Bending core specification
24、32、40、48、56、64、72、80、88、100、140、160、180、200
Voltage
50Hz、380V
Main frame dimension
1000*750*1200mm
Weight
1000kg
