Product Application
ABC cables are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. The use of these service drop or secondary distribution cables is limited to circuits, not exceeding 600 volts phase-to-phase or 480 volts phase-to-ground, at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Product type

1.Covered line wire

Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

2.Duplex service drop

To supply 120 volt aerial service for temporary service at construction sites,outdoorr or street lighting.For service at 600 volts or lower ar a conductor temperature of 75 °Cmaximum.

3.Triplex service drop

To supply power from the utility’s lines to the consumer’s weatherhead.For service at 600 volts or less (pahse to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for crosslinked insulation.

4.Quadruplex service drop

Used to supply 3 phase power,usually from a pole-mounted transformer,to the user’s service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.

Product parameters

Code Name

Phase Conductor

Bare Neutral Messenger

Weight Per 1000ft(lbs)

Rating

(Amps)

Size AWG

Strand

Insulation Thickness(mls)

Size AWG

Strand

Breaking Strength

(lbs)

XLPE

Poly

XLPE

Poly

AAC NEUTRAL-MESSENGER

Clydesdale

4

Solid

45

4

7

881

208

201.8

100

80

Pinto

4

7/w

45

4

7

881

223

207.9

100

80

Mustang

2

7/w

45

2

7

1,350

333

312.6

135

105

Criollo

1/0

19/w

60

1/0

7

1,990

529

504.5

180

140

Percheron

2/0

19/w

60

2/0

7

2,510

649

620.5

205

160

Hanoverian

3/0

19/w

60

3/0

19

3,310

799

765.6

235

185

Oldenburg

4/0

19/w

60

4/0

19

4,020

986

946.7

275

210

Lippizaner

336.4

19/w

80

336.4

19

6,146

1,546

1,519.2

370

280

ACSR NEUTRAL-MESSENGER

Morochuca

6

Solid

45

6

6/1

1,190

152

147.4

75

60

Chola

6

7/w

45

6

6/1

1,190

162

151.7

75

60

Morgan

4

Solid

45

4

6/1

1,860

226

220

100

80

Hackney

4

7/w

45

4

6/1

1,860

241

226.1

100

80

Palomino

2

7/w

45

2

6/1

2,850

362

342.6

135

105

Costena

1/0

19/w

60

1/0

6/1

4,380

575

550.6

180

140

Grullo

2/0

19/w

60

2/0

6/1

5,310

707

678.7

205

160

Suffolk

3/0

19/w

60

3/0

6/1

6,620

872

838.9

235

185

Appaloosa

4/0

19/w

60

4/0

6/1

8,350

1,079

1,039.2

275

210

Bronco

336.4

19/w

80

336.4

18/1

8,580

1,613

1,568.2

370

280

Gelding

336.4

19/w

80

4/0

6/1

8,350

1,548

1,494.3

370

280

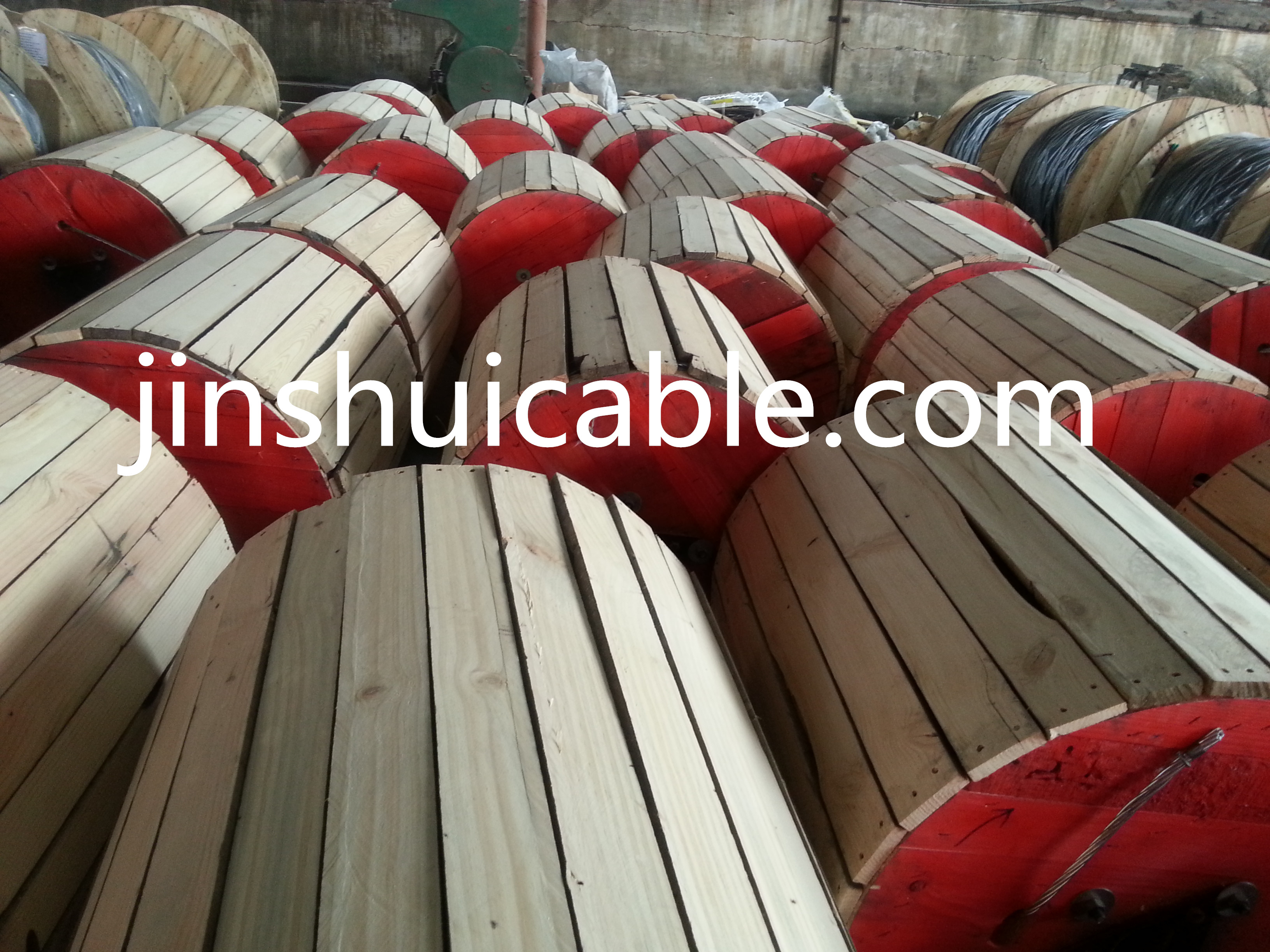

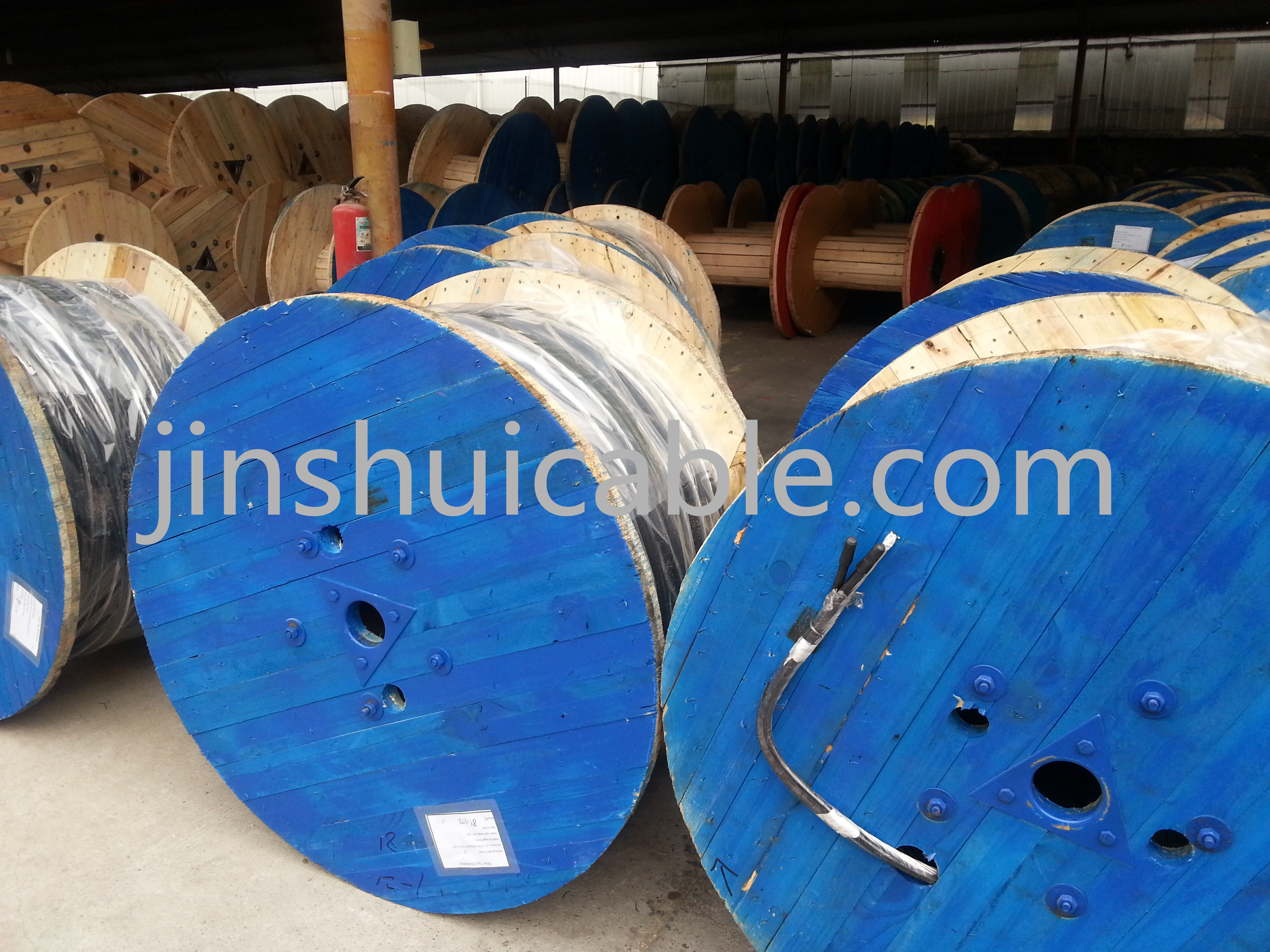

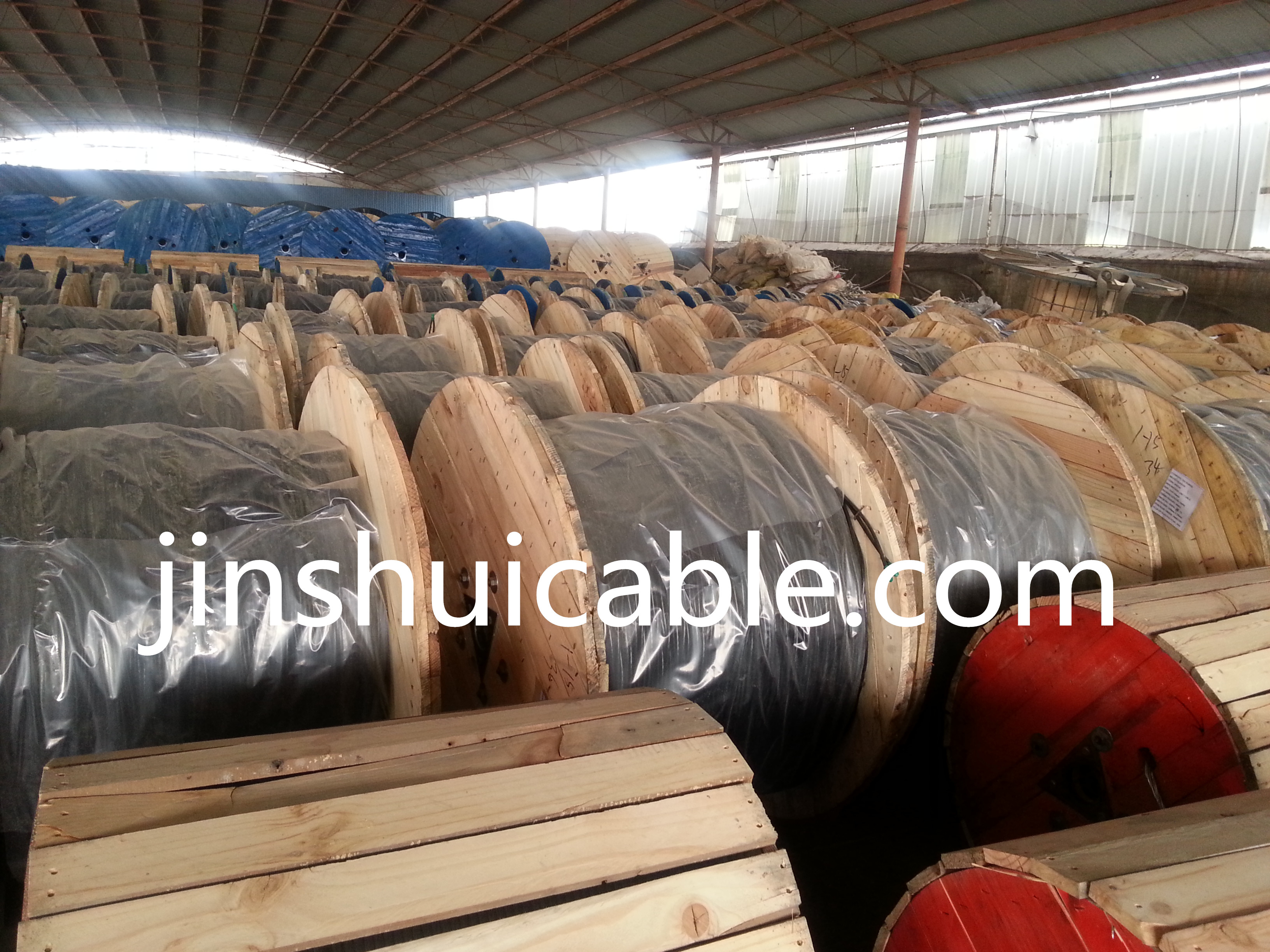

Packaging and Shipping
