Pushningjiang Machine Tool Precision Horizontal 5-Axis Machining Centre Type IV
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Pushningjiang Machine Tool Precision Horizontal 5-Axis Machining Centre Type IV
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: Image Dimensions
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: Image Dimensions
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | Image Dimensions |
|---|---|
| Color | white |
Product details
| Size | Image Dimensions |
|---|---|
| Color | white |
From the supplier

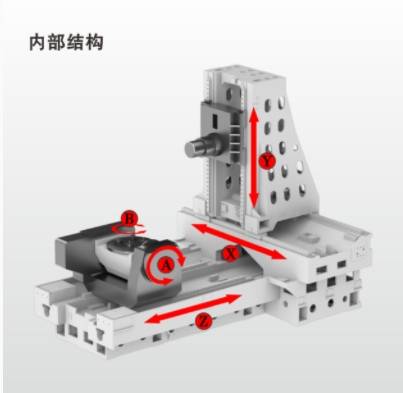

The machine bed adopts T-type integral structure (X-direction is stepped structure). The column moves in X direction, the spindle box moves up and down in Y direction, and the table moves in Z direction.
The worktable adopts tiltable rotary table, and the A and B axes adopt worm gear transmission with high torque, which is suitable for low-speed and heavy-load cutting, and the A and B axes can be driven by torque motors, which has the advantages of fast dynamic response, no backlash, no mechanical wear of the transmission, and is suitable for high-speed, high-precision and light-load cutting.

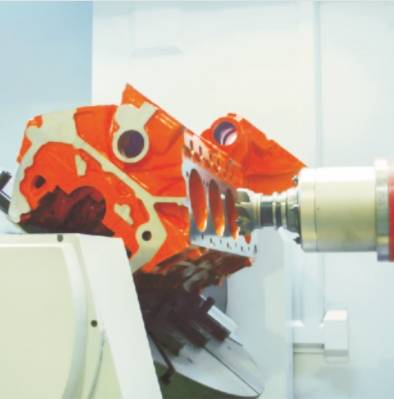

The spindle can be equipped with low-speed, high-torque mechanical spindle or high-speed electric spindle according to the processing object.
The up and down movement of the spindle box (Y-axis) adopts hydraulic balancing device, which eliminates the unevenness generated by the self-weight during the up and down movement of the spindle box and improves the accuracy of Y-axis.

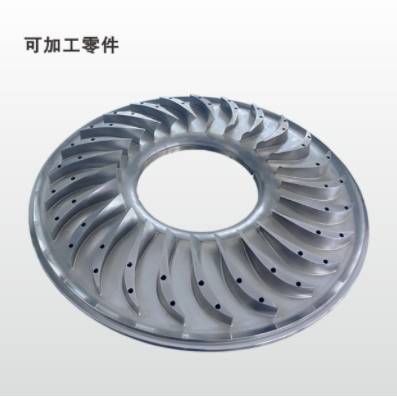

The machine is equipped with five axes of X, Y, Z, A and B, which can realise five-axis and five-linkage machining of various complex parts.
From the supplier
The machine bed adopts T-type integral structure (X-direction is stepped structure). The column moves in X direction, the spindle box moves up and down in Y direction, and the table moves in Z direction.
The worktable adopts tiltable rotary table, and the A and B axes adopt worm gear transmission with high torque, which is suitable for low-speed and heavy-load cutting, and the A and B axes can be driven by torque motors, which has the advantages of fast dynamic response, no backlash, no mechanical wear of the transmission, and is suitable for high-speed, high-precision and light-load cutting.
The spindle can be equipped with low-speed, high-torque mechanical spindle or high-speed electric spindle according to the processing object.
The up and down movement of the spindle box (Y-axis) adopts hydraulic balancing device, which eliminates the unevenness generated by the self-weight during the up and down movement of the spindle box and improves the accuracy of Y-axis.
The machine is equipped with five axes of X, Y, Z, A and B, which can realise five-axis and five-linkage machining of various complex parts.
