Introduction to WONSTAR polyurethane foam adhesive

Product introduction

There are two types of polyurethane foam adhesive: branch pipe type and gun type. The pipe type has its own disposable hose. The gun type needs a professional spray gun to be used. It is the product of the cross combination of aerosol technology and polyurethane foam technology. The utility model relates to a special polyurethane product which is used to pack polyurethane prepolymer, foaming agent, catalyst and other components into a pressure resistant aerosol tank. It is commonly used for the installation of doors and windows, such as caulking, bonding, leak stoppage, thermal insulation, sound insulation and waterproof.

Product introduction

Polyurethane foam (OCF) is the product of the cross combination of aerosol technology and polyurethane foam technology. It is a kind of special polyurethane product that packs polyurethane prepolymer, foaming agent, catalyst and other components into a pressure resistant aerosol tank. When the material is ejected from the aerosol tank, the foamy polyurethane material will expand rapidly and solidify with air or moisture in the contacted matrix to form foam. The cured OCF foam has a variety of effects such as joint filling, bonding, sealing, heat insulation, sound absorption, etc. it is an environmentally friendly and energy-saving building material with convenient use. It can be used for sealing, caulking, fixing and bonding, heat preservation and sound insulation, especially for sealing, plugging and waterproofing between plastic steel or aluminum alloy doors and windows and walls.

Product Description

Fast fixing foam filler based on high expansion polyurethane can be used in humid environment.

There are two types of styrofoam: gun type and tube type (commonly referred to as disposable). The tubular type is mainly used for retail design, that is to say, the tubular type is only suitable for small amount of household plugging and leakage prevention. The pressure of tubular products is lower than that of gun products, and sometimes they can't be cleaned, which is easy to cause problems such as valve failure. In addition, the plastic bubble holes made by tubular products are not as delicate as those made by gun products, and the expansion force is relatively large. The cost of gun type is lower than that of tube type

Scope of application

It is used to seal, insulate and fill wide joints, gaps and cracks, and can keep warm, cold, dry, sound and damp. Such as gaps between partitions and ceilings, holes between window frames, door frames and walls, gaps between roofs and chimneys, seals around walls, ceilings and roof pipes, and holes and damages on walls. It can be used for bonding a variety of materials, such as metal, wood, stone, concrete and a variety of synthetic materials, such as polyester, polystyrene foam, PVC plastic and rigid polyurethane foam.

Product characteristics:

Temperature resistance: – 40 ° C to+90 ° C

The normal operating temperature of charging tank is+5 ℃ -+35 ℃

The best use temperature is+18 ℃ -+25 ℃

Stability: excellent

Foam can adhere to concrete, coatings, walls, wood and plastic surfaces, but does not include Teflon and silicone. The cured product is harmless to human body.

Technical indicators

Basic raw material: polyurethane prepolymer

Color: beige

Specific gravity: 25kg/m3

Fire resistance test: Class B3, according to German Industrial Standard 4102

Compressive strength: 9 * 104/m2-10% deformation

Tensile strength: 14 * 104/m2-20% deformation

UV resistance: no continuous resistance

Unit structure: about 70% of closed units

Thermal condition coefficient: 0.03 W/m. ° K

Operation method:

Surface treatment: the surface is free of dust and grease Proper spraying of some water on the surface can accelerate the bonding speed, but large water droplets should be avoided.

Tools: can be used directly.

Operating temperature: object surface is between+0 ° C and+30 ° C Between - 5 ° C and+30 ° C

Reinforcement time: 6-10 minutes

Drying time: 1-2 hours

User's Guide: Shake the bottle vigorously before use, and fill half of it when filling. After 60 minutes, the gel will expand to 2 to 3 times the original size. Large gaps can be filled layer by layer. After use, the bottle should be placed vertically. After the colloid is completely dry, it can be cut, polished and painted. If it is used outdoors, it can be coated with a layer of emulsifier protective colloid.

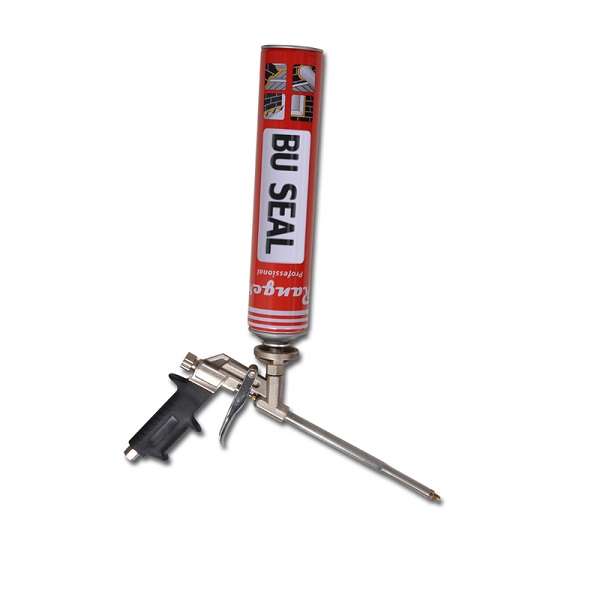

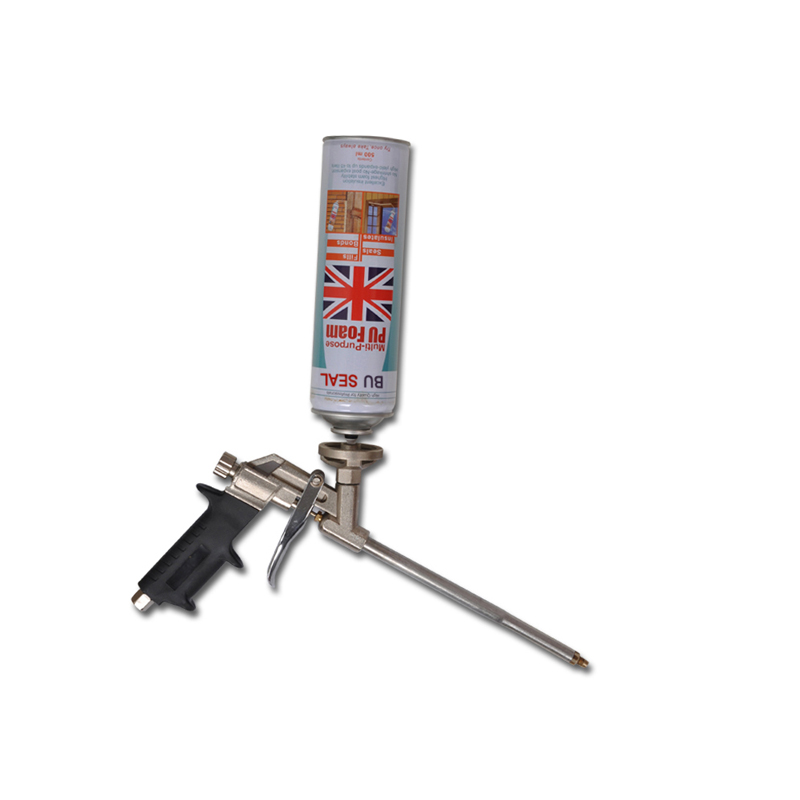

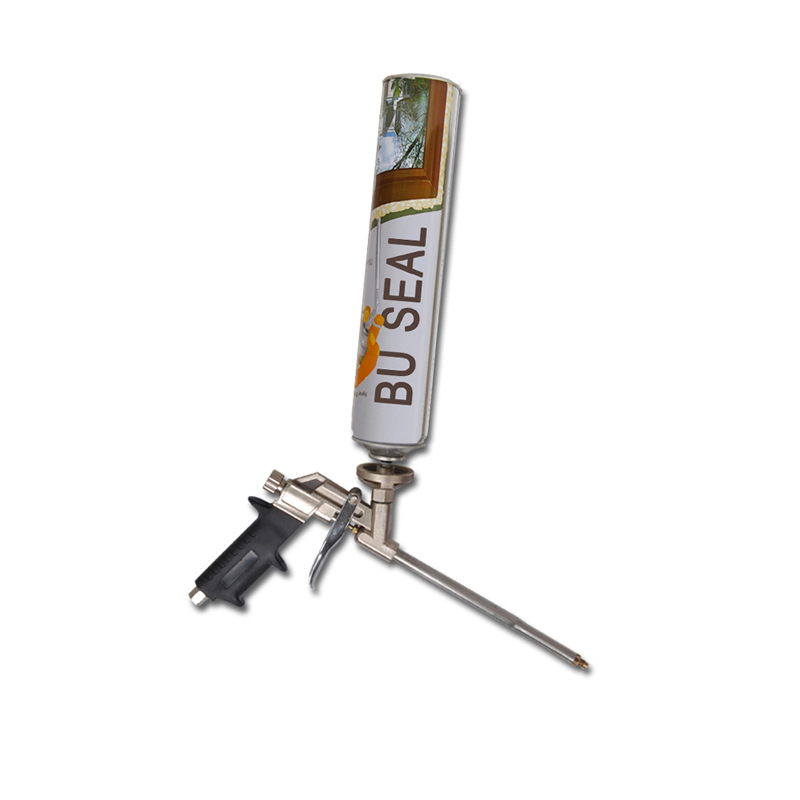

How to use gun type foam adhesive:

① Take a polyurethane foaming gun and clean it with polyurethane cleaner to ensure smooth operation;

② Take another bottle of foaming agent, hold the middle part of the tank with your hand, shake it at least 20 times along the horizontal direction of the tank, and ensure that the prepolymer in the tank is fully mixed;

③ Remove the protective cover of the valve on the thread ring of the foaming agent, remove the cleaning agent on the foaming gun, and install the foaming agent can body onto the interface of the foaming gun along the thread;

④ Hold the handle of the foam gun tightly to ensure that the material tank is placed above and the foam gun is under the material tank. Open the flow regulating valve at the back of the foam gun;

⑤ Align the gun head with the bottom or inside of the part to be filled, gently pull the trigger to start construction. The proper flow can be adjusted through the flow regulating valve behind the foaming gun.

⑥ After one tank is sprayed, if it needs to be filled, the empty tank can be immediately removed, and the foaming agent can be reinstalled according to the method in point ③ to continue the construction.

⑦ After the construction is completed, the material tank shall be removed in time, and the foam gun shall be cleaned with a special cleaning agent to prevent the residual materials from solidifying and blocking to damage the foam gun.

Storage

It can be stored vertically at room temperature for 12 months.

matters needing attention

Highly flammable

Irritating to eyes, respiratory system and skin

Inhalation may cause irritation

Keep out of reach of children

Keep away from fire and smoke

Do not breathe its vapor

In case of contact with eyes, rinse immediately with plenty of water and consult a doctor

In case of accident or discomfort, see a doctor immediately and show the instructions and labels

Operate in a well ventilated environment

Containing isocyanate

There is pressure in the bottle to avoid direct sunlight and exposure to high temperature above+50 ° C. Do not puncture or ignite the bottle after use. Do not spray on flames or hot objects.

It contains diphenylmethane and diisocyanate isomers.

Inhalation of volatile gases may irritate the skin and mucous membranes, especially the respiratory mucosa, causing an over stimulated allergic reaction. Therefore, prevent inhalation of volatile solvent during use. People with allergies, asthma and respiratory diseases should not use this product. Avoid contact with skin, preferably gloves.

Precautions when using styrofoam:

A. Before gluing and installing the door frame, it is better to spray some water on the wall, so that the fixing is faster, the expansion force is small, and the stability is good.

B. Be sure to fix it.

C. Apply glue from bottom to top and from left to right. Because the styrofoam adhesive has a certain aftereffect, the muzzle of the gun should be hit against the side of the wall, not against the side of the door frame. The sealant should be filled 50% of the gap. The sealant will slowly and automatically fill the gap. This not only saves the glue, but also reduces the expansion force, and also ensures that the glue in the deep gap can fully absorb water. The speed of sealant application should be uniform to ensure that the door will not be damaged by expansion. Many customers said that the door was damaged due to improper use.
