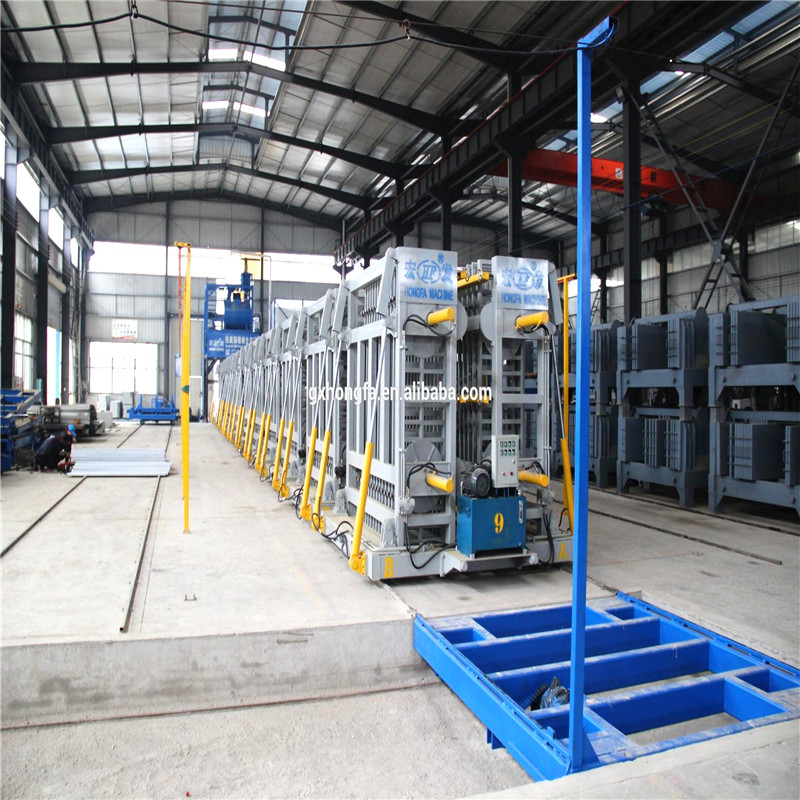

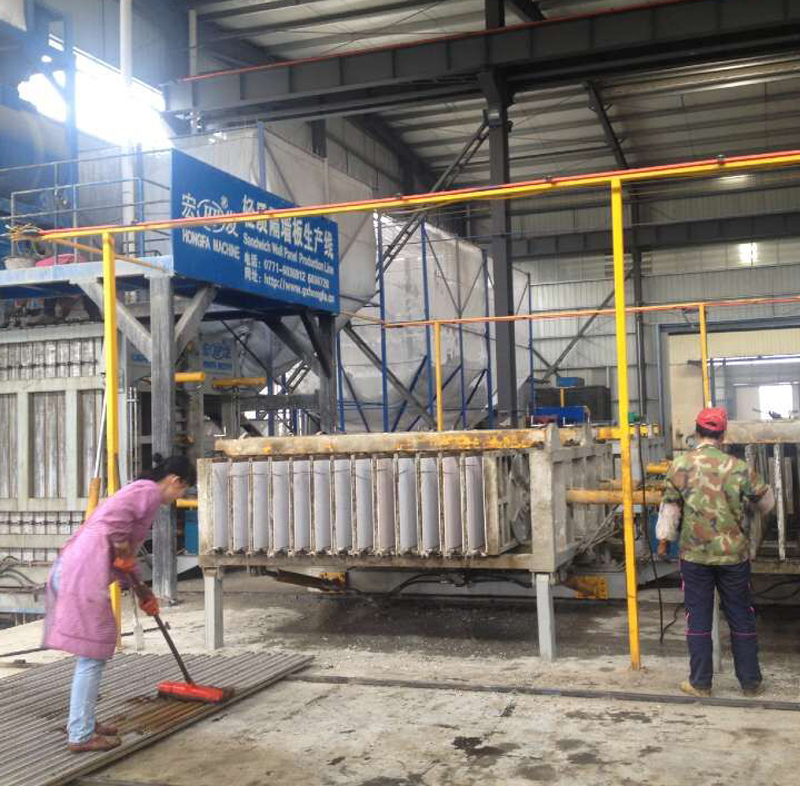

Precast Concrete Lightweight Wall Panel Forming Machine

HFP530A full automatic lightweight concrete wall panel system is Hongfa patent product, for 10 sets molding machine, total production line only needs 7 women, labor density and intensity is low.

It adapts the hydraulic de-molding system, it is fast and convenient, also suitable for pallet stacking. It can decrease the broken rate efficiently.

Its PLC control system, the mold opening and closing is hydraulic, hence it can be controlled automatic.

In addition, the wall panel machine can produce the lightweight panel length of 3000mm, width of 600mmm, the thickness of 60-250mm. Panel size also can be produced by customer requirements.

Since electrical and steam-powered heating system. Therefore makes demoulding fast, short time conservation, and the cost is much less.

Because forming mold chamber has high stiffness. So panel making has high precision, the thickness is prospective, the surface of the panel is smooth.

For hollow panels, plastic core tube is lining metal tube, so it is durable, free washing, pulling tube by electric.

Hongfa Lightweight Concrete Wall Panel Machine Advantages

1)High Capacity

Hongfa's finished products is in high yield, for the silicate board don't  fall off from the panel.

Others: Silicate board falling off from the panels happens often for other  brand machines.

2) Intact finished products

Because of the higher pressure of the slurry infusing machine, the  surface of the panel is neater and more complete.

Others: The surface of wall panel is not flat and the edge is not complete.

3)Good Flatness

With the flat and smooth partition board Hongfa

use, the finished panel is much straight and even.

Others: The finished panel is not straight and even,  for they use the low quality partitioin board.

4)High Strengh

Because of the superb sealing performance of the  Hongfa machine, no cement slurry missing, the  panel is stronger.

Others: Leaking cement and slurring makes the  panel in lower strength and intensity

HFP530A Automatic Molding Car Parameter and Productivity

Overall dimensions(mm)

Power(KW)

Output / Pieces per mould

75mm

90mm

100mm

120mm

150mm

200mm

3030*2250*3100mm

4KW/5.5KW, Total 80KW

30pcs

26pcs

22pcs

26pcs

22pcs

16pcs

Other main machines part for complete production line

1. Mixing plant
HONGFA mixing plant consists of mixer, movable infusion unit and aggregating system. It can mix all raw material automatically and record every data for production. 3.6CBM capacity mixer guarantees infusion efficiency. It only needs about 15seconds to finish a panel with size 2440*610*100mm.

2. EPS expander
EPS expander is used for expanding raw polysterene, one-time expander can make EPS around 15-18kg/CBM, interval expander can get proportion on 9-11kg/CBM.

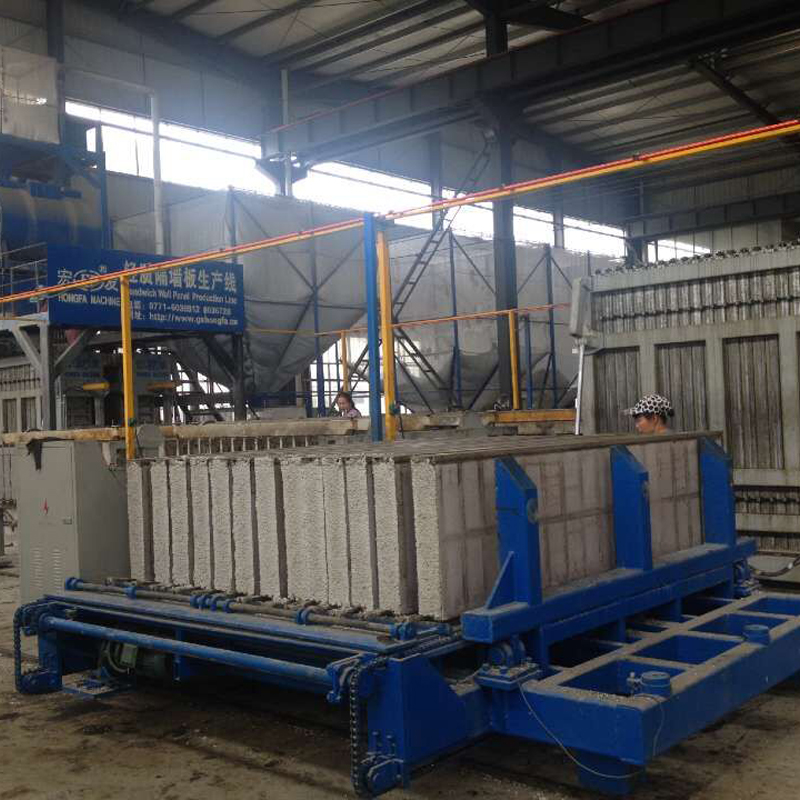

3. De-molding machine
De-molding machine can pull the cured panels out deirectly, Hongfa design it based on 6 years panel manufacturing experience, make it possible that demolding machine is movable, after demolding, the molds can be installed immediately without any delay. Multiwork is possible so efficiency is triple compared to traditional vertical manual and semi horizontal production line.

4. Recycling unit
Recycling unit can save eveything in production, waste slurry settling in underground mixer, the cement and sand will be pumped into mixer again for next mixing cycle. Keep production clean and make waste recycling, cost saving.

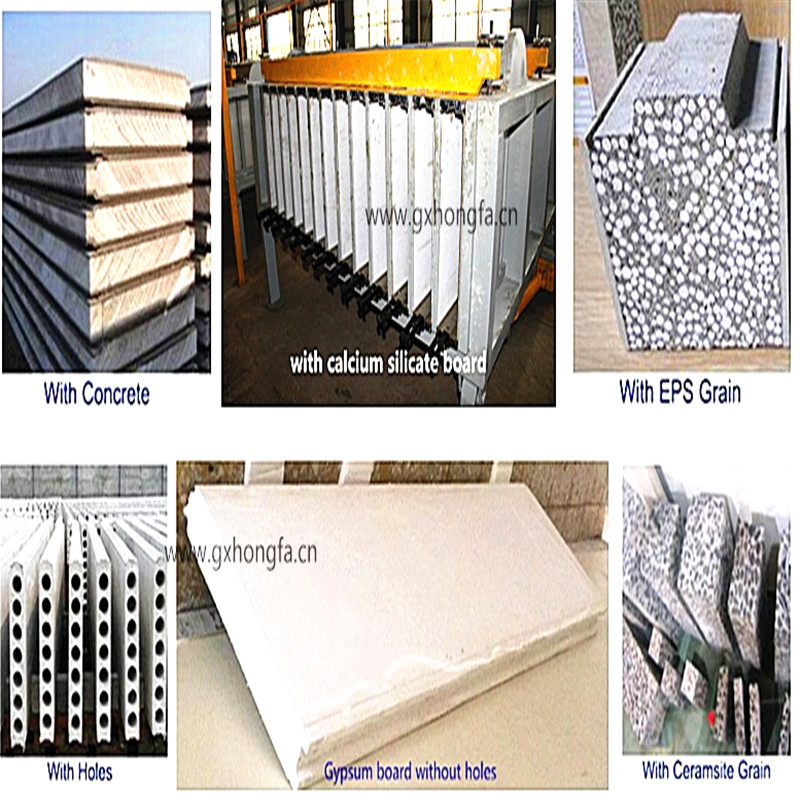

Hongfa Group Produce Several types of EPS Wall Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line:

1. Horizontal wall panel production line /EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line

This EPS wall panel making machine is automatic type, easy operation and less workers. The automatic horizontal concrete eps wall panel production line features high precise injecting, good controls on the temperature and raw material mixing, and keeping well with the foamed material equal wrapping and prevents the bead agglomerate because of the bad temperature control.

2. Vertical Manual panels de-molding wall panel production line /EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line

 This sandwich concrete dry wall panel is in low investment and highest capacity. This kind of sandwich lightweight wall panel machine can be considered due to the limit of functional requirements.

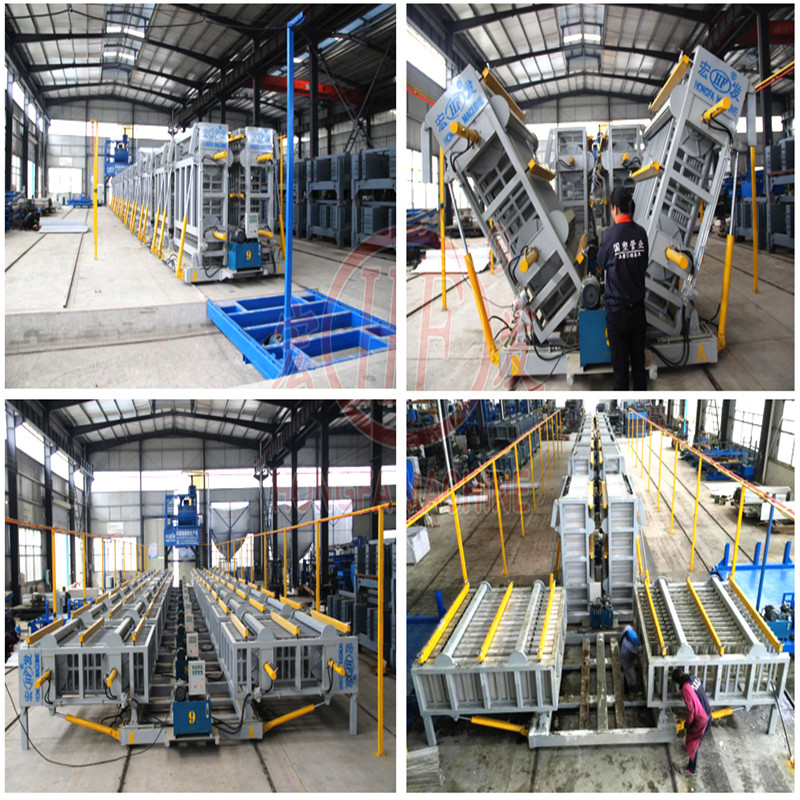

3. Double side opening automatic EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line :

The most updated generation Precast Lightweight Concrete Wall Panel Making Machine

The Advantage of Automatic Double-side Opening Precast Concrete Wall Panel Making Machine
By running the machine, we have update eps sandwich wall panel making machine to 3rd generation, welcome to visit us to see machine running!

1. The workers can fix boards and moulds easily at the same time for both sides, the height is 1.2meters . (When it is double opening type ).
2.It is convenient to clean the mould and partition board for both side. No problem for panels' and moulds' bending out of shape . The machine can be opened by any angles.
3. No panels will fall down when demolding with any thickness of panels, one worker can demold by automatic demolding & stacking machine safely.
4. Workers can demold panels while anther one can fix the mould and boards, no need

wait for any forming machine, time-saving and faster operation for the whole line.
5. Can have natural or hydaulic filling for solid, hollow Eps wall panels.
