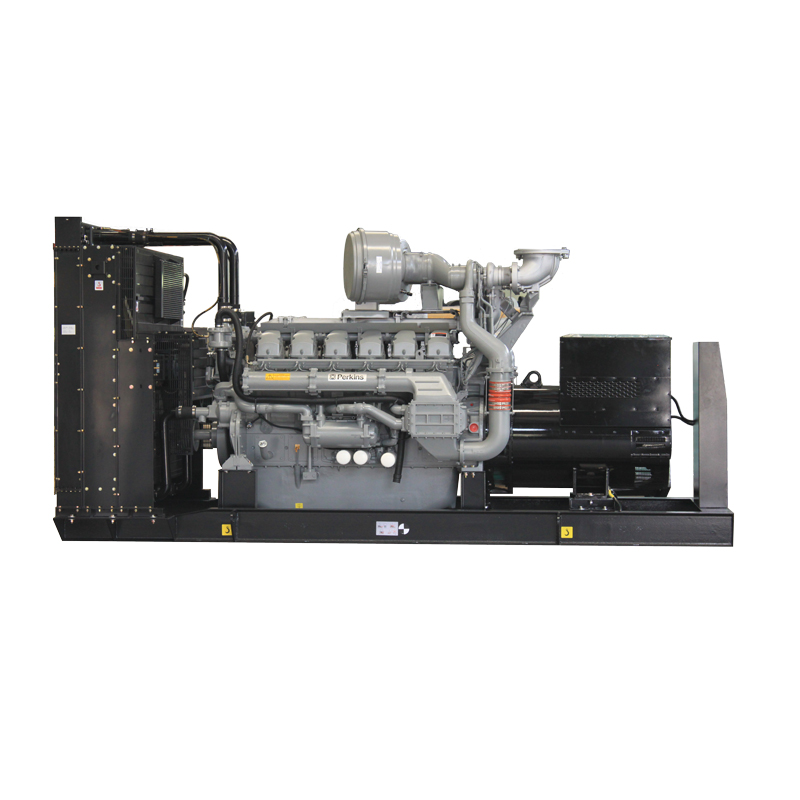

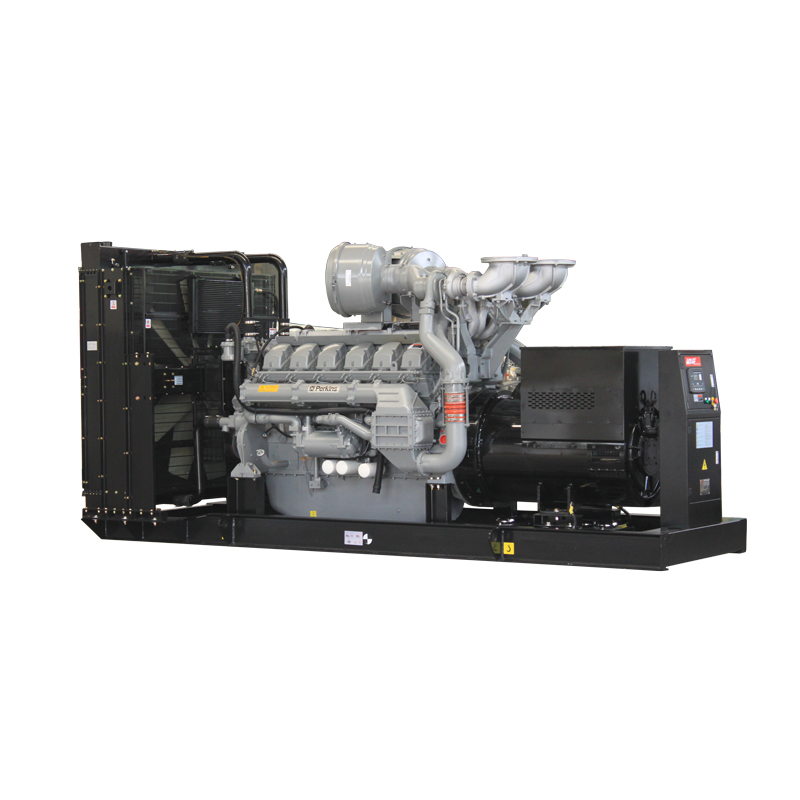

Genset Standard Configuration

◆ Assembled by Perkins diesel engine and world famous brand alternator

◆ Radiator and fan with safety guard

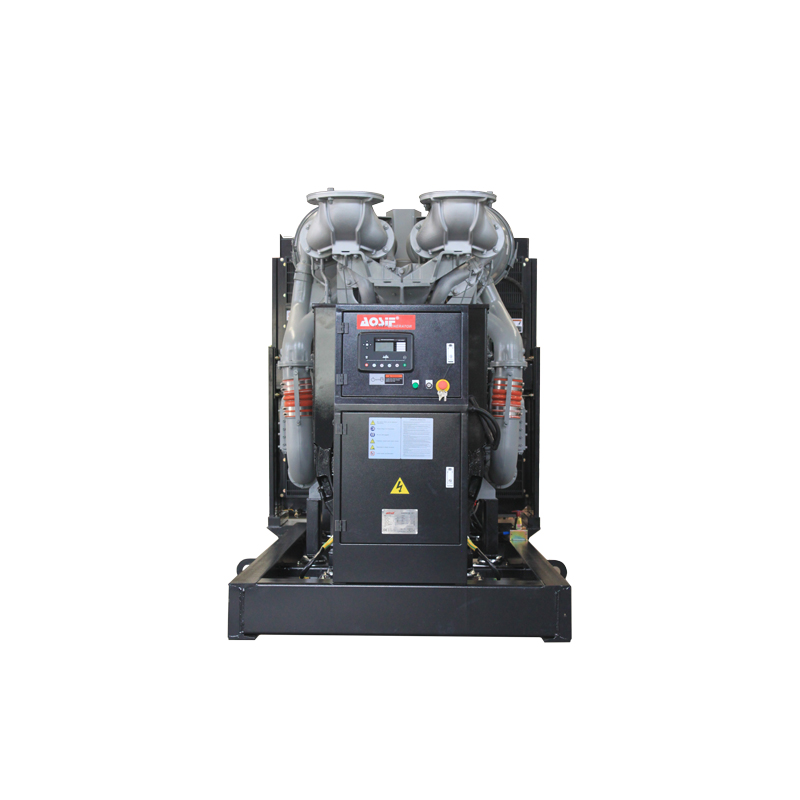

◆ Automatic control panel and electricity output switch cabinet

◆ Float battery charger and solenoid switch as standard supply scope

◆ Built-in shock pad

◆ Strong and durable hi-strength base frame

◆ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

① Diesel engine

② Alternator

③ Water tank radiator

④ Automatic control panel

⑤ Electricity output switch cabinet

⑥ Built-in shock pad

⑦ Hi-strength Base Frame

Standard Supply Scope

① Exhaust silencer

② Bellow

③ Elbow and flange

④ Starting battery

Optional supply scope

Perkins engine:

UK Perkins Engine Co., Ltd.is one of the world's leading engine manufacturers since its founding in 1932.Covering more than 180 countries and regions, the service network adheres to the strictest standards to ensure that customers in every corner of the world can get the best quality service. At present, its 400 series and part of 1100 series are produced in Wuxi, China, while other series are made in the UK.

Alternator

Alternator adopts brushless synchronization alternator of Leroy-Somer of world famous brand, Leroy-Somer generators are characterized by compact structure, high power density, high efficiency, low reactance, good starting performance, and low failure rate. It can meet the main standards and quality certification requirements on the market. Class H Insulation for whole range. Optimization design by finite element analysis ensure to achieve the best mechanical strength of parts. With Leroy-Somer patented winding protection system, LSA series products are capable of harsh environments and guarantee the product life under extreme working conditions.

◆ Forms: single/double bearing

◆ Protection:IP23(IP44 for option)

◆ Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

◆ Overspeed: 2250rpm

◆ Insulation Class: class H

◆ Mechanical Structure: steel base frame

Control System——DeepSea 6120 Controller

① Power switch

② Power indicator

③ Run button

④ LCD display

⑤ Emergency stop button

It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced engine testing and protection functions. This module includes an LCD backlit display that clearly displays the engine running status. The module also includes 7-channel input and 6-channel output. Program can be set through the panel and PC software suite.

Parameters:

Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic sensor signal loss, low battery voltage, three-phase mains voltage and mains frequency.

Protective functions:

◆ High water temperature

◆ Low oil pressure

◆ High/low voltage

◆ Over speed

◆ Voltage regulator frequency regulator

◆ Emergency stop

◆ Start failure

Product features:

◆ Protection: Automatic start/stop, load switching and genset alarm

◆ Magnetic sensor signal

◆ Parameters setting via PC and panel

◆ Incorporates 4-channel digital input signal and 3-channel analog input signal

◆ 6-channel output signal (4-channel customized output, CAN 6-channel customized output.)

◆ Monitoring of 3-phase generator voltage and mains voltage

◆ Remote loading/unloading

◆ Advanced measurement capabilities

◆ Test button

◆ Switch between mains and genset power

◆ Reasonable structure and button layout

◆ Multiple engine parameters can be tested simultaneously

◆ Module can be configured according to customer demand

◆ IP65 protection (soundproof)

Circuit breaker

Starting battery

AOSIF Soundproof Box-type Genset

Aosif soundproof box-type genset is designed by professional engineers with over a decade of experience.The noise of this kind of genset is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.

Our Commitments

★ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

★ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001 Environmental Management System.

★ All products are CE-certified.

★ All products have passed rigorous factory test to ensure high quality.

★ Product warranty terms are strictly enforced.

★ High-efficiency assembly and production lines ensure on-time delivery.

★ Professional, timely, thoughtful and dedicated services are offered.

★ Favorable and complete original accessories are supplied.

★ Regular and irregular technical training are provided all year round.

★ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
