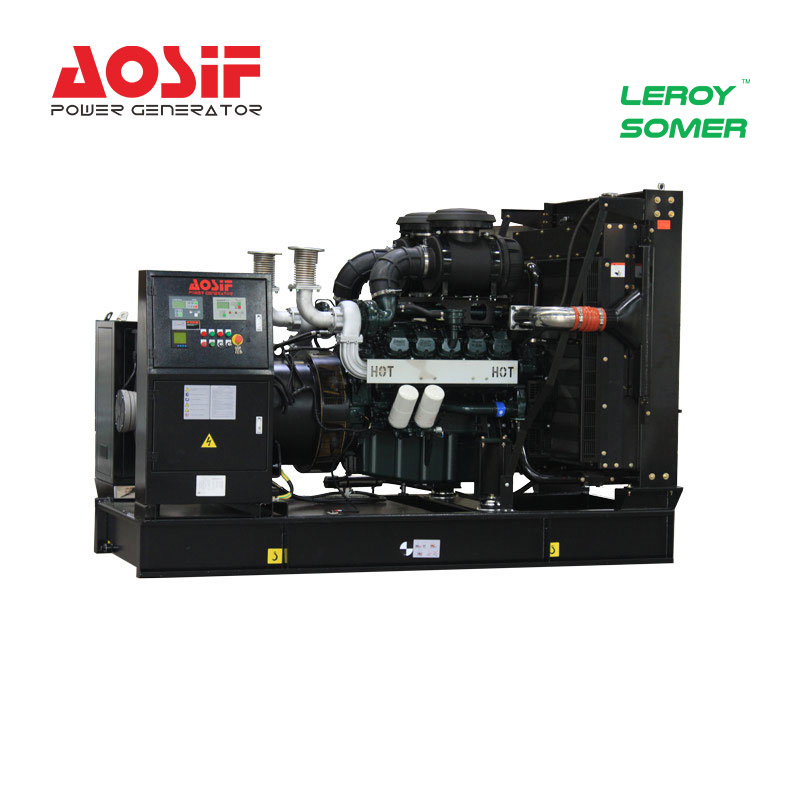

① Diesel engine

② Alternator

③ Water tank radiator

④ Automatic control panel

⑤ Electricity output switch cabinet

⑥ Built-in shock pad

⑦ Hi-strength Base Frame

Doosan Engine is a new generation product with first-class performance and reliability launched by Doosan Construction Machinery Co., Ltd., which was established by the Doosan Group in 2005 after the acquisition of Daewoo General Machinery Co., Ltd. Developed on the original Daewoo Engine, Doosan Engine has strong horsepower suitable for standby and prime generator set to meet the needs of power supply all over the world. The power covers 5kW-600kW.

Alternator adopts brushless synchronization alternator of Leroy-Somer of world famous brand, Leroy-Somer generators are characterized by compact structure, high power density, high efficiency, low reactance, good starting performance, and low failure rate. It can meet the main standards and quality certification requirements on the market. Class H Insulation for whole range. Optimization design by finite element analysis ensure to achieve the best mechanical strength of parts. With Leroy-Somer patented winding protection system, LSA series products are capable of harsh environments and guarantee the product life under extreme working conditions.

◆ Forms: single/double bearing

◆ Protection:IP23(IP44 for option)

◆ Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

◆ Overspeed: 2250rpm

◆ Insulation Class: class H

◆ Mechanical Structure: steel base frame

① Power switch

② Power indicator

③ Run button

④ LCD display

⑤ Emergency stop button

It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced engine testing and protection functions. This module includes an LCD backlit display that clearly displays the engine running status. The module also includes 7-channel input and 6-channel output. Program can be set through the panel and PC software suite.

Parameters:

Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic sensor signal loss, low battery voltage, three-phase mains voltage and mains frequency.

Aosif soundproof box-type genset is designed by professional engineers with over a decade of experience.The noise of this kind of genset is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.
