About this product
- Materials: steel
- Size: Based on model/Equipment model
- Color: According to customer requirements
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
About this product
- Materials: steel
- Size: Based on model/Equipment model
- Color: According to customer requirements
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
Product details
| Materials | steel |
|---|---|
| Size | Based on model/Equipment model |
| Color | According to customer requirements |
Product details
| Materials | steel |
|---|---|
| Size | Based on model/Equipment model |
| Color | According to customer requirements |
From the supplier
[Feeding fineness] 125-1020mm
[Productivity] 5-800T
[Application] Metallurgy,Mining industry, Concrete production, Chemicak industry, Ceramic industry, highway construction, Water reservoir,etc.
[Materials resolved] The stones of high or medium hardness such as the the granite, the marble, the basalt, the limestone, the quartz, the pebble and the iron ores.
Introduction:
This jaw crusher is the most elemental equipment as the primary crusher in the crushing plant. It is good at crushing various materials with a compression below 320 MPa.
This jaw crusher series has been widely applied in the fields like mining, construction, metallurgy, highway construction, railway construction and water conservancy due to
its high capacity, stable performance, easy maintenance and low cost. Compared with other crushers, the jaw crusher has additional superiorities like the low reduction ratio,
the even granularity and the rugged structure. This is definitely your best choice for the primary crushing equipment in a complete crushing plant.
The working principle:
The motor drives the belt wheel to makes the movable jaw plate up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable
jaw gets larger, and the materials can be crushed to the required fineness. When the movable jaw plate is down, the angle between the fixed jaw and movable jaw becomes
smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Features:
The unique design of crushing chamber may help to increase the material utilization. And the jaw plate can be used repeatedly by reversing the plate, which can help to achieve an even abrasion,
improve the material utilization and extend the service life. This jaw crusher features its reliable structure, high productivity, easy adjustment, fine shapes, even distribution of particles and lower cost.
This crusher has been widely used at home and abroad. The spring system is used to relief the damage to the crusher of foreign matters as the overload protection system.
The jaw crusher has a simple structure; the driving medium such as the eccentric shaft will not be stress too badly. Besides, on account of the little vertical movement of the jaw plate,
there is little over-crushing samples, which may relief the abrasion of the movable plate.
Parameters:
ModelFeed Opening(mm)Max. Feed Size
(mm)Capacity
(t/h)Power
Consumption
(kw)Discharge Opening
(mm)Overall Dimension
(L x W x H)
(mm)PE-150×250150×2501251-55.510-40758×758×794PE-250×400250×4002105-201520-601500×1400×900PE-400×600400×60034016-653040-1001700×1800×1600PE-500×750500×75042550-1005550-1001890×1940×1870PE-600×900600×90050050-1205565-1602395×1843×2230PE-750 ×1060750×106063052-18011080-1402775×2426×2840PE-800×1060800×1060640136-230110100-2002500×2472×2810PE-900×1200900×1200750140-26011095-1653400×3200×3500PE-1000×12001000×1200850315-342110195-2653335×3182×3430PE-1200×15001200×15001020400-800160150-3004200×3732×4620PE-250 ×750250×75021015-302215-701400×1300×1350PE-250×1000250×100021016-523025-601600×2000×1500PE-250 ×1200250×120021020-603725-601900×2200×1500PE-300×1300300×130026030-705530-901800×2300×1700

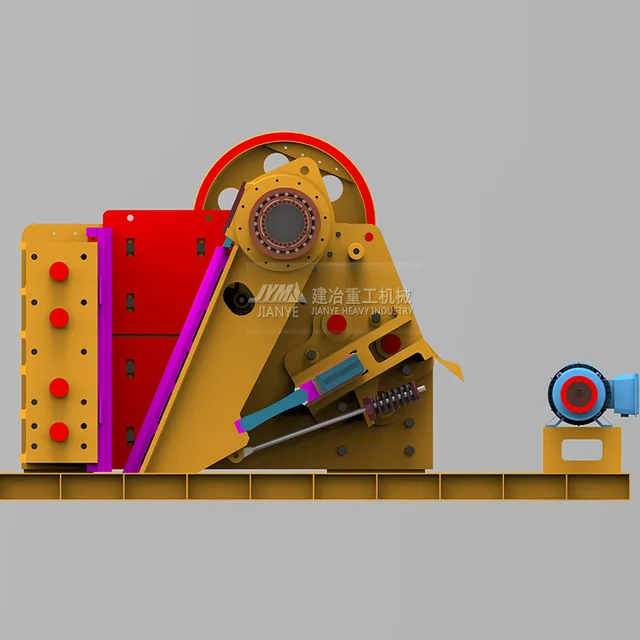

Structural Drawing:
