Parking sensor for truck
STEELMATE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: plastic
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | plastic |
|---|---|
| Color | black |
Product details
| Materials | plastic |
|---|---|
| Color | black |
From the supplier

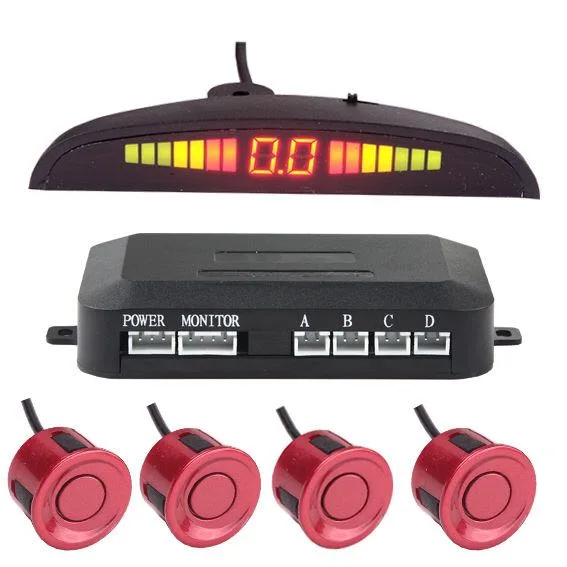

Name: PTS400V12-COM Wireless Parking Sensor

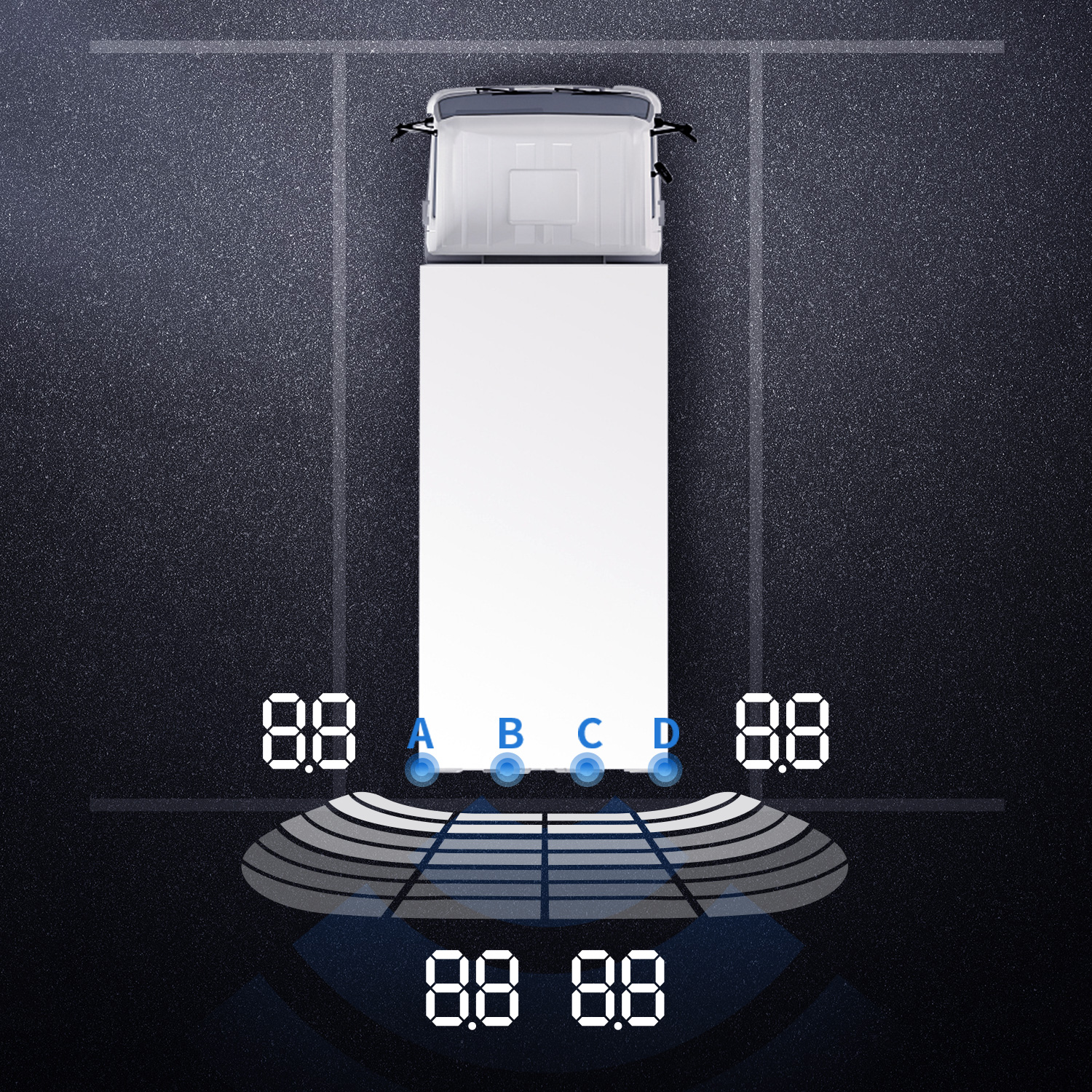

The reverse radar system is equipped with 4 sensor system installed at the rear bumper of the car for enhanced coverage and detection. It will increase the safety for the passenger, pedestrian and driver to prevent accident and costly collision. The PTS400V12-COM is a rear wireless parking assist system that wireless transmission between the ECU and wireless receiver of LCD display.
Features:

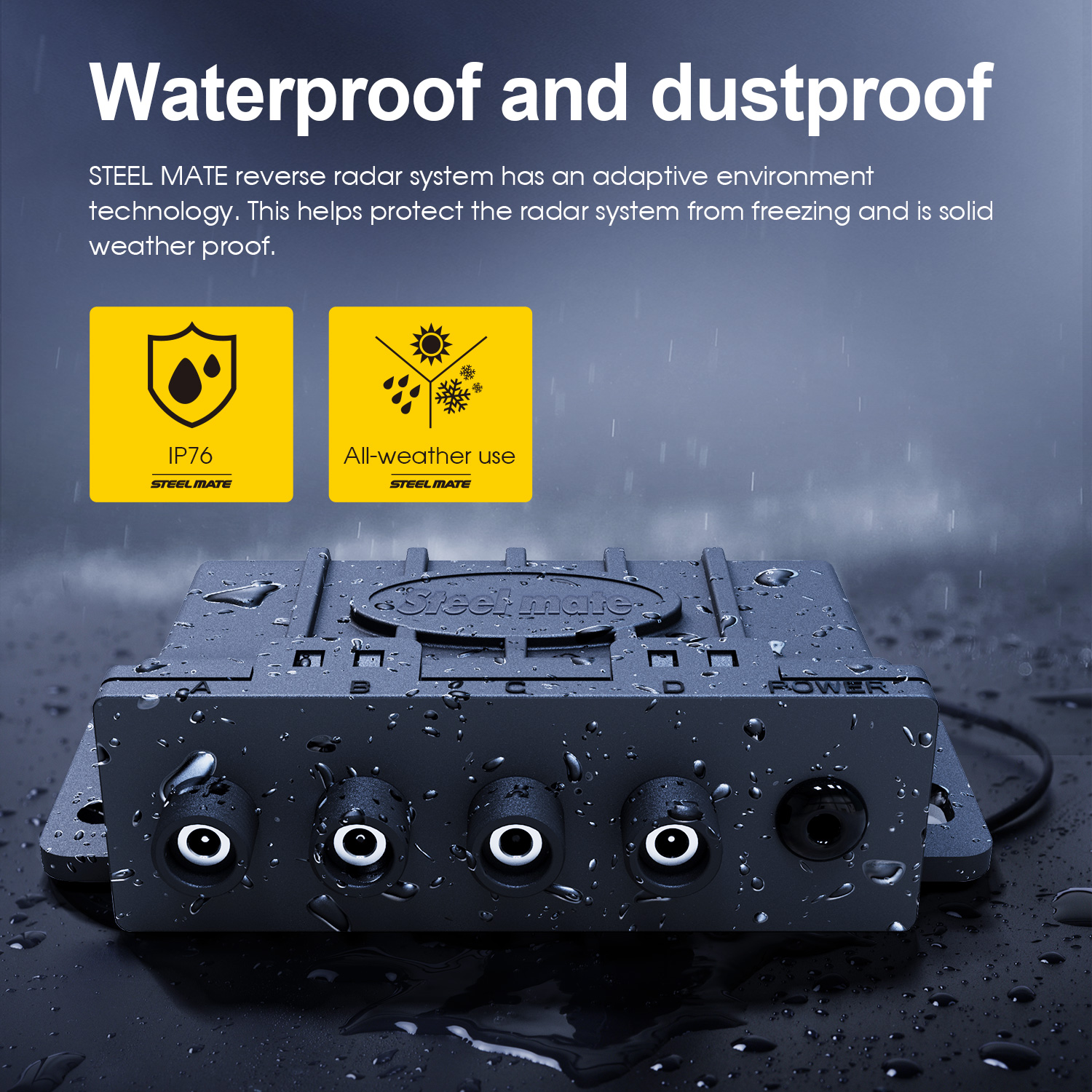

- Water resistant ECU
- All weather design
- Self-test function
- Truck sensor for commercial vehicles
- Detachable sensor with waterproof wire connector
Specification for ECU
Operating voltage
DC 9V~32V
Operating current
＜150mA
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃
Specification for Sensor
Operating frequency
40 ±2KHz
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃

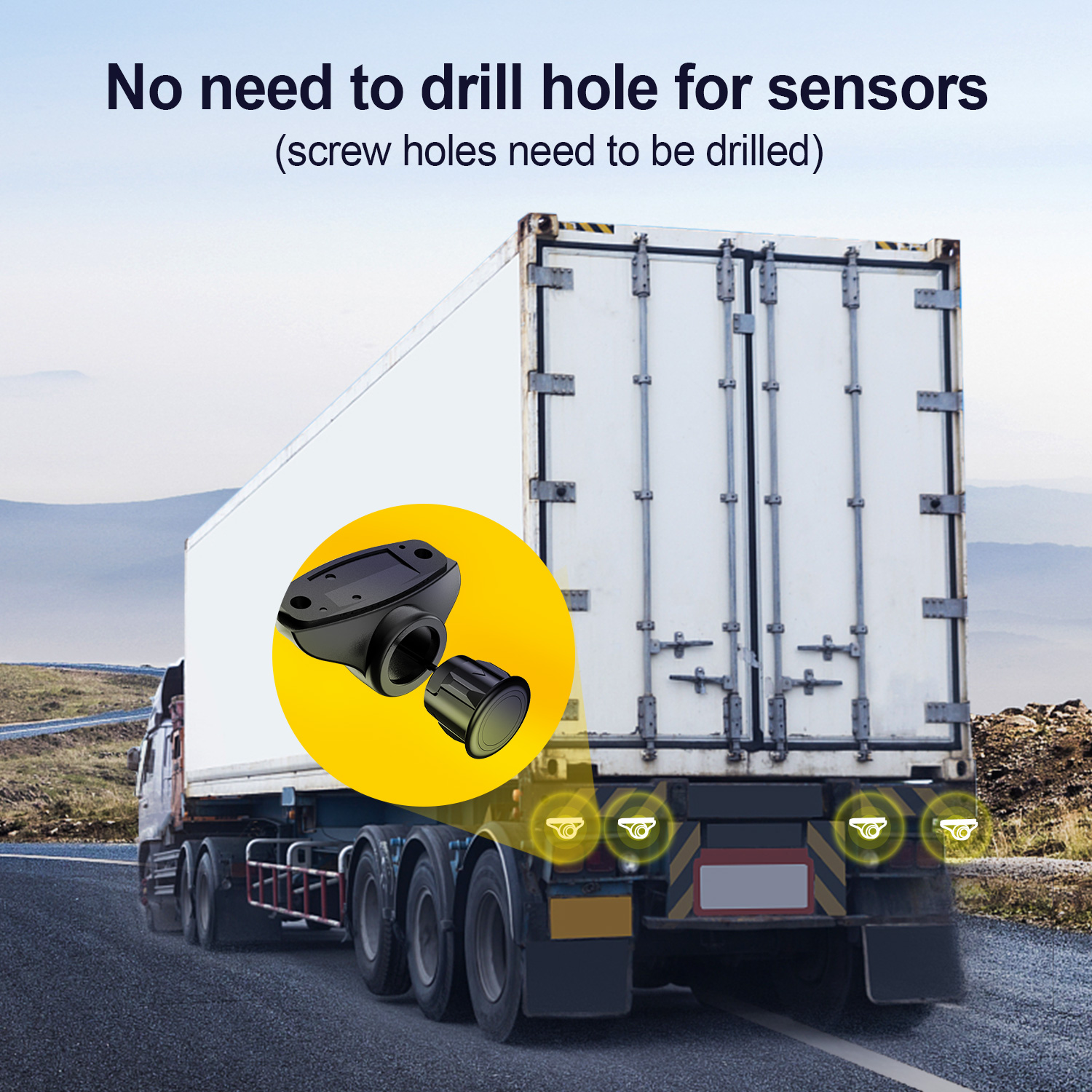

Drill diameter
18.8mm
Horizontal range
110°±15°
Sensitivity
180±100mV
Specification for LCD display
Operating temperature
-20~+70℃
Storage temperature
-30~+80℃
Specification for Wireless Receiver
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃
Operating frequency
27MHz
Operating voltage
DC 9V~32V
Operating current
＜300mA
From the supplier
Name: PTS400V12-COM Wireless Parking Sensor
The reverse radar system is equipped with 4 sensor system installed at the rear bumper of the car for enhanced coverage and detection. It will increase the safety for the passenger, pedestrian and driver to prevent accident and costly collision. The PTS400V12-COM is a rear wireless parking assist system that wireless transmission between the ECU and wireless receiver of LCD display.
Features:
- Water resistant ECU
- All weather design
- Self-test function
- Truck sensor for commercial vehicles
- Detachable sensor with waterproof wire connector
Specification for ECU
Operating voltage
DC 9V~32V
Operating current
＜150mA
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃
Specification for Sensor
Operating frequency
40 ±2KHz
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃
Drill diameter
18.8mm
Horizontal range
110°±15°
Sensitivity
180±100mV
Specification for LCD display
Operating temperature
-20~+70℃
Storage temperature
-30~+80℃
Specification for Wireless Receiver
Operating temperature
-40~+80℃
Storage temperature
-40~+85℃
Operating frequency
27MHz
Operating voltage
DC 9V~32V
Operating current
＜300mA
