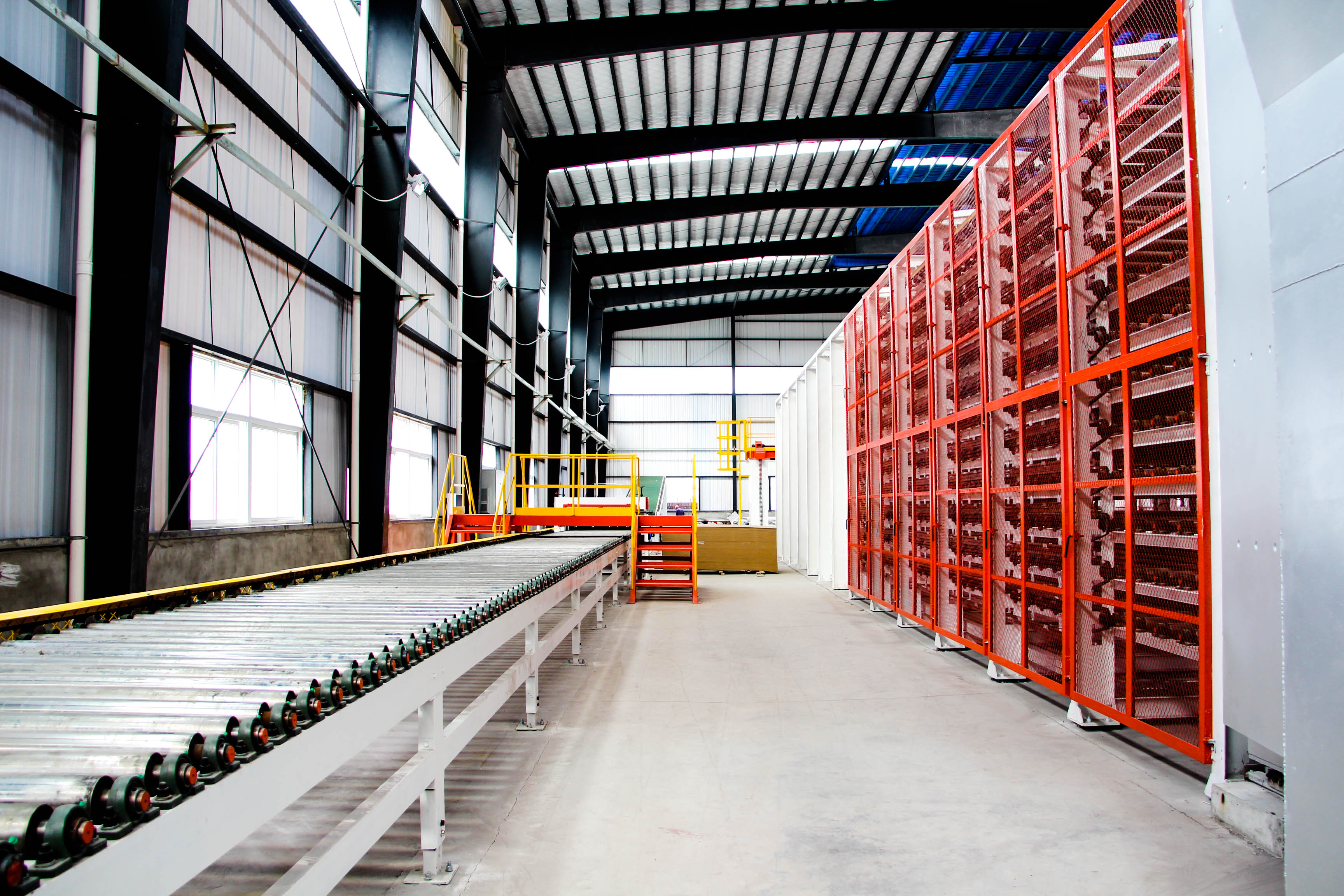

Paper Faced Gypsum Board Production Line
HEBEI LVJOE MACHINERY MANUFACTURING GROUP CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied

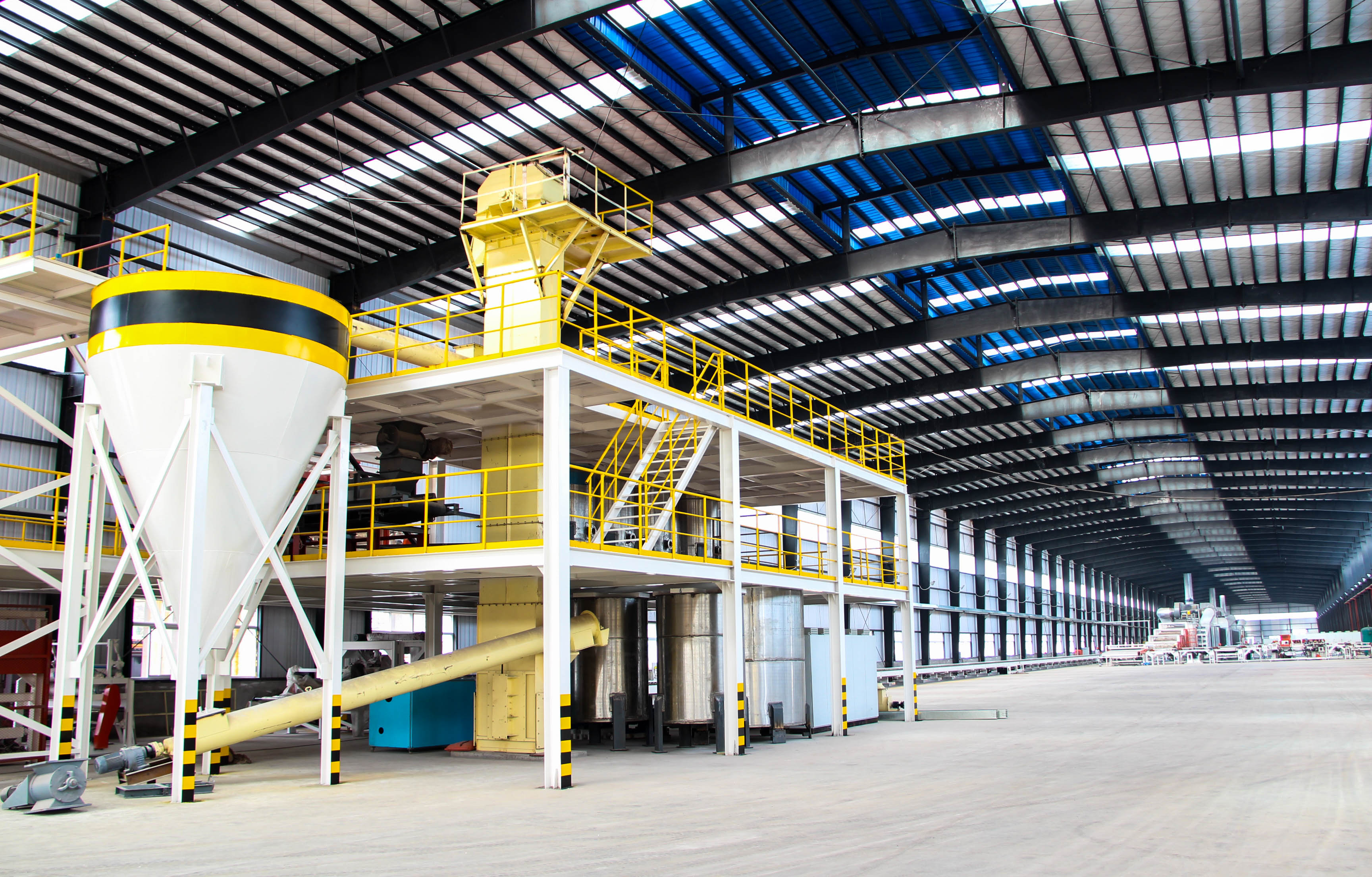

Paper Faced Gypsum Board Production Line
HEBEI LVJOE MACHINERY MANUFACTURING GROUP CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Iron and Steel
- Size: Different Output, Different Size
- Color: The color can be used on the basis of customers' inquiry
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea
- Made in: Hebei, China
About this product
- Materials: Iron and Steel
- Size: Different Output, Different Size
- Color: The color can be used on the basis of customers' inquiry
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea
- Made in: Hebei, China
Product details
| Materials | Iron and Steel |
|---|---|
| Size | Different Output, Different Size |
| Color | The color can be used on the basis of customers' inquiry |
Product details
| Materials | Iron and Steel |
|---|---|
| Size | Different Output, Different Size |
| Color | The color can be used on the basis of customers' inquiry |
From the supplier
1) Production capacity: 2 million ~50 million square meter per year.
2) Final product variety: Common paper faced plasterboard
Fireproof paper faced plasterboard,
Waterproof paper faced plasterboard.
3) Product specificati1on: Thickness from 6.5mm ~ 18mm
Length from 2400mm ~ 3600mm
Width from 1200~1220mm
4) Product quality: In conformity with standard of P.R.C GB/T9775-2008 paper-covered Plasterboard.
5) Fuel variety: Coal, fuel oil, natural gas, or others
Paper supply system
It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and
high precision electro-hydraulic alignment device, along with the automatic marking device played very big roles
for shaping, and ensured the good appearance quality.
Gypsum powder supply system
It takes the exclusive impeller feeder and high precision weighing belt as the core of powder
feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of
powder additive storages, discharging and metering feeding systems; glass fiber cutting and
its metering feeding systems.etc.
Forming system
The vertical mixer and the pneumatic forming device are made of special wearable stainless
steels which enhance the system’s wearable ability and prolonged its life span. The vertical
mixer got pin type, none-pin type and other types to choose.
Drying system
The drying system is the core of the whole production line and it affects the quality and the
energy consumption of the products. It has interior muti-layer coiler heat releasing type,
external finned heat exchanging type, and hot air direct drying type
Dust removal system
This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard. In addition. It is convenient to deal with the dust and recycle. This system is good for the country and the people.
Control system
All of the three control stations adopt PLC control system. AC contactor and drive device chose reliable brand, and it also uses the contact-less equipments such as frequency converter,photoelectric sensor etc. Insured the reliable operation and realized the long-term and continuous fully automatic running of the gypsum board production line.
From the supplier
1) Production capacity: 2 million ~50 million square meter per year.
2) Final product variety: Common paper faced plasterboard
Fireproof paper faced plasterboard,
Waterproof paper faced plasterboard.
3) Product specificati1on: Thickness from 6.5mm ~ 18mm
Length from 2400mm ~ 3600mm
Width from 1200~1220mm
4) Product quality: In conformity with standard of P.R.C GB/T9775-2008 paper-covered Plasterboard.
5) Fuel variety: Coal, fuel oil, natural gas, or others
Paper supply system
It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and
high precision electro-hydraulic alignment device, along with the automatic marking device played very big roles
for shaping, and ensured the good appearance quality.
Gypsum powder supply system
It takes the exclusive impeller feeder and high precision weighing belt as the core of powder
feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of
powder additive storages, discharging and metering feeding systems; glass fiber cutting and
its metering feeding systems.etc.
Forming system
The vertical mixer and the pneumatic forming device are made of special wearable stainless
steels which enhance the system’s wearable ability and prolonged its life span. The vertical
mixer got pin type, none-pin type and other types to choose.
Drying system
The drying system is the core of the whole production line and it affects the quality and the
energy consumption of the products. It has interior muti-layer coiler heat releasing type,
external finned heat exchanging type, and hot air direct drying type
Dust removal system
This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard. In addition. It is convenient to deal with the dust and recycle. This system is good for the country and the people.
Control system
All of the three control stations adopt PLC control system. AC contactor and drive device chose reliable brand, and it also uses the contact-less equipments such as frequency converter,photoelectric sensor etc. Insured the reliable operation and realized the long-term and continuous fully automatic running of the gypsum board production line.
