Nanjing Gongda CNC CNC gear profile grinding machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Nanjing Gongda CNC CNC gear profile grinding machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Abrasives: Other
- Cylindrical grinder type: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Abrasives: Other
- Cylindrical grinder type: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
| Abrasives | Other |
| Cylindrical grinder type | Other |
| Certification | Other |
| Controlling mode | Other |
| Processing object | Other |
From the supplier
Machine tool introduction

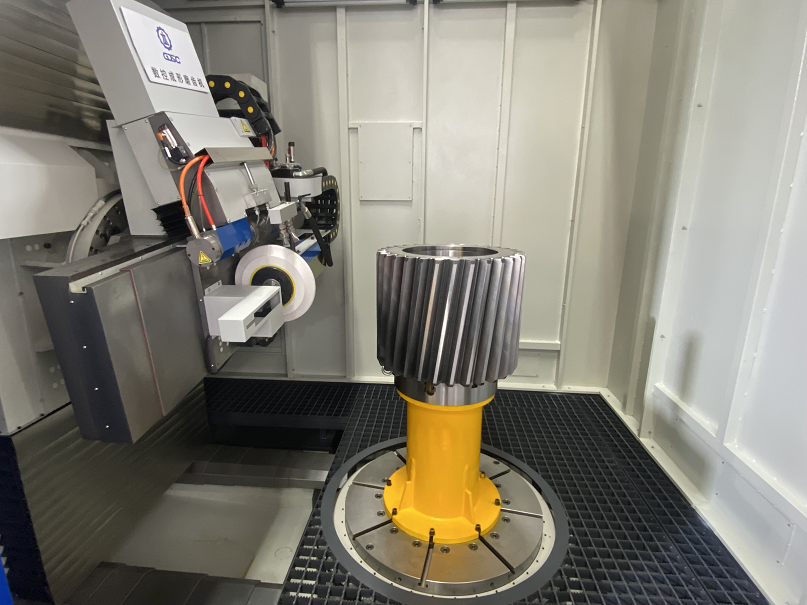

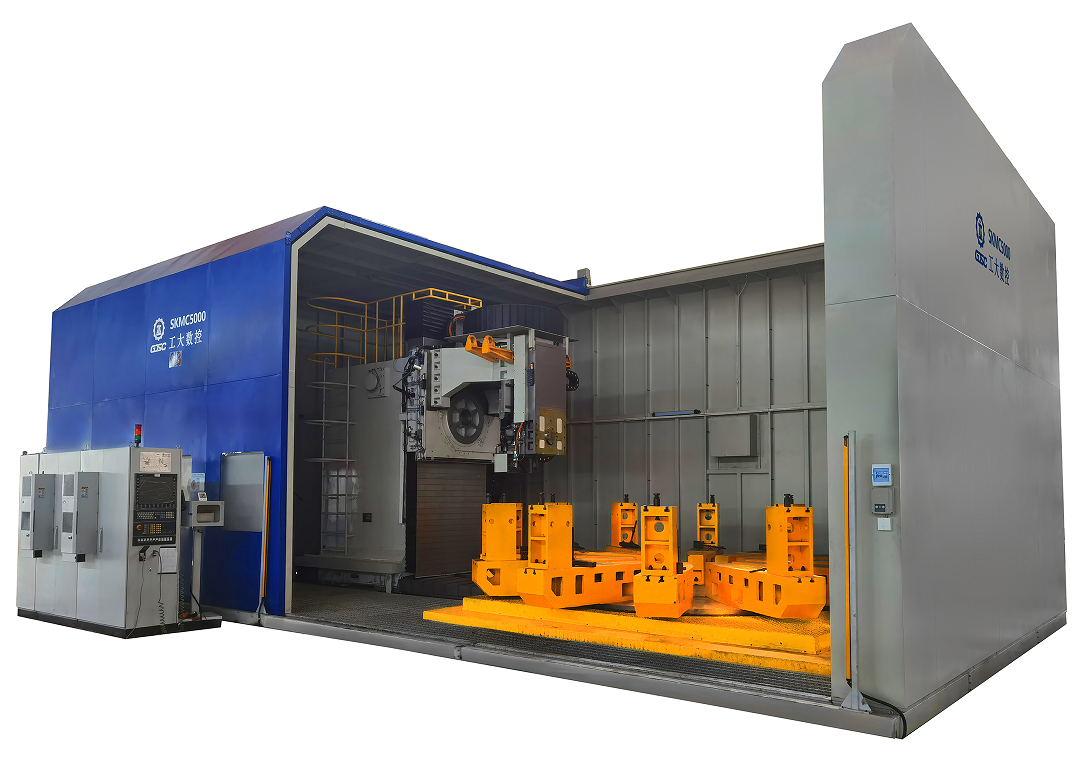

SKMC series CNC forming gear grinding machine is a high precision machine tool independently developed by Nanjing Polytechnic Numerical Control Technology Co., Ltd. with complete independent intellectual property rights. The equipment integrates heavy-duty precision hydrostatic guide rail, hydrostatic rotary table of double worm gear pair, on-line measurement system, full closed-loop control technology, and multi-function forming and grinding software, which makes the machine have high reliability and accuracy.
SKMC series CNC forming gear grinding machine is suitable for grinding all kinds of high-precision external cylindrical gears (optional internal grinding arm, internal grinding head), can be widely used in mechanical press, engineering machinery slewing bearing, shield machine main bearing, wind power gear box, mining machinery and other industries.
Machine tool characteristics
Multifunctional gear grinding software
1. Independently develop and master the core algorithm.
2. Complete functions, friendly user interface and convenient man-machine interaction.
3, integrate a variety of tooth shape modification, tooth direction modification function.
4, built-in process expert database, improve grinding processing quality.
Precision feed technology
1, X axis and Z axis using roller/static guide, high feed resolution, low friction coefficient, long service life.
2, static guide rail built-in negative pressure suction, positive pressure gas ring and other sealing technology, to achieve oil return inside the oil chamber.
3, using grating ruler closed-loop control and compensation, with high positioning accuracy and repeated positioning accuracy.
Mechanical dynamic optimization design
1, bed and column and other basic mechanism parts using a variety of methods to optimize design, with high dynamic and static stiffness.
2. The key components adopt anti-backlash and locking technology to further improve vibration resistance and reduce grinding vibration.
Precision design and error compensation
1, the key parts of the manufacturing, assembly and debugging are active precision design, strict control of the whole process of the error.
2, integrated online measurement system, the processing error detection, and correction grinding system, to achieve closed-loop machining.
3, by comparing the gear offline test report, the machine error calibration and compensation can be carried out to improve the accuracy stability.
Precision turntable technology
1, double worm gear double worm clearance rotary table, worm gear pair accuracy of DIN2 level.
2, torque motor direct drive rotary table, indexing positioning accuracy of 3 ".
3, full static guide, strong bearing capacity, good dynamic response characteristics, high motion resolution.
