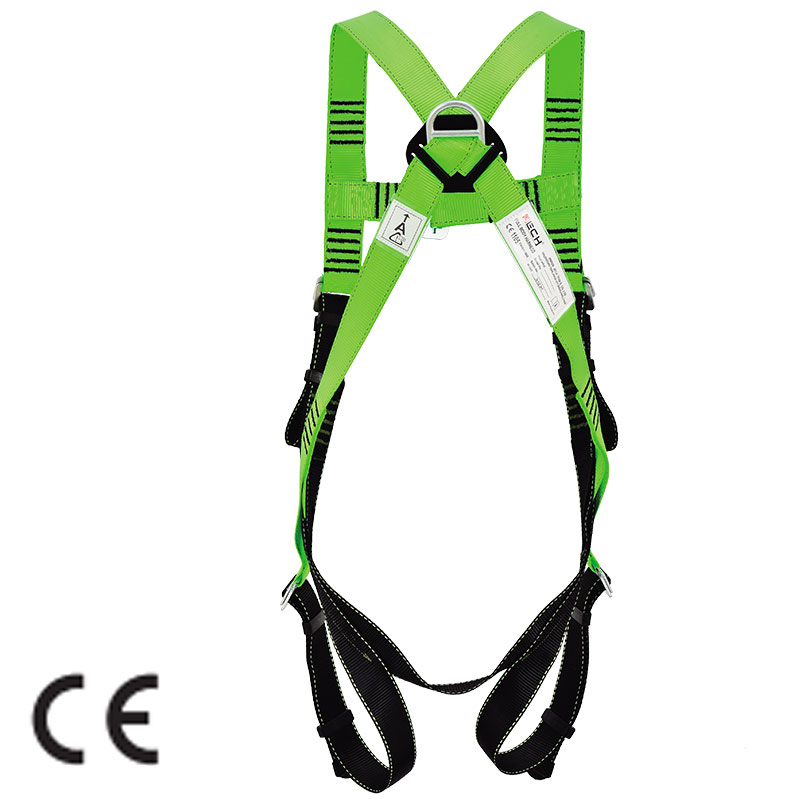

1: Product Introduction:

45mm polyester webbing with min breaking strength 25kN.

Color: Green/Black(Customizable).

Special design & high resistant polyethylene back plate for holding D-ring even after the fall.

1 pc dorsal attachment D-ring for fall arrest (EN361),with min breaking strength 25kN.

1 pc front attachment D-ring for fall arrest (EN361),with min breaking strength 25kN.

2 webbing loops on shoulder strap for fall arrest (EN361).

Adjustable chest strap, shoulder strap ( 5 adjustable points).

Ideally positioned sit strap for extended comfort.

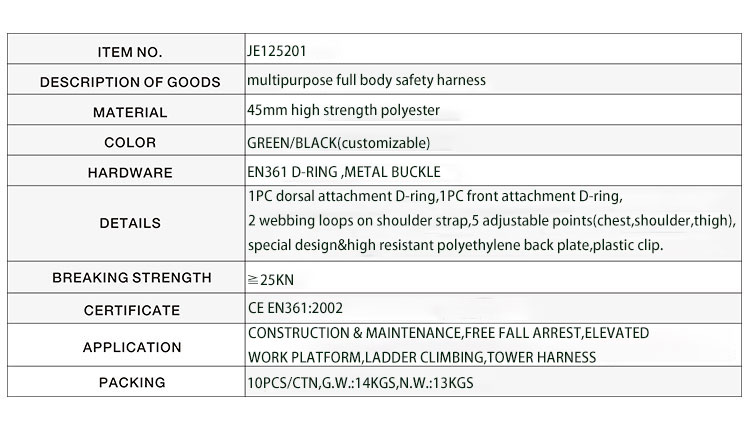

2: Products Parameter:

ITEM NO.:

JE125201

DESCRIPTION OF GOODS:

multipurpose full body safety harness

MATERIAL:

45mm high strength polyester

COLOR:

GREEN/BLACK(customizable)

HARDWARE:

EN361 D-RING &METAL BUCKLE

DETAILS:

1PC dorsal attachment D-ring,1PC front attachment D-ring,

2 webbing loops on shoulder strap,5 adjustable points(chest,shoulder,thigh),

special design&high resistant polyethylene back plate,plastic clip.

BREAKING STRENGTH:

≧25KN

CERTIFICATE:

CE EN361:2002

APPLICATION:

CONSTRUCTION & MAINTENANCE,FREE FALL ARREST,ELEVATED WORK PLATFORM, RETRIEVAL CONFINED SPACES

PACKING:

10PCS/CTN,G.W.:14KGS,N.W.:13KGS,48*25*25cm

3: GENERAL REQUIREMENTS, WARNINGS AND LIMITATIONS

■Proper precautions should always be taken to remove any obstructions, debris, material, or other

recognized hazards from the work area that could cause injuries or interfere with the operation of

the system. All equipment must be inspected before each use according to the manufacturer's

instructions. All equipment should be inspected by a qualified person on a regular basis.

■To minimize the potential for accidental disengagement, a competent person must ensure system

compatibility.

■Equipment must not be altered in any way. Repairs must be performed only by the Manufacturer,

or persons or entities authorized in writing by the manufacturer.
