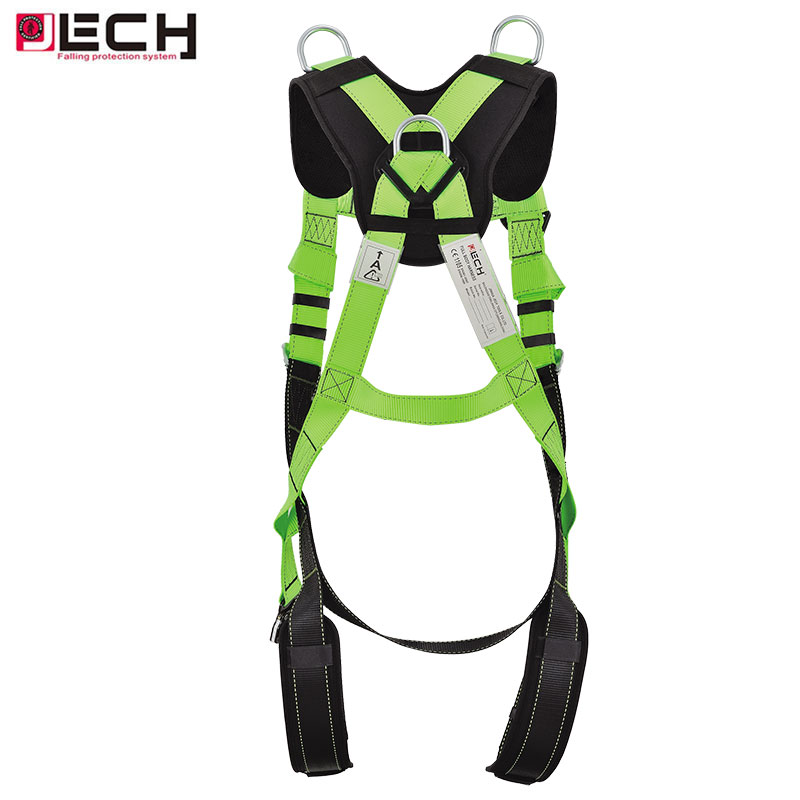

1: Product Introduction:

45mm polyester webbing with min breaking strength 25kN.

Special design & high resistant polyethylene back plate for holding D-ring even after the fall.

Adjustable dorsal high strength forged D-ring for fall arrest (EN361),min breaking strength 25kN.

The back pad is made up of mesh Net for better shock absorption and comfort of the user.

Each 1 pc plastic triangular ring under the pad on the chest strap plastic for hanging tools and hook.

Adjustable chest &shoulder & thigh strap (5 adjustable points).

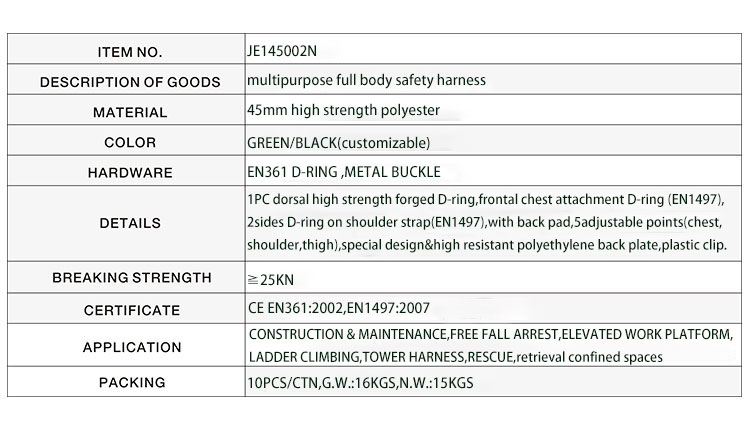

2: Products Parameter:

ITEM NO.:

JE145002N

DESCRIPTION OF GOODS:

multipurpose full body safety harness

MATERIAL:

45mm high strength polyester

COLOR:

GREEN/BLACK(customizable)

HARDWARE:

EN361 D-RING &METAL BUCKLE

DETAILS:

1PC dorsal high strength forged D-ring,frontal chest attachment D-ring (EN1497),2pcs side D-ring on shoulder strap(EN1497), with back pad, 5 adjustable points (chest, shoulder, thigh), special design&high resistant polyethylene back plate,plastic clip.

BREAKING STRENGTH:

≧25KN

CERTIFICATE:

CE EN361:2002,EN1497:2007

APPLICATION:

CONSTRUCTION & MAINTENANCE, FREE FALL ARREST,ELEVATED WORK PLATFORM,LADDER CLIMBING,TOWER HARNESS,RESCUE

PACKING:

10PCS/CTN,G.W.:16KGS,N.W.:15KGS,55*25*30cm

3: GENERAL REQUIREMENTS, WARNINGS AND LIMITATIONS

■Proper precautions should always be taken to remove any obstructions, debris, material, or other

recognized hazards from the work area that could cause injuries or interfere with the operation of

the system. All equipment must be inspected before each use according to the manufacturer's

instructions. All equipment should be inspected by a qualified person on a regular basis.

■To minimize the potential for accidental disengagement, a competent person must ensure system

compatibility.

■Equipment must not be altered in any way. Repairs must be performed only by the Manufacturer,

or persons or entities authorized in writing by the manufacturer.
