About this product
- Materials: PA66
- Size: 83*66*18
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PA66
- Size: 83*66*18
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PA66 |
|---|---|
| Size | 83*66*18 |
| Color | Grey |
Product details
| Materials | PA66 |
|---|---|
| Size | 83*66*18 |
| Color | Grey |
From the supplier
Supply Ability Supply Ability: 60000 Piece/Pieces per Month Packaging & Delivery Packaging Details The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement.">12 PCS/inner box,10 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement. Port Ningbo/Shanghai
Function and Feature:
Controlling electrical either directly or via starters,contactors,relay etc
Pushbutton with lamp could be used as indicator
Technical Data:
Rated operational voltage(Ue):230VAC
Rated operational current:≤20mA
Rated frequency:50/60Hz
Utilization category:AC-14
Rated operational current(Ie):6A
Assembly of contact:1NC+1NO,2NC+1NO,3NO,2NC+2NO
Electrical endurance:100000cycles(AC1,AC7a,AC3,AC7b)
Mechnical endurance:250000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):2KV
Terminal:pillar type
Cable termination:10mm2
Torque of screw:1.2Nm
IP degree:IP 20
Standards:IEC/EN 60947-5-1
Catalog No. CTN Size:46.5x24x17.5cm

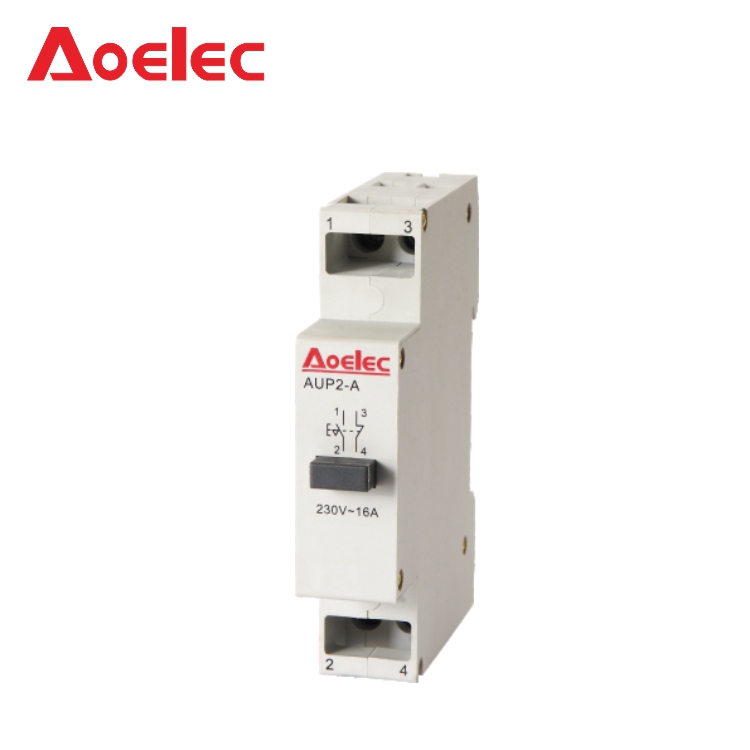

ModelDescriptionQTY/BoxQTY/CTNAUP2-Aone button,230VAC 16A12120AUP2-Btwo button,230VAC 16A12120AUP2-Cone button with LED light,230VAC 16A12120
Outline：
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
FAQ:
1. Q: Do you make OEM?
A: Yes.
2. Q: How about the guarantee of the items?
A: 2 years guarantee.
3. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC
From the supplier
Supply Ability Supply Ability: 60000 Piece/Pieces per Month Packaging & Delivery Packaging Details The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement.">12 PCS/inner box,10 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement. Port Ningbo/Shanghai
Function and Feature:
Controlling electrical either directly or via starters,contactors,relay etc
Pushbutton with lamp could be used as indicator
Technical Data:
Rated operational voltage(Ue):230VAC
Rated operational current:≤20mA
Rated frequency:50/60Hz
Utilization category:AC-14
Rated operational current(Ie):6A
Assembly of contact:1NC+1NO,2NC+1NO,3NO,2NC+2NO
Electrical endurance:100000cycles(AC1,AC7a,AC3,AC7b)
Mechnical endurance:250000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):2KV
Terminal:pillar type
Cable termination:10mm2
Torque of screw:1.2Nm
IP degree:IP 20
Standards:IEC/EN 60947-5-1
Catalog No. CTN Size:46.5x24x17.5cm
ModelDescriptionQTY/BoxQTY/CTNAUP2-Aone button,230VAC 16A12120AUP2-Btwo button,230VAC 16A12120AUP2-Cone button with LED light,230VAC 16A12120
Outline：
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
FAQ:
1. Q: Do you make OEM?
A: Yes.
2. Q: How about the guarantee of the items?
A: 2 years guarantee.
3. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC
