About this product
- Materials: Metal
- Size: 150*120*220cm
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
About this product
- Materials: Metal
- Size: 150*120*220cm
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
Product details
| Materials | Metal |
|---|---|
| Size | 150*120*220cm |
| Color | red |
Product details
| Materials | Metal |
|---|---|
| Size | 150*120*220cm |
| Color | red |
From the supplier
4TN4000

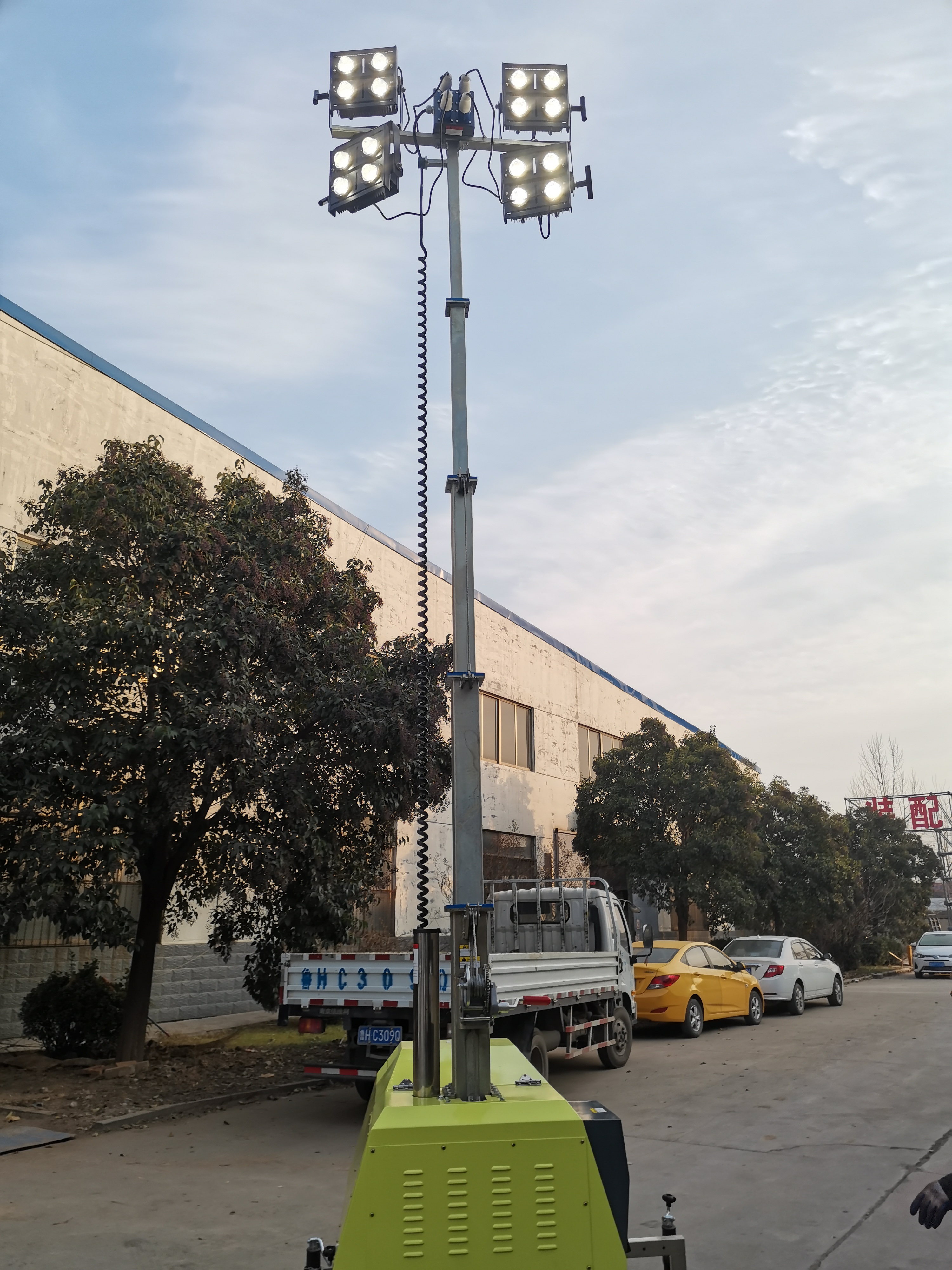

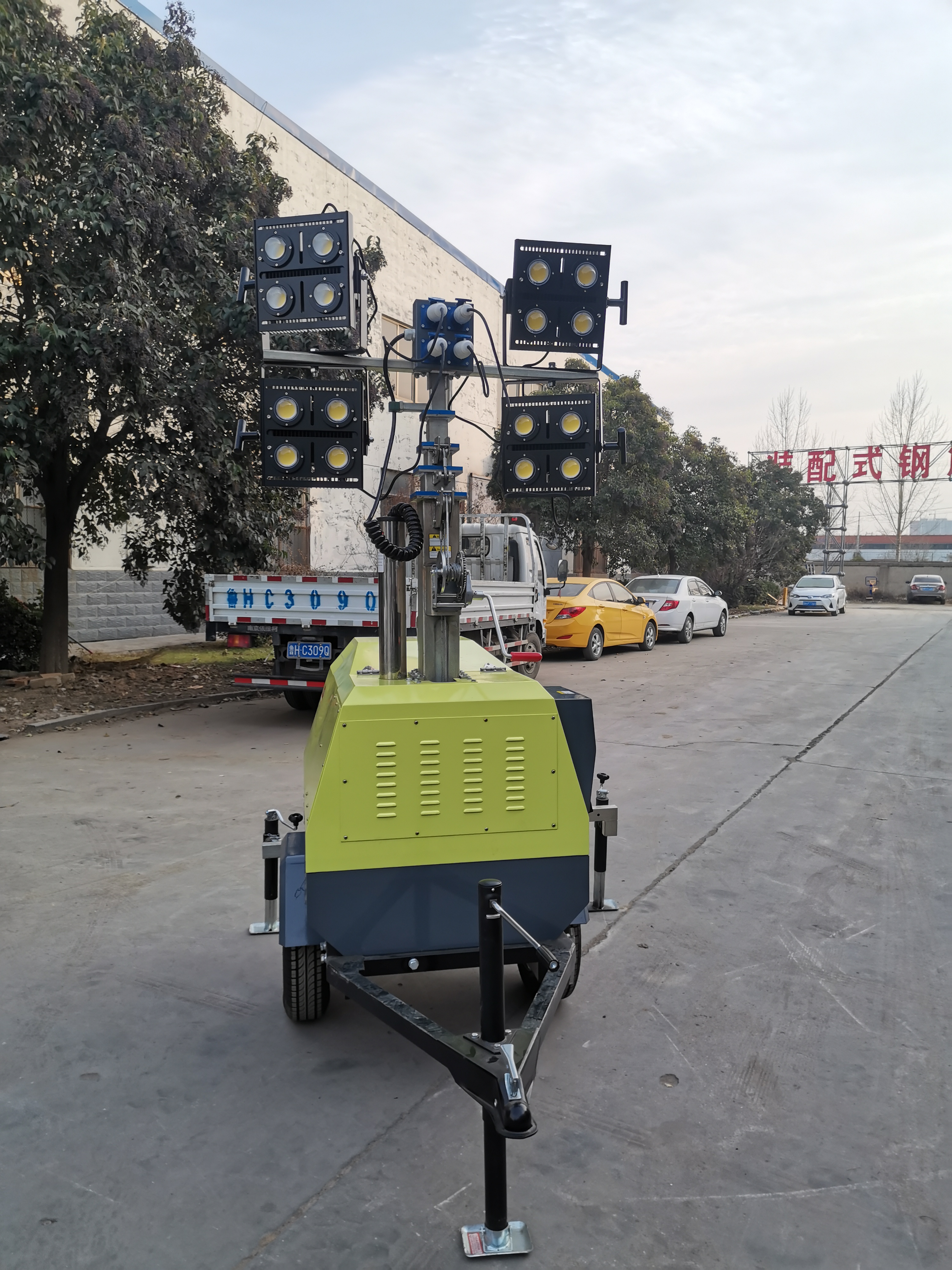

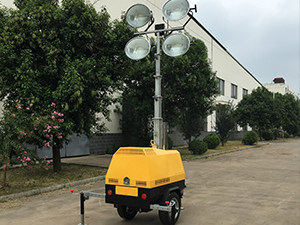

Trailer hand-lifting mobile lighting tower
Trailer mobile lighting tower Series 4VA Mobile lighting equipment
Features
1. Equipped with imported power, quality assurance and superior performance
2. Equipped with metal halogen lamp, large luminous flux and long life
3. High-performance self-braking hand winch
4. four-section lifting rod, galvanized lamp post, anti-drop, corrosion-resistant
5. Five windproof support legs for stable support

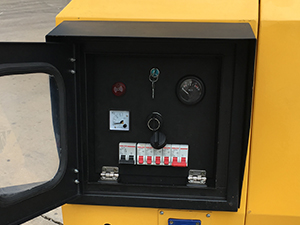

6. Integrated operating panel with rain cover
7. 7 meters lifting height, adjustable irradiation angle, long irradiation distance
8. Large capacity fuel tank, long duration
Overall Size
Overall length (L)
mm
2180
Overall width (W)
mm
1130
Overall height (H)
mm
2700
Height of mast sections（HI）
mm
7
Tire and rim size(WI)
”
13
Technical Data Unit 4VA4000
Model
4VA4000

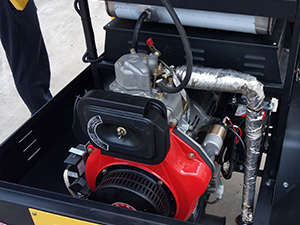

Engine
KAMA
Engine Model
186F
Engine Type
One cylinder, Air-cooled,four stroke
Power
kw
6
Frequency
hz
60
Rotating Speed
rpm
3600
Emission level
TIER 4
Alternator
Brushless and single phase
Alternator insulation
CLASS H
Rated voltage
v
230
Output socket
1 (230V,10A)
Continuous working time
H
28
Fuel tank capacity
L
35
Number & power of lights
w
1000*4
Luminous flux
lm
440000
Headlight
Metal halide floodlight
Stabilizing legs
Manual adjustment
Light pole telescopic
Vertical lift
Lifting method
Hand lift
Light mast operation
4-section lifting bar
Slope
Wind resistance level
Suspension and brake
Hex rubber shaft without brake
Length
mm
2180(1160 Separate the tow bar)
Width
mm
130
Height
mm
2700(2300 Seprate a pair of light)
Pole height
M
7
Tires and rims size
”
13
Weight
kg
550
From the supplier
4TN4000
Trailer hand-lifting mobile lighting tower
Trailer mobile lighting tower Series 4VA Mobile lighting equipment
Features
1. Equipped with imported power, quality assurance and superior performance
2. Equipped with metal halogen lamp, large luminous flux and long life
3. High-performance self-braking hand winch
4. four-section lifting rod, galvanized lamp post, anti-drop, corrosion-resistant
5. Five windproof support legs for stable support
6. Integrated operating panel with rain cover
7. 7 meters lifting height, adjustable irradiation angle, long irradiation distance
8. Large capacity fuel tank, long duration
Overall Size
Overall length (L)
mm
2180
Overall width (W)
mm
1130
Overall height (H)
mm
2700
Height of mast sections（HI）
mm
7
Tire and rim size(WI)
”
13
Technical Data Unit 4VA4000
Model
4VA4000
Engine
KAMA
Engine Model
186F
Engine Type
One cylinder, Air-cooled,four stroke
Power
kw
6
Frequency
hz
60
Rotating Speed
rpm
3600
Emission level
TIER 4
Alternator
Brushless and single phase
Alternator insulation
CLASS H
Rated voltage
v
230
Output socket
1 (230V,10A)
Continuous working time
H
28
Fuel tank capacity
L
35
Number & power of lights
w
1000*4
Luminous flux
lm
440000
Headlight
Metal halide floodlight
Stabilizing legs
Manual adjustment
Light pole telescopic
Vertical lift
Lifting method
Hand lift
Light mast operation
4-section lifting bar
Slope
Wind resistance level
Suspension and brake
Hex rubber shaft without brake
Length
mm
2180(1160 Separate the tow bar)
Width
mm
130
Height
mm
2700(2300 Seprate a pair of light)
Pole height
M
7
Tires and rims size
”
13
Weight
kg
550
