Mini Lathe machine DIY0816

WMT CNC INDUSTRIAL CO.,LTD
10/10 fairsForeign Trade CompanyModel Mini Lathe machine DIY0816

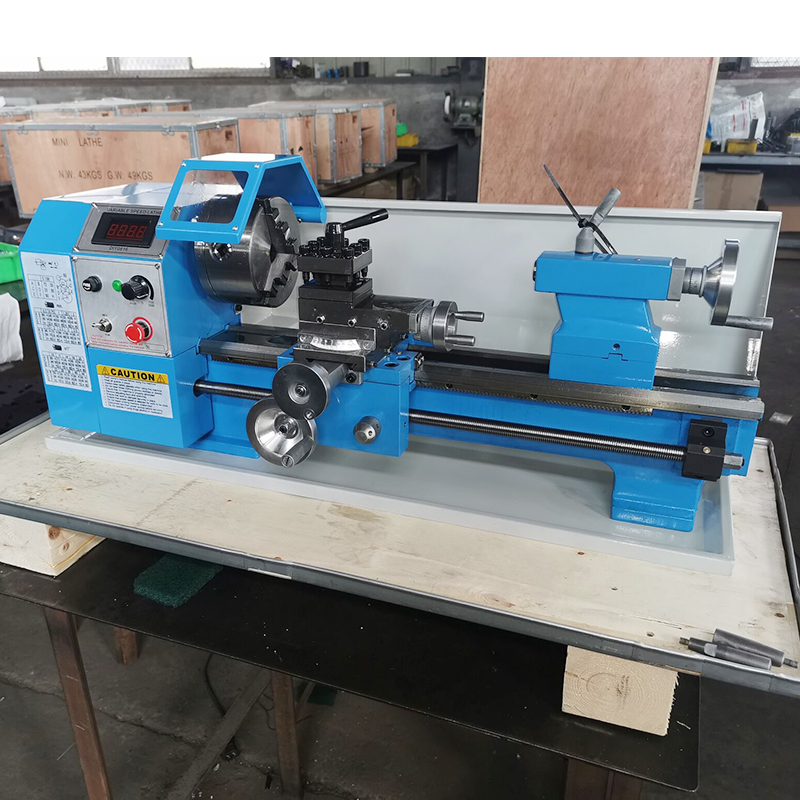

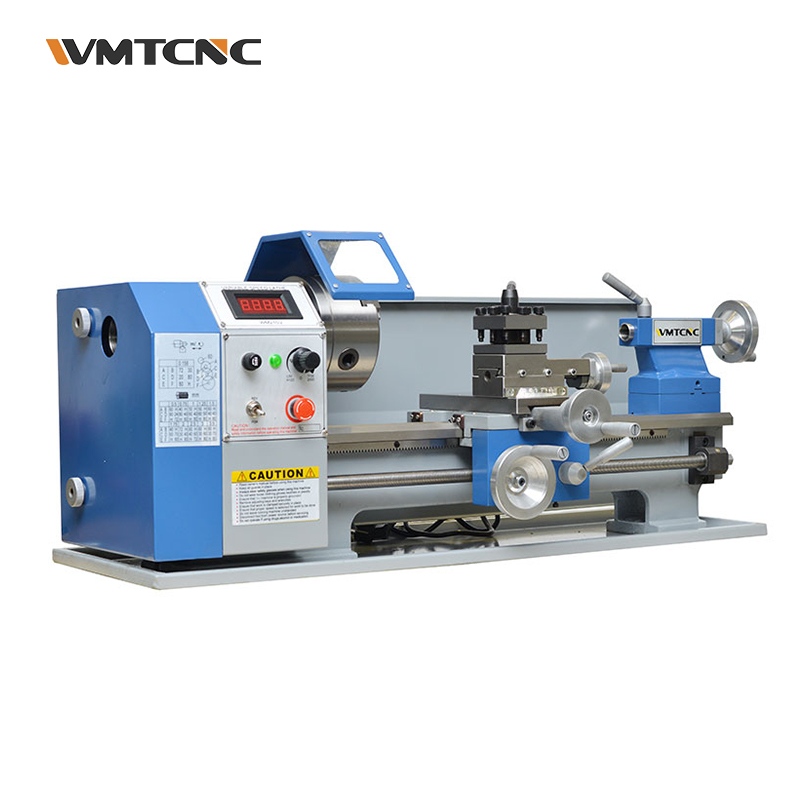

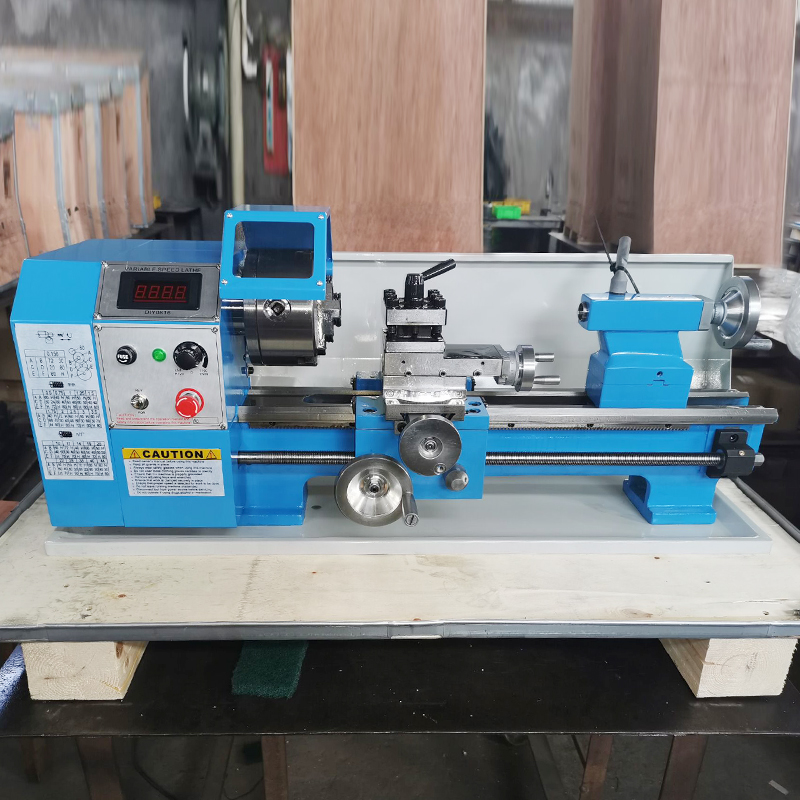

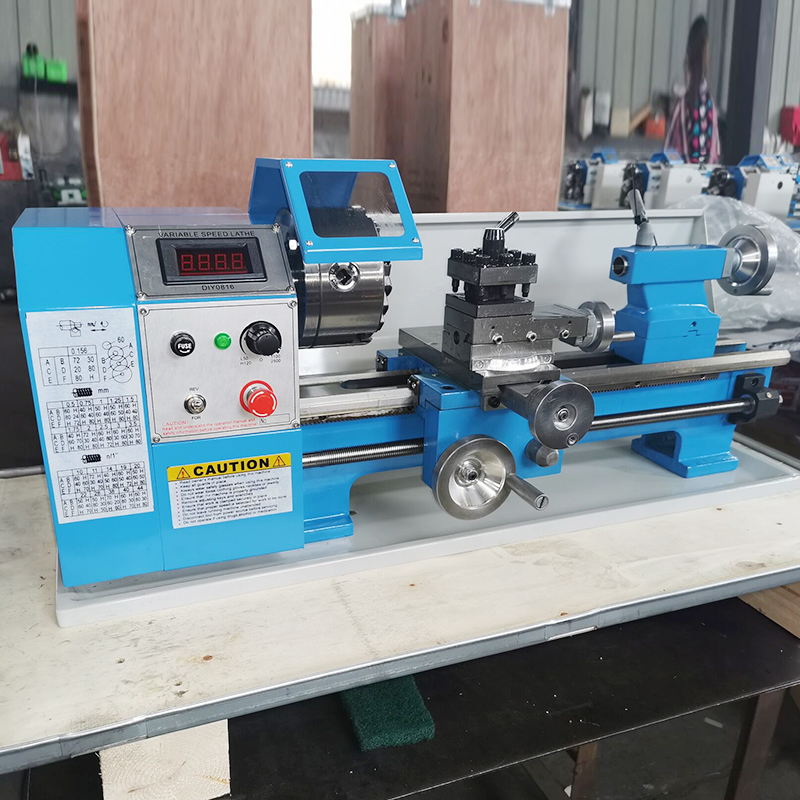

Mini Lathe machine DIY0816
$57000–$90000/ set FOB
MOQ 1 set
Estimated landed cost
$961 / set
range $748–$1,174 · total ≈ $96,094
See what’s included
FOB goods (100)
$73,500
Ocean freight + handling (5.0 CBM, volume guessed from price)
$1,300
US duty (3.5%)
$2,573
Section 301 tariff (25.0%)
$18,375
Customs fees (MPF/HMF)
$346

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

About this product

  • Materials: metal
  • Size: 800×450×450mm
  • Color: blue+white
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China
Product details
Materialsmetal
Size800×450×450mm
Colorblue+white
From the supplier

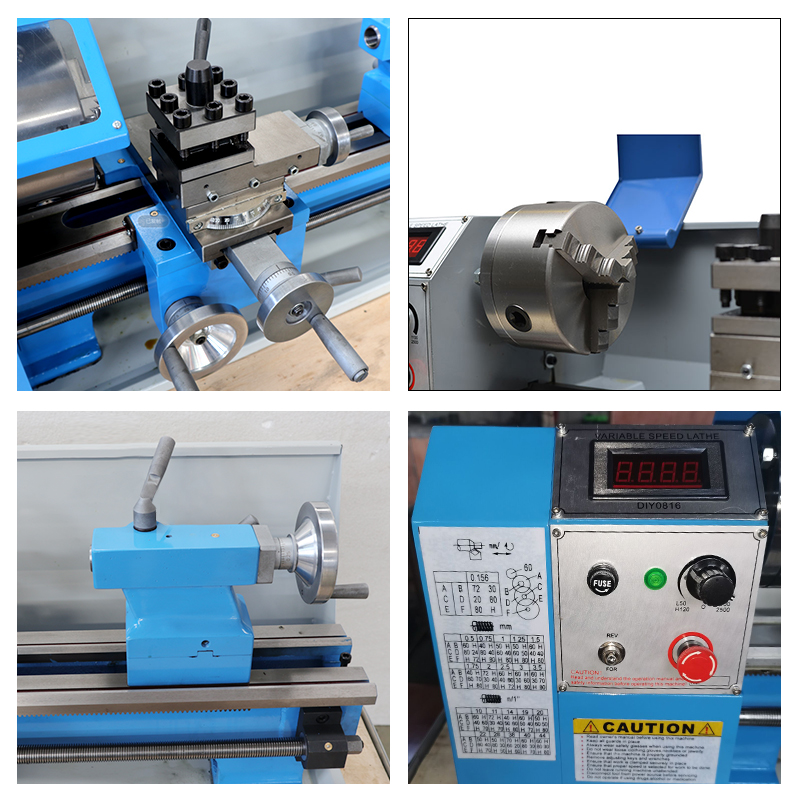

Main Features
  1. Big spindle bore:38mm and supported with precision roller bearings.
  2. The noise is very small.
  3. Precision ground and hardened bed ways.
  4. Headstock gears are made of high quality steel, ground and hardened.
  5. Easy operating speed change levers.
  6. Spindle speed range 50-2500rpm.
  7. Easy operating gear box has various feeds and thread cutting function.
  8. With or without machine stand according to requirement.
Specifications Specification DIY0816 Distance between centers 400mm Swing ove bed 210mm Toolpost travel 55mm Spindle taper MT5 Spindle bore 38mm Chuck diameter 125mm Bed width 100mm Range of metric threads 0.5-3mm Travel of cross slide 75mm Max.travel of tailstock quill 60mm Taper of tailstock quill MT2 Main Motor 600W Range of spindle speeds 0-2500rpm Packing size 800×450x450mm Net/gross weight 85/95kg Machine Details
