About this product
- Materials: PC
- Color: WHITE
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: PC
- Color: WHITE
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | PC |
|---|---|
| Color | WHITE |
Product details
| Materials | PC |
|---|---|
| Color | WHITE |
From the supplier

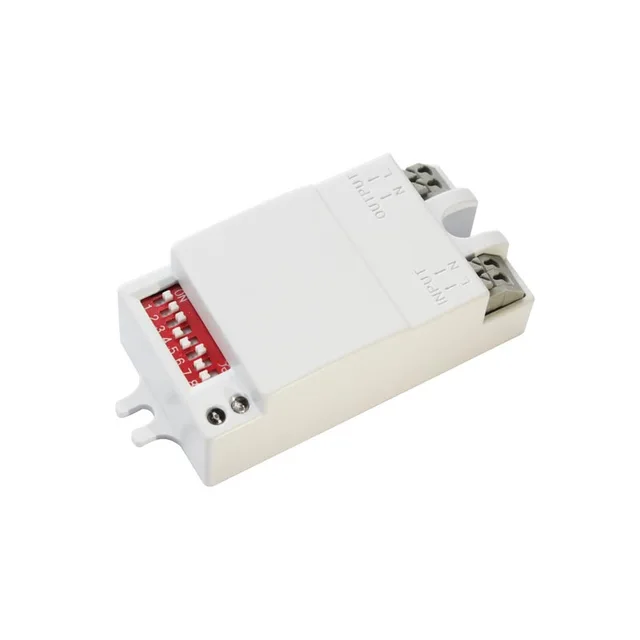

This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is 5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro Control Unit) that greatly increases its precision and decreases its fault rate. It’s delicate in appearance and compact in structure. It can be independently connected to the loads or easily installed inside the lightings with lampshade made of glass or plastic. It is widely applied in the passageway, washroom, elevator, household or other public areas for security protection or energy saving. It applies for several technical patents and is the perfect choice for your intelligent living.
Specifications
Power source: 220-240V/AC
Power frequency: 50Hz
HF system: 5.8GHz CW electric wave,ISM band
Rated load: 1100W/5A,Max,tungsten(cosφ=1)
550W/2.5A,Max,fluorescent & LED(cosφ=0.5)
Protection level: IP20,Class II Transmission power: Detection angle : 360° Detection range : 2m-4m-6m-8m (radii.) (adjustable)
Time setting : 8sec-1min-6min-12min-20min, ( adjustable )
Light-control : 10LUX-50LUX-150LUX- >2000LUX, ( adjustable )
Installation sit: indoors, ceiling mounting
Power consumption: approx.0.5W
Working temperature: -15°C~+70°C
From the supplier
This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is 5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro Control Unit) that greatly increases its precision and decreases its fault rate. It’s delicate in appearance and compact in structure. It can be independently connected to the loads or easily installed inside the lightings with lampshade made of glass or plastic. It is widely applied in the passageway, washroom, elevator, household or other public areas for security protection or energy saving. It applies for several technical patents and is the perfect choice for your intelligent living.
Specifications
Power source: 220-240V/AC
Power frequency: 50Hz
HF system: 5.8GHz CW electric wave,ISM band
Rated load: 1100W/5A,Max,tungsten(cosφ=1)
550W/2.5A,Max,fluorescent & LED(cosφ=0.5)
Protection level: IP20,Class II Transmission power: Detection angle : 360° Detection range : 2m-4m-6m-8m (radii.) (adjustable)
Time setting : 8sec-1min-6min-12min-20min, ( adjustable )
Light-control : 10LUX-50LUX-150LUX- >2000LUX, ( adjustable )
Installation sit: indoors, ceiling mounting
Power consumption: approx.0.5W
Working temperature: -15°C~+70°C
