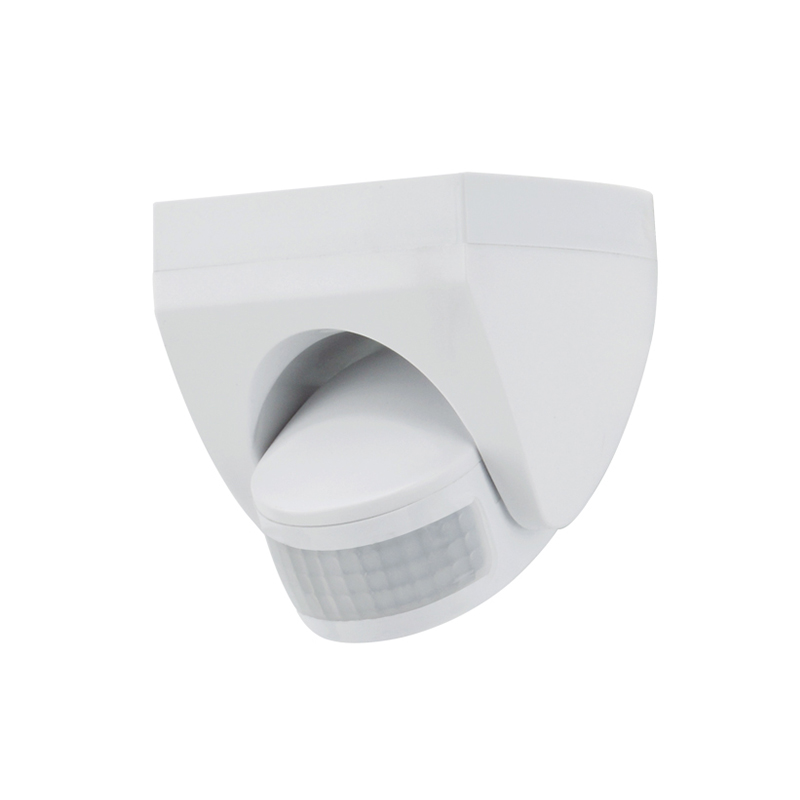

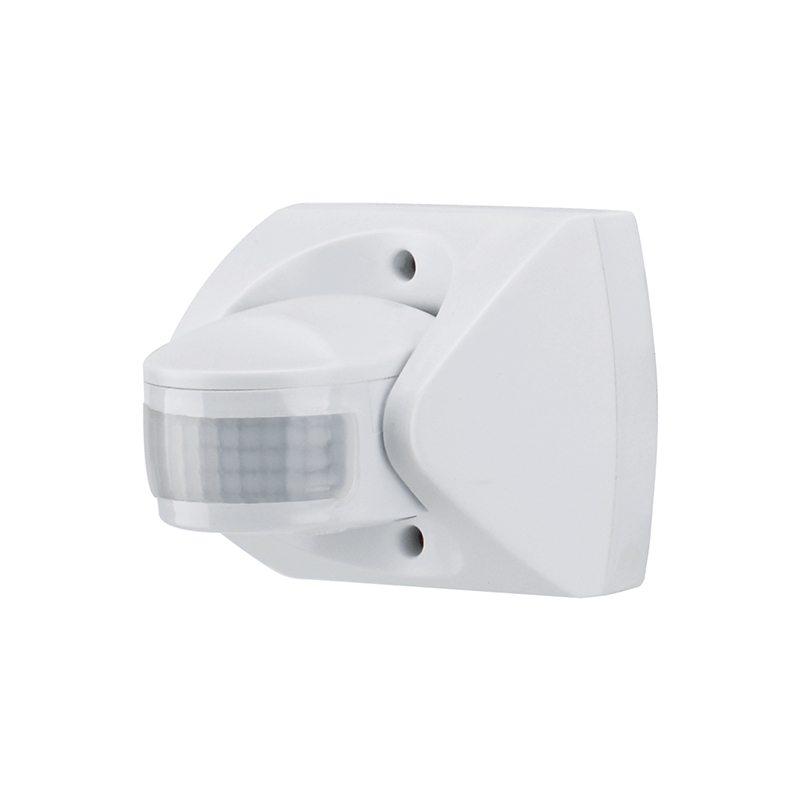

PIR sensor
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
PIR sensor
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: PC
- Size: 88*80*101
- Color: WHITE
- Exports to: Africa, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: PC
- Size: 88*80*101
- Color: WHITE
- Exports to: Africa, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | PC |
|---|---|
| Size | 88*80*101 |
| Color | WHITE |
From the supplier
This product is an advanced digitally controlled infrared pyroelectric intelligent sensor product.It uses the MCU toaccurately calculate the switch information, and accurately controls the relay to be turned on at the zero point of the sine wave, so that each load is turned on. At the zero point of the sine wave, the inrush current problem caused by the conventional control mode when the sine wave high voltage is turned on is avoided, especially the large current damage relay generated by the large-capacity capacitor under the impact of the high voltage under the load.Due to the diversification of current electrical loads, especially LED lamps, energy-saving lamps, and fluorescent lamps all have capacitors with different capacitances. This is a disaster for relays. Sometimes a 50W LED lamp can generate surge currents of 80 to 120A. The 10A ordinary relay can only withstand 3 times of the inrush current, and it is likely that the relay will be broken in a few days or several times. This is why the conventional sensor on the market has a short life and a small load current.
In order to overcome this problem, this product adopts advanced digital precision calculation to turn on the load when the sine wave is at zero potential, thus solving the load surge current problem, greatly enhancing the load capacity and prolonging the service life of the product. The latest control method of mass production sensor technology can easily control any load. It is a medium and high-end product. Although the cost is increased compared with the conventional version, the reliability and life of the product are greatly increased. This product is equal to choosing peace of mind, and choosing safety.
This product has a switching power supply version and a capacitor step-down version. The switching power supply version has a working voltage of up to 100V-277V and a standby power consumption of 0.7W. You should consider it when choosing a product.
Specifications
Power source: 220-240VAC,50Hz/60Hz 100-130VAC,50Hz/60Hz All loads：1200W（220-240VAC ） 800W（100-130VAC）
Time setting: 12sec-12min(adjustable) Light-control: ＜10LUX-2000LUX(adjustable)
Detection range(22°C): 10m Max. Detection angle: 180º
Installation height: 1.8-2.5m Working temperature: -10°C-+40°C
Working humidity:
