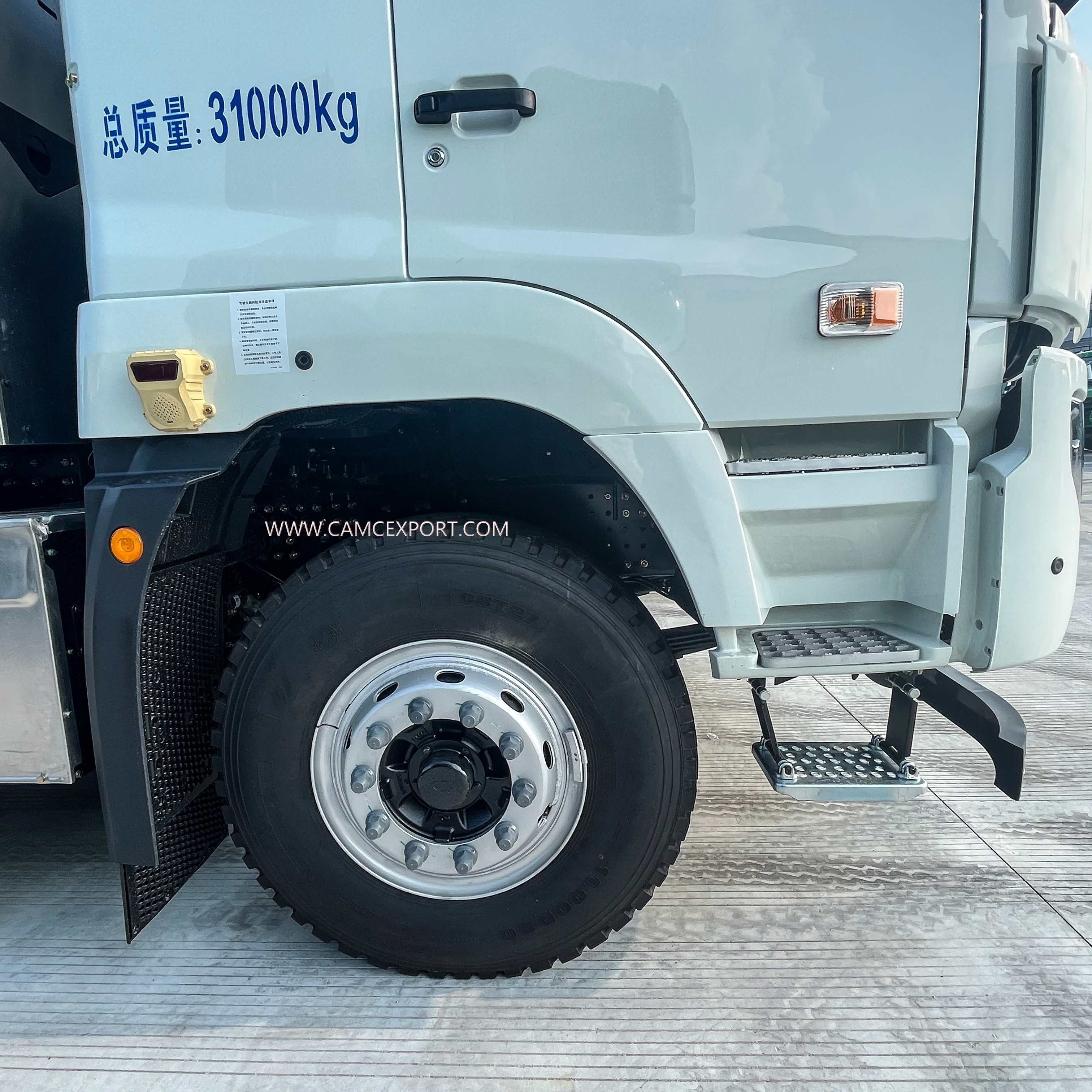

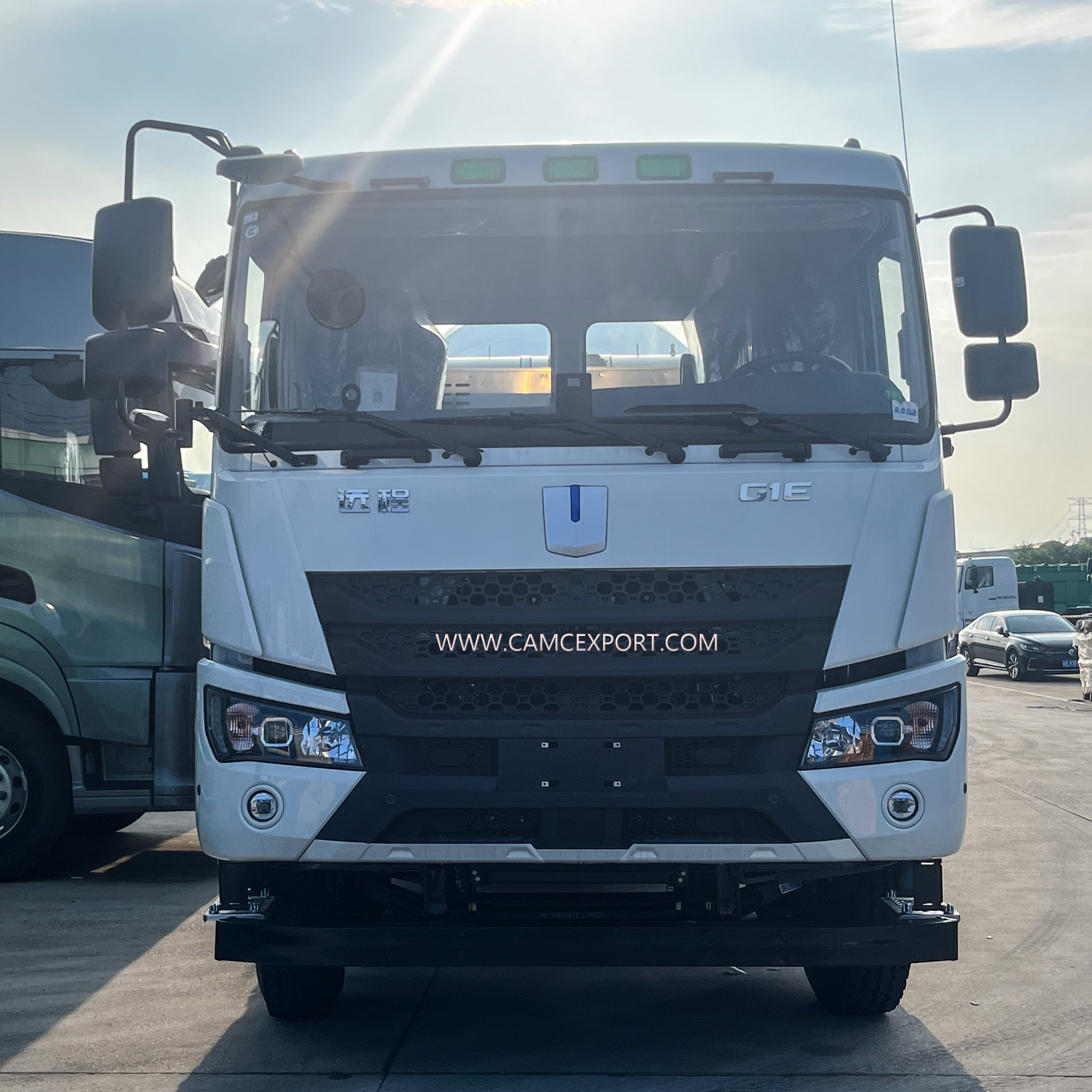

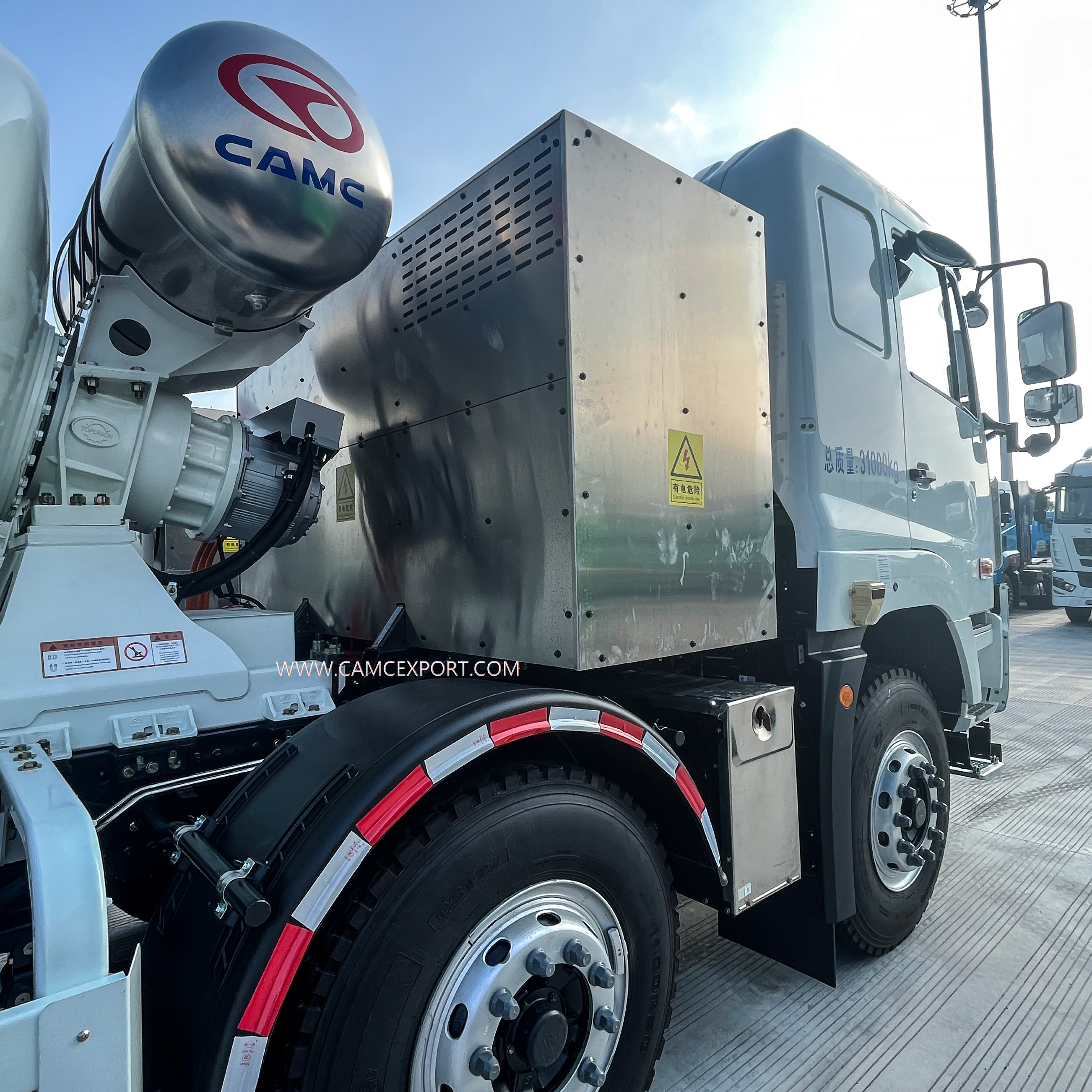

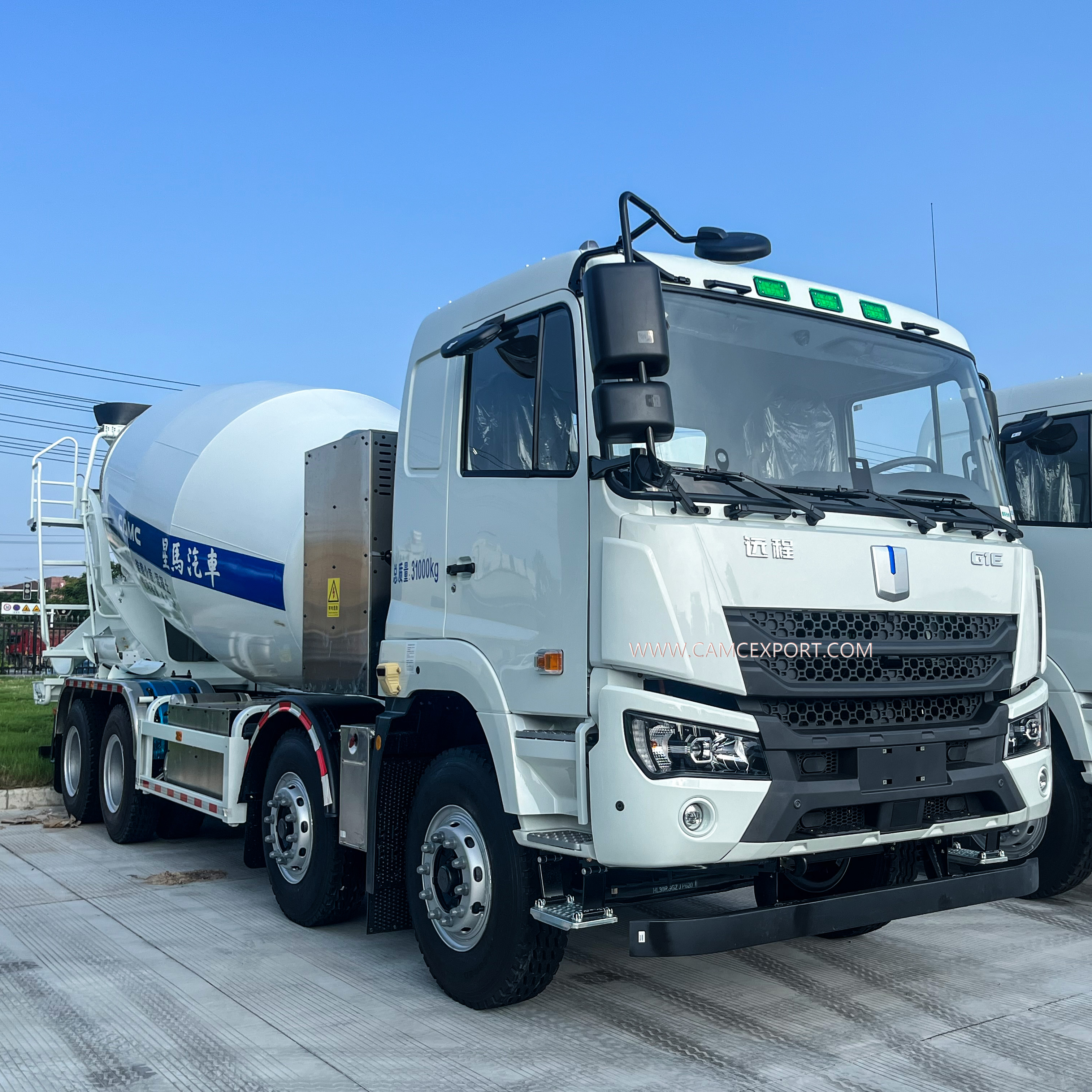

M7 8*4 Left-hand Drive Electric Mixer Truck

1. Product Overview

This is an electric concrete mixer truck designed for urban infrastructure and commercial concrete plant transportation, adopting a pure electric drive system. Equipped with a large-capacity lithium iron phosphate battery (typical capacity 350-420kWh) and a high-power electric drive axle, it is matched with an 8-12 cubic meter mixing drum (with wear-resistant alloy lining), with a total mass of about 31 tons. It supports fast charging (80% charge in 1.5 hours) or battery swapping (completed in 5 minutes), meeting the high-frequency concrete transfer needs of construction sites.

2. Product Advantages

1. Zero-Emission for Urban Operations：Pure electric drive with no exhaust emissions, compliant with transportation requirements in urban core areas and environmentally controlled zones, no need to avoid restricted hours.
2. Low Operating Cost：Energy consumption is ~2.2kWh per km, costing only 1/3 of diesel mixers, saving 50,000-80,000 CNY in annual operating expenses.
3. High-Durability Mixing Drum：The drum lining is made of wear-resistant manganese steel, paired with a hydraulically driven mixing system, with a discharge residue rate of less than 0.5%, suitable for C30-C60 concrete grades.
4. High-Passability Chassis：Reinforced engineering chassis with a ground clearance of ≥280mm, matched with 12.00R20 heavy-duty tires, adapting to complex construction site road conditions.

3. Core Configuration

• Powertrain: 360kW peak power electric drive axle, max torque 2500N·m;
• Mixing System: 8-12 cubic meter wear-resistant mixing drum, hydraulic motor drive, mixing speed 0-14r/min;
• Energy Supply: Supports 400kW fast charging/battery swapping, full-charge range 180-220km (full-load condition).
