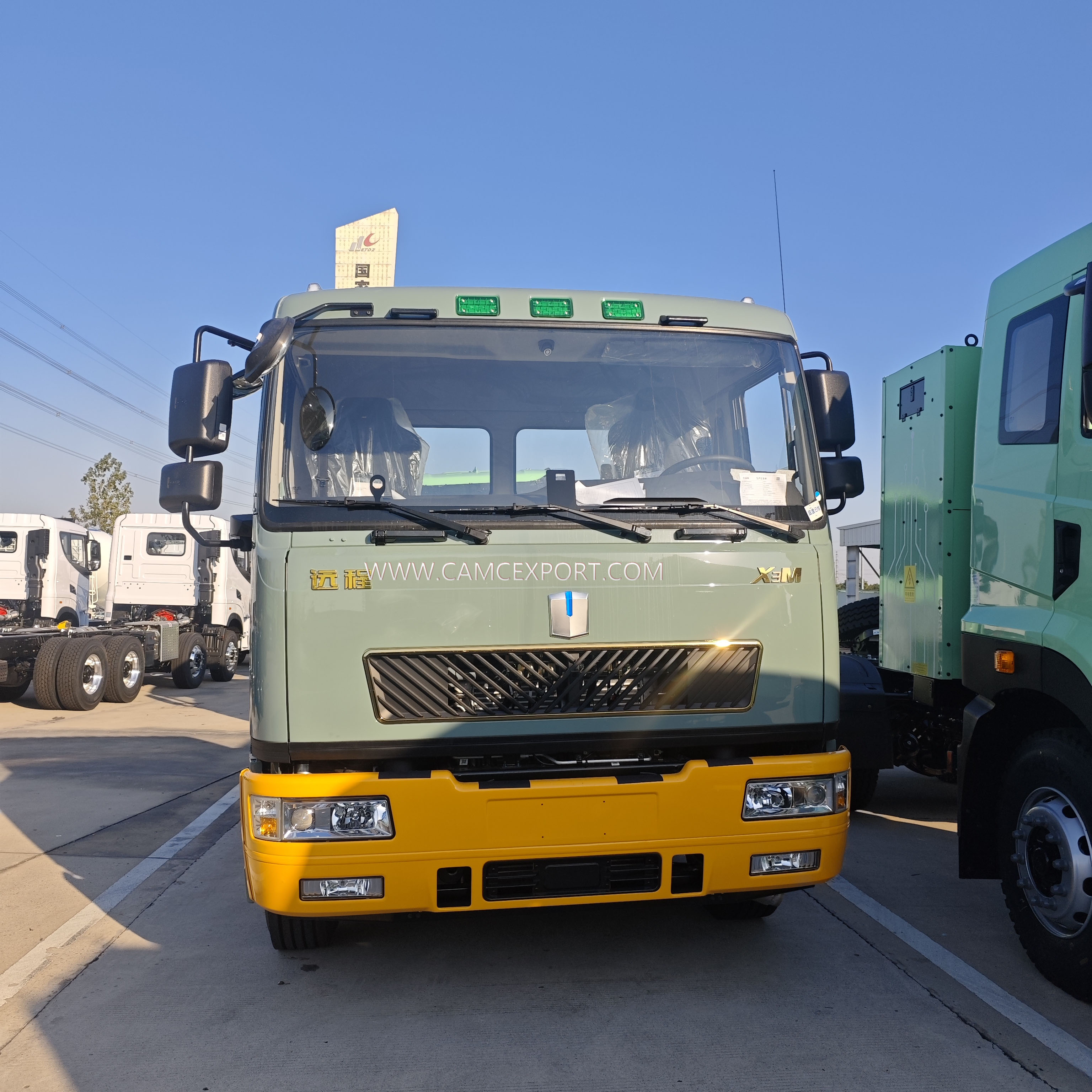

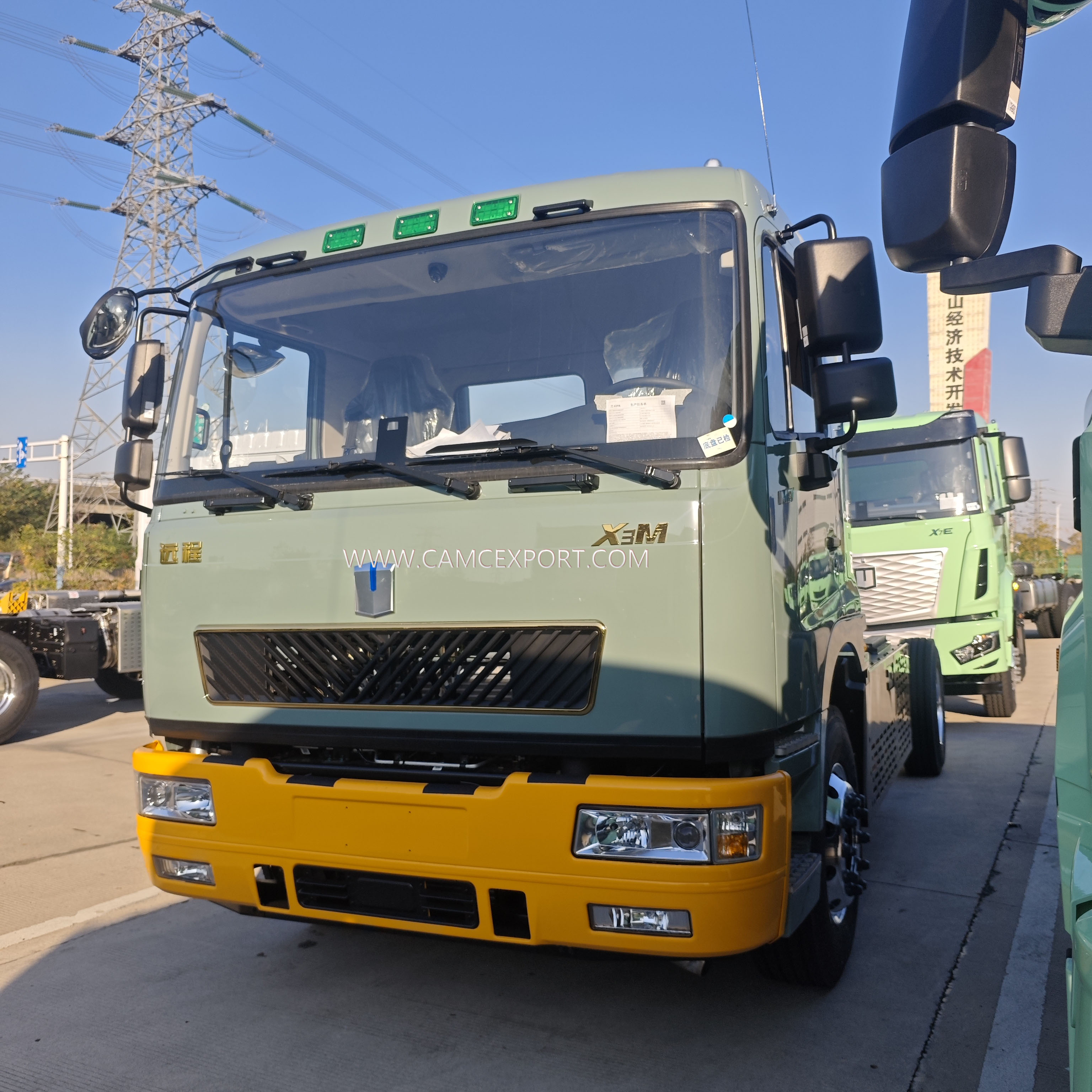

X3M 6*4 Left-Hand Drive Methanol Range-Extended Tractor Truck

1. Product Overview

This is a methanol range-extended tractor truck designed for long-haul trunk logistics and intercity freight, adopting a "methanol generator set + power battery + electric drive system" architecture. It is equipped with a large-displacement methanol engine (as a range extender), matched with a high-density power battery pack and a high-power electric drive axle, with a total traction mass of up to 49 tons (6×4 model), and compatible with 13-17.5m trailers. The vehicle balances long range (over 1200km combined range with full methanol and full battery) and low energy consumption, suitable for medium-to-long-distance transportation needs such as cold chain, general cargo, and hazardous chemicals.

2. Product Advantages

1. Ultra-Long Range：The combination of methanol refueling and battery charging enables a combined range of over 1200km with full fuel and battery, eliminating frequent refueling and suitable for trunk long-haul transportation.
2. Cost-Efficient Energy Consumption：Methanol fuel cost is only 60% of diesel; combined with the high efficiency of the electric drive system, the operating cost per km is 0.8-1 CNY lower than pure diesel trucks, saving over 100,000 CNY in annual operating costs.
3. Smooth Power Delivery：The electric drive system provides linear torque output, with no jitter during startup or acceleration. Its climbing/overtaking performance when fully loaded is better than traditional fuel tractors, offering a smoother driving experience.
4. Eco-Compliant：Methanol combustion emits far fewer particulates and nitrogen oxides than diesel, meeting China VI b and stricter environmental standards, suitable for transportation scenarios with strict environmental regulations.
5. High Adaptability：Supports conventional methanol refueling (compatible with methanol refueling stations modified from existing gas stations), eliminating the need for large-scale additional energy supply infrastructure and reducing deployment difficulty.

3. Core Configuration

• Powertrain: 12L methanol range extender (max power 350kW) + 200kWh power battery + 450kW peak power electric drive axle;
• Load Configuration: 6×4 drive type, rear axle ratio 3.7-4.11, adapting to speed needs of different road conditions;
• Comfort Configuration: Air-suspension cab + ventilated and heated seats + automatic air conditioning + cruise control, reducing long-haul driving fatigue.
