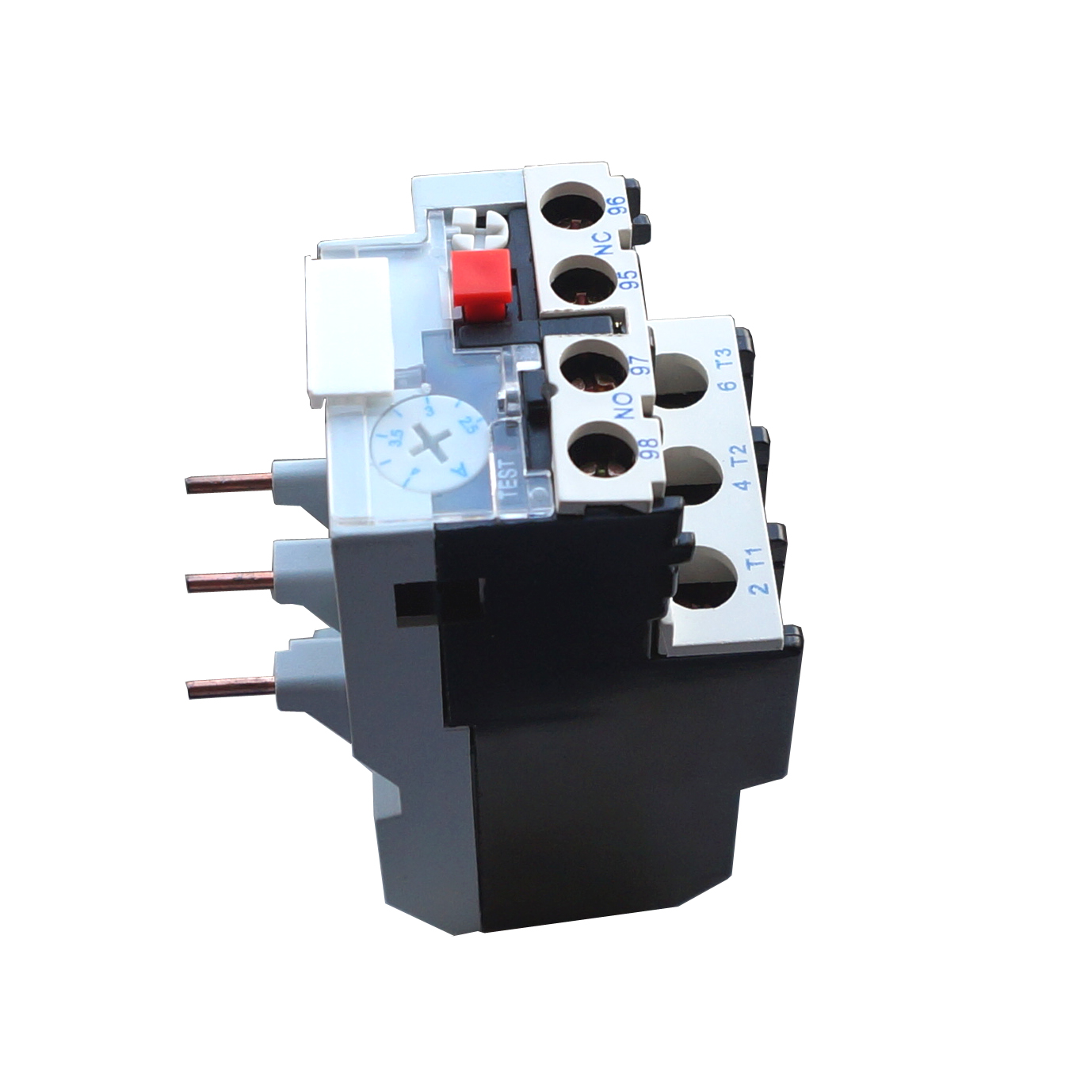

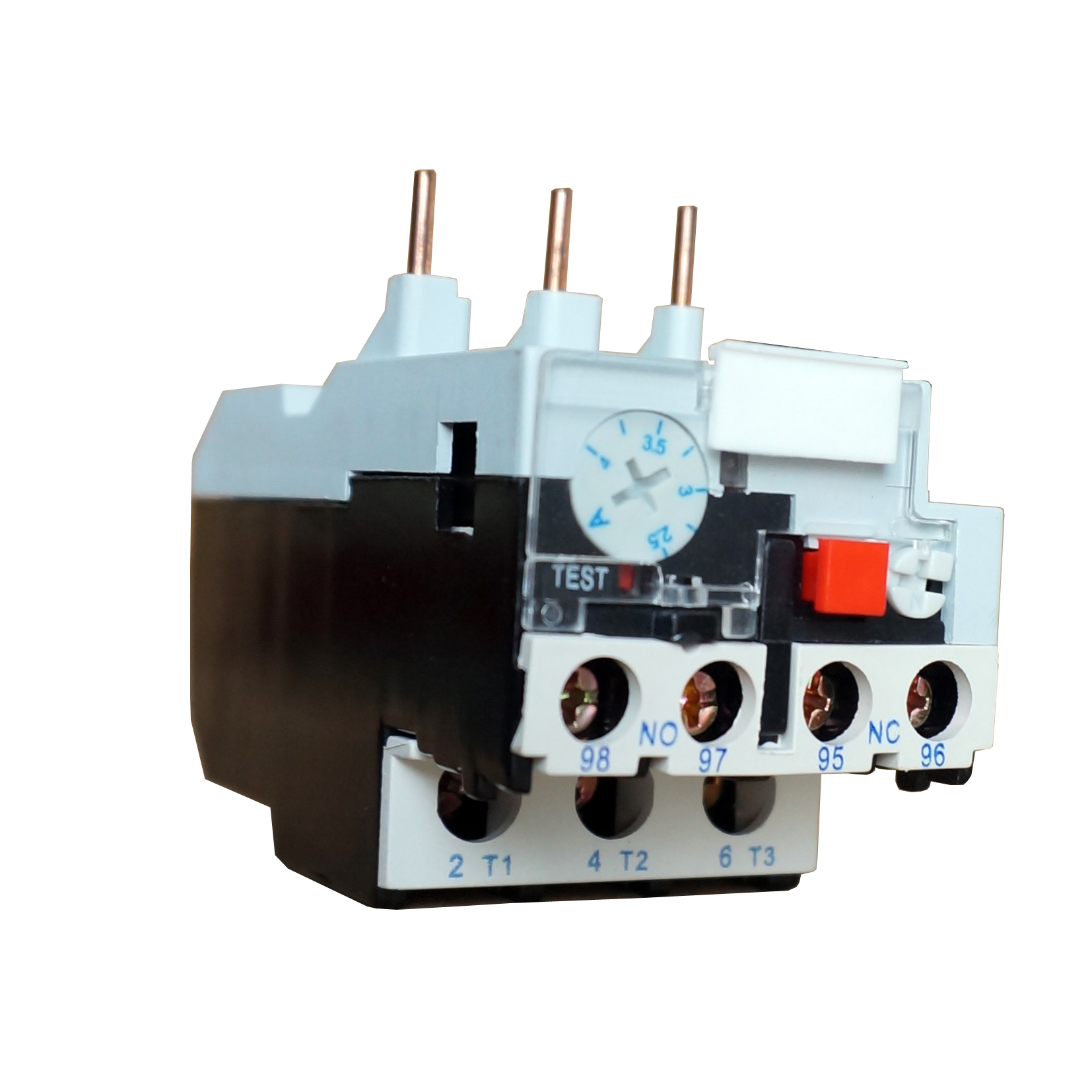

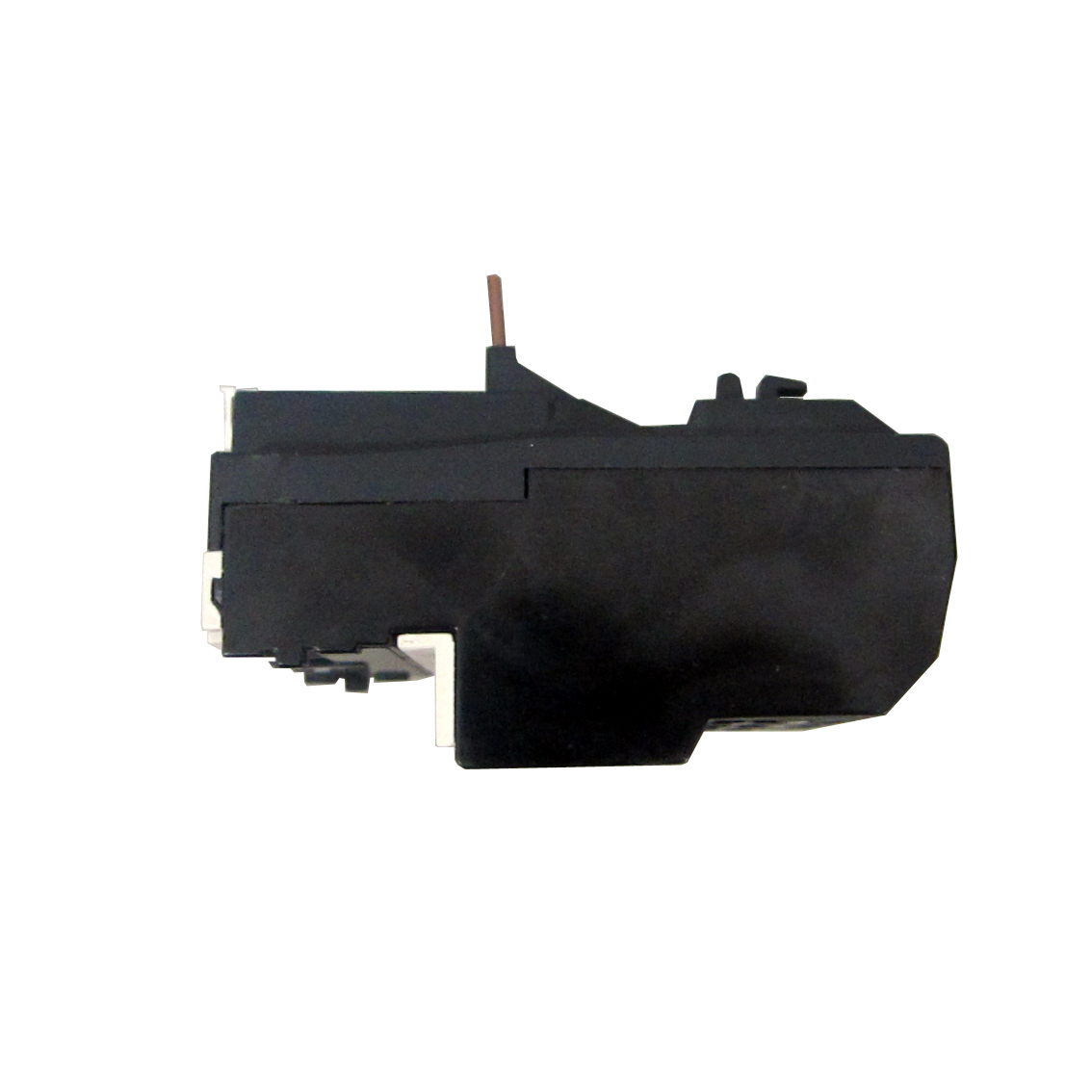

LR2-D3365 93A thermal overload relay
- FOB goods (100)
- $289
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (2.7%)
- $7.80
- Section 301 tariff (25.0%)
- $72
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
LR2-D3365 93A thermal overload relay
- FOB goods (100)
- $289
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (2.7%)
- $7.80
- Section 301 tariff (25.0%)
- $72
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: PC
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PC
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PC |
|---|---|
| Color | Black |
From the supplier
This series of thermal overload relay can be used in the circuit of 50Hz or 60Hz,rated insulation voltage 660V,rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation & can be pluged in CJX1-D series AC contactor.It is the most advanced thermal relay in the nineties in the world.The products comply with IEC 60947-5.
Characteristice
A.Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25,36,93A separately.
(c).The regulator seal of rated setting current and setting.
(d).Current of the thermal component.
B.Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60Hz.
(d).Use group, rated working voltage ,appoint thermal current and rated current.
Model: LR2-D3365
Rated current:93A
Brand: SHCET or OEM
LR2 Thermal Overload RelayTypeNumberSetting range (A)LR2-D1313010.1~0.1613020.16~0.2513030.25~0.413040.4~0.6313050.63~113061~1.613071.6~2.513082.5~413104~613125.5~813147~1013169~13132112~18132217~25LR2-D23235323~32235530~40LR2-D33332217~25335323~32335530~40335737~50335948~65336155~70336363~80336580~93
