Visit the SANHE ELECTRICAL(FUJIAN) CO.,LTD. store

LQ series peripheral pump

10/10 fairsManufacturerModel LQ

$2800–$3800/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 300 unit

Estimated landed cost

$46 / unit

range $40–$53 · total ≈ $13,828

Quantity

FOB goods (300): $9,900
Ocean freight + handling (3.0 CBM): $1,060
US duty (3.5%): $347
Section 301 tariff (25.0%): $2,475
Customs fees (MPF/HMF): $47

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

Visit the SANHE ELECTRICAL(FUJIAN) CO.,LTD. store

LQ series peripheral pump

10/10 fairsManufacturerModel LQ

$2800–$3800/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 300 unit

Estimated landed cost

$46 / unit

range $40–$53 · total ≈ $13,828

Quantity

FOB goods (300): $9,900
Ocean freight + handling (3.0 CBM): $1,060
US duty (3.5%): $347
Section 301 tariff (25.0%): $2,475
Customs fees (MPF/HMF): $47

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

$2800–$3800/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 300 unit

Estimated landed cost

$46 / unit

range $40–$53 · total ≈ $13,828

Quantity

FOB goods (300): $9,900
Ocean freight + handling (3.0 CBM): $1,060
US duty (3.5%): $347
Section 301 tariff (25.0%): $2,475
Customs fees (MPF/HMF): $47

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

From the supplier

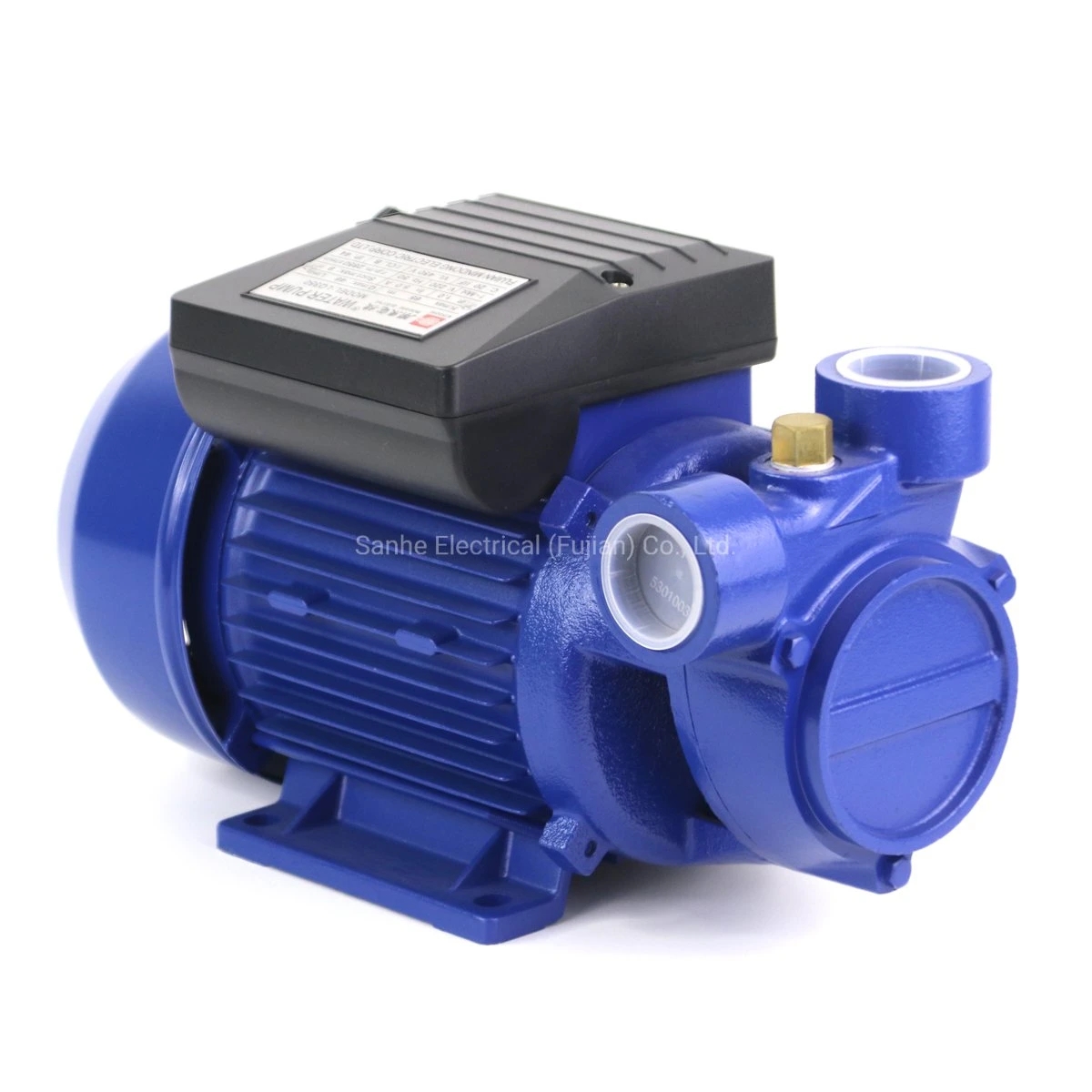

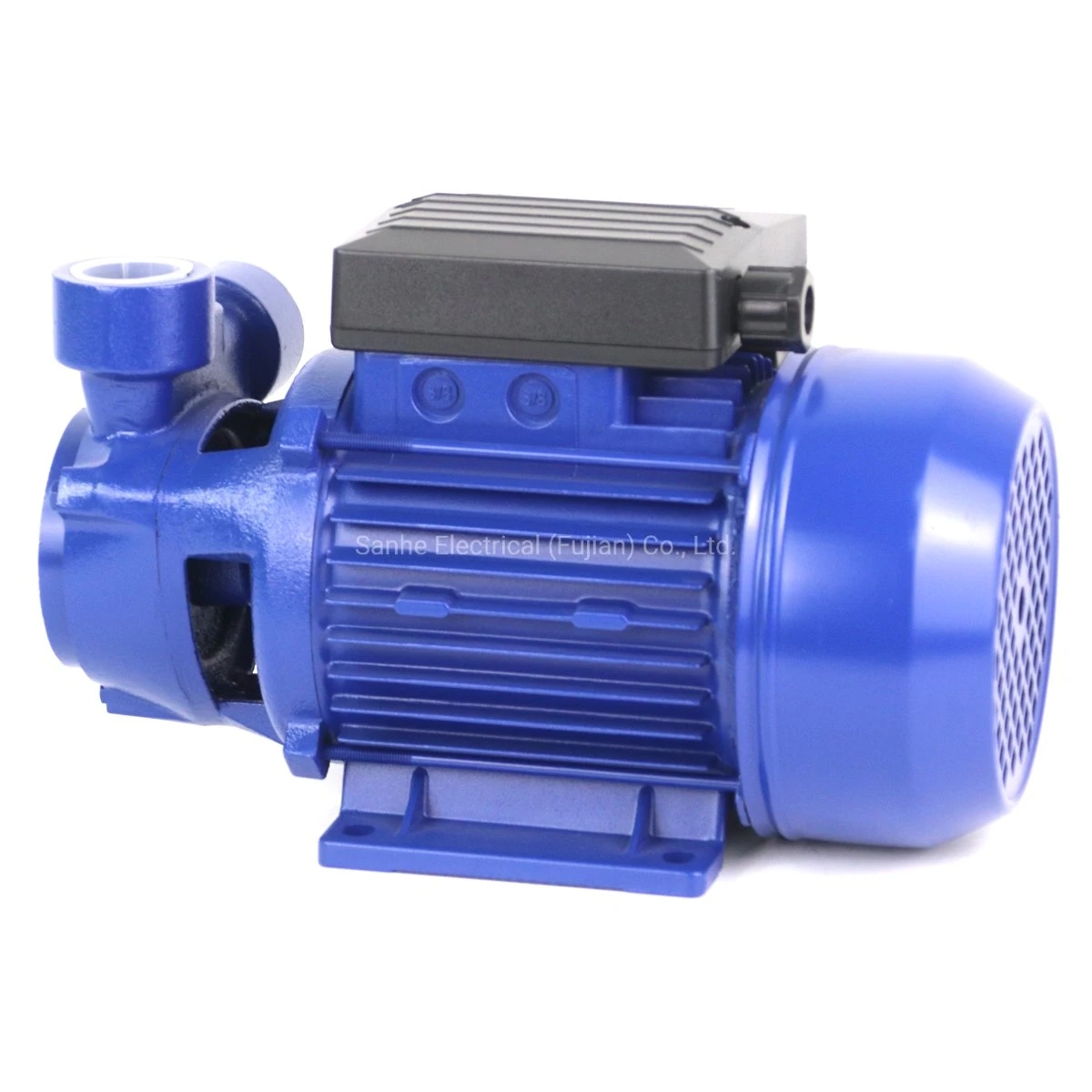

LQ SERIES PERIPHERAL PUMP

Construction Features

PUMP
Pump Body: Cast iron
Impeller: PPO/ Brass / Stainless steel
Mechanical Seal: Ceramic steatite/metalized carbon

MOTOR
Single phase
Duty: Continuously rated
Motor Housing: Aluminum / Cast iron
Shaft: 45# steel / Stainless steel
Motor. Closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54

Applications and Installation
The LQ series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non- aggressive liquids. They have relatively simple construction and are very economical, reliable an safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths,etc.

Operating Conditions
Max. ambient temperature up to 40°C
Max. fluid temperature up to 40°C
Max. working pressure up to10 bar

Model Single-phase motor n=2850r/min Q m3/h 0 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 2.76 Input
max Output power Current Q.max H.max Suct max L/min 0 10 15 20 25 30 35 40 45 46 kW kW HP A L/min m m LQ100 0.52 0.37 0.5 2.5 35 40 9 H meter 40 28 20 17 10 7 4 LQ250 0.95 0.55 0.75 4.5 45 55 55 48 40 37 28 22 16 8 2 LQ350 1.1 0.75 1 5 46 65 65 55 48 38 29 23 16 9 4 2

SANHE ELECTRICAL (FUJIAN) CO., LTD. is a professional designer and manufacturer of water pumps and electric motors in Fuan, Fujian, China. It is subsidiary of Mindong Group which was founded in 1958.

Our main products are water pumps, electric motors and alternators, which are 50 series over 1000 varieties export to more than 60 countries and areas.

Years of manufacturing development, we are willing to work with global customers and partners to create a brighter future together.

FAQ
1. Q: What is your MOQ of this item?
A: 100PCS

2. Q: Are you Trade Company or Manufacturer?
A: Manufacturer, we are a professional designer and manufacturer of water pumps and electric motors.

3. Q: Is customized service available?
A: Sure, OEM & ODM both are available.

4. Q: How long is your warranty?
A: 14 months

5. Q: What is the delivery time?
A: 30 days after receiving orginal L/C or deposit by TT.

About the supplier

SANHE ELECTRICAL(FUJIAN) CO.,LTD.

Main products: Electric pump,AC motor,Other Motor and Accessories,Other Motor,Motor remote control,Generating Sets,AC synchronous brushless alternator
