LE1-D25 25A 380V magnetic contactor
SHANGHAI CET ELECTRIC CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,848
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $50
- Section 301 tariff (25.0%)
- $462
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,848
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $50
- Section 301 tariff (25.0%)
- $462
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
LE1-D25 25A 380V magnetic contactor
SHANGHAI CET ELECTRIC CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,848
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $50
- Section 301 tariff (25.0%)
- $462
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,848
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $50
- Section 301 tariff (25.0%)
- $462
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: AL
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: AL
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | AL |
|---|---|
| Color | White |
Product details
| Materials | AL |
|---|---|
| Color | White |
From the supplier

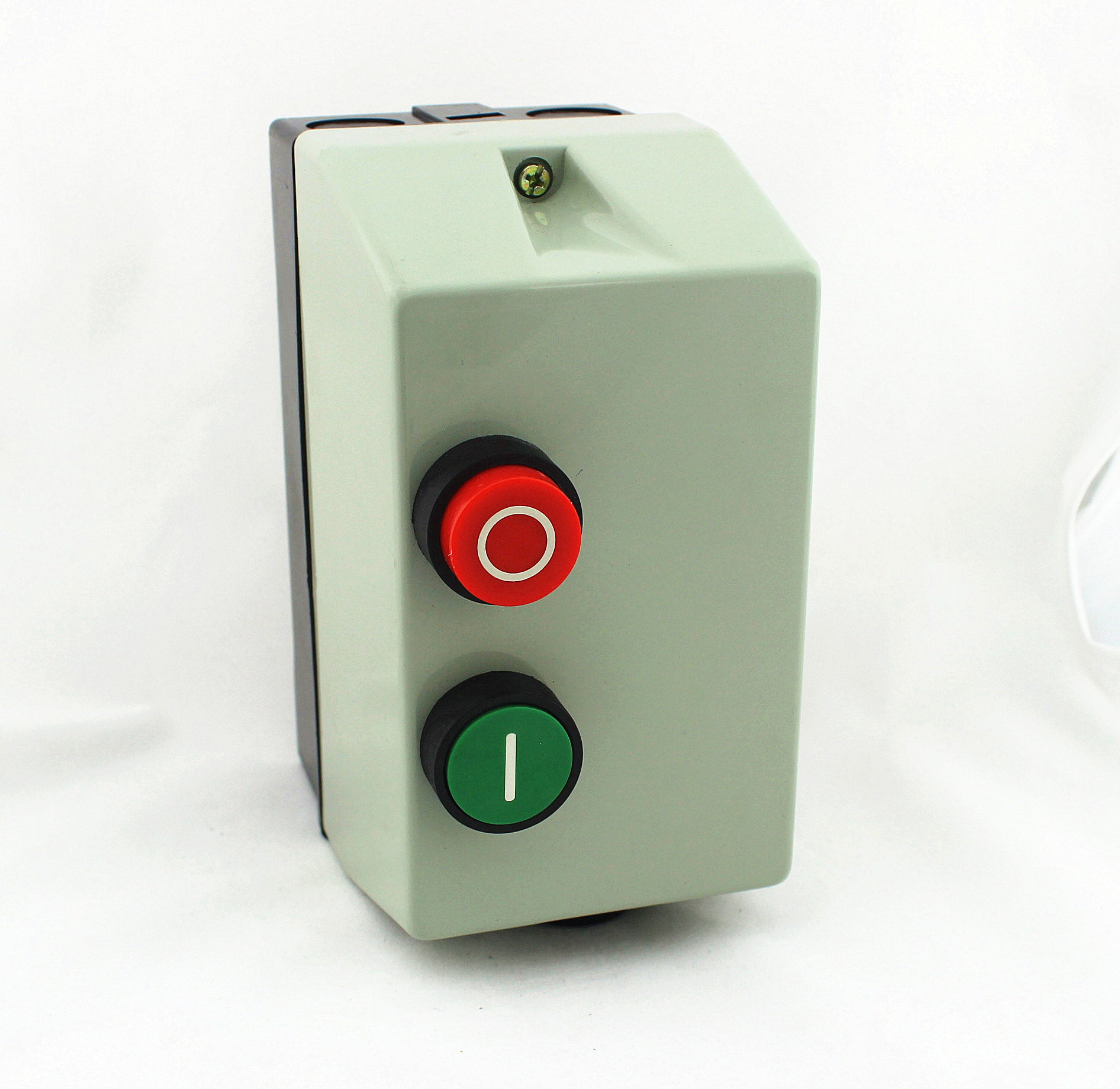

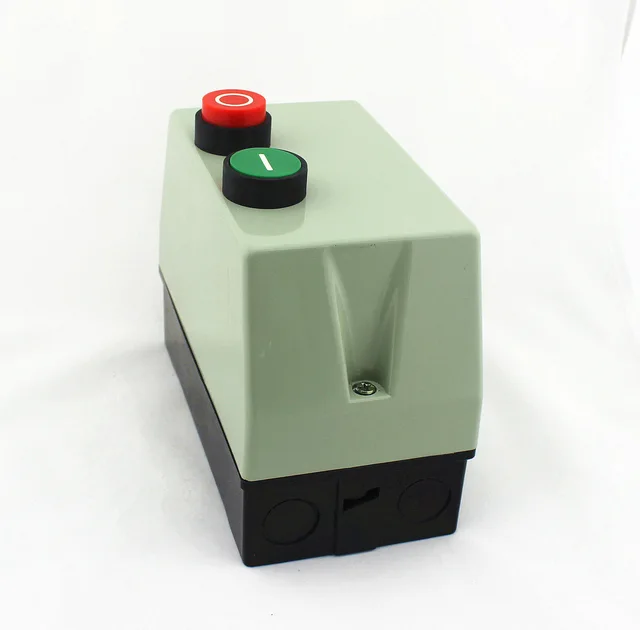

LE1-D magnetic starter is mainy applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controllingt motor.
It has the features of small volume, light weight,low power consumption, high effciency, safe and reliable perfomance etc.
working principle
The magnetic starter is composed of a steel stamping shell, a steel base plate, an AC contactor, a thermal relay, and corresponding wiring. When used, it should be equipped with a start and stop button switch, and correctly connect the manual control signal cable. When the start button is pressed, the AC contactor coil inside the magnetic starter is energized, the armature drives the contact group to close, connects the power of the electrical appliance (generally a motor), and locks itself through the auxiliary contact. When the stop button is pressed, the internal AC contactor coil is de-energized, the contact is disconnected, the power of the electrical appliance is cut off and unlocked.
Features
The main technical feature is that the main contacts of each two contactors are connected in series to access the main circuit, and the attracting coils are connected in parallel to access the control circuit. In some production occasions where the motor does not stop in time after the stop button is pressed and is likely to cause accidents, this magnetic starter can be used.
Model: LE1-D25
Rated current:25A
Brand: SHCET or OEM
LE1-D Magnetic StarterStandardIEC/EN 60947-4-1ProductMagnetic StarterModel Rated Current(A)Standard Power Ratings of 3-phase motors in AC-3(KW)Suitable Thermal Relay
220/230V380/400V415V500V660/690V
LE1-D099A2.2445.55.5LR2-D1312,D1314LE1-D1212A35.55.57.57.5LR2-D1316LE1-D1818A47.591010LR2-D1321LE1-D2525A5.511111515LR2-D1322,D2353LE1-D3232A7.5151518.518.5LR2-D2355LE1-D4040A1118.5222230LR2-D3353,D3355LE1-D5050A1522253033LR2-D3357,D3359LE1-D6565A18.530373737LR2-D3361LE1-D8080A2237455545LR2-D3363,D3365LE1-D9595A2545455555LR2-D3365
From the supplier
LE1-D magnetic starter is mainy applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controllingt motor.
It has the features of small volume, light weight,low power consumption, high effciency, safe and reliable perfomance etc.
working principle
The magnetic starter is composed of a steel stamping shell, a steel base plate, an AC contactor, a thermal relay, and corresponding wiring. When used, it should be equipped with a start and stop button switch, and correctly connect the manual control signal cable. When the start button is pressed, the AC contactor coil inside the magnetic starter is energized, the armature drives the contact group to close, connects the power of the electrical appliance (generally a motor), and locks itself through the auxiliary contact. When the stop button is pressed, the internal AC contactor coil is de-energized, the contact is disconnected, the power of the electrical appliance is cut off and unlocked.
Features
The main technical feature is that the main contacts of each two contactors are connected in series to access the main circuit, and the attracting coils are connected in parallel to access the control circuit. In some production occasions where the motor does not stop in time after the stop button is pressed and is likely to cause accidents, this magnetic starter can be used.
Model: LE1-D25
Rated current:25A
Brand: SHCET or OEM
LE1-D Magnetic StarterStandardIEC/EN 60947-4-1ProductMagnetic StarterModel Rated Current(A)Standard Power Ratings of 3-phase motors in AC-3(KW)Suitable Thermal Relay
220/230V380/400V415V500V660/690V
LE1-D099A2.2445.55.5LR2-D1312,D1314LE1-D1212A35.55.57.57.5LR2-D1316LE1-D1818A47.591010LR2-D1321LE1-D2525A5.511111515LR2-D1322,D2353LE1-D3232A7.5151518.518.5LR2-D2355LE1-D4040A1118.5222230LR2-D3353,D3355LE1-D5050A1522253033LR2-D3357,D3359LE1-D6565A18.530373737LR2-D3361LE1-D8080A2237455545LR2-D3363,D3365LE1-D9595A2545455555LR2-D3365
