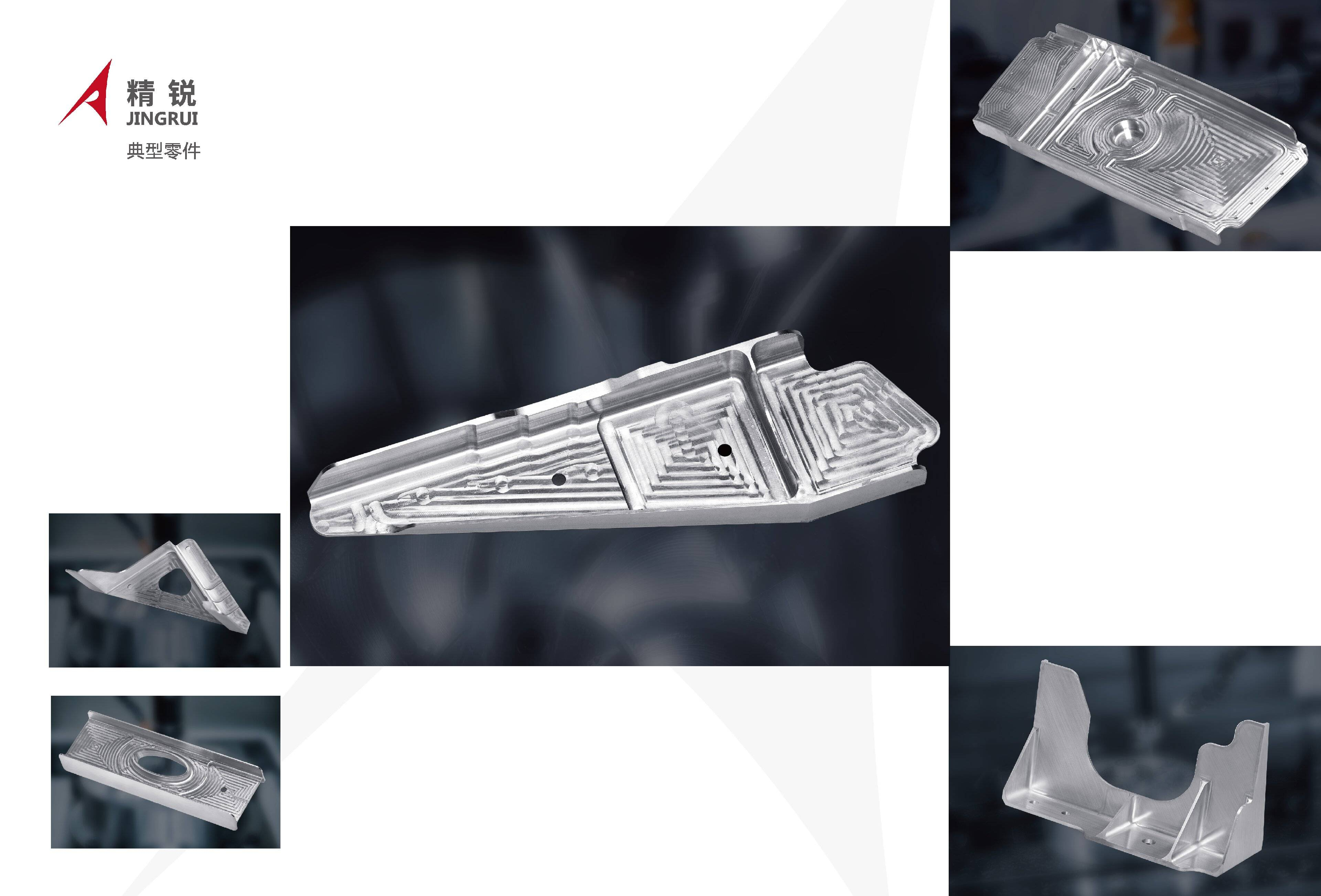

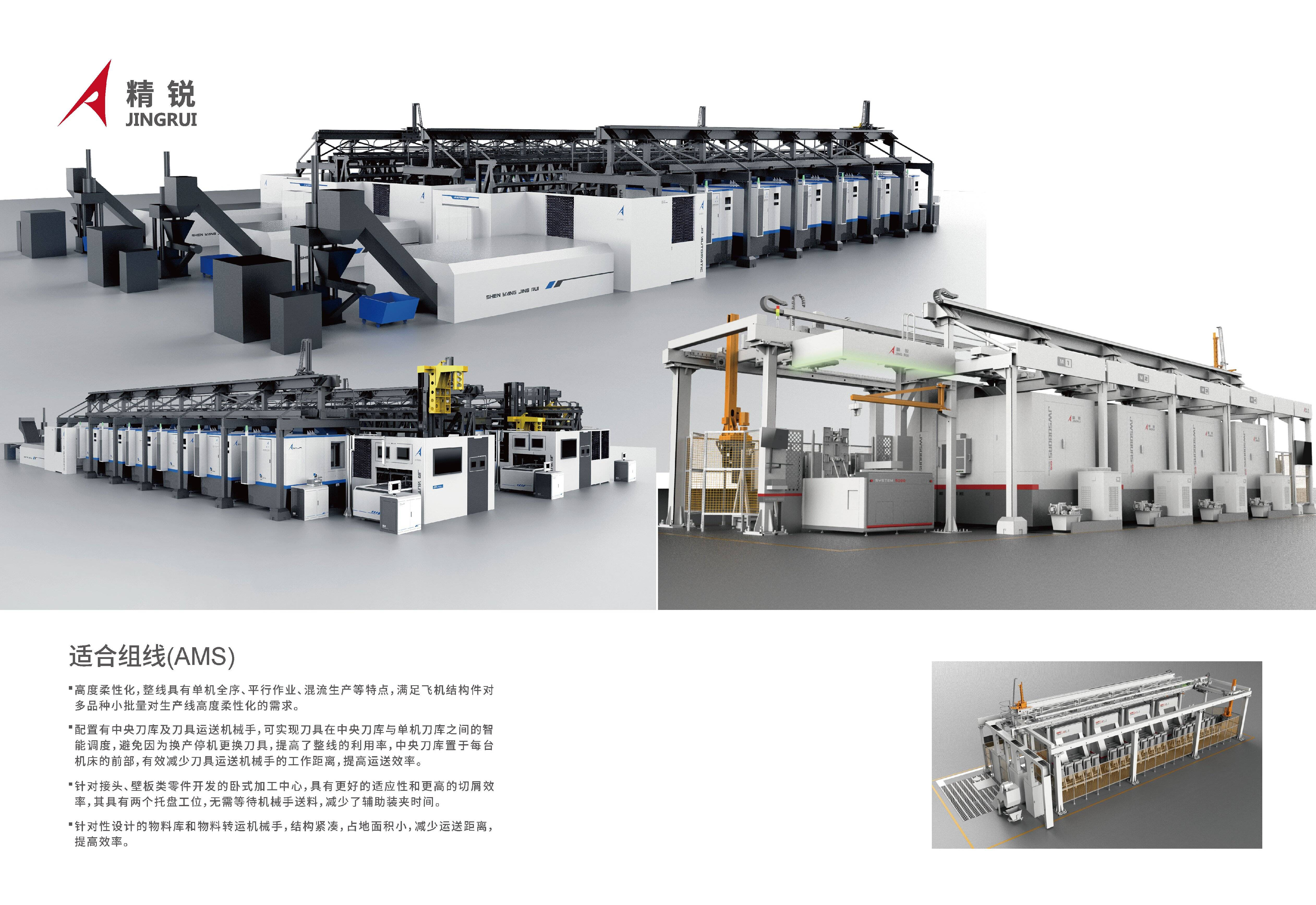

The flap machining center is a high-speed, high-precision and efficient five-axis horizontal machining machine specially developed for efficient cutting of plate aluminum alloys and flexible production line assembly. It adopts a horizontal layout, parts can be clamped in a horizontal posture, processed in a vertical posture, and layout forms such as a cross slide board, a duplex position exchange workbench, an overhead tool magazine, rear chip removal, and operation on the side of the spindle are more conducive to wire assembly; It consists of three linear axes, a rotating workbench and a single pendulum head to form a five-axis machining form. It has multi-surface and multi-process machining of parts such as milling, drilling, boring, reaming, tapping, and complex curved surfaces in one step. It is especially suitable for machining aluminum alloy structural parts in aviation, electronics, 3C and other industries.

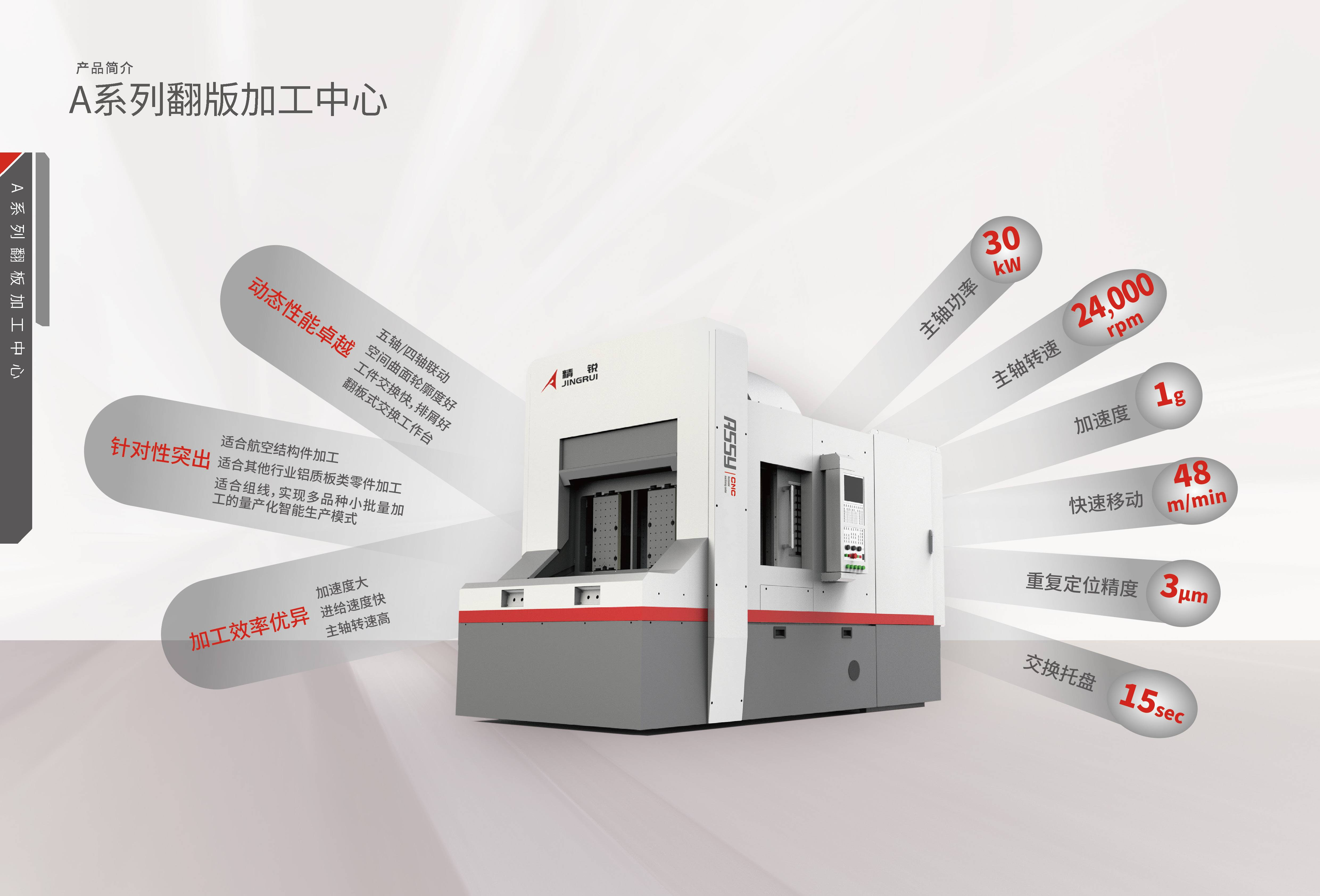

The turning plate machining center has horizontal clamping of parts, vertical machining, and smooth arrangement; the high dynamic performance of 1 g acceleration enables the multi-axis differential cutting feed speed to reach F8000; the full stroke 3μm repetitive positioning accuracy; 30kw and 24000rpm high-power high-speed electric spindles; a duplex position exchange table and other technical features. Compared with traditional processing methods, the metal removal rate is increased by 2 to 6 times, with smoother surface texture, higher contour and higher pass rate.
