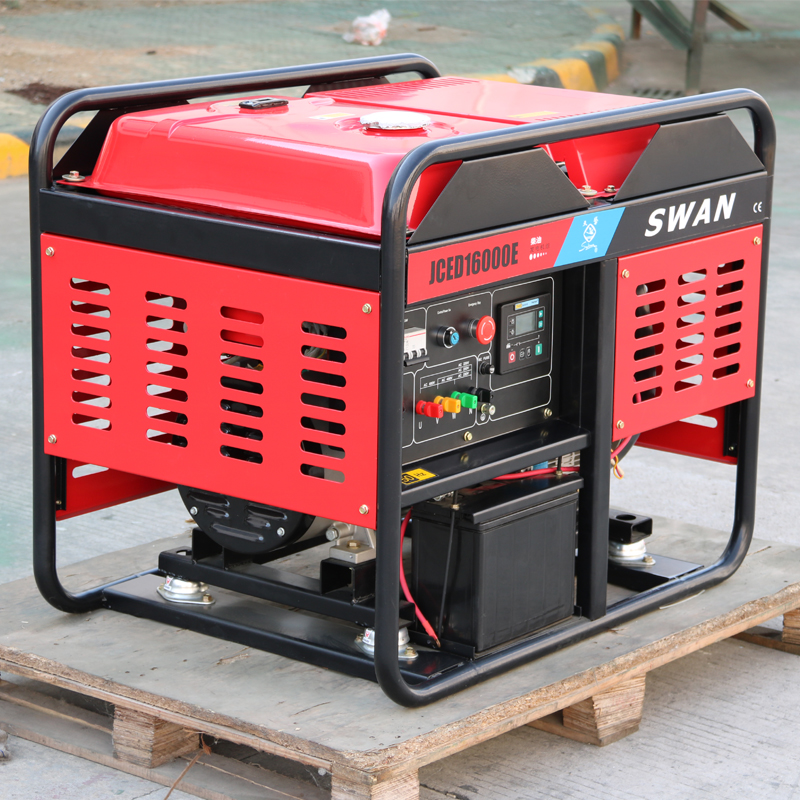

Jced16000xe(S)diesel Engine Generator Sets
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Jced16000xe(S)diesel Engine Generator Sets
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 930x660x780 (S/S-3: 1130x690x860)
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
About this product
- Size: 930x660x780 (S/S-3: 1130x690x860)
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
Product details
| Size | 930x660x780 (S/S-3: 1130x690x860) |
|---|
From the supplier
Model Model
JCED16000XE(S)
JCED16000XE-3(S-3)
额定频率 Rated frequency（Hz)
50
60
50
60
额定输出功率 Rated output power（KVA）
11.0
12.0
11.0
12.0
最大输出功率 Maximum output power（KVA）
12.0
13.0
12.0
13.0
额定电压 Rated voltage（V）
115/230
120/240
230/400
240/416
额定电流 Rated current（A）
95.6/47.8
100/50
19.8
20.8
额定转速 Rated speed（r/min）
3000
3600
3000
3600
相数 Phase
单相 Single-phase
三相 Three-phase
Power Factor Power factor（COSΦ）
1.0
0.8(滞后 Lag）
励磁方式 Excitation mode
自励恒压(带AVR） Self-excitation constant pressure (with AVR)
面板形式 Panel form
普通面板 Ordinary panel
外形尺寸L×W×H Overall dimension（mm）
XE/XE-3: 930×660×780 S/S-3: 1130×690×860
净重 Dry weight（Kg）
XE/XE-3: 230 S/S-3: 305
噪音等级 Noise level dB(A)
XE/XE-3: 77 S/S-3: 72
结构形式 Structure form
开架式(静音式) Well-catalogued (Mute type)
发动机型号 Engine type
JC292F
发动机形式 Engine form
立式双缸, 四冲程, 风冷, 直喷式 Vertical duplex,4-stroke,air-cooled,direct injection
汽缸数-缸径x冲程 Cylinder number-Bore×stroke（mm）
2-92×75
总排量 Total flow rate（ml）
997
额定功率 Rated power［KW/（r/min）］
14/3000
15/3600
14/3000
15/3600
润滑方式 Lubrication way
压力飞溅复合式 Combined pressure and Splashing
启动方式 Startup mode
电起动 Electric start
燃料类型 Fuel type
Diesel Diesel：0#(夏 Summer）-10#(冬 Winter）-35#(严寒 cold）
润滑油型号 Lubricating oil type
CD级以上或SAE10W-30、15W-40 CD class above or SAE10W-30,15w-40
润滑油容量 Lubricating oil capacity（L）
2.75
启动马达容量 Starting motor capacity（V-KW）
12V 1.7KW
充电发电机容量 Charging generator capacity（V-A）
12V 3A
蓄电池容量 Battery capacity（V-Ah）
12V 45Ah
机组燃油消耗率 Set specific fuel consumption（g/KW.h）
≤360
燃油箱容量 Fuel tank capacity（L）
33
持续运行时间 Mission time（hr）
7
