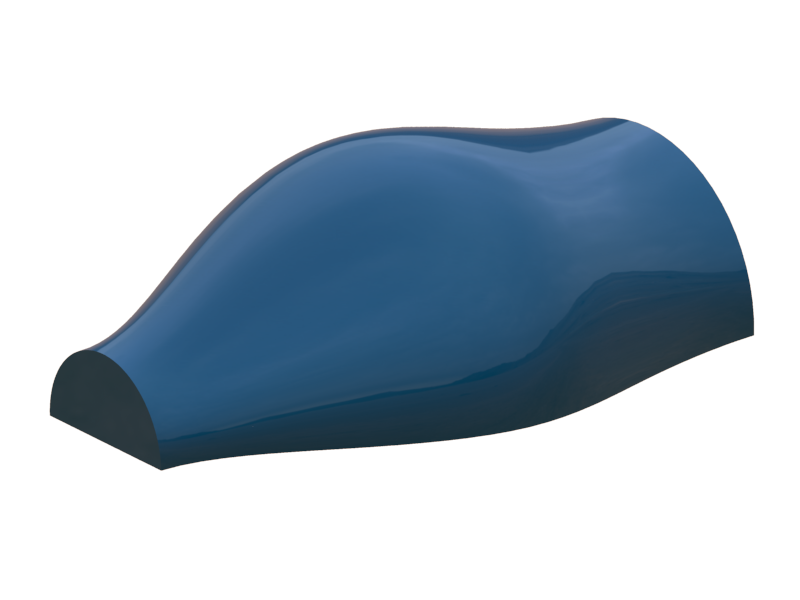

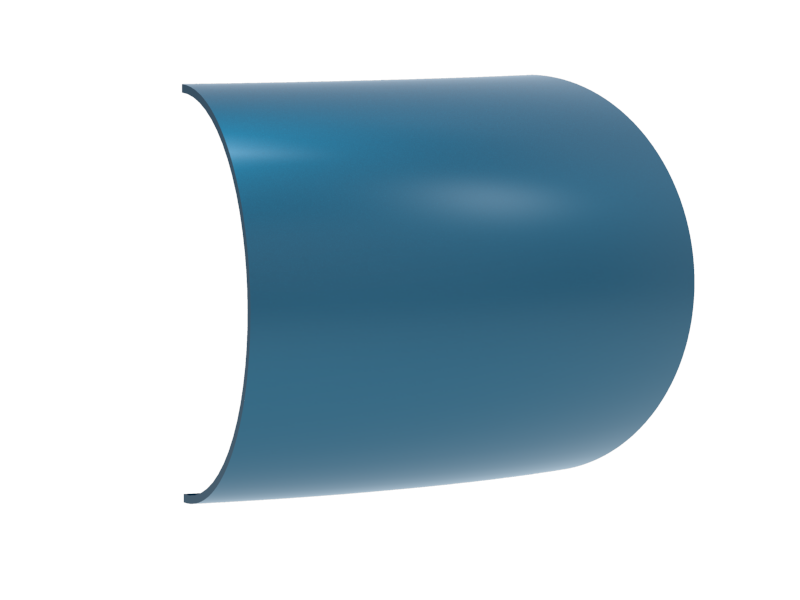

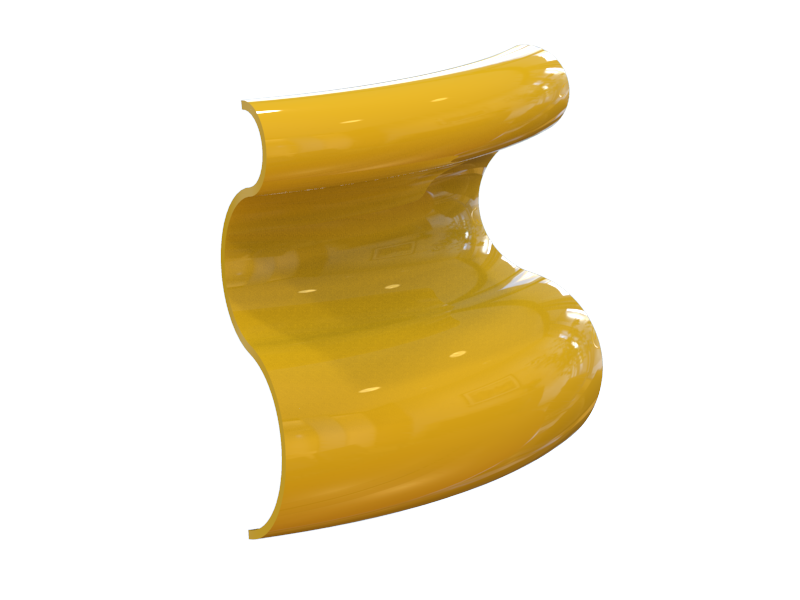

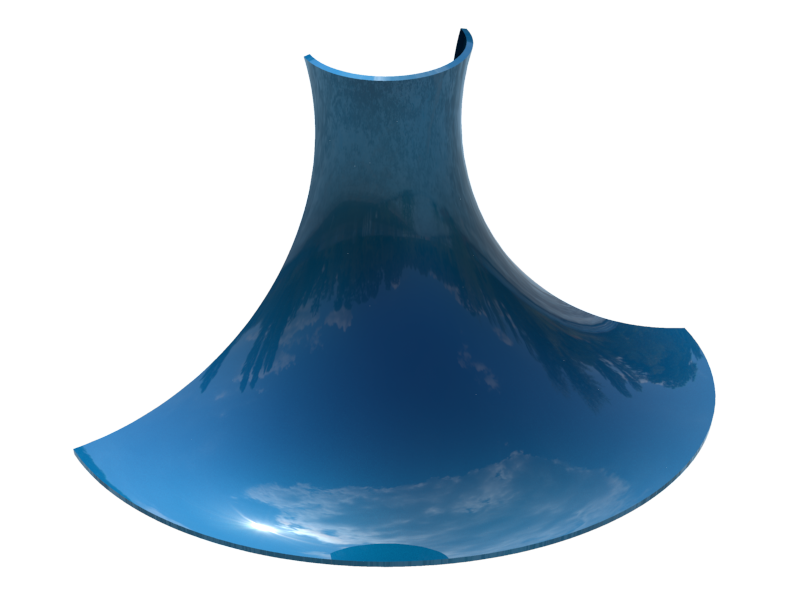

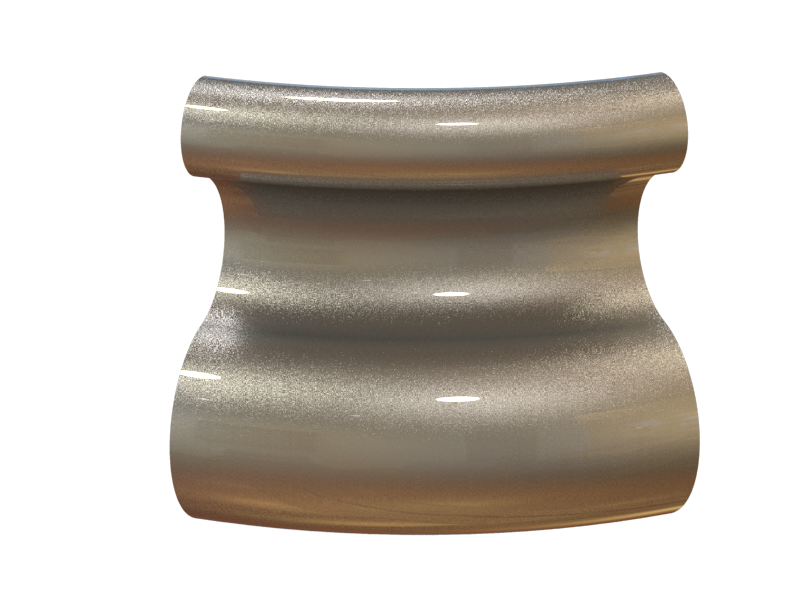

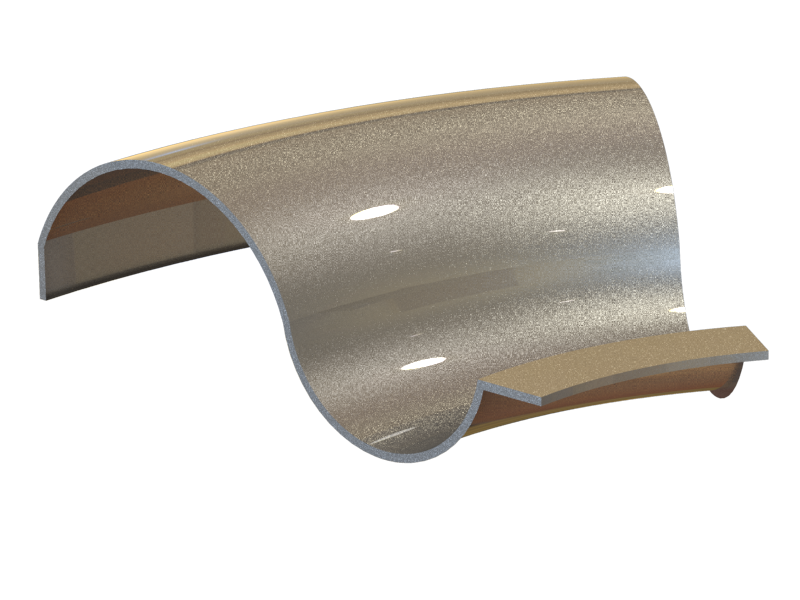

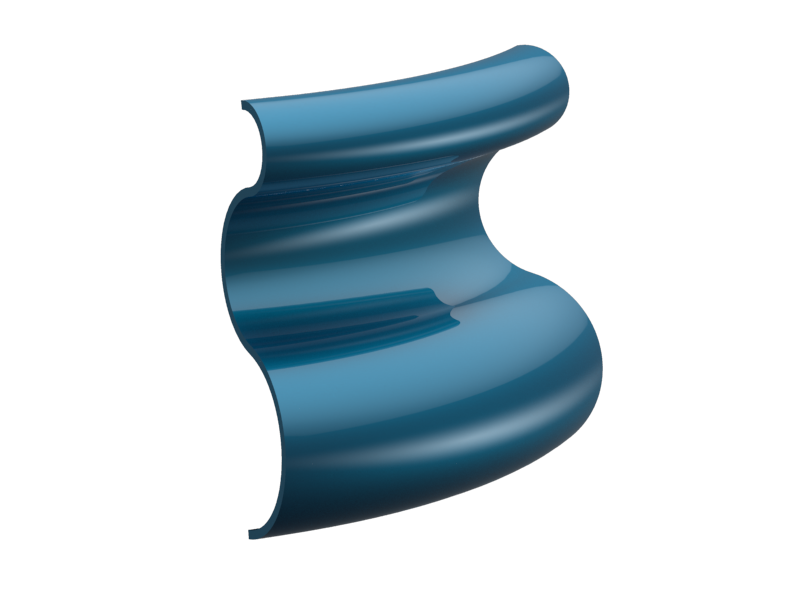

Hyperbolic aluminum solid panel is a type of ASP, hyperbolic refers to two different arcs overlap on the same surface, that is, from a different center of the circle, divided into two radius arc. The processing technology of the hyperbolic plate is divided into two parts, first is pre-fabricate, according to the design of the drawings, the appearance and dimension of the hyperbolic aluminum solid panel are processed in a "big direction". The processing procedure is cutting, folding, arcing, welding, grinding and so on. The aluminum solid panel is processed into the shape and dimension needed for construction. This part of the process determines the arc and appearance of the aluminum solid panel and other important parameters. The second is spraying, spray paint on the surface of hyperbolic panel after pickling and passivation treatment.

Performance characteristics:

1. Light weight, good rigidity, weatherability and corrosion resistance, non fading and good processability.

2. Strong sense of three-dimensional, vivid image can be processed into arc shape, curved surface and other geometric shapes.

3. No need cut at the construction site, can fix on the skeleton directly. Low maintenance cost, long service life and environmental protection.

Applications: high-grade commercial buildings, sports venues, theatres, schools, airports, stations, subway stations, museums and other internal and external decoration projects.
