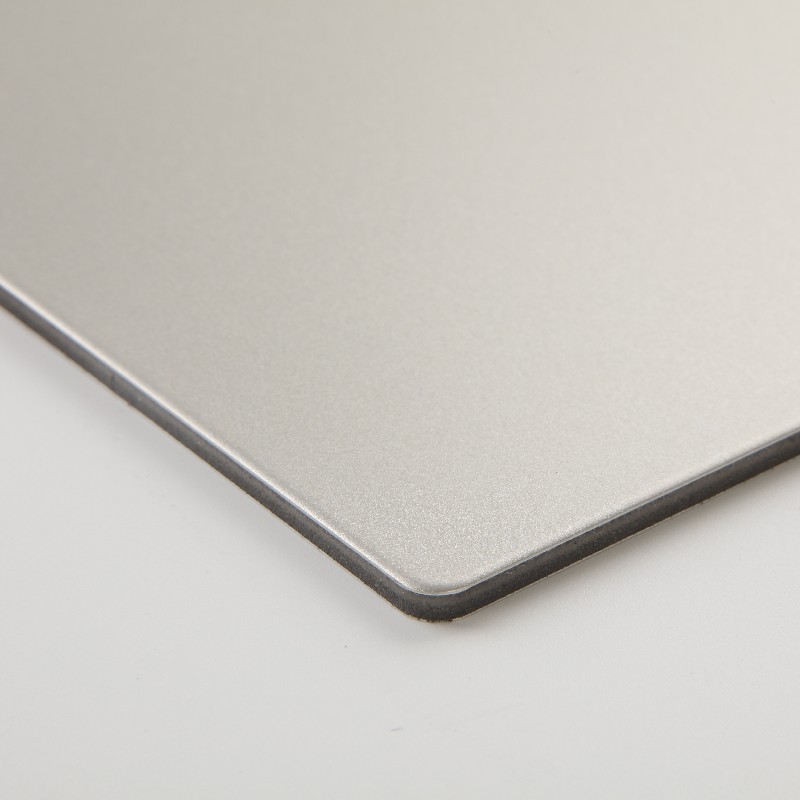

PVDF aluminum composite panels are produced by advanced equipment with German technique. It has two layers of anti-rust aluminum sheets, formed by low density polythene (LDPE) and DUPONT adhesive polyolefin film with continuously high temperature and high press. The surface aluminum sheet has been coated with 70% PVDF (polyvinylidene fluoride). And the backside aluminum sheet has been protected with an anticorrosive primer coat. PVDF aluminum composite panel is applicable for exterior decoration of architectures and curtain wall decoration of major constructional projects that have high demand for weather resistance.

Raw Material

Aluminum Material: High strength aluminum alloy sheet

Core Material: Non-toxic low-density polyethylene

Surface Coating: PVDF coating

 Bottom Coating: Anticorrosive primer coating

Characteristic of Normal PVDF ACP

1.High Peeling Strength

ALUBANG panel is cross linking under high temperature with high performance and molecular binding materials from DuPont, which reaches the best level for the important feature high peeling strength.

2.Superior Weather Resistance

By means of KYNAR500 based PVDF coating resin, ALUBANG panel possesses superiorities in corrosion resistance, alkali resistance, chalking resistance of ultraviolet light. When exposed to the heat of tropical sunshine or the cold of frigid snowstorm, the panel never loses its colorful appearance.

3.Light Weight and Easy to Process

ALUBANG panel is easy to process for its light weight (3.7-5.7kg/m2) which can decrease the loss during an earthquake. The processing such as cutting, planning, bending to arc and several configurations in right angle can be done by some simple woodworking tools. Designers can also make the flexibility in the panel. The installation work is going to be easy and fast. For this reason, it can save the cost.

4.Excellent Fireproof Property

Its core layer is manufactured with Anti-toxic polyethylene core materials, having the combustion resistance property. Two surface layers are made of aluminum, which is difficult to be burnt. This is a kind of safe fireproof materials, complying with the fireproof demand in building code.

5.Coating Evenness, Multiple Colors

Since applied the chemosynthesis treatment and Henkel technology, the adhesion between the paint and panel becomes evener, having multiple colors. There is more space for your choice to the color with individuality.

6.Easy to Maintain

The anti-contaminant property has been obviously improved for ALUBANG aluminum composite panel. Due to good self-cleaning capability, neutral detergent can clean the panel easily even though the pollution is very serious.

7.Impact Resistance

The impact resistance and toughness are strong. The coating layer can’t be crashed when it's bent. The panel can’t be damaged when in a strong windy and sandy condition
