1. Parameters

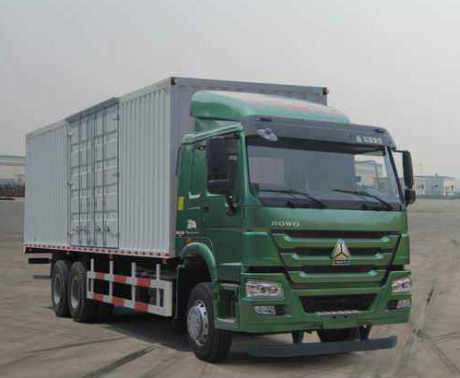

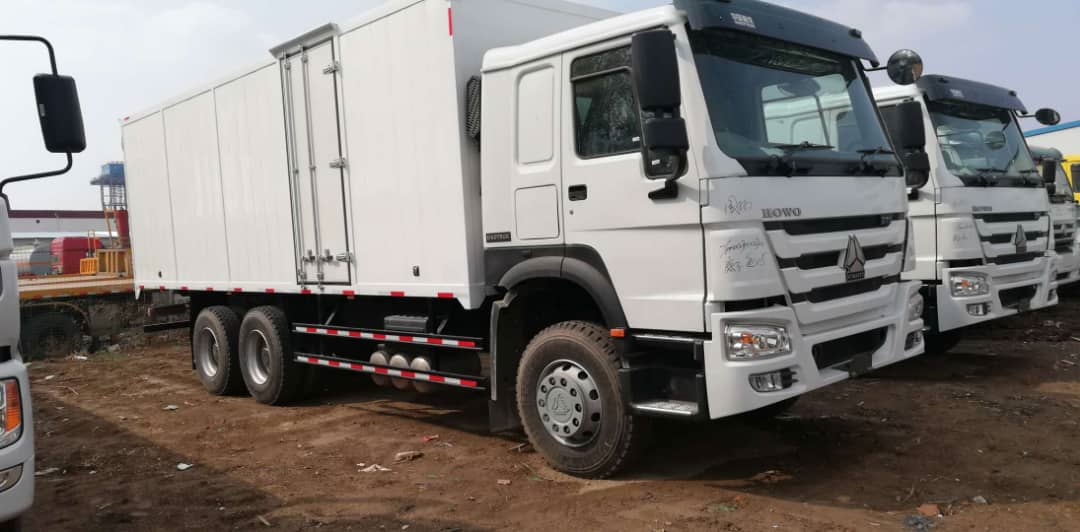

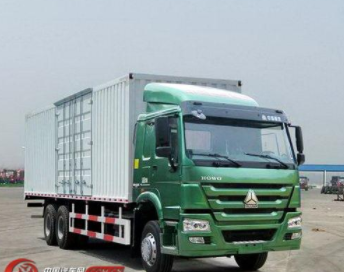

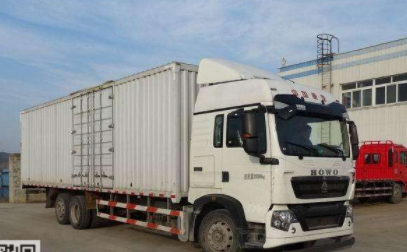

HOWO 6X4 Van Truck

 Cabin

Driving type 6x4      RHD

HW76 cab, with A/C and one sleeper, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

9900×2500×3800

Wheel base  (mm)

4325+1350

Wheel track  (front/rear) (mm)

2022/1830/1830

Weight in KGS

Tare Weight

11500

payload

20000

Front axles loading capacity

1x7000

Rear axles loading capacity

2x13000

Max. driving speed（km/h）

85

Engine

Brand

SINOTRUK

Model

WD615.62

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power（HP)

266

Emission standard

Euro II

Gearbox

HW13710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

400 liters Aluminium oil tank

Tire

12R22.5 tubeless tyre 11 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Box size

7200*2300*2300 mm, made of Aluminium alloy

• 2. Company introduction

SINOTRUK is one of the largest heavy duty truck manufacturers in China, also the  No. 1 for exporting. To reach international top production and quality level, in 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China.

SINOTRUK Hubei Huawin Special Vehicle Co., LTD is located in Suizhou of Hubei province, a branch factory and key member of SINOTRUK. We employ 1,000 people which including 200 all kinds of qualified engineers, designers and other researchers, has accumulated rich experienced in manufacturing and designing all kinds of special purpose vehicles (tractor trucks, dump trucks, crane mounted trucks, garbage trucks etc.) and semi trailers (flatbed trailers, tipper trailers ,tank trailers etc.). Every year thousands of our truck and trailer are sold to Tanzania, Zambia, Ethiopia, Nigeria, Australia and Russia, they have gained great popularity and excellent feedback from our customers.

• 3. Our Advantages

  1)  Reliable Quality: After working with top companies in truck industry like STEYR, MAN, VOLVO, with years of manufacturing experience and SINOTRUK group full range inspection system, a series inspections are well done before the exportation to ensure reliable quality.

2)  Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.

• 3)   In time Warranty:  One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.

4)  In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.

5)  Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.
