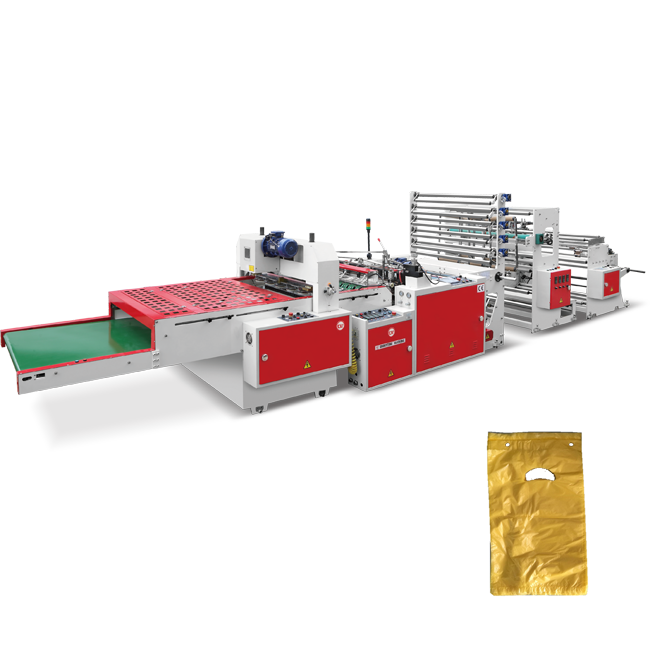

High speed calendar bag making machine
ZHEJIANG CHOVYTING MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
High speed calendar bag making machine
ZHEJIANG CHOVYTING MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: STEEL
- Size: 8800*2030*2050
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: STEEL
- Size: 8800*2030*2050
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | STEEL |
|---|---|
| Size | 8800*2030*2050 |
| Color | red+white |
Product details
| Materials | STEEL |
|---|---|
| Size | 8800*2030*2050 |
| Color | red+white |
From the supplier
Functions and Features:

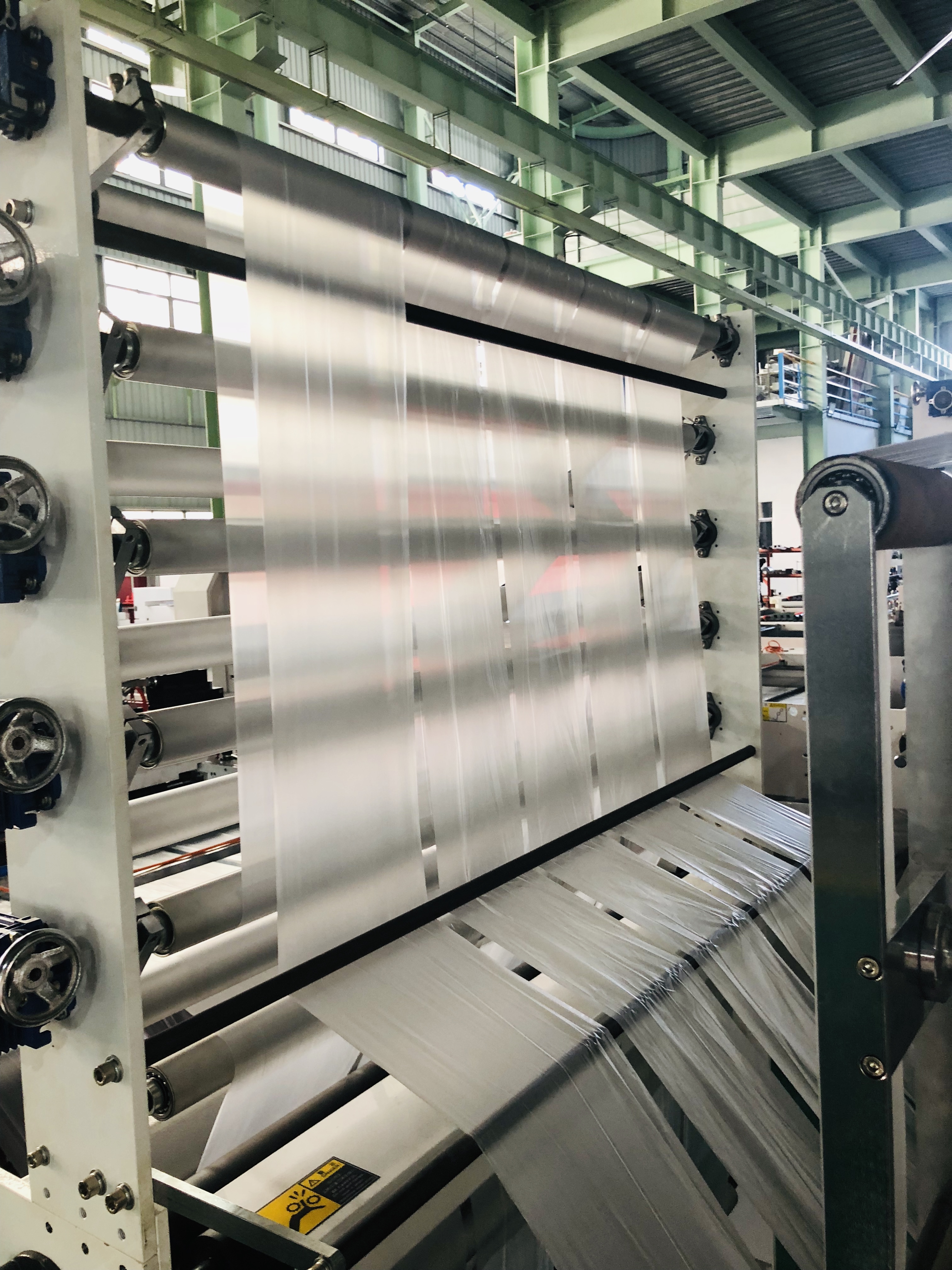

This machine can make a big roll into small rolls by using hot slitting. The machine productivity is extremely high. It’s suitable to make 1 ~5 lines hot slitting bottom sealing bags.
This machine can simultaneously produce bottom sealing bags in different bag width.
With a fully automatic computer control servo system, this machine can have both a high speed with a stable productivity. Suitable to produce multi-lines printed bottom sealing bags.
This machine has Hot Slitting Device, Block Device, Perforation Device, and Punching Device to choose according to different requirements.
Product Specifications:
Model
CW-1100BS5+AP
CW-1100BS5
No.of tracks(max.)
5line
5line
Width of film unwind
900mm
900mm
Diameter of film unwind
1000mm
800mm
Bag width(each line)
200mm*5lines
200mm*5lines
Bag length
250-700mm
250-3000mm
Thickness of film
0.01-0.04mm
0.01-0.04mm
Production speed
200pcs/min*5lines
200pcs/min*5lines
Line speed
85m/min
90m/min
Total power
17.6KW
11KW
Weight
2800kg
1800kg
Machine Dimension(L*W*H)
8800*2030*2050mm
5520*1850*2050mm
Application Fields:

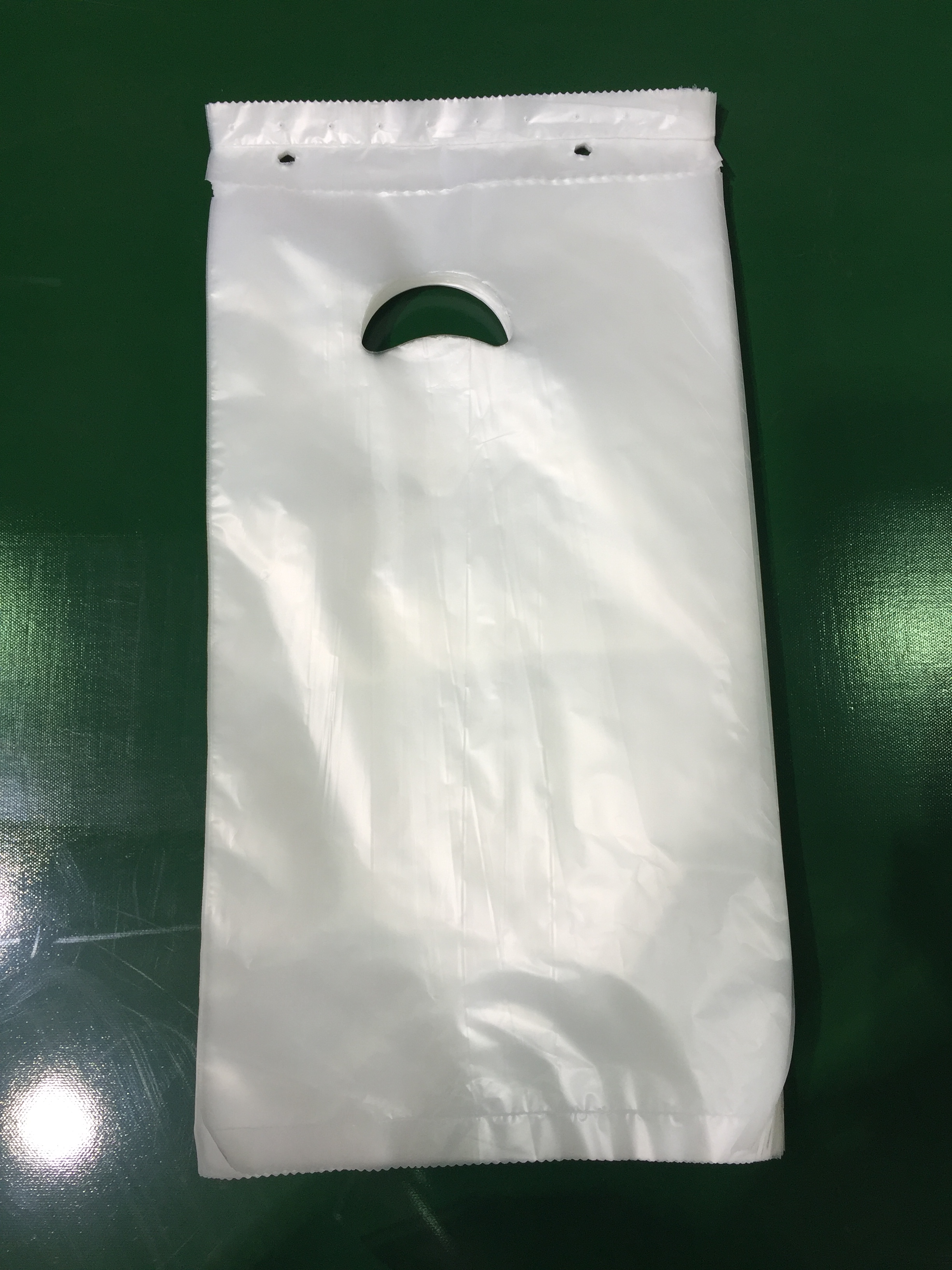

Bottom sealing bag with low thickness is widely used in beverage bottle packaging and retail industry. High speed multiline bottom sealing calendar bag making machine with high production capacity enable manufacturer gain a significant margin of profit in the market.
From the supplier
Functions and Features:
This machine can make a big roll into small rolls by using hot slitting. The machine productivity is extremely high. It’s suitable to make 1 ~5 lines hot slitting bottom sealing bags.
This machine can simultaneously produce bottom sealing bags in different bag width.
With a fully automatic computer control servo system, this machine can have both a high speed with a stable productivity. Suitable to produce multi-lines printed bottom sealing bags.
This machine has Hot Slitting Device, Block Device, Perforation Device, and Punching Device to choose according to different requirements.
Product Specifications:
Model
CW-1100BS5+AP
CW-1100BS5
No.of tracks(max.)
5line
5line
Width of film unwind
900mm
900mm
Diameter of film unwind
1000mm
800mm
Bag width(each line)
200mm*5lines
200mm*5lines
Bag length
250-700mm
250-3000mm
Thickness of film
0.01-0.04mm
0.01-0.04mm
Production speed
200pcs/min*5lines
200pcs/min*5lines
Line speed
85m/min
90m/min
Total power
17.6KW
11KW
Weight
2800kg
1800kg
Machine Dimension(L*W*H)
8800*2030*2050mm
5520*1850*2050mm
Application Fields:
Bottom sealing bag with low thickness is widely used in beverage bottle packaging and retail industry. High speed multiline bottom sealing calendar bag making machine with high production capacity enable manufacturer gain a significant margin of profit in the market.
