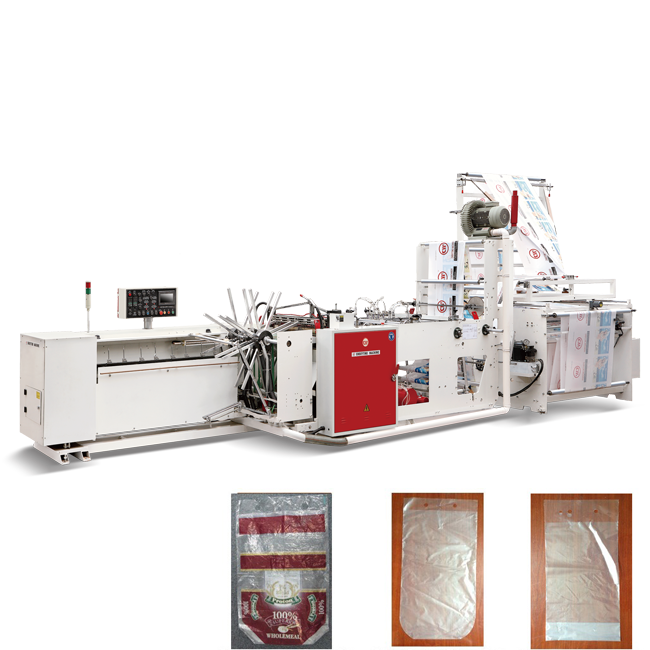

Fully Automatic Servo Motor Drive Wicketer Bag Making Machine
ZHEJIANG CHOVYTING MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Fully Automatic Servo Motor Drive Wicketer Bag Making Machine
ZHEJIANG CHOVYTING MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: STEEL
- Size: 6500*1600*1870
- Color: res+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: STEEL
- Size: 6500*1600*1870
- Color: res+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | STEEL |
|---|---|
| Size | 6500*1600*1870 |
| Color | res+white |
Product details
| Materials | STEEL |
|---|---|
| Size | 6500*1600*1870 |
| Color | res+white |
From the supplier
Functions and Features:
This fully automatic high speed wicketer is the unique design in China.Automatic windmill style rotary-arm collection makes bag collecting more easily and quickly.It also decrease the coefficient of wind resistance and take the bag more precisely. Special design of round and square bottom,both side can be heated independently. Not only ensure the strong sealing but also realize high speed running. The max speed of bag making is 300pcs/min.It is easy to operate and clean as well.
1. It adopts 3pcs JAPAN YASKAWA servo motor system to realize variable & precise control while the machine is running.
2. EPC control maintain the stability of film feeding.

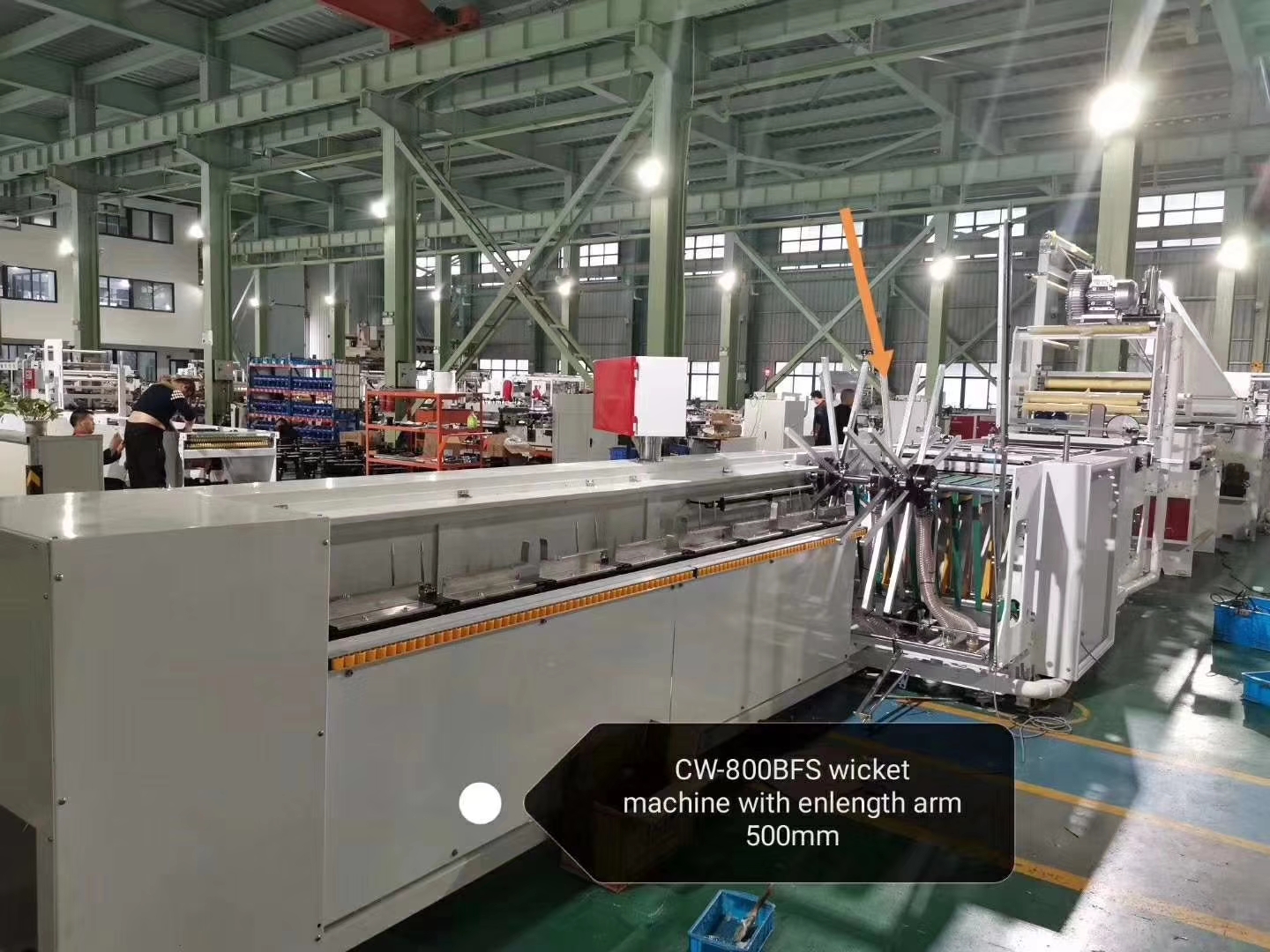

3. Special design of windmill style rotary-arm collection
4. Super high speed,max speed could be 300pcs/min
Product Specifications:
Model
CW-800BFS
Length of bag-making(Height of bag)
300-700mm
Width of bag-making
100-300mm
Bottom gusset
30-70mm
Speed of bag making
300pcs/min
Total power
22KW
Machine weight
2600kg
Machine dimension(L*W*H)
8000*2800*1950mm
Air compressor (not included)
7HP
Application Fields:
This kind of machine is widely used in the packaging of food.

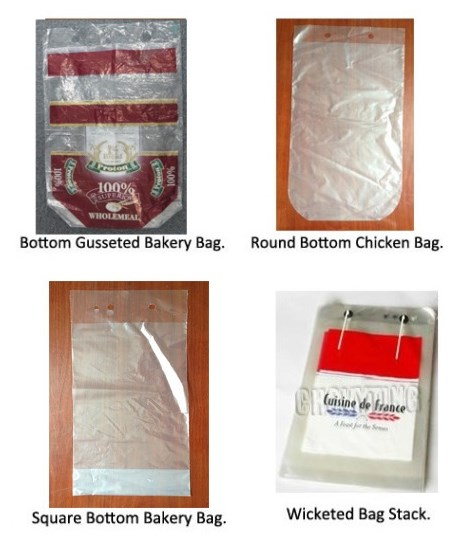

Sample Bags:
From the supplier
Functions and Features:
This fully automatic high speed wicketer is the unique design in China.Automatic windmill style rotary-arm collection makes bag collecting more easily and quickly.It also decrease the coefficient of wind resistance and take the bag more precisely. Special design of round and square bottom,both side can be heated independently. Not only ensure the strong sealing but also realize high speed running. The max speed of bag making is 300pcs/min.It is easy to operate and clean as well.
1. It adopts 3pcs JAPAN YASKAWA servo motor system to realize variable & precise control while the machine is running.
2. EPC control maintain the stability of film feeding.
3. Special design of windmill style rotary-arm collection
4. Super high speed,max speed could be 300pcs/min
Product Specifications:
Model
CW-800BFS
Length of bag-making(Height of bag)
300-700mm
Width of bag-making
100-300mm
Bottom gusset
30-70mm
Speed of bag making
300pcs/min
Total power
22KW
Machine weight
2600kg
Machine dimension(L*W*H)
8000*2800*1950mm
Air compressor (not included)
7HP
Application Fields:
This kind of machine is widely used in the packaging of food.
Sample Bags:
