About this product
- Materials: steel welded
- Size: 1900*1300*3200
- Color: white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: steel welded
- Size: 1900*1300*3200
- Color: white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | steel welded |
|---|---|
| Size | 1900*1300*3200 |
| Color | white |
From the supplier

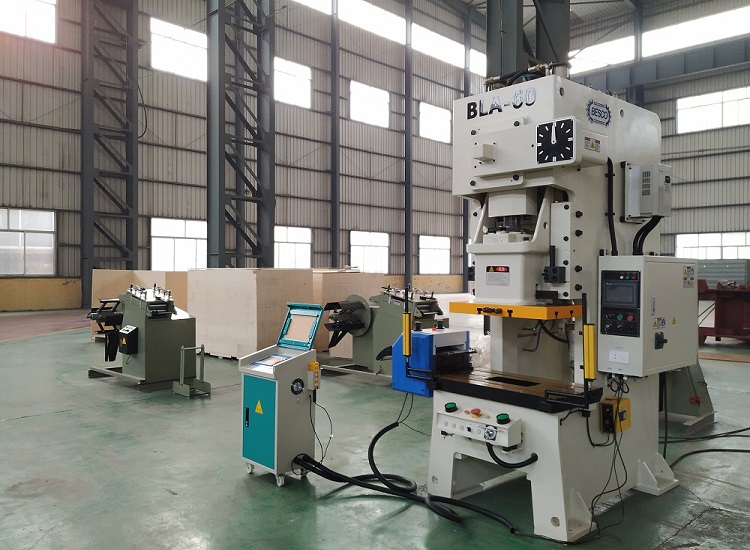

high precision pneumatic punching machine/ mechanical power press machine
1. Ultra-high precision stability and reliability
High-rigidity integrated frame and front-rear symmetrical structure (the most suitable frame is designed through computer analysis) through the process of eliminating internal stress, which further improves the high-rigidity frame that is indispensable for accuracy and achieves low noise and low vibration To increase the service life of the mold.
Super strong force structure design, reverse internal rotation design, internal offset of lateral force, enhance anti-eccentric load capacity.
2. Adopt the overload protection device reflected instantaneously to protect the punch and die to the greatest extent. The overload protection device will automatically reset.
3. Energy-saving design
Due to the high-precision processing of parts, the wear of the conductive part is greatly reduced;
The variable speed specification uses an inverter, which can complete a large amount of work with very little power.
4. Sensitive and powerful, compact clutch brake design
Using the strong brakes made by Dongxiong, it has high sensitivity and excellent operability to ensure the accuracy of the brake.
5. Rigid balance
The best rigid distribution of the integration of the fuselage, slider and power, and the best combination of materials in the construction part.
6. Center of gravity balance
Center of gravity of movable part
7. Thermal balance
Thermal balance between drive part and body
New clutch brake with good heat dissipation
machine parts brand selection
category
Product name
Factory
Remarks
machine
Machinery
yuan
Piece
Ball bearing
American Ironwood
Oil seal
Japan NOK
O-ring
Japan NOK
Air bucket
Pressure vessel inspection
Clutch & brake
Anhui Liyuan
Electricity
gas
yuan
Piece

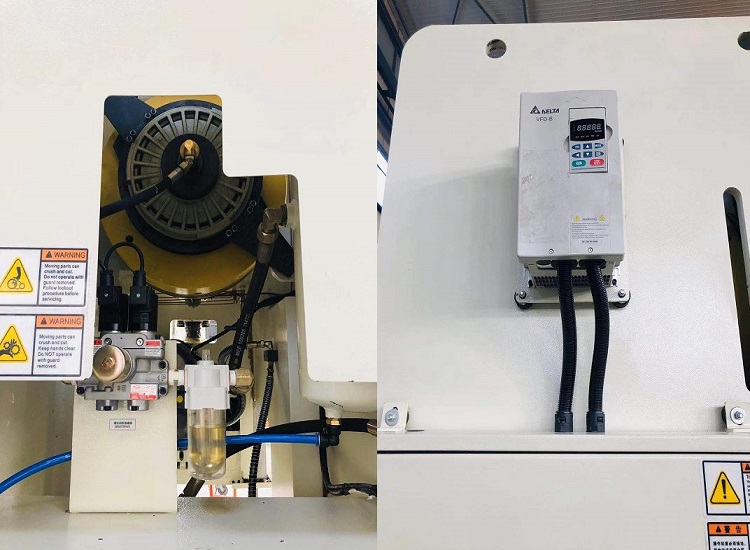

change frequency Device
Delta
Main motor
Domestic famous brand
Contactor
Schneider
Relay
Schneider
Operation button
Fuji
emergency button
Fuji

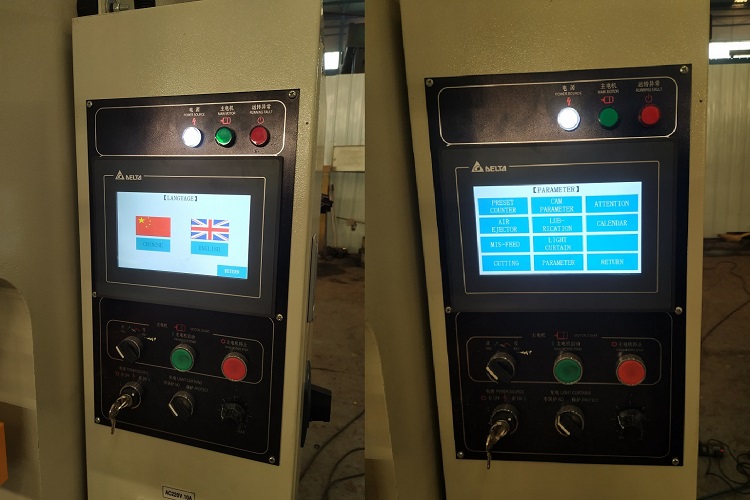

Touch screen
Taiwan Delta
Programmable controller (PLC)
Taiwan Delta
Angle control / display
Delta
Indicator light
Schneider
Air component
Solenoid valve & control unit
Japanese SMC
Pneumatic cylinder
self made
oil
Pressure
yuan
Piece
Overload protection device
Showa, Japan
Solenoid valve & control unit
Japanese SMC
Hydraulic cylinder
self made
Oil block
Shengxiang
Punch type
Open single crankshaft high precision steel frame punch
2. Body structure (integrated)
Steel plate welding
3. Body rigidity
Designed according to 1/8000
4. Drive mode
Crankshaft
5. The number of points
1 o'clock
6. Slider guide
Six-sided rail
7. Punch accuracy grade
JIS level 1
8. Punch color
standard color
two. Main specification
Specification Model 1
unit
BLA-25T
Model
V type
H type
Nominal force
KN
250
Occurrence position [capacity occurrence point]
Mm
3.2
1.6
Long stroke [slider stroke]
Mm
70
30
Maximum closed working height [maximum mode height]
Mm
195
215
Slider strokes
Spm
60-140
130-200
Slider adjustment amount [mounting height adjustment amount]
Mm
50
Upper table size [slider surface size]
LRXFB
470 × 230 × 50
Lower table size [Workbench size]
LRXFB
680×300× 70
Main motor
KWXP
3.7 × 4
Using air pressure
Kg/cm2
5- 6
Overall dimensions (left and right × front and rear × high)
Mm
1280×850×2200
Total Weight
T
2.1
Specification Model 2
unit
BLA -45T
Model
V type
H type
Nominal force
KN
450
Occurrence position [capacity occurrence point]
Mm
3.2
1.6
Long stroke [slider stroke]
Mm
80
50
Maximum closed working height [maximum mode height]
Mm
250
265
Slider strokes
Spm
40-100
1 1 0-150
Slider adjustment amount [mounting height adjustment amount]
Mm
60
Upper table size [slider surface size]
LRXFB
560 × 3 4 0 × 60
Lower table size [Workbench size]
LRXFB
850×440×80
Main motor
KWXP
5.5 × 4
Using air pressure
Kg/cm2
5- 6
Overall dimensions (left and right × front and rear × high)
Mm
1600×950×2500
Total Weight
T
3.8

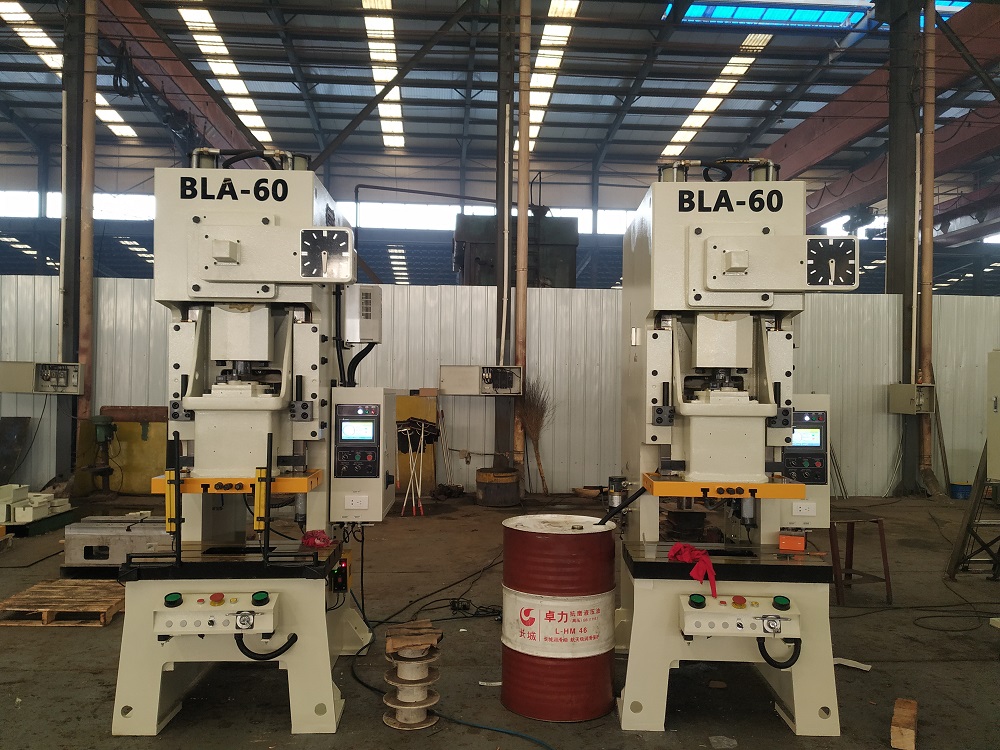

Specification Model 3
unit
BLA -60T
Model
V type
H type
Nominal force
KN
600
Occurrence position [capacity occurrence point]
Mm
4
2
Long stroke [slider stroke]
Mm
120
60
Maximum closed working height [maximum mode height]
Mm
310
340
Slider strokes
Spm
35 -90
80-120
Slider adjustment amount [mounting height adjustment amount]
Mm
75
Upper table size [slider surface size]
LRXFB
700×410×70
Lower table size [Workbench size]
LRXFB
900×500×80
Main motor
KWXP
5.5×4
Using air pressure
Kg/cm2
5-6
Overall dimensions (left and right × front and rear × high)
Mm
1600×1000×2800
Total Weight
T
5.6
Specification Model 4
unit
BLA -80T
Model
V type
H type
Nominal force
KN
800
Occurrence position [capacity occurrence point]
Mm
4
2
Long stroke [slider stroke]
Mm
150
70
Maximum closed working height [maximum mode height]
Mm
340
380
Slider strokes
Spm
35-80
80-120
Slider adjustment amount [mounting height adjustment amount]
Mm
80
Upper table size [slider surface size]
LRXFB
770×420×70
Lower table size [Workbench size]
LRXFB
1000×550×90
Main motor
KWXP
7.5×4
Using air pressure
Kg/cm2
5-6
Overall dimensions (length × width × height)
Mm
1800×1180×2800
Total Weight
T
6.5
Specification Model 5
unit
BLA -110T
Model
V type
H type
Nominal force
KN
1100
Occurrence position [capacity occurrence point]
Mm
6
3
Long stroke [slider stroke]
Mm
180
80
Maximum closed working height [maximum mode height]
Mm
360
410
Slider strokes
Spm
30-60
60-90
Slider adjustment amount [mounting height adjustment amount]
Mm
80
Upper table size [slider surface size]
LRXFB
910×470×80
Lower table size [Workbench size]
LRXFB
1150×600×110
Main motor
KWXP
11×4
Using air pressure
Kg/cm2
5-6
Overall dimensions (length × width × height)
Mm
1900×1300×3200
Total Weight
T
9.6
Balancer
1.1 Maximum equilibrium air pressure
5.5 kg/cm 2
1.2 air pressure adjustment method
Manual operation
2. Mold height adjustment device
2.1 adjustment method
Electric type (BLA-60T and below is manual)
2.2 mode of operation
Button inching, absolute position detection
2.3 Mounting height display mode
Digital display, 0.1mm
3. Overload protection device
Type 3.1
Hydraulic discharge type
3.2 overload return time
Sec
≤30 sec.
4. Clutch/brake
Type 4.1
Dry pneumatic type
4.2 Structure
By design
4.3 Actuation - Clutch
- brake
Air action
Spring action

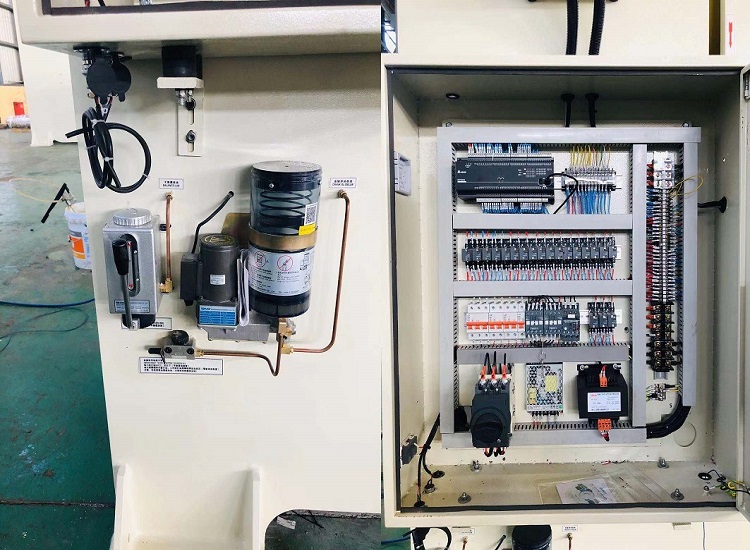

5. Lubrication device
5.1 oil pump oil supply method
Lubricating part
Electric type (BLA-60T and below is manual)
Drive section
5.2 manual oil supply method
Lubricating part
Balancer
