About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Feature: Automation
- Customized: Customized
- After-sales service: Engineers Available to Service Machinery OverseasOverseas Third-Party Support Available
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Feature: Automation
- Customized: Customized
- After-sales service: Engineers Available to Service Machinery OverseasOverseas Third-Party Support Available
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
| Feature | Automation |
| Customized | Customized |
| After-sales service | Engineers Available to Service Machinery OverseasOverseas Third-Party Support Available |
| Warranty | 24 Months |
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
| Feature | Automation |
| Customized | Customized |
| After-sales service | Engineers Available to Service Machinery OverseasOverseas Third-Party Support Available |
| Warranty | 24 Months |
From the supplier

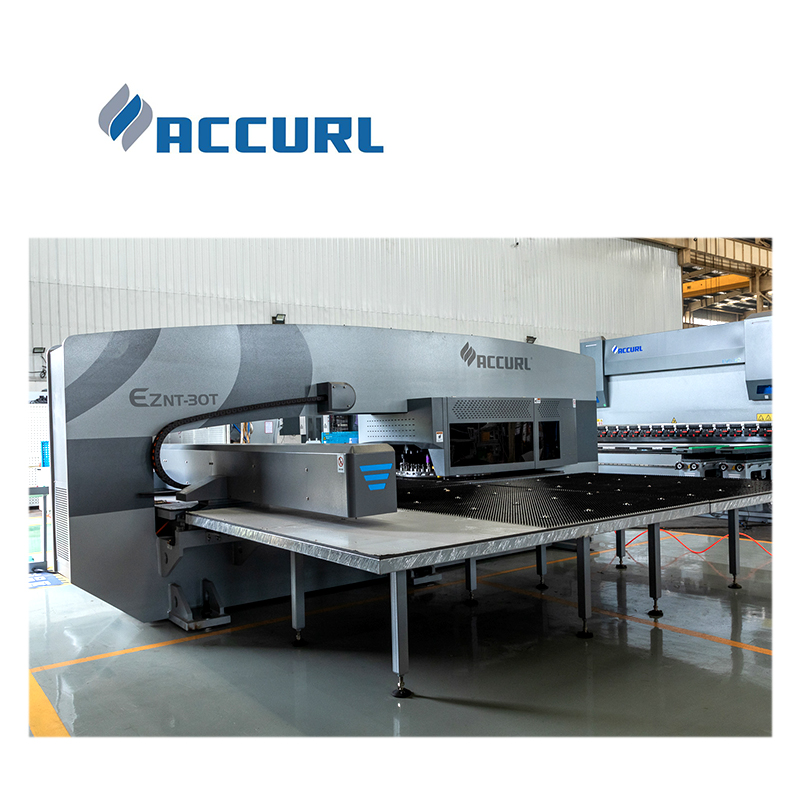

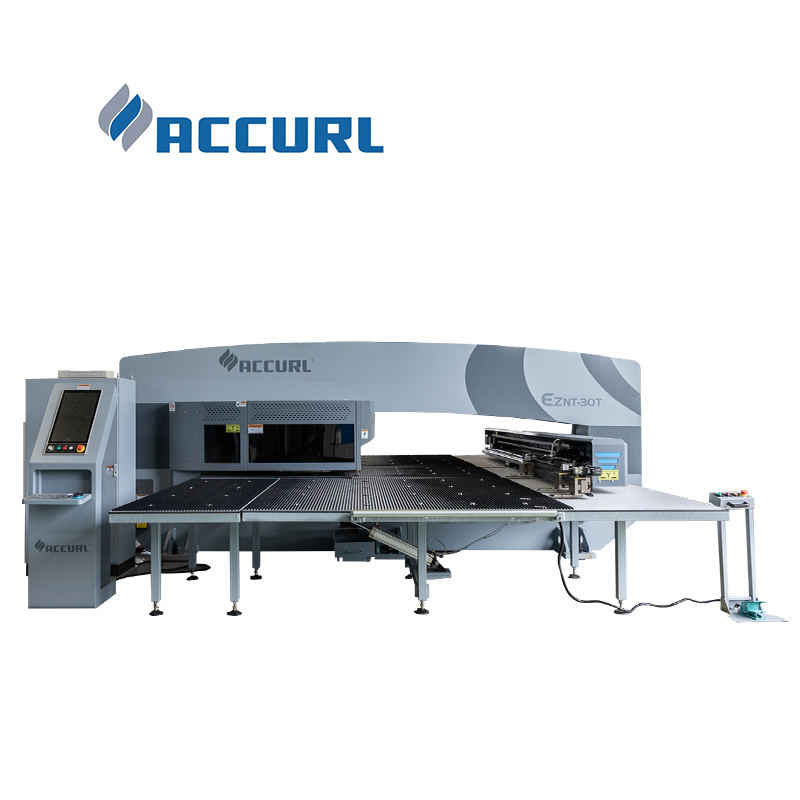

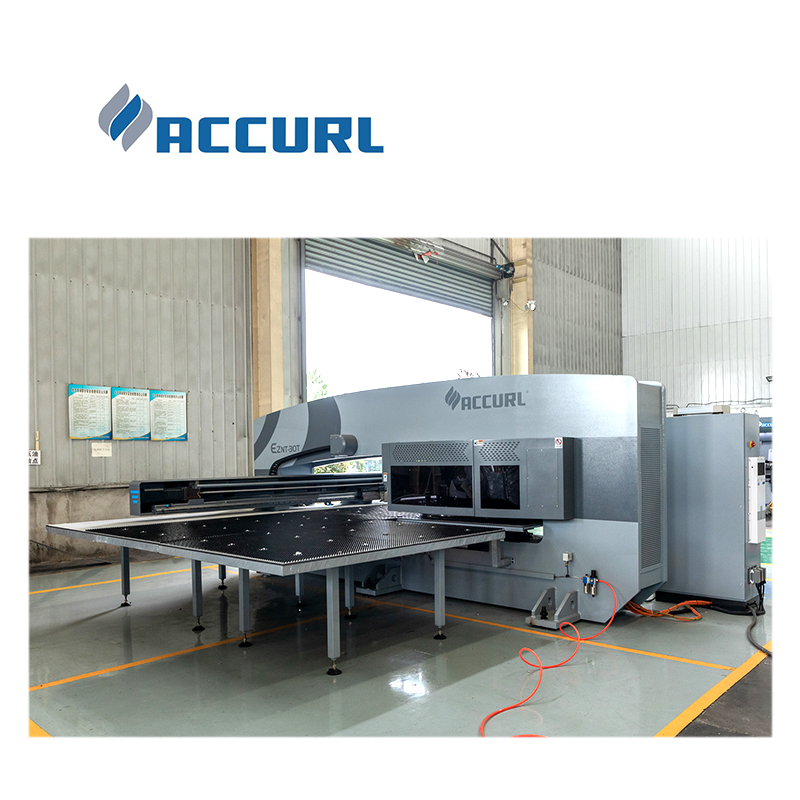

ACCURL Hydraulic CNC Turret Punch Press MAX-T-30 Ton with 32 Stations 2 Auto index
MAX SF Series for
The Perfect CNC Turret Punching Machine
ACCURL®MAX-SF Series CNC Punch Press Machine is the newly developed Multi Index Tools Turret Punch Press equipped with advanced Servo Hydraulic System, introduced by Tailift’s professional R&D and production teams who have been dedicated to machineries for decades. Accurl MAX SF Series CNC Punching machines provides the fastest, flexible and reliable punch press satisfying your expectation of fast and precise sheet metal works.
Siemens control
●The MAX T-series is comes standard with the Siemens 802D SL operator control, combining all components of a CNC (NC, PLC, HMI) and drive control in a single unit.
Standard Equipments :
●Siemens CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors

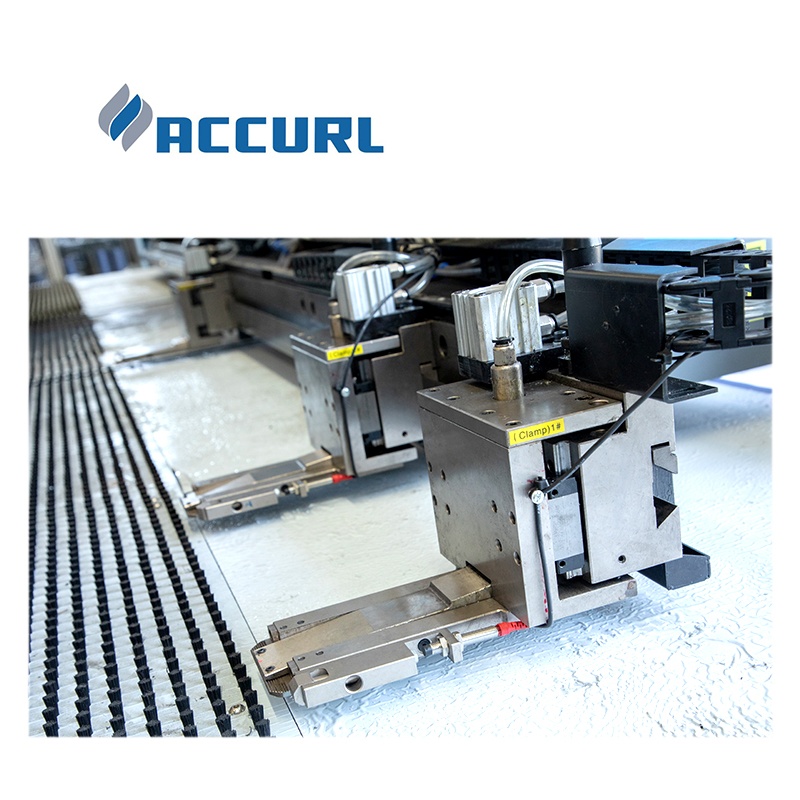

●3 automatic repositioning clamps and loading switches.
●Siemens 802DSL CNC Control System
●Aluminum workholder
●Tool lubricating system (Airblow).

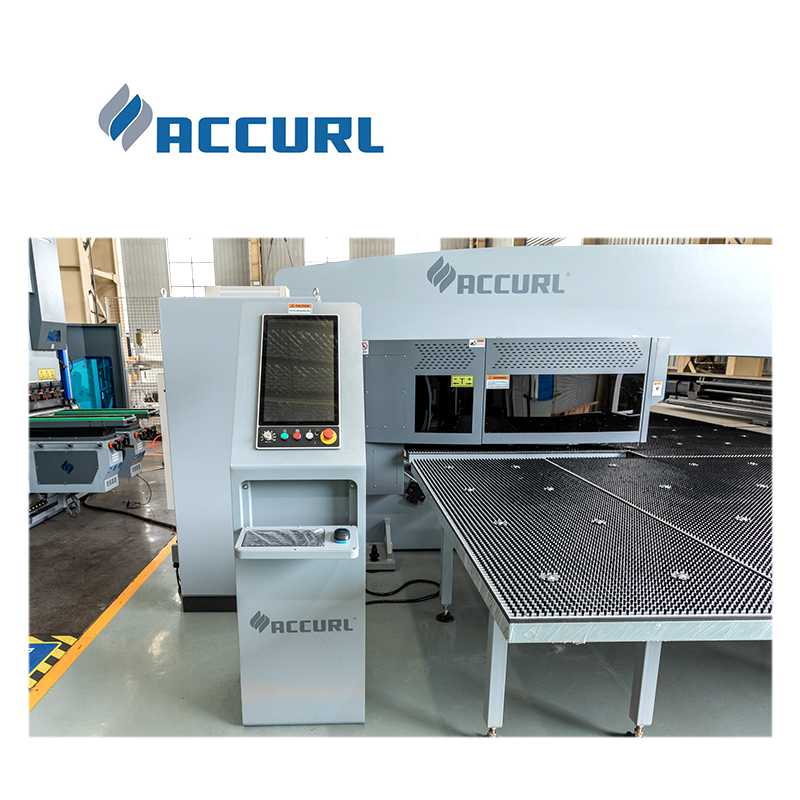

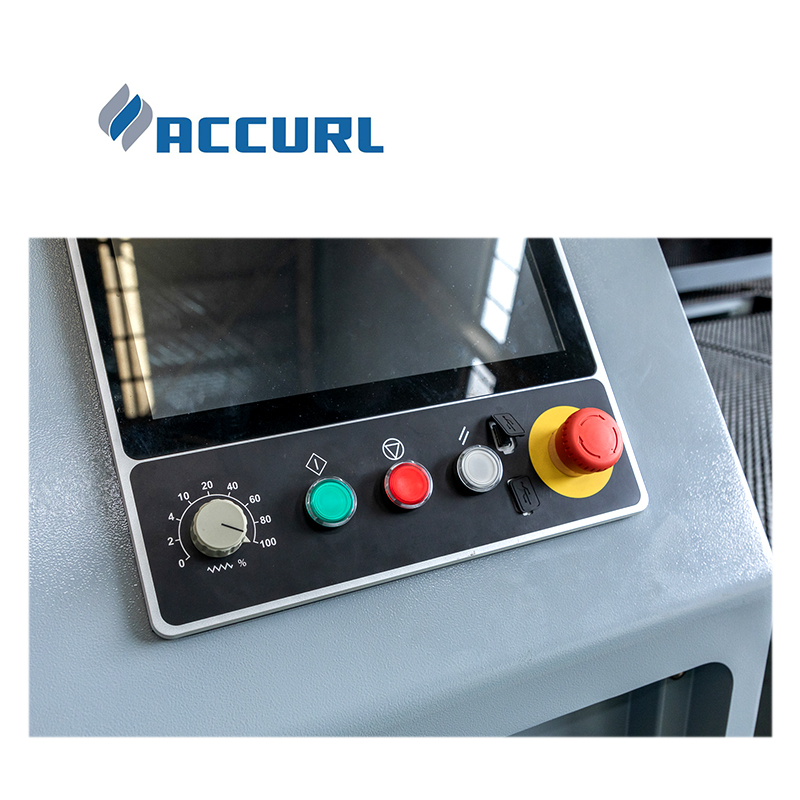

●Free standing control panel.
●Control with foot pedal.
●Tools stuck safety system
●1 software (Lantek or RADAN software).
●24 or 42 turret stations
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Sheet jumping switches
●Scrap box.
●Chain protection around the machine (safety system).

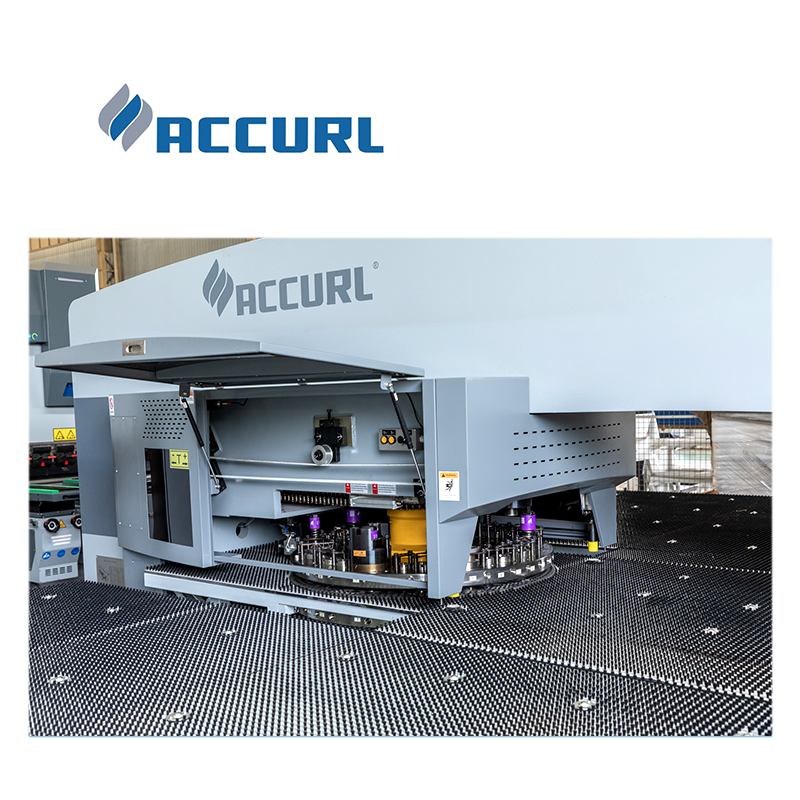

32 Stations 2 Auto index:
●ACCURL entry level turret offers a full set of tooling with two auto indexing stations.
●The well engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke control is controlling the speed and stroke of the 30 tons hydraulic punching head.
●The T-series is equipped with a thick turret tool holder, consisting of 32 stations. It comes with standard with 2 Auto Index "D" stations. An additional two auto-indexing stations are optional.
Specification
Item
Unit
MAX-T 30T
Punching Capacity
Ton
30
X Traverse Length
mm
2490±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
6.35
Max Mass of Material
kg
110
X Axis Traverse Speed
m/min
80
Y Axis Traverse Speed
m/min
70
Max Traverse Speed
m/min
105
Punching Speed at 25mm pitch
hits/min.
250
Nibbling Speed (stroke length 4mm, pitch 1mm)
hits/min.
360
Tool Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
32/ ※ 24
Numer of Auto Index Stations
pcs(type)
2B
Turret Rotating Speed
rpm
33
Auto Index Rotating Speed
rpm
100
Ram Stroke Distance
mm
0-31
Working Table
Brush+Supporting Ball Set
Number of Sheet Clamps
pcs
3
Power Supply
KVA
24
Air Supply
NL/min
250
Air Pressure
bar
6
Size of Control Cabinet
mm
1200 × 600 × 1900
Number of Controllable Axis
Axis
4
RAM Memory
KB
512
Serial Interface
RS232 / RJ45 / PCMCIA
Punching Precision
mm
±0.1
Machine Dimension (L × W × H)
mm
4687 × 5102 × 2385
Net Weight (approx.)
kgf
13000
