GT-WD2200 Fixed Gas Detector
HANWEI ELECTRONICS GROUP CORPORATION
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
GT-WD2200 Fixed Gas Detector
HANWEI ELECTRONICS GROUP CORPORATIONThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 174mmx 220mm x105mm
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Henan, China
About this product
- Size: 174mmx 220mm x105mm
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Henan, China
Product details
| Size | 174mmx 220mm x105mm |
|---|
Product details
| Size | 174mmx 220mm x105mm |
|---|
From the supplier

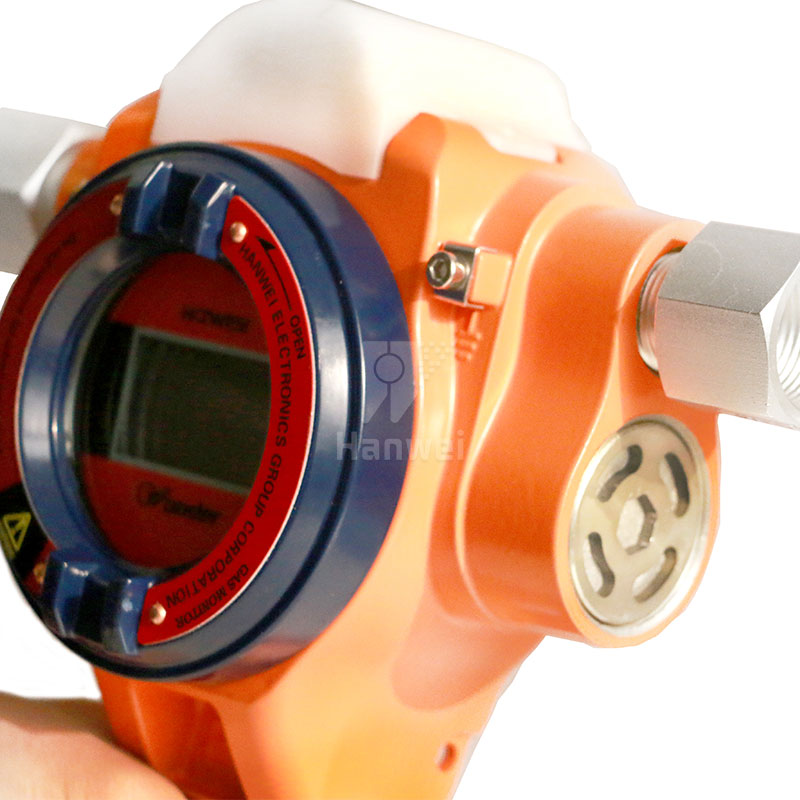

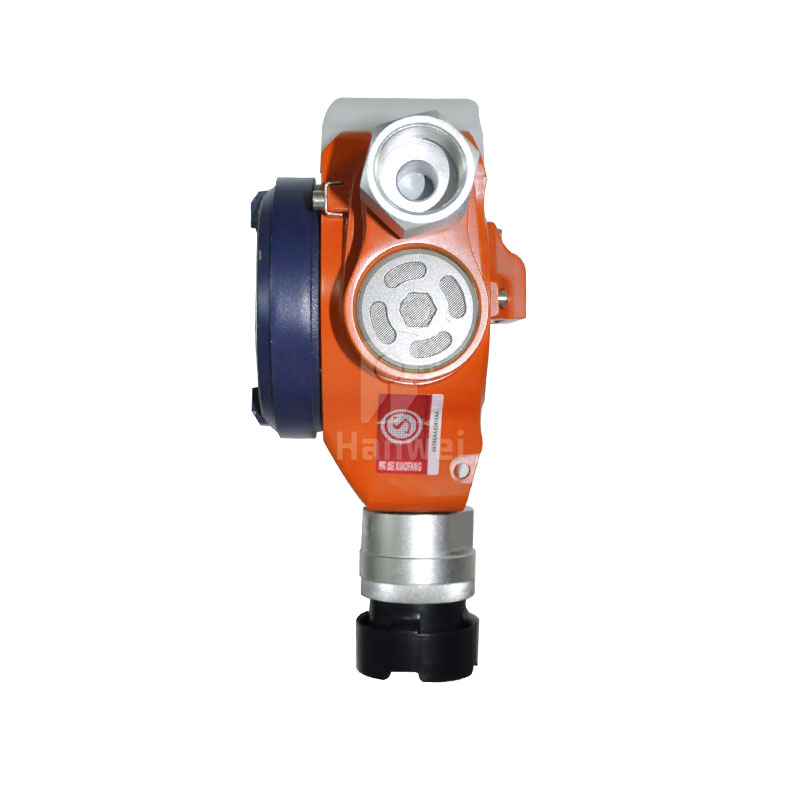

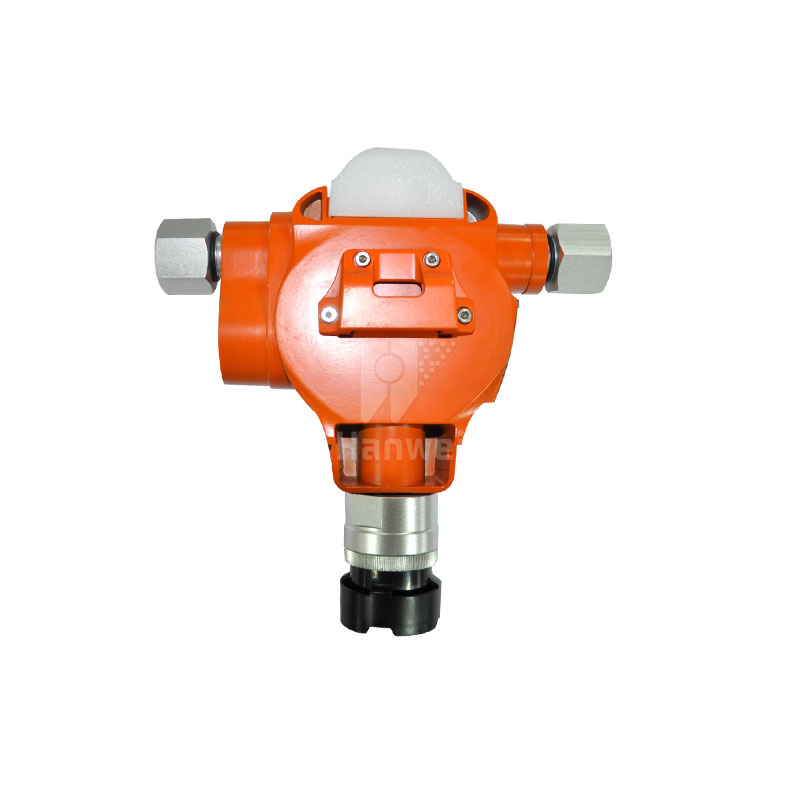

GT-WD2200 Fixed Gas Detector
GT-WD2200 is a fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog output or RS485 digital communication.
Features:
- Smart sensor module design, easy for replacement
- Built-in buzzer and flasher
- GT-WD2200 measures the concentration of the flammable gas, toxic gas, oxygen and VOCs
- Explosion proof structure.
- Water and dust proof design
- LCD screen display

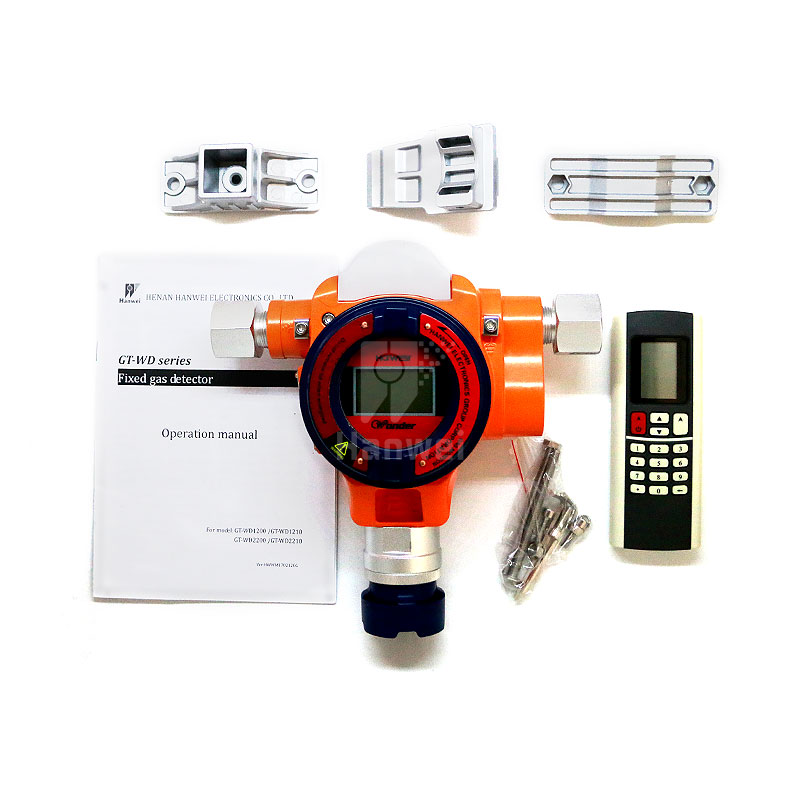

- IR remote control for setting and calibration.
Application:
Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.
Specifications:
Measuring gas
Combustible
Catalytic sensor / NDIR sensor
Toxic gas & O2
Electrochemical sensor
CO2 gas
NDIR sensor
VOCs
PID sensor
Measuring range
Refer to our gas list
Measuring accuracy
±5%F.S.
Sensor life
Catalytic sensor: 3 years
Electrochemical: 2 years (1 year for O2 sensor)
NDIR sensor: 5 years
PID sensor: 0.6 to 1 year
Measuring type
Diffuse naturally
Response time
Catalytic sensor: T90≤30s
Electrochemical: T90≤60s
NDIR sensor: T90≤10s
PID sensor: T90≤10s
Signal output
4-20mA / RS485
Alarm output signal
4-20mA type (GT-WD2200): 2 programmable relays
RS485 type (GT-WD2210): 1 programmable relay
Cable / distance
4-20mA type: 1.5 MM2, 3 wire, shielded,1000m (maximum)
RS485 type: 1.5 MM2, 4 wire, shielded, 1000m (maximum)
Conduit connection
G3/4”
Mounting type
Wall mounted
Working temperature
Toxic gas: -20℃～+50℃ Combustible: -40℃～+70℃
Working humidity
≤95%RH (no condensation)
Operation voltage
DC24V±25%
Consumption
Ingress Protection
IP65
Explosive proof
Ex d IIC T6
Housing material
Chamber: Aluminum alloy
Sensor cover: Stainless steel
Dimension and weight
174 x 220 x 105mm, about 2kg
From the supplier
GT-WD2200 Fixed Gas Detector
GT-WD2200 is a fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog output or RS485 digital communication.
Features:
- Smart sensor module design, easy for replacement
- Built-in buzzer and flasher
- GT-WD2200 measures the concentration of the flammable gas, toxic gas, oxygen and VOCs
- Explosion proof structure.
- Water and dust proof design
- LCD screen display
- IR remote control for setting and calibration.
Application:
Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.
Specifications:
Measuring gas
Combustible
Catalytic sensor / NDIR sensor
Toxic gas & O2
Electrochemical sensor
CO2 gas
NDIR sensor
VOCs
PID sensor
Measuring range
Refer to our gas list
Measuring accuracy
±5%F.S.
Sensor life
Catalytic sensor: 3 years
Electrochemical: 2 years (1 year for O2 sensor)
NDIR sensor: 5 years
PID sensor: 0.6 to 1 year
Measuring type
Diffuse naturally
Response time
Catalytic sensor: T90≤30s
Electrochemical: T90≤60s
NDIR sensor: T90≤10s
PID sensor: T90≤10s
Signal output
4-20mA / RS485
Alarm output signal
4-20mA type (GT-WD2200): 2 programmable relays
RS485 type (GT-WD2210): 1 programmable relay
Cable / distance
4-20mA type: 1.5 MM2, 3 wire, shielded,1000m (maximum)
RS485 type: 1.5 MM2, 4 wire, shielded, 1000m (maximum)
Conduit connection
G3/4”
Mounting type
Wall mounted
Working temperature
Toxic gas: -20℃～+50℃ Combustible: -40℃～+70℃
Working humidity
≤95%RH (no condensation)
Operation voltage
DC24V±25%
Consumption
Ingress Protection
IP65
Explosive proof
Ex d IIC T6
Housing material
Chamber: Aluminum alloy
Sensor cover: Stainless steel
Dimension and weight
174 x 220 x 105mm, about 2kg
