MAXGE SGDBi-S-36WAYS Distribution Box
MAXGE ELECTRIC TECHNOLOGY CO.,LTD
See what’s includedHide breakdown
- FOB goods (500)
- $4,450
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $120
- Section 301 tariff (25.0%)
- $1,113
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $4,450
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $120
- Section 301 tariff (25.0%)
- $1,113
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
MAXGE SGDBi-S-36WAYS Distribution Box
MAXGE ELECTRIC TECHNOLOGY CO.,LTDSee what’s includedHide breakdown
- FOB goods (500)
- $4,450
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $120
- Section 301 tariff (25.0%)
- $1,113
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $4,450
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $120
- Section 301 tariff (25.0%)
- $1,113
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Plastic
- Size: 410*294*109
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Plastic
- Size: 410*294*109
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Plastic |
|---|---|
| Size | 410*294*109 |
| Color | White |
Product details
| Materials | Plastic |
|---|---|
| Size | 410*294*109 |
| Color | White |
From the supplier

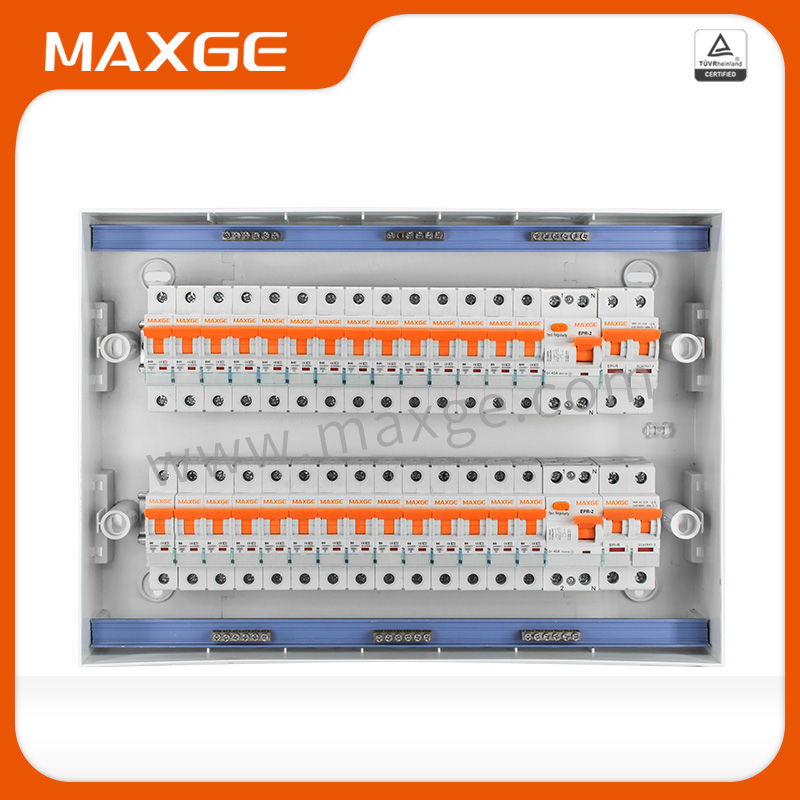

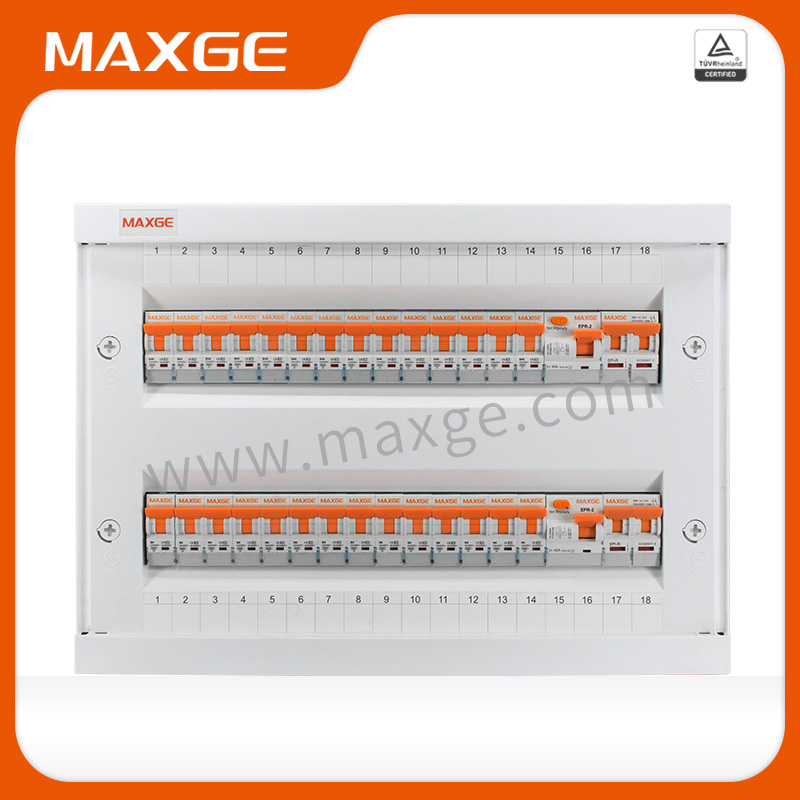

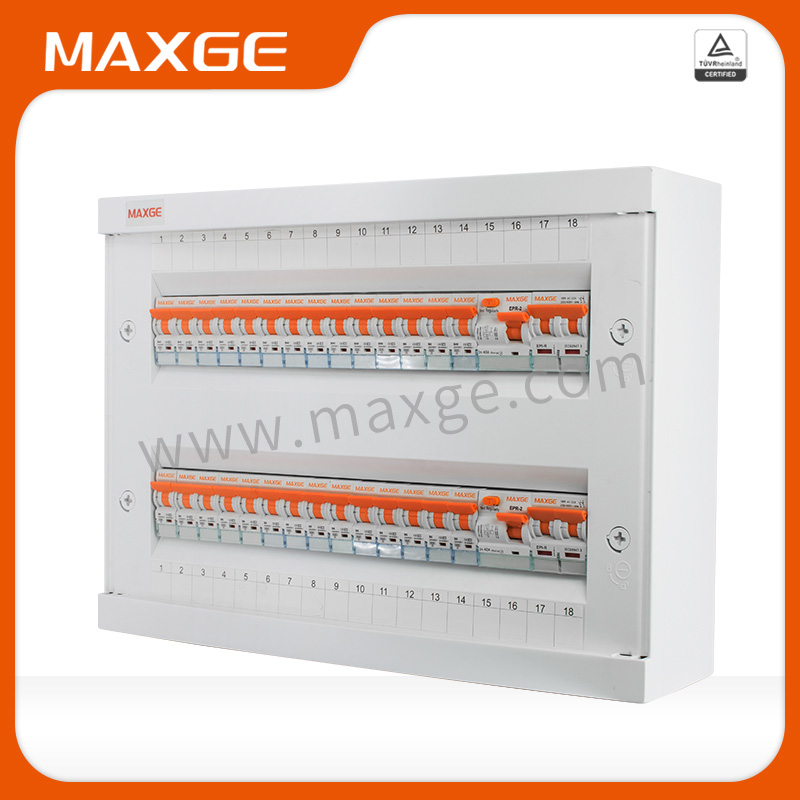

- The lighting distribution box is a basic power distribution device that combines the residual current action protector and the air circuit breaker in a reasonable combination, thereby realizing centralized control of the home power supply, and protection functions such as grounding, overload, and short circuit.
- There are also busbars with protective grounding wires and neutral wires in the interior to facilitate wiring of various low-voltage power distribution systems (TT, TN, IT systems).
- Lighting distribution boxes are widely used in various buildings, plazas, stations, industrial and mining enterprises, etc., as terminal electrical equipment for power distribution systems.
IEC 60439-3
Mounting type
Surface,Flush
Approvals
CE
Degree of Protection
IP30
Modules(No.)
6,8,12,18,24,36
Fire resistence
650℃/30s
Row
Single row for 6,8,12,18 modules
Double row for 24,36 modules
Ambient air temperature(℃)-5 to +40，max.95% humidity
Rated voltage In(A)
63,100,125A
Storage temperature(℃)
-40~+75
Color
White RAL 9003 and Grey RAL 7035
Material
PS or ABS for body,PC for door
Color of door
Transparent Grey
From the supplier
- The lighting distribution box is a basic power distribution device that combines the residual current action protector and the air circuit breaker in a reasonable combination, thereby realizing centralized control of the home power supply, and protection functions such as grounding, overload, and short circuit.
- There are also busbars with protective grounding wires and neutral wires in the interior to facilitate wiring of various low-voltage power distribution systems (TT, TN, IT systems).
- Lighting distribution boxes are widely used in various buildings, plazas, stations, industrial and mining enterprises, etc., as terminal electrical equipment for power distribution systems.
IEC 60439-3
Mounting type
Surface,Flush
Approvals
CE
Degree of Protection
IP30
Modules(No.)
6,8,12,18,24,36
Fire resistence
650℃/30s
Row
Single row for 6,8,12,18 modules
Double row for 24,36 modules
Ambient air temperature(℃)-5 to +40，max.95% humidity
Rated voltage In(A)
63,100,125A
Storage temperature(℃)
-40~+75
Color
White RAL 9003 and Grey RAL 7035
Material
PS or ABS for body,PC for door
Color of door
Transparent Grey
