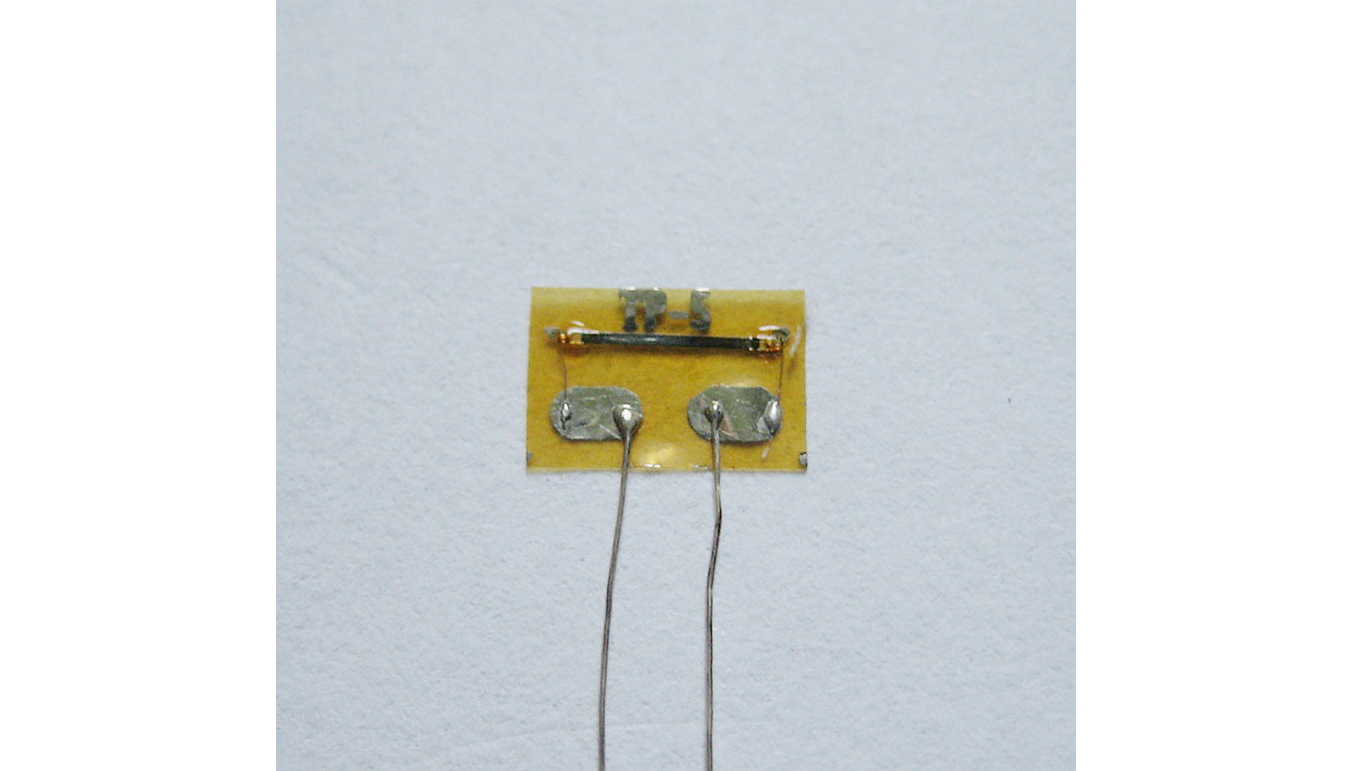

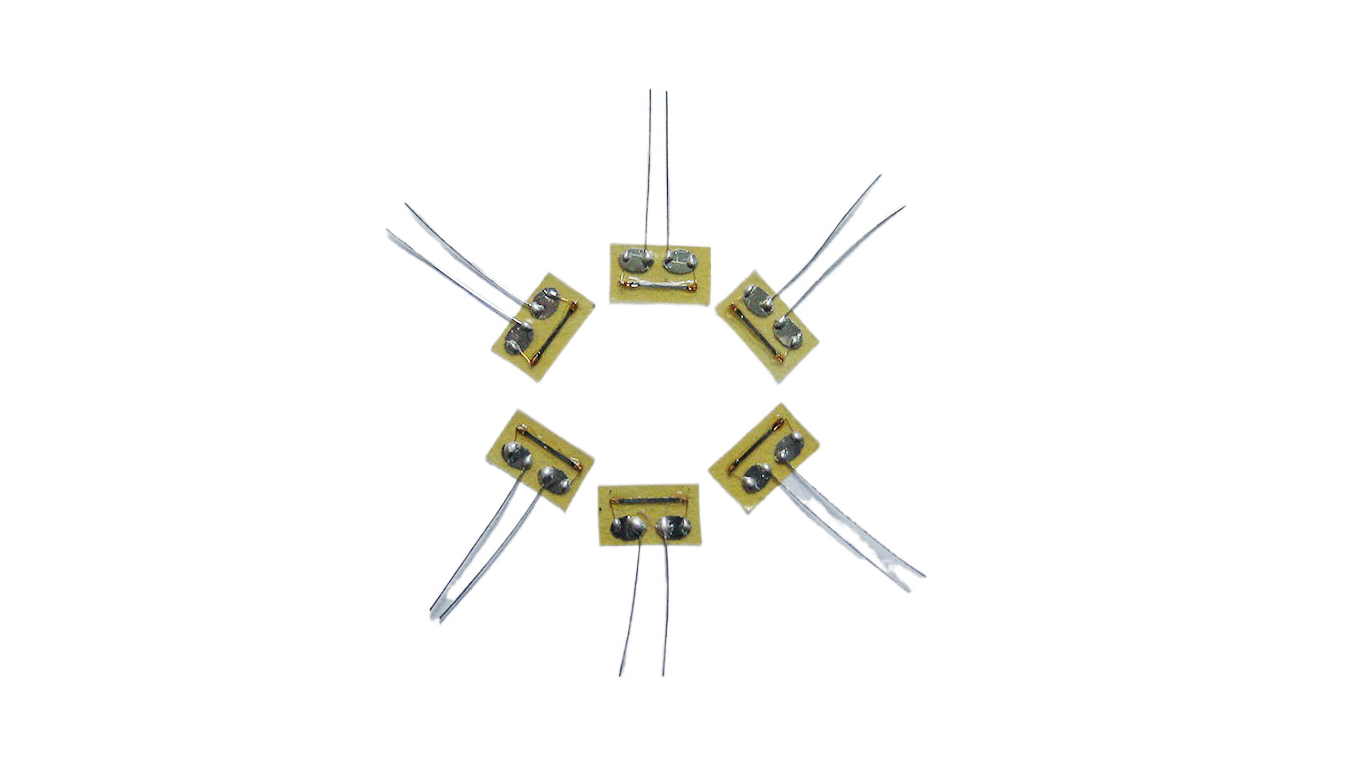

TP series semiconductor strain gauges, semiconductor strain gauge, can be used as a sensor resistance strain gauge. TP series semiconductor strain gauges have the advantages of large sensitivity coefficient, mechanical lag, wide resistance range, small transverse effect and creep, high frequency response, and small size. They are easy to make small sensors for micro strain measurement, etc., and can be used for stress distribution., linear compensation of various force-sensitive sensors, and force-electricity conversion elements as sensors for static and dynamic stress measurement in machinery, construction, *, medical, railway, and bridge engineering.

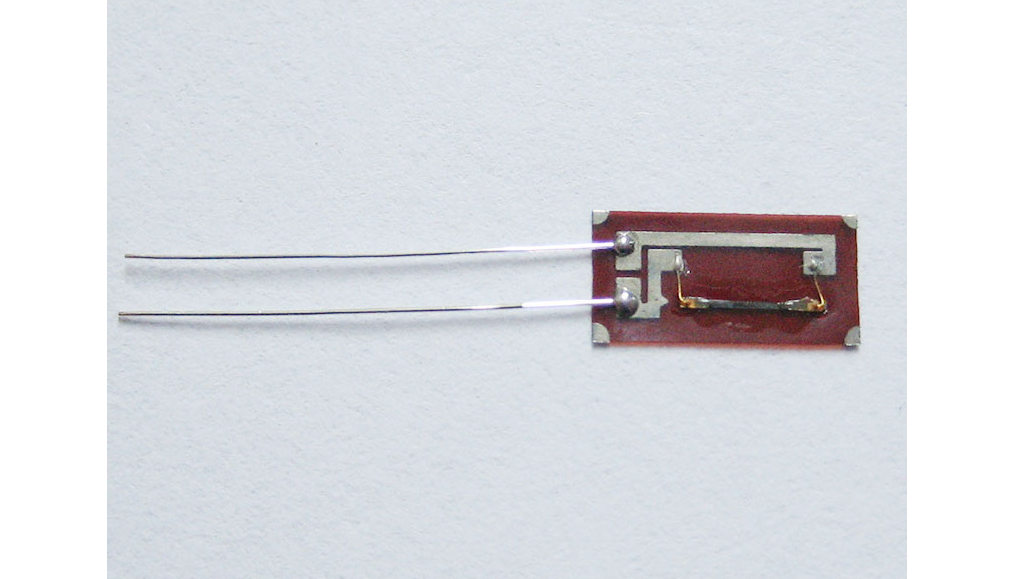

At the same time, we provide substrate semiconductor strain gauges and non-substrate semiconductor strain gauges, support customization, and can provide substitute chip services

Parameters of spot money
Resistance value: 15~1000Ω
Silicon strip size: 2.6×0.2×0.04~5×0.3×0.05mm
Sensitivity coefficient: 80±5%~150±5%k
Temperature coefficient of resistance: >0.06%~>0.4%1/℃
Sensitivity temperature coefficient: >0.10%~0.30%1/℃
Working temperature: <80℃
Working current: 5~20mA
Limit strain: <6000με

Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. The sensor supports non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking. Please contact Wang Gong *** for details.
