GT Multi-channel conditioning box TJXH stainless steel junction box multi-channel conditioning box Weighted summary of sensor signals
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
GT Multi-channel conditioning box TJXH stainless steel junction box multi-channel conditioning box Weighted summary of sensor signals
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

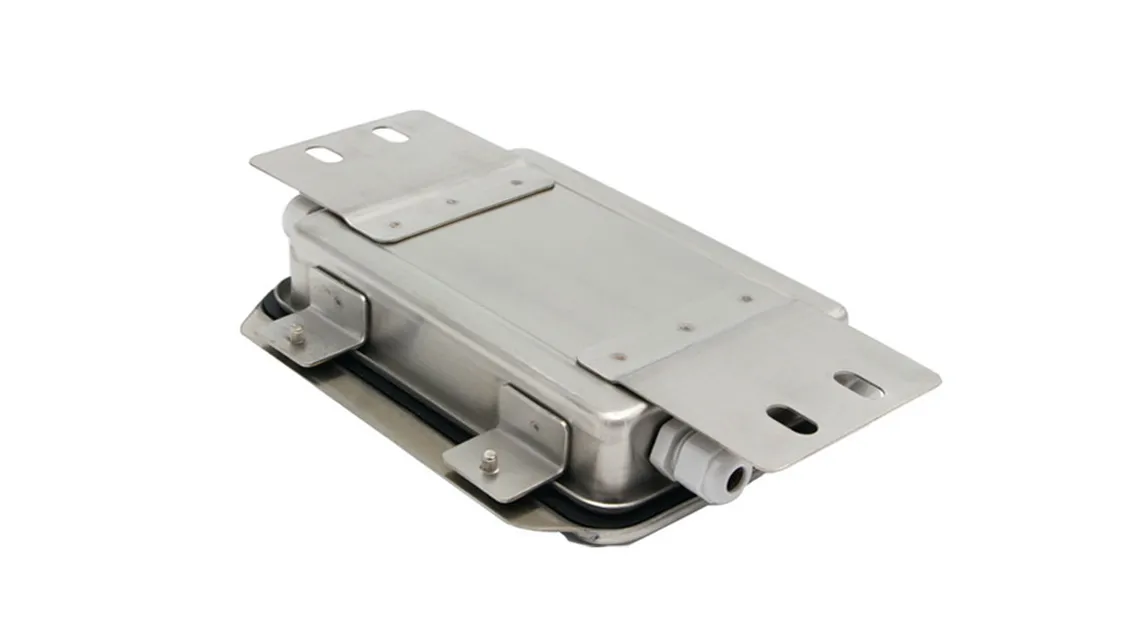

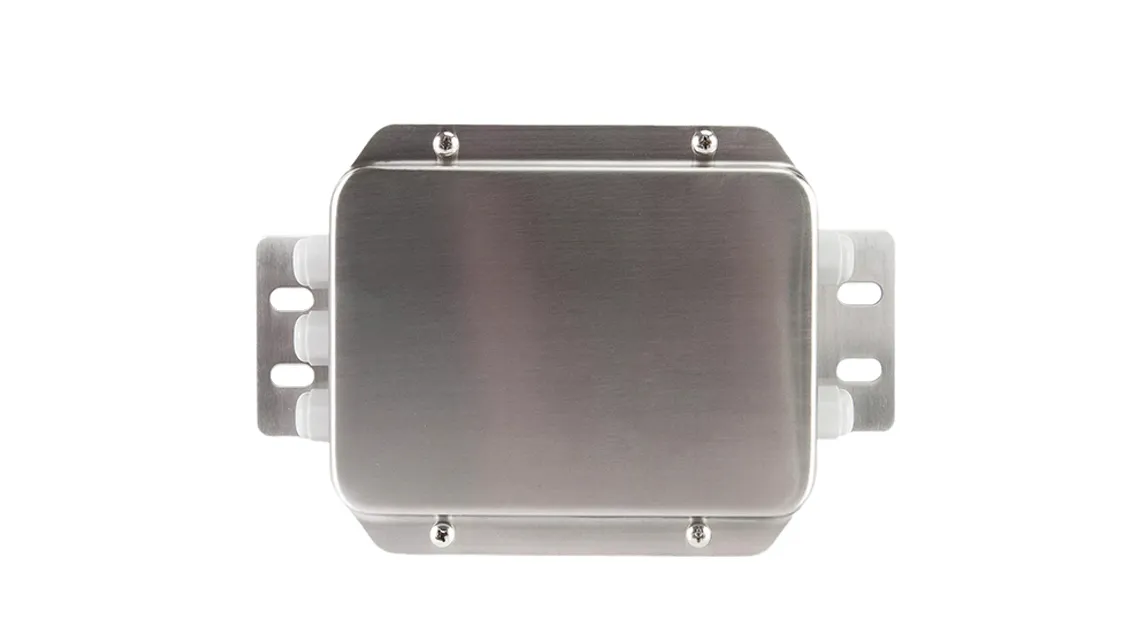

TJXH stainless steel junction box, also known as a multi-channel conditioning box, is suitable for analog sensors. The role of the TJXH stainless steel junction box: 1. Signal summary, integrating the signals of multiple sensors into a group of signals. 2. Angle difference adjustment function to achieve four corners balance. 3. Lightning protection and surge protection. 4. Stabilize the signal and prevent data from jumping. The difference between a junction box and a multi-channel transmitter: The junction box has no calculation function or data amplification function. It will not generate 4 - 20mA or 485 signals and cannot be directly connected to the PLC.
technical parameters
1. size (four-way): 152*135*35mm,(six-way, eight-way): 205*135*40mm
2. Optional four-way, six-way, eight-way and other access methods
3. Stainless steel shell, beautiful and durable, special sealed joints, good sealing performance
4. Adopt high-precision, low-drift resistors and potentiometers to make the system working accuracy and stability better
5. The PCD board is welded with protective components to prevent surge and induction lightning, which can effectively prevent damage to sensors and instruments caused by induction lightning and surge signals.
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
From the supplier
TJXH stainless steel junction box, also known as a multi-channel conditioning box, is suitable for analog sensors. The role of the TJXH stainless steel junction box: 1. Signal summary, integrating the signals of multiple sensors into a group of signals. 2. Angle difference adjustment function to achieve four corners balance. 3. Lightning protection and surge protection. 4. Stabilize the signal and prevent data from jumping. The difference between a junction box and a multi-channel transmitter: The junction box has no calculation function or data amplification function. It will not generate 4 - 20mA or 485 signals and cannot be directly connected to the PLC.
technical parameters
1. size (four-way): 152*135*35mm,(six-way, eight-way): 205*135*40mm
2. Optional four-way, six-way, eight-way and other access methods
3. Stainless steel shell, beautiful and durable, special sealed joints, good sealing performance
4. Adopt high-precision, low-drift resistors and potentiometers to make the system working accuracy and stability better
5. The PCD board is welded with protective components to prevent surge and induction lightning, which can effectively prevent damage to sensors and instruments caused by induction lightning and surge signals.
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
