GT Good weather resistance and sealing performance, stable performance NTJL-12 series ice detection tension sensor Monitoring and measurement of tensile force in on-line monitoring system for ice coat
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
GT Good weather resistance and sealing performance, stable performance NTJL-12 series ice detection tension sensor Monitoring and measurement of tensile force in on-line monitoring system for ice coat
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

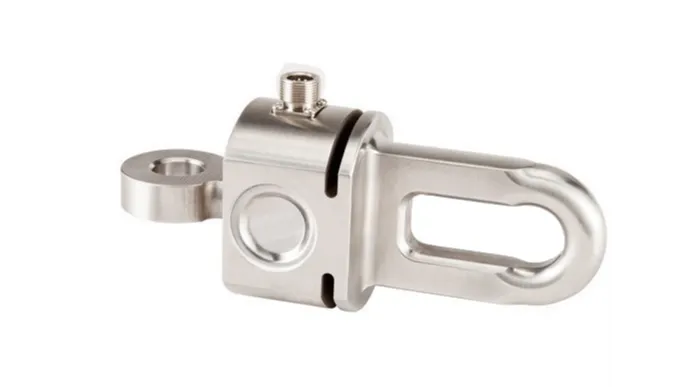

NTJL-12 series transmission line ice detection tension sensors are non-standard customized, has good weather resistance and sealing properties, and has stable performance. It is used for monitoring and measuring tension in the online ice coating monitoring system of power transmission and transformation lines, and an inclination sensor can be installed. Ice-coated tension sensors generally collect the load at the insulator hanging points by replacing hardware fittings. Provide replaced hardware models, or you can customize them by having tower design drawings and insulator string drawings from the Electric Power Design Institute. Please consult Wang Gong for details.
technical parameters
Rated load: 40~1100(kN)
Comprehensive accuracy: 0.05~ 0.2% F. S
Sensitivity: 1.5~2.0mV/V
Creep: ± 0.2% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.2% F·S/10℃
Output temperature influence: ± 0.2% F·S/10℃
Working temperature: -40℃~+70℃
Input impedance: 1050±50Ω
Output impedance: 1000±5Ω
Insulation resistance: 5000 MΩ
Safety overload: 120% F·S
Bridge voltage: 10V DC recommended
Material: Stainless steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
From the supplier
NTJL-12 series transmission line ice detection tension sensors are non-standard customized, has good weather resistance and sealing properties, and has stable performance. It is used for monitoring and measuring tension in the online ice coating monitoring system of power transmission and transformation lines, and an inclination sensor can be installed. Ice-coated tension sensors generally collect the load at the insulator hanging points by replacing hardware fittings. Provide replaced hardware models, or you can customize them by having tower design drawings and insulator string drawings from the Electric Power Design Institute. Please consult Wang Gong for details.
technical parameters
Rated load: 40~1100(kN)
Comprehensive accuracy: 0.05~ 0.2% F. S
Sensitivity: 1.5~2.0mV/V
Creep: ± 0.2% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.2% F·S/10℃
Output temperature influence: ± 0.2% F·S/10℃
Working temperature: -40℃~+70℃
Input impedance: 1050±50Ω
Output impedance: 1000±5Ω
Insulation resistance: 5000 MΩ
Safety overload: 120% F·S
Bridge voltage: 10V DC recommended
Material: Stainless steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
