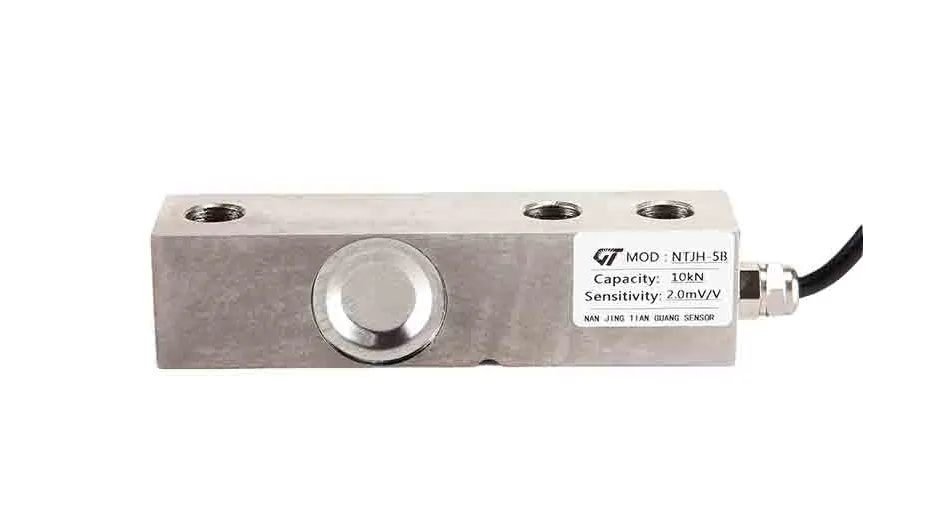

GT Fixed at one end and loaded at the other end, low center of gravity, easy installation and good interchangeability NTJH-5B cantilever beam load cell Suitable for truck scales, electronic scales
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
GT Fixed at one end and loaded at the other end, low center of gravity, easy installation and good interchangeability NTJH-5B cantilever beam load cell Suitable for truck scales, electronic scales
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier
NTJH-5B cantilever beam load cell, also known as cantilever beam type load sensor, cantilever beam type weight sensor, cantilever beam type weighing and load cell. NTJH-5B cantilever beam load cell, one end is fixed and the other is loaded, has a low center of gravity, is easy to install, and has good interchangeability. Suitable for car horizontal scales, electronic scales, platform scales, hopper scales, etc. Built-in amplifier can be selected for some ranges, with 4~20mA or 0~5V output.
technical parameters
Rated load: 2,3,5,10,20,30,50,100(kN)
Comprehensive accuracy: 0.02~ 0.05% F. S
Sensitivity: 2.0mV/V
Creep: ± 0.02% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.02% F·S/10℃
Output temperature effect: ±0.02%F·S/10℃
Operating temperature: -20℃~+65℃
Input impedance: 380±30Ω
Output impedance: 350±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel or stainless steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry, and support personalized needs such as neutral packaging and laser marking.
From the supplier
NTJH-5B cantilever beam load cell, also known as cantilever beam type load sensor, cantilever beam type weight sensor, cantilever beam type weighing and load cell. NTJH-5B cantilever beam load cell, one end is fixed and the other is loaded, has a low center of gravity, is easy to install, and has good interchangeability. Suitable for car horizontal scales, electronic scales, platform scales, hopper scales, etc. Built-in amplifier can be selected for some ranges, with 4~20mA or 0~5V output.
technical parameters
Rated load: 2,3,5,10,20,30,50,100(kN)
Comprehensive accuracy: 0.02~ 0.05% F. S
Sensitivity: 2.0mV/V
Creep: ± 0.02% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.02% F·S/10℃
Output temperature effect: ±0.02%F·S/10℃
Operating temperature: -20℃~+65℃
Input impedance: 380±30Ω
Output impedance: 350±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel or stainless steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry, and support personalized needs such as neutral packaging and laser marking.
