GT Dual-purpose tension and compression 200-ton plate-ring tension sensor large-tonnage measurement
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
GT Dual-purpose tension and compression 200-ton plate-ring tension sensor large-tonnage measurement
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

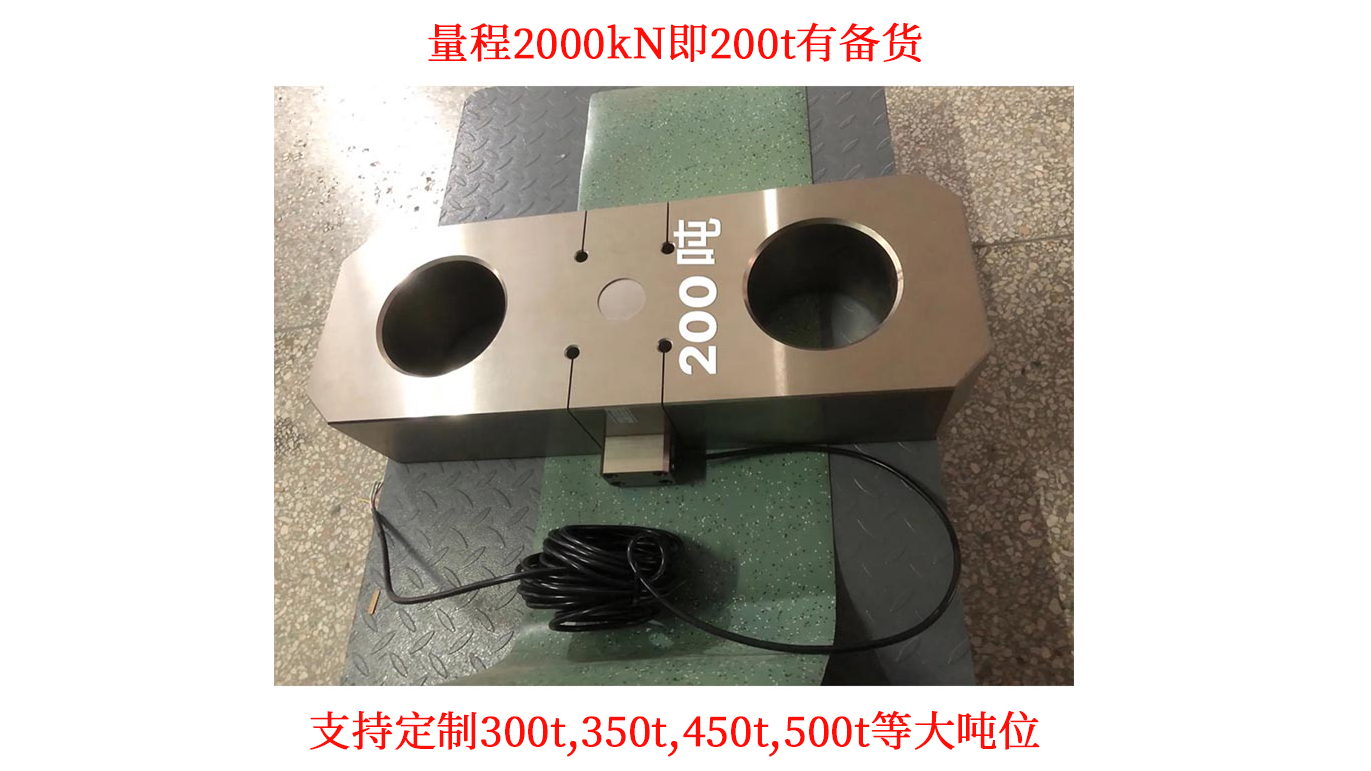

200-ton plate-ring tension sensor, available in stock, with a range of 2000kN and a force measurement range of 0 - 2000kN. It has high precision, strong overload resistance, and is sealed and moisture-proof. Widely used in various hook scales, ports, docks, lifting overload protection equipment, etc.
Plate and ring tension sensors are also called ring tension pressure sensors, plate and ring load sensors, plate and ring tension sensors, plate and ring load sensors, plate and ring weight sensors, and plate and ring load sensors.200-ton plate-ring tension sensor, measuring range 0 to 200 tons, available in stock. Other ranges are stocked, and the specific parameters and size diagram are as follows:
technical parameters
Rated load: 20, 30, 50, 70, 100, 150, 200, 300, 500, 700, 1000, 2000 (kN)
Comprehensive accuracy: 0.03~ 0.1% F. S
Sensitivity: 1.5, 2.0mV/V
Creep: ± 0.02% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.02% F·S/10℃
Output temperature effect: ±0.02%F·S/10℃
Operating temperature: -20℃~+65℃
Input impedance: 380±30Ω
Output impedance: 350±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Product overall size
At the same time, it supports the customization of other large-tonnage plate-ring tension sensors such as 300 tons, 350 tons, 450 tons, and 500 tons.Specializing in the production of semiconductor strain gauges, load cells, load cells, weighing modules, tensile pressure sensors, tension sensors, torque sensors, weighing instrument transmitters, etc. Support the localized replacement of imported sensors, accept non-standard customization, neutral delivery, and laser marking. Welcome to inquire with drawings
From the supplier
200-ton plate-ring tension sensor, available in stock, with a range of 2000kN and a force measurement range of 0 - 2000kN. It has high precision, strong overload resistance, and is sealed and moisture-proof. Widely used in various hook scales, ports, docks, lifting overload protection equipment, etc.
Plate and ring tension sensors are also called ring tension pressure sensors, plate and ring load sensors, plate and ring tension sensors, plate and ring load sensors, plate and ring weight sensors, and plate and ring load sensors.200-ton plate-ring tension sensor, measuring range 0 to 200 tons, available in stock. Other ranges are stocked, and the specific parameters and size diagram are as follows:
technical parameters
Rated load: 20, 30, 50, 70, 100, 150, 200, 300, 500, 700, 1000, 2000 (kN)
Comprehensive accuracy: 0.03~ 0.1% F. S
Sensitivity: 1.5, 2.0mV/V
Creep: ± 0.02% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.02% F·S/10℃
Output temperature effect: ±0.02%F·S/10℃
Operating temperature: -20℃~+65℃
Input impedance: 380±30Ω
Output impedance: 350±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Product overall size
At the same time, it supports the customization of other large-tonnage plate-ring tension sensors such as 300 tons, 350 tons, 450 tons, and 500 tons.Specializing in the production of semiconductor strain gauges, load cells, load cells, weighing modules, tensile pressure sensors, tension sensors, torque sensors, weighing instrument transmitters, etc. Support the localized replacement of imported sensors, accept non-standard customization, neutral delivery, and laser marking. Welcome to inquire with drawings
