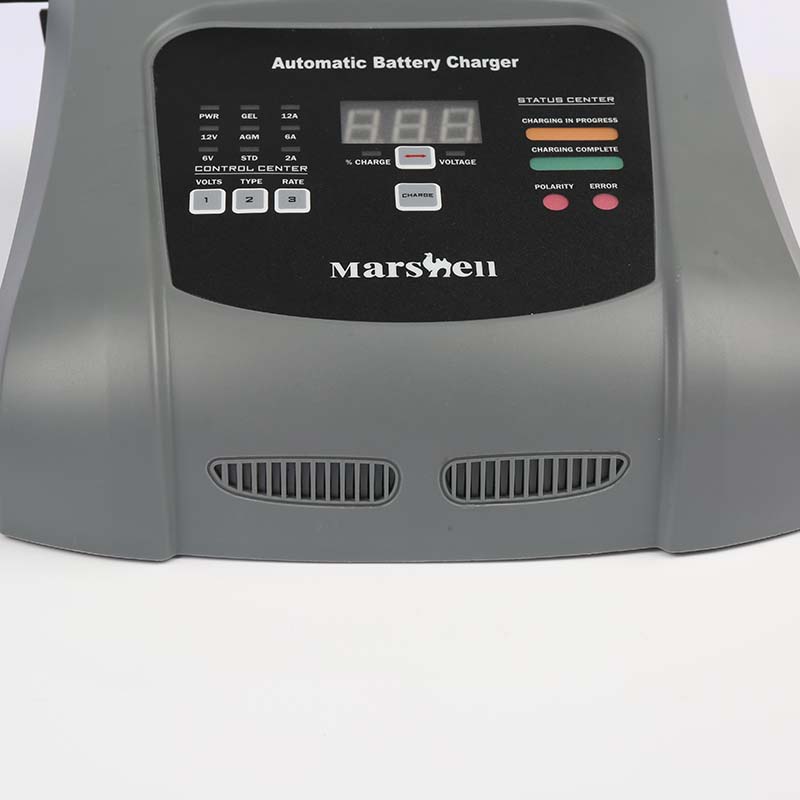

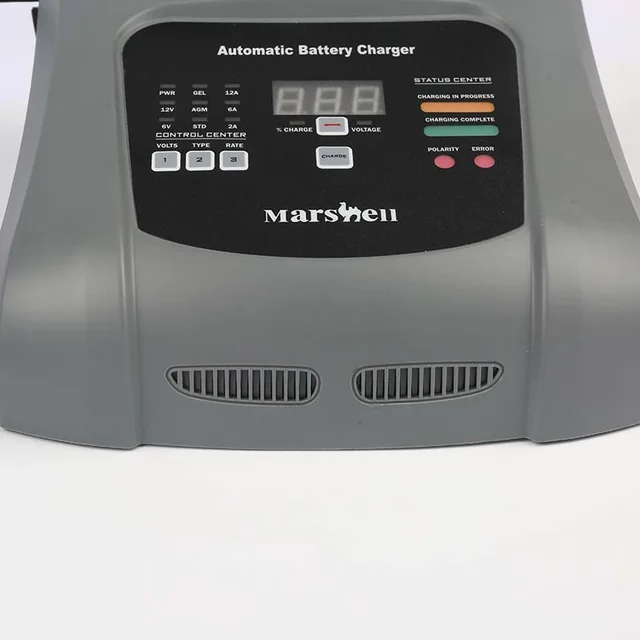

Fully Automatic Bench Battery Charger LC12-2701
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Fully Automatic Bench Battery Charger LC12-2701
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Plastic case
- Size: 218*203*99
- Color: gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Plastic case
- Size: 218*203*99
- Color: gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Plastic case |
|---|---|
| Size | 218*203*99 |
| Color | gray |
From the supplier
Fully Automatic Bench Battery Charger LC12-2701 Features:

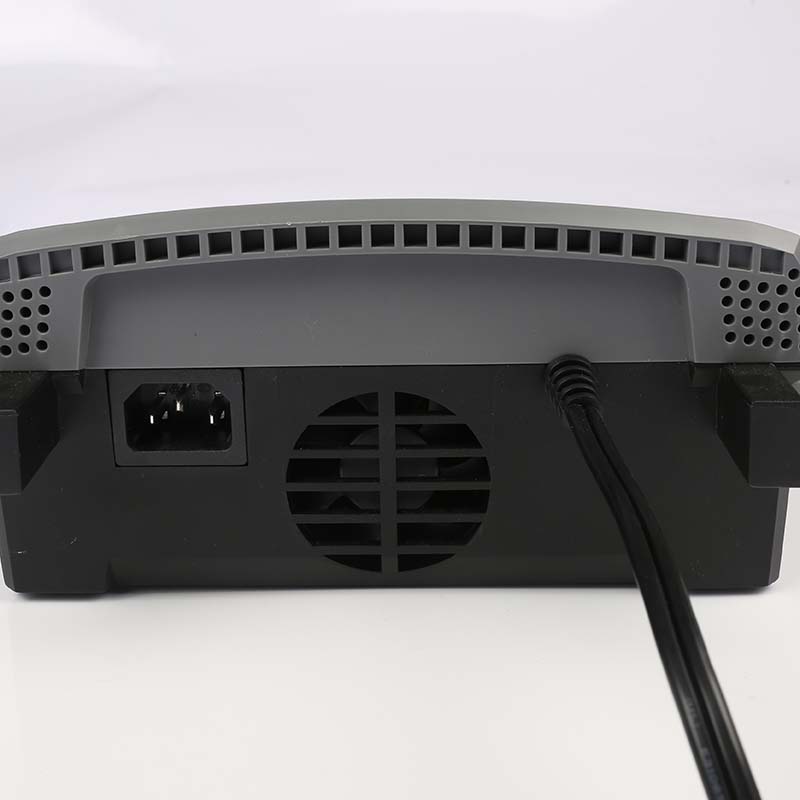

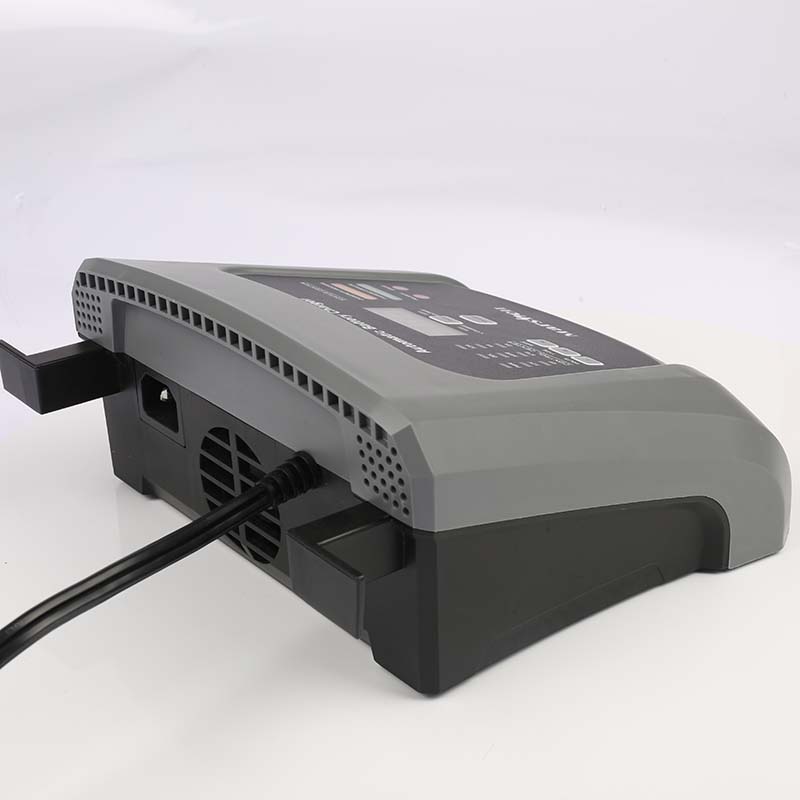

1. The input socket is used on the back, which is convenient to replace the power cable of a variety of different power plugs, which is suitable for various national plug standards.
2. The unique design of winding ears can store and organize the wires.
3. High current crocodile clip design, strong and reliable, and easy to use.
4. Apply temperature-controlled speed-adjusting fan to increase the service life of the fan and effectively reduce operating noise.
5. Suitable for 6V and 12V lead-acid battery charging and maintenance. Applicable to all types of motorcycles, automobiles, toy cars, scooters, battery cars, charging and maintenance.
6.The charging current can be selected fro 2A, 6A and 10A. Different charging rates can be selected according to the battery capacity. It also suitable for lead-acid batteries with 6AH-150AH capacity.
7.Battery type: Standard battery, AGM battery, and gel battery. Different charging curve modes can be customized according to different depths of battery types, it can effectively extending battery cycle life.
8.Support 0V ultra-low battery voltage to start charging, intelligent control pulse, high voltage mode to activate the sulfide battery, which can effectively repair and maintain the deep-deficient battery.
9.It adopts MCU microprocessor to control the 5-stage charging mode, which is sufficient for charging but not overcharge. With overcharge protection function, short circuit protection, reverse connection protection, over temperature protection, overload protection, which is more safety.
Fully Automatic Bench Battery Charger LC12-2701 Specifications:
MODELLC12-1000-2701NAMEClass 2 battery chargerSwitch Power Supply;For 12V or 6V lead-acid battery only.ⅠINPUT PROPERTY1AC input voltage range90Vac~132Vac/185~264VacUniversal2AC input voltage rating100Vac~120Vac/200Vac~240Vac3AC input frequency50Hz/60Hz
4AC input current3A@115Vac/1.5A@230VacMax. (RMS)5AC input power190WMax.6AC input static state current0.1AMax. OUTPUT PROPERTY1Output voltage range3~15.5VdcTypical2Bulk charge Current rating10A@12Vdc/6Vdc±1A6A@12Vdc/6Vdc±0.6A2A@12Vdc/6Vdc±0.3A3Output power150WMax.4Bulk charge voltage rating12VSTD 14.8 Vdc@20℃±0.15VdcAGM 14.55 Vdc@20℃GEL 14.2 Vdc@20℃6VSTD 7.4 Vdc@20℃±0.15VdcAGM 7.28 Vdc@20℃GEL 7.1 Vdc@20℃5Battery repair voltage rating12V15.5V±0.2Vdc6V7.75V6Float charge voltage rating12V13.65Vdc±0.2Vdc6V6.8Vdc±0.2Vdc7Light switching current500mA300-700mA8Temperature compensate0.005Vdc/cell/℃TypicalⅡGENERAL CHARACTERISTICS1Efficiency75%Typical2Over load protection
3Short circuit protectionEnable
4Reversed polarity protectionEnable
5Operating temperature-20℃~45℃
6Storage temperature-30℃~85℃
7Operating relative humidity8%~90%
8Storage relative humidity5%~95%

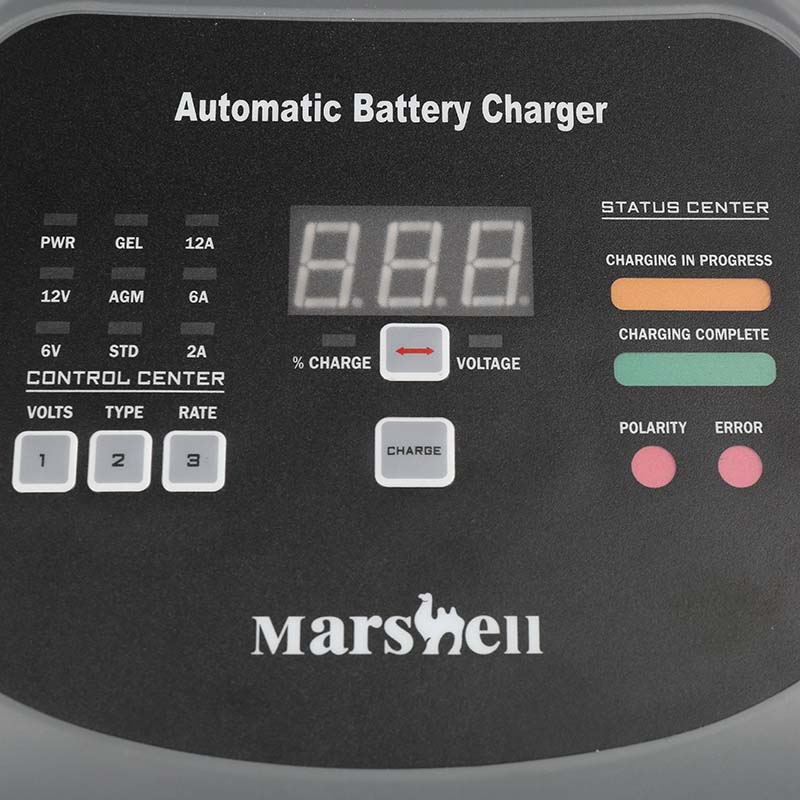

ⅢINDICATOR STATUS1Green LED onFull charge
2Orange LED onCharging
ⅣSAFETY1Withstand Voltage (Hi-Pot)3000Vac ≤10mA (60s)I/P to O/P2Insulation Resistance>100MΩ @500Vdc25℃ &70%RH3Temperature RiseCase4Safety StandardETL
5EMI/RFI StandardDesigned to meet FCC
RELIABILITYⅥ1Spot testBurn in 24h at 40℃Full load2Whole testBurn in 1h at 40℃Full load
ⅦMECHANICAL CHARACTERISTICS1Net Weight1000g
2Dimension218*203*99mm
3Enclosure Plastic case
