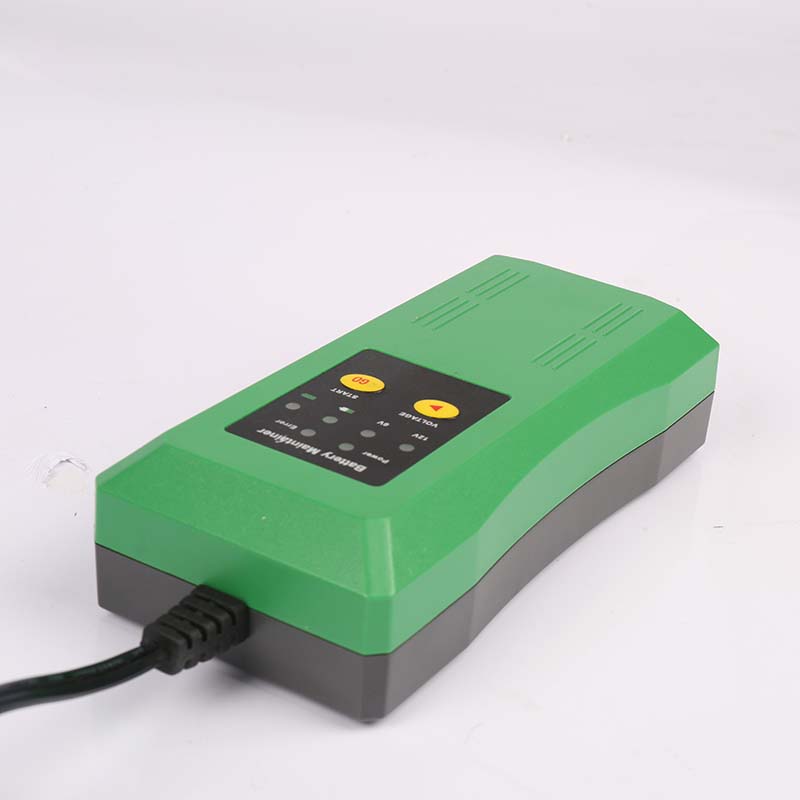

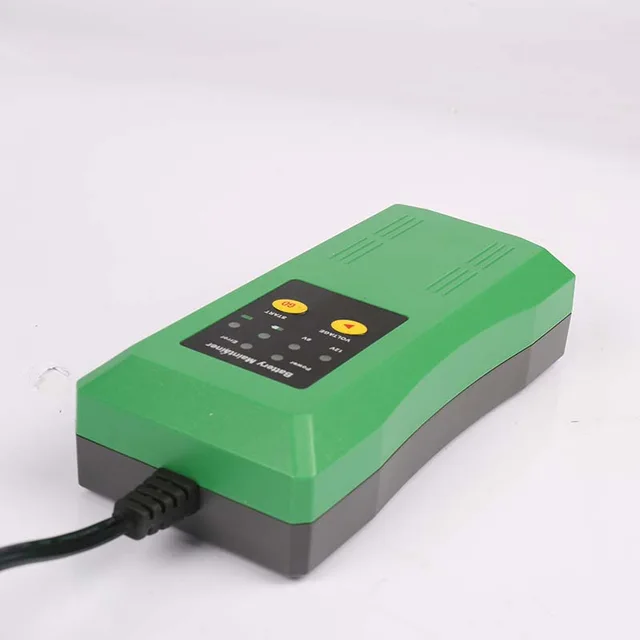

Automatic Lead Acid Battery Charger/Maintainer LC-2803
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Automatic Lead Acid Battery Charger/Maintainer LC-2803
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Plastic case
- Size: 160*75*42
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Plastic case
- Size: 160*75*42
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Plastic case |
|---|---|
| Size | 160*75*42 |
| Color | Green |
From the supplier

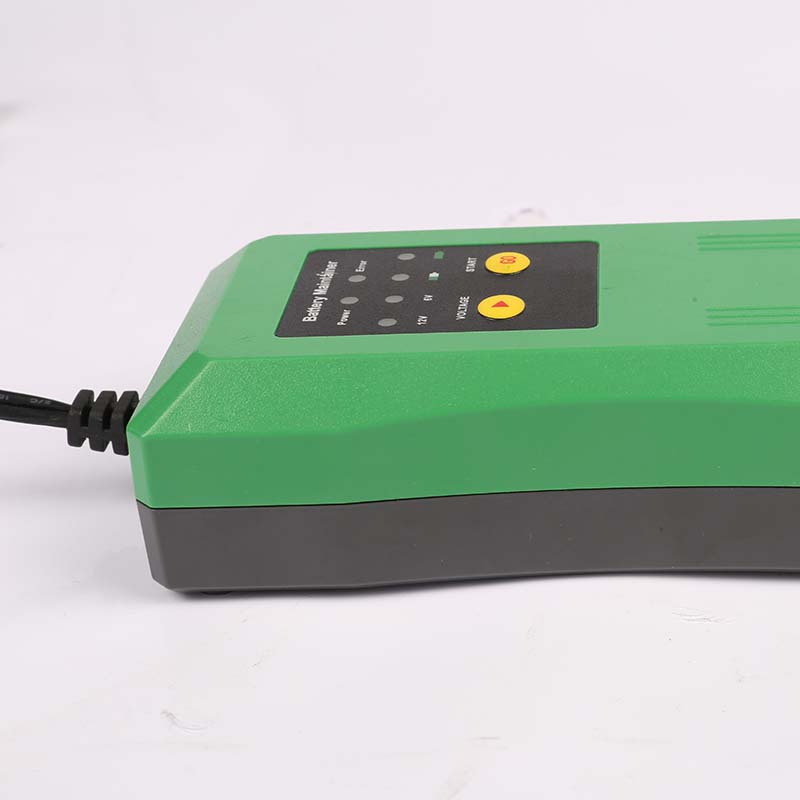

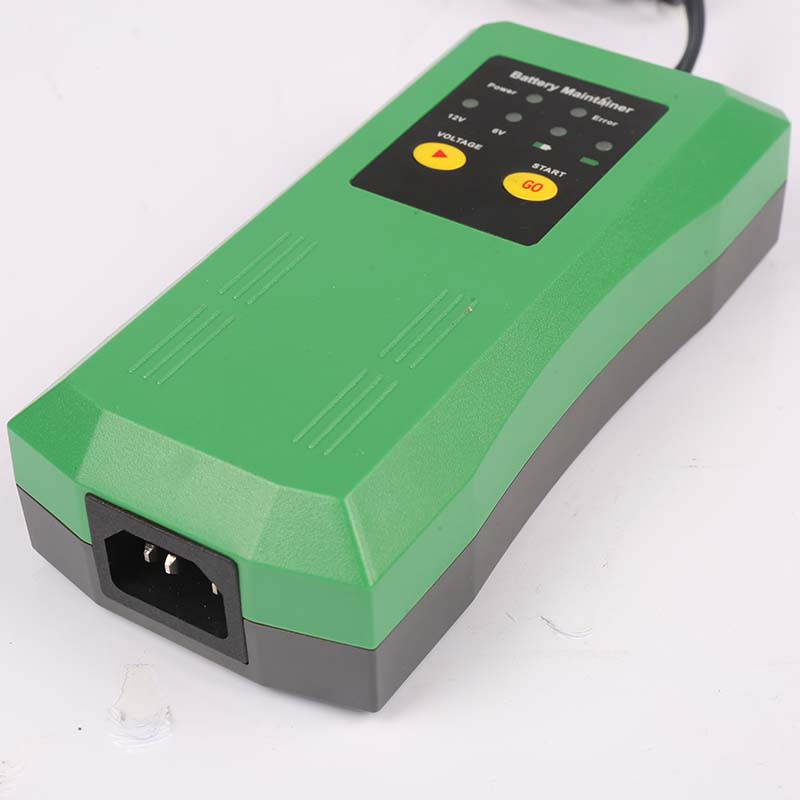

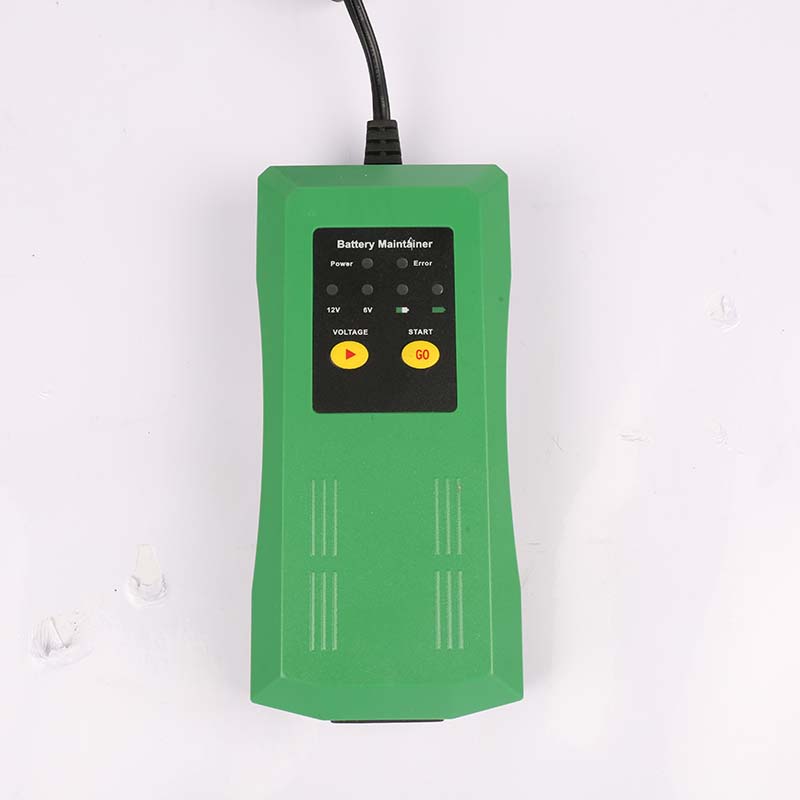

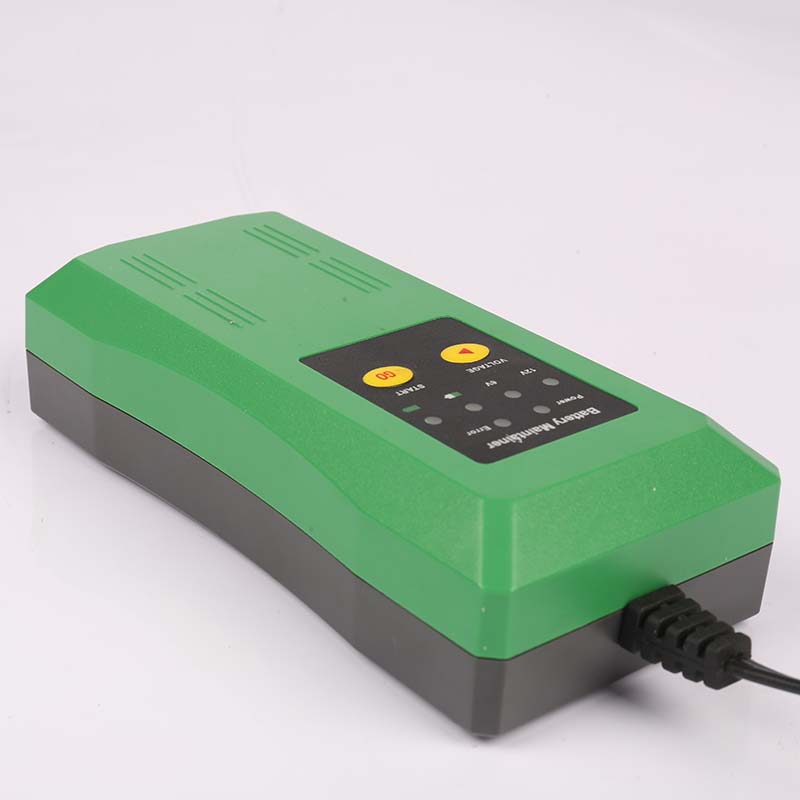

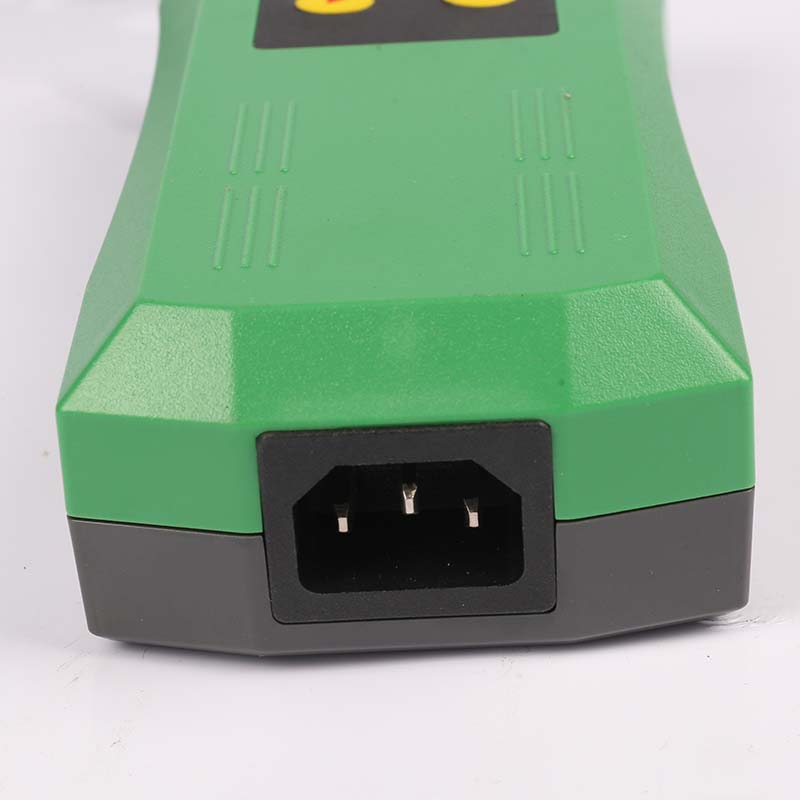

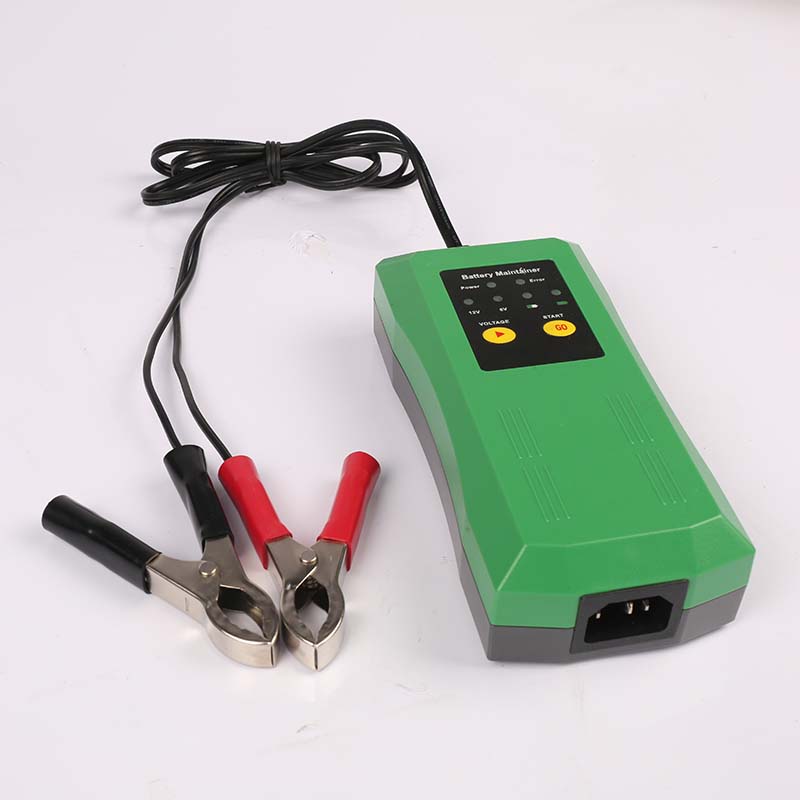

Automatic Lead Acid Battery Charger/Maintainer LC-2803 Features:
1. Power supply indication and error status indication.voltage selection control area.
2. The battery voltage can be selected to 6V and 12V. charge control areaStart button to control the charger to start charging or stop charging The LED displays the current charging status of the charger.

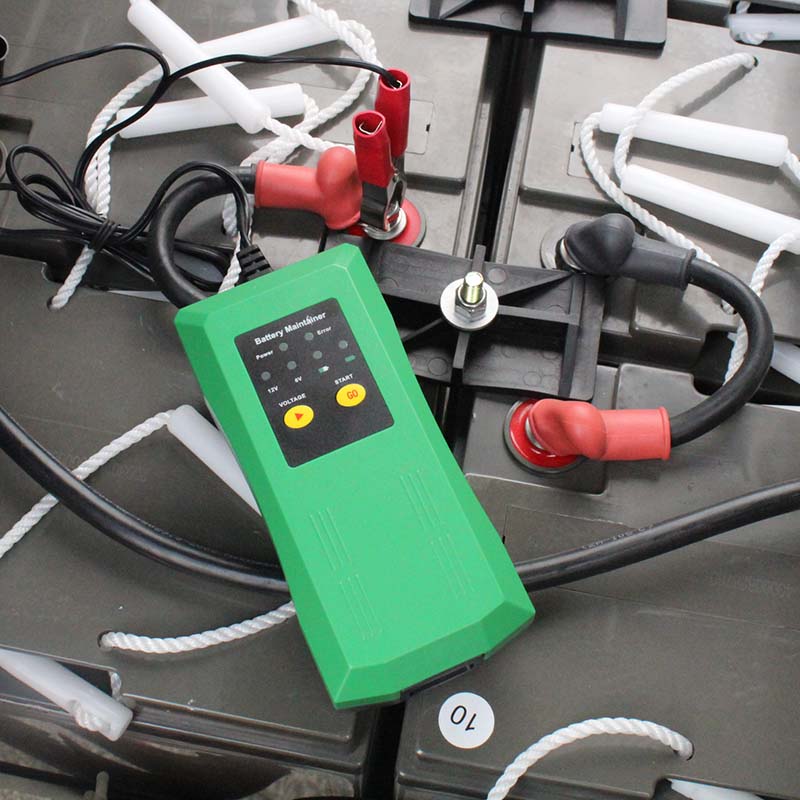

3. Suitable for 6V and 12V lead-acid battery charging and maintenance. Applicable to all types of motorcycles, automobiles, toy cars, scooters, battery cars to charging and maintaining.
4. The charging current of this series of chargers can be selected from 1A (LC-2801), 2A (LC-2802), and 3A (LC-2803). Different charging rates can be selected according to the battery capacity. Suitable for lead-acid batteries with a capacity of 3AH-50AH.
5. Support 0V ultra-low battery voltage to start charging, intelligent control pulse, high voltage mode to activate the sulfide battery, which can effectively repair and maintain the deep-deficient battery.
Automatic Lead Acid Battery Charger/Maintainer LC-2803 Specifications:
SPECIFICATIONSwitch Power Supply;For 12V or 6V lead-acid battery only. ⅠINPUT PROPERTY1AC input voltage range90~132Vac/185~264VacUniversal2AC input voltage rating100~120Vac/200~240Vac3AC input frequency47Hz~63Hz
4AC input current0.8A@ 115Vac/0.4A @ 230VacMax. (RMS)5AC input power56W Max.6AC input static state current50mAMax.OUTPUT PROPERTY1Output voltage range3~15.5VdcTypical2Bulk charge Current rating3A@12Vdc/6Vdc±0.3A3Output power48.5WMax.4Bulk charge voltage rating12VSTD 14.7 Vdc±0.3Vdc6VSTD 7.35 Vdc±0.2Vdc5Battery Maintainer voltage rating 12V15.5V±0.3Vdc6V7.75V±0.2Vdc6Float charge voltage rating12V13.7Vdc±0.2Vdc6V6.8Vdc±0.2Vdc7Light switching current600mA500-700mA
ⅡGENERAL CHARACTERISTICS 1Efficiency75%Typical2Over load protection
3Short circuit protectionEnable
4Reversed polarity protectionEnable
5Operating temperature-20℃~45℃
6Storage temperature-30℃~85℃
7Operating relative humidity8%~90%
8Storage relative humidity5%~95%

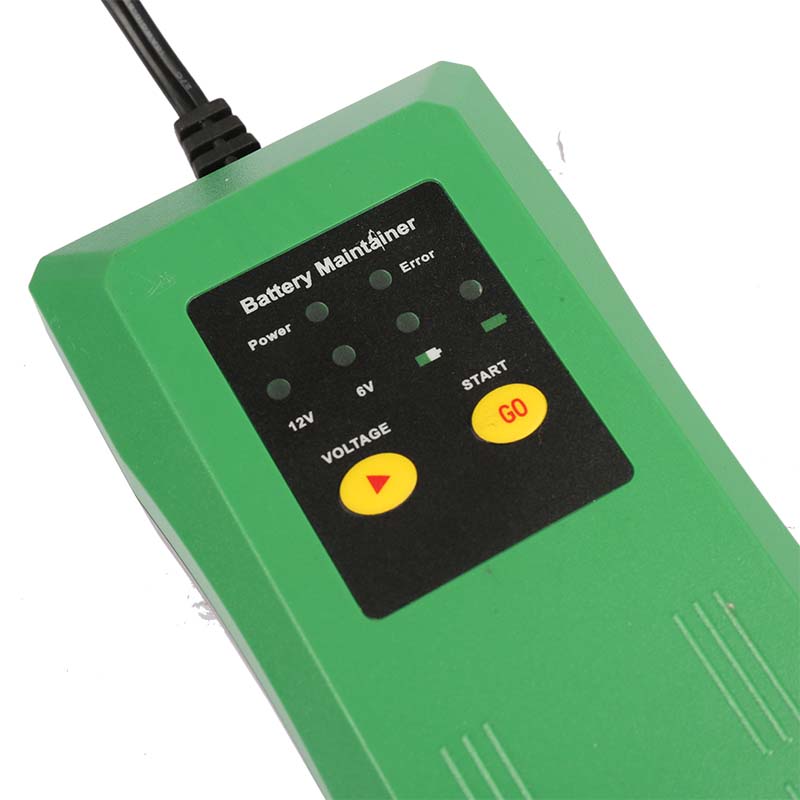

ⅢINDICATOR STATUS1Green LED onFull charge
2Orange LED onCharging
ⅣSAFETY
1Withstand Voltage (Hi-Pot)3000Vac ≤10mA (60s)I/P to O/P
2Insulation Resistance>100MΩ @500Vdc25℃ &70%RH
3Temperature RiseCase
4Safety StandardCE
5EMI/RFI StandardCE
RELIABILITY
Ⅵ1Spot testBurn in 24h at 40℃Full load
2Whole testBurn in 1h at 40℃Full load
ⅦMECHANICAL CHARACTERISTICS
1Net Weight400g
2Dimension160*75*42mm
3Enclosure Plastic case
