FPAD910R001-10.1 inch HMI
5/10 fairsManufacturerModel FPAD910R001
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the Shanghai Flexem Technology Co. Ltd. store
FPAD910R001-10.1 inch HMI
5/10 fairsManufacturerModel FPAD910R001
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: Touchsreen:10.1 inch
- Color: Black
- Signal: Other
- Customized: Non-Customized
- Task: Program
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touchsreen:10.1 inch
- Color: Black
- Signal: Other
- Customized: Non-Customized
- Task: Program
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touchsreen:10.1 inch |
|---|---|
| Color | Black |
| Signal | Other |
| Customized | Non-Customized |
| Task | Program |
| Structure | Other |
| Mathematical model | Other |
| Material | Other |
| Function | Monitoring |
From the supplier

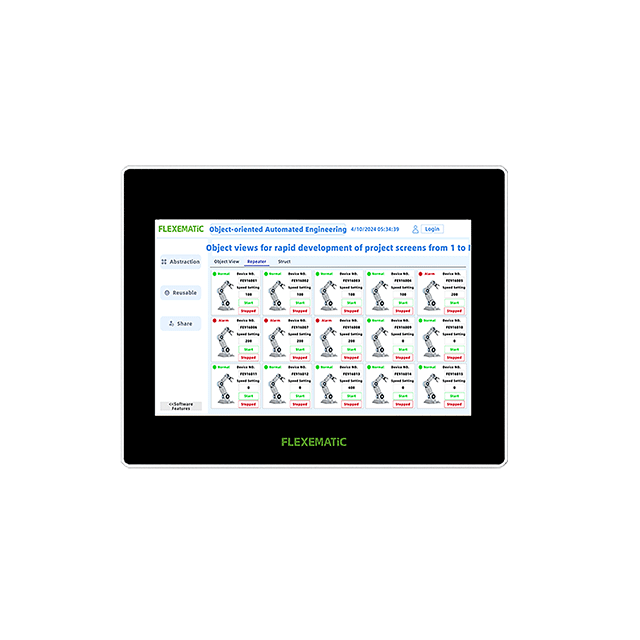

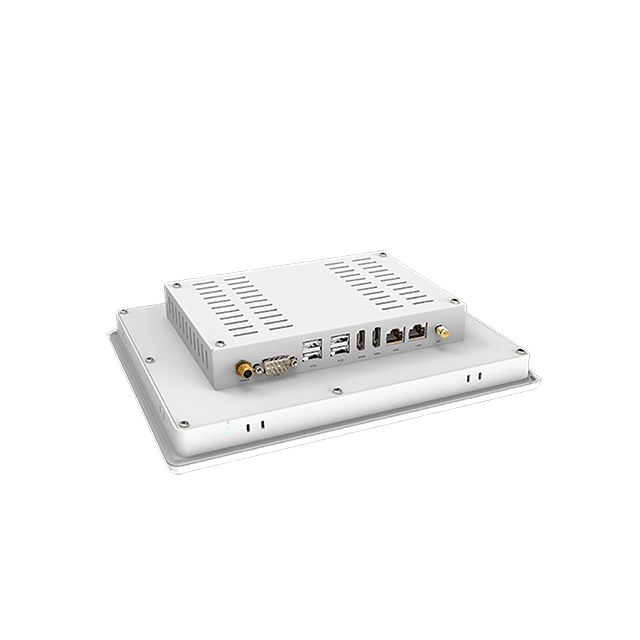

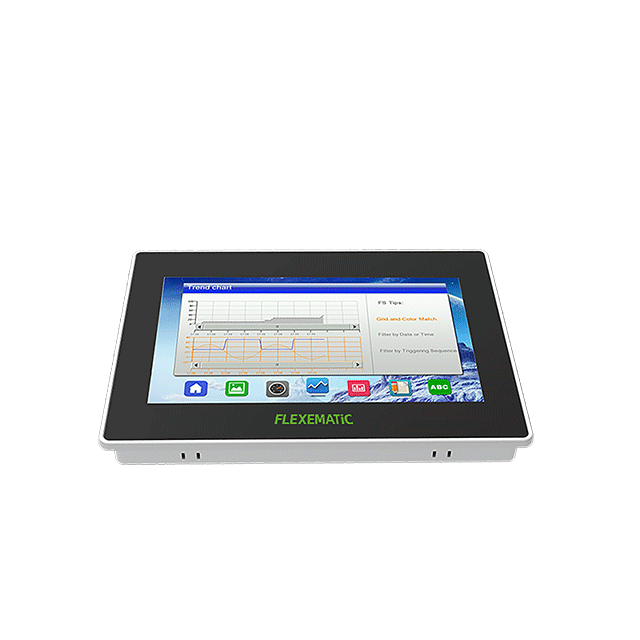

Flexem FPad910R001 intelligent HMI, 10.1" resistive touchscreen, metal enclosure, full-view display, 1024x600 resolution, 24-bit colors,2 Ethernet ports, 2 HDMI ports, provides a new-generation industrial HMI intelligent solution for customers.
FEATURES FPad910R001 Display 10.1" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 80'/80'/80'/80' Resolution 1024×600 Colors 24-bit Brightness 350 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU Integrated Intel Celeron J3455 4-core 1.50GHz Processor, up to 2.30GHz Storage 8GB DDR3L, supports 1333/1600/1866 MHz RTC Built-in SD Card NA Ethernet port 2* 10M/100M self-adaptive RJ45 port USB Port 4* USB 3.0 (Type-A, Rear I/O) HDMI Port 2* HDMI (upright 90° Type-A): up to 3840x2160@30Hz Download Method USB slave/Flash drive/Ethernat Serial port 1* RS232 (COM1, Full lanes, DB9/M) WiFi Optional Speaker Built-in Operating System Linux Rated power <60W Input Voltage DC12V/5A Power supply protection Isolated power adapter with lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Non-ferrous alloys Cutout Size 260mm×202mm Dimensions 274mm×214mm×27mm Weight About 1,450g
