About this product
- Size: Touchscreen:15.6 inch
- Color: Black
- Signal: Other
- Function: Monitoring
- Task: Program
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touchscreen:15.6 inch
- Color: Black
- Signal: Other
- Function: Monitoring
- Task: Program
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touchscreen:15.6 inch |
|---|---|
| Color | Black |
| Signal | Other |
| Function | Monitoring |
| Task | Program |
| Structure | Other |
| Mathematical model | Other |
| Customized | Non-Customized |
| Material | Other |
From the supplier

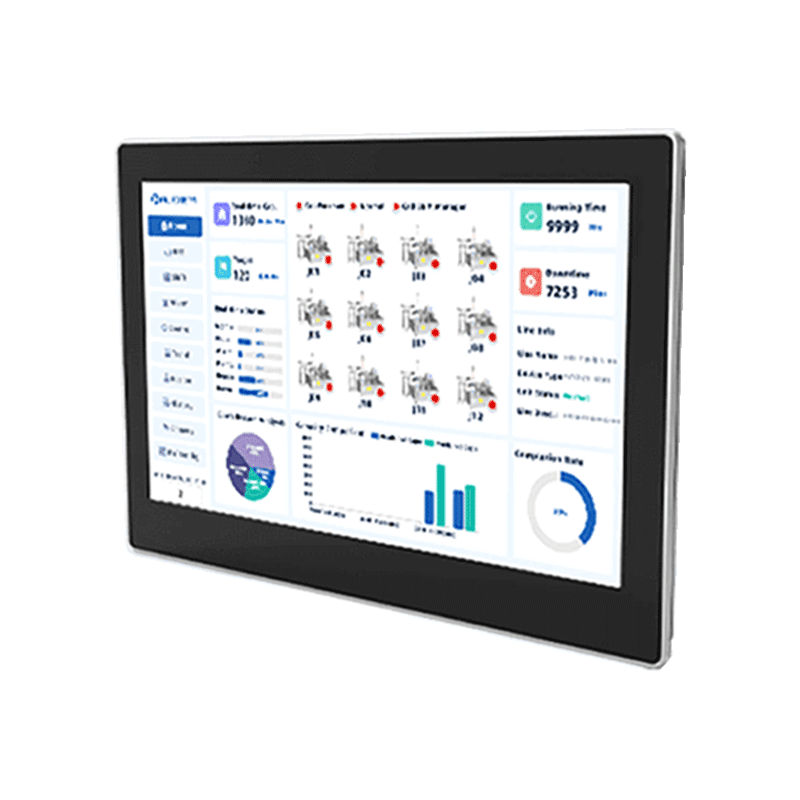

Flexem FPad716 intelligent HMI, 15.6" resistive touchscreen, metal enclosure, full-view display, 1920x1080 resolution, 24-bit colors,1 HDMI ports, provides a new-generation industrial HMI intelligent solution for customers.
FEATURES FPad716 Display 15.6" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1920×1080 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU SOC 8nm Ai chip GPU Mali-G610 MC4 Storage 32GB EMMC+4GB DDR4 RTC Built-in SD Card NA Ethernet port 2*Gigabit Ethernet(10/100/1000M) USB Port 2*USB 3.0 Type-A port HDMI Port HDMI 2.0a port,support 1080P display Download Method USB slave/Flash drive/Ethernat Serial port COM1/COM2: RS232/RS485/RS422, COM2: RS485/RS422, COM3: RS232 WiFi Optional 4G Optional Rated power <15W Input Voltage DC24V,Working range DC18V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Non-ferrous alloys Cutout Size 380mm×245mm Dimensions 394mm×256mm×31mm Weight About 2,700g
