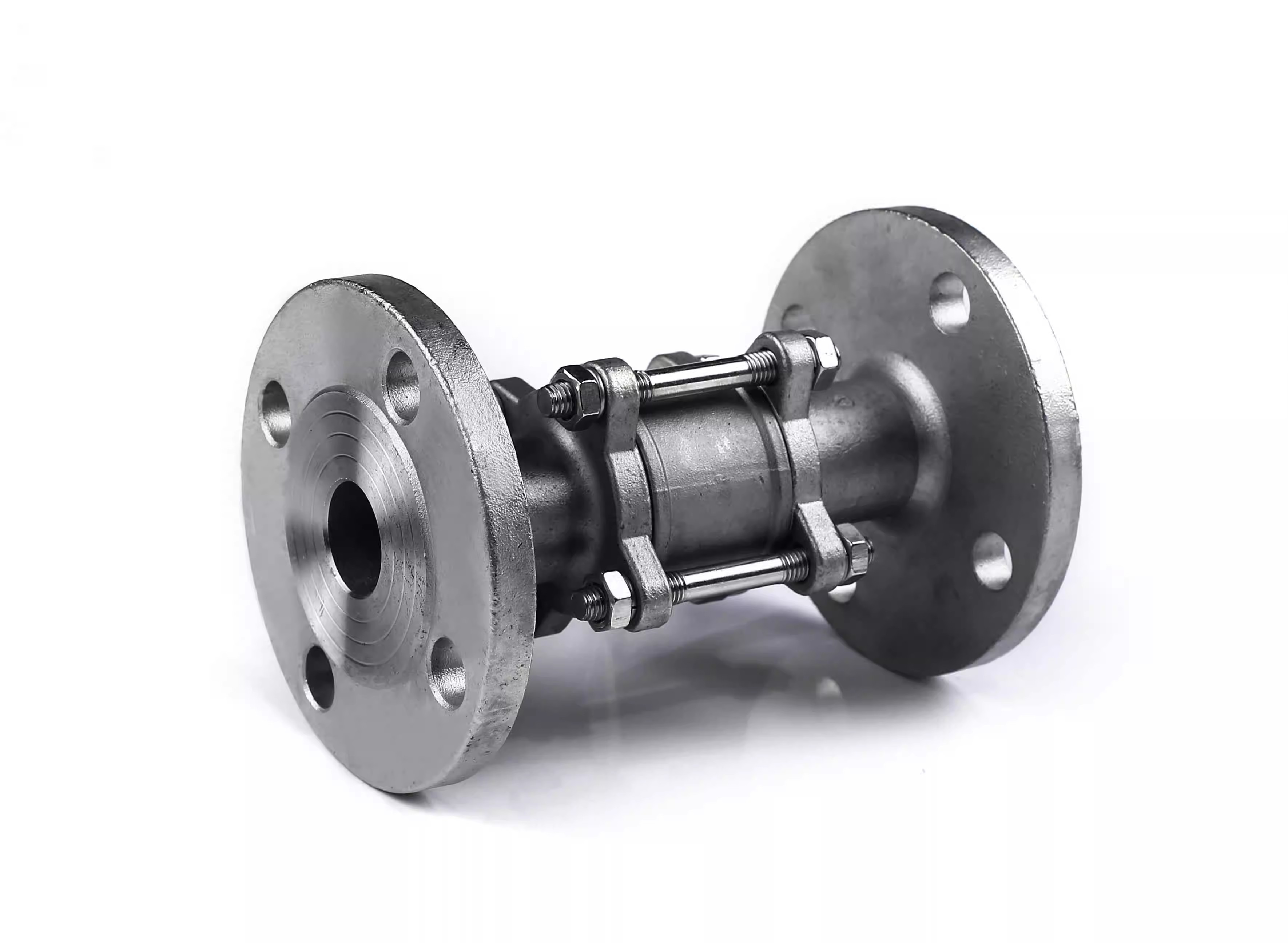

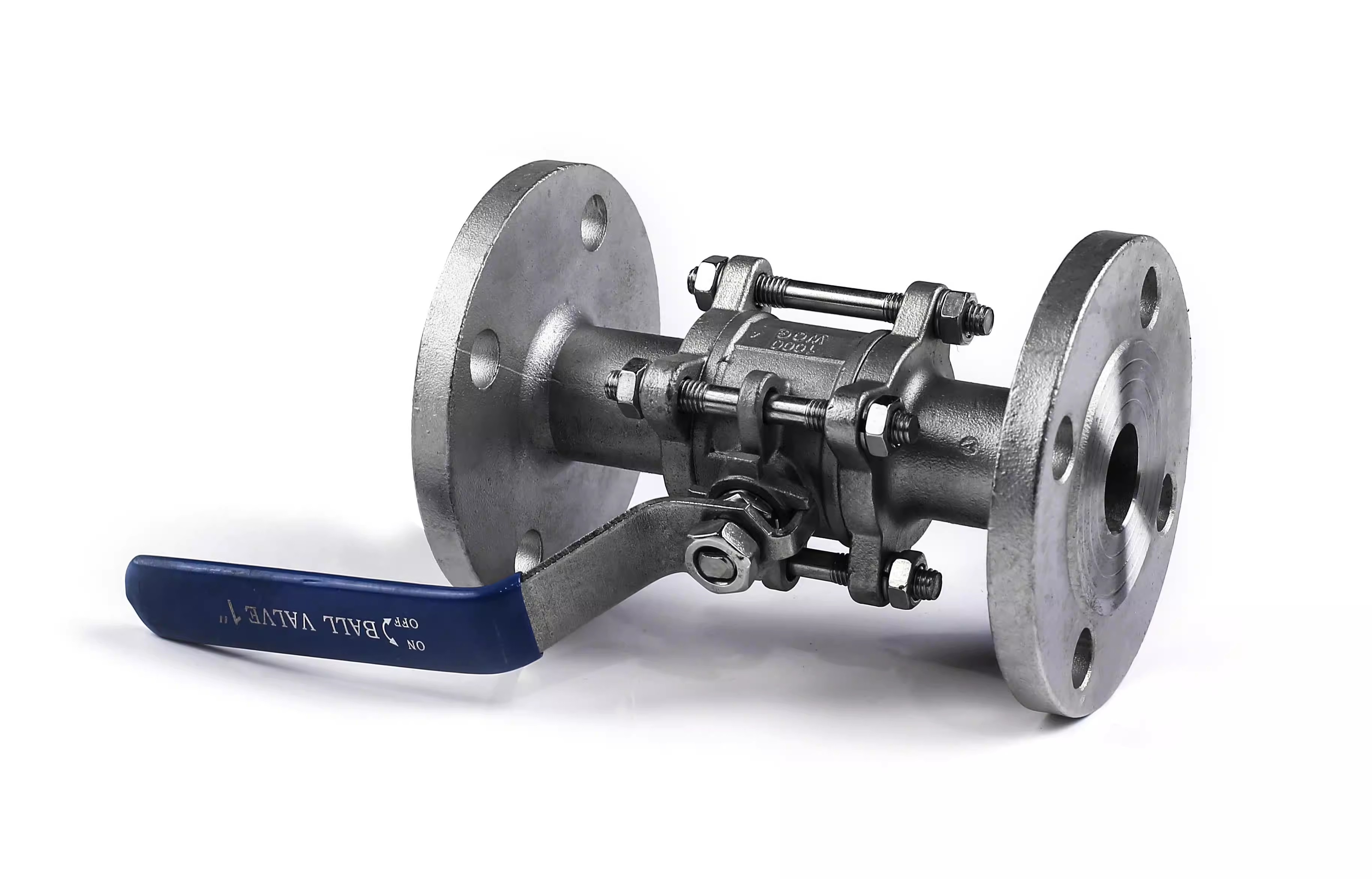

This product is a Q41F-16P type three-piece flanged ball valve. It is manufactured using a 304/316 stainless steel casting process and is specifically designed for high-corrosion, high-pressure, and high-temperature environments. It is suitable for demanding fluid control scenarios in industries such as chemical, petroleum, and pharmaceuticals. Its modular three-piece structure, soft-seal zero-leakage design, and full-diameter flow channel feature balance safety and ease of maintenance, making it a core control component for industrial pipeline systems.

I. Core Technical Parameters
Basic Specifications
Nominal Diameter: DN15 - DN200 (customization up to DN300 is supported).
Nominal Pressure: PN16 (1.6 MPa), short-term pressure resistance can reach 2.5 MPa.
Operating Temperature: -29℃ ~ 180℃ (standard type), PTFE sealing model can extend to 200℃.
Connection Standards
Flange Type: HG/T20592 national standard flange (US standard ANSI B16.5, Japanese standard JIS are optional).
Structural Form: Three-piece bolt connection, detachable valve body for easy cleaning and maintenance. Drive mode
Manual (handle/turbine head), electric, pneumatic actuators (optional as needed), supporting automatic control.

II. Material and Process Analysis
Valve Body Material
304 Stainless Steel: Resistant to general corrosion (such as weak acids, alkalis, and chloride ions), suitable for food-grade applications.
316 Stainless Steel: Contains molybdenum, with 30% enhanced resistance to pitting and seawater corrosion, suitable for marine engineering and strong acid media.
Core Components
Ball: 316 Stainless Steel hard coating (HVOF spraying process), surface roughness Ra ≤ 0.8 μm, reduces friction resistance.
Valve Seat: Enhanced PTFE (polytetrafluoroethylene) soft seal, resistant to chemical corrosion and wear compensation, with a sealing grade up to ANSI VI.
Valve Stem: 17-4PH precipitation hardening stainless steel, torsional strength ≥ 860 MPa, explosion-proof design to eliminate the risk of detachment.
Structural Design
Three-piece Separate: Valve body, valve cover, and middle chamber connected by bolts, supporting online maintenance (without the need to remove the pipeline).
Fire Safety: Valve seat can be selected with graphite fireproof structure (API 607 certified), still capable of temporarily blocking flow after high-temperature failure.

III. Core Product Advantages High corrosion resistance
The valve body made of 316 material has a corrosion rate of less than 0.01mm per year in 5% hydrochloric acid and 10% sulfuric acid media, and its service life exceeds 10 years (under normal operating conditions).
Low maintenance cost
The three-piece structure allows for the separate replacement of the valve seat or ball, reducing maintenance time by 60% and saving 40% in spare parts costs.
Zero leakage guarantee
The PTFE valve seat has an adaptive pre-tightening force design, maintaining bidirectional sealing even under pressure fluctuations, with a leakage rate of less than 100 ppm (in accordance with ISO5208 standards).
Full diameter design
The flow channel diameter is consistent with the pipeline (100% diameter), with a pressure drop of less than 0.01 bar, suitable for high flow rates and media containing particles (such as slurries, sewage).

IV. Typical Application Scenarios
Chemical Industry
Strong acids (sulfuric acid, hydrochloric acid), organic solvent transportation pipelines, 316 material compatible with media containing Cl⁻ ions (such as seawater desulfurization systems).
Energy Sector
Pipeline cut-off control for oil and gas, fire protection structure meeting API6D standards, compatible with sulfur-containing oil and gas fields.
Pharmaceuticals and Food
CIP/SIP cleaning pipelines, 304 material mirror finish (Ra ≤ 0.4 μm), in line with FDA hygiene standards.
Environmental Engineering
Wastewater treatment, denitration and desulfurization systems, fully through-diameter design to avoid impurities deposition and blockage.

V. After-sales Service and Selection Suggestions
Warranty Policy: 3-year warranty (including seals), providing leakage compensation service.
Customization Services: Supports special working conditions such as ultra-low temperature (-196℃ liquid nitrogen), high pressure (PN40), and vacuum (≤10⁻³Pa).
Compatibility Suggestions:
General Corrosion: 304 valve body + PTFE valve seat (the preferred choice for cost-effectiveness).
Extreme conditions: 316 valve body + graphite fireproof valve seat + electric actuator (highly hazardous automated scenarios).
